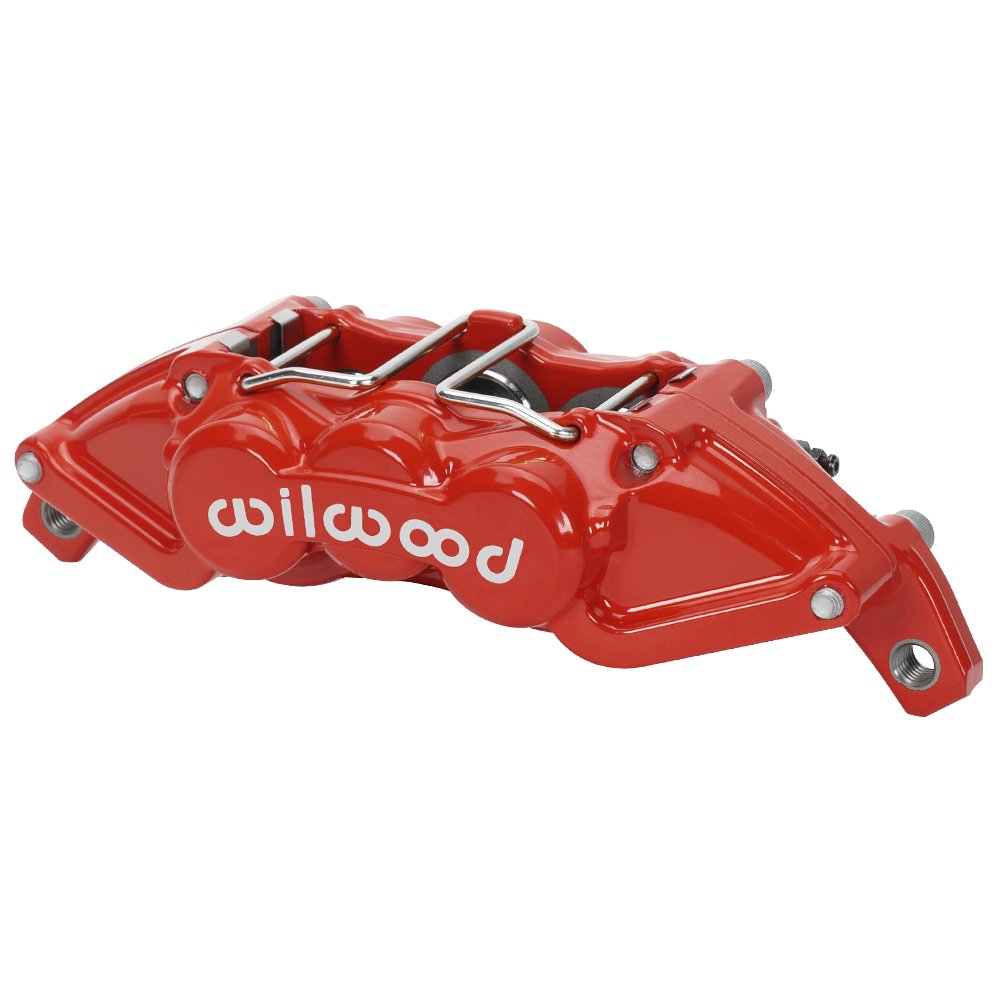

UTV6 Caliper
Prod #: 120-16570-RD
Price: $278.92

UTV6 Caliper - Product Summary
Caliper No: 120-16570-RD
UTV6 Caliper

Pistons
Piston Count 6
Piston Area (in²) 2.37
Piston Type Stainless
Dust Boot No
Rotor Dimensions
Rotor Width (in) 0.25
Rotor Diameter(in) 11.25
Pad Dimensions
Pad Area (in²) 6.36
Pad Volume (in³) 2.1
Duty Rating & Material
Material Forged Aluminium
Weight(Lbs) 3.1
Colors & Finish
Color Red
Finish Red Powder Coat

Mounting
Mount Center(in) 8.75
Mount Position
Mount Side Universal
Mount Type Lug
UPC Number
UPC 889545104103
Product Documents
Product Data Sheet

Installation Instructions



120-16570-RD - Product Description

UTV6 Caliper

UTV4 and UTV6 forged aluminum differential-bore four and six piston calipers are newest design for the specificaly UTV market. ASM design and forged construction reduce deflection and provide more uniform engagement to increase braking force and improve feel. Stainless steel pistons and anti-knock back springs further enhance the pedal feel. Calipers use standard 7812 shape, high-friction brake pads.



Product Specifications

Rotor Compatibility
Rotor Width (in) 0.25
Maximum Rotor Width (in) 0.25
Minimum Rotor Width (in) 0.19
Maximum Rotor Diameter(in) 11.25
Minimum Rotor Diameter(in)

Brake Pad Specifications
Brake Pad Type 1 7812
Brake Pad Type 2 N-A
Brake Pad Type 3 N-A
Total Pad Area (in²) 6.36
Total Pad Volume (in³) 2.1
Mount
Piston Specifications
Piston 1 Bore (in) 1.00
Piston 2 Bore (in) 1.00
Piston 3 Bore (in) 1.00
Total Piston Area (in²) 2.37

Mounting Specifications
Mount Type Lug
Mount Side Universal
Mount Center(in) 8.75
Mount Hole Size(in)
Mount Height(in)
Inlet Thread Size M10 x 1.25
Pad Dimensions & Part Numbers
Pad Dimensions for the UTV6 Caliper Pad Dimensions for the UTV6 Caliper Zoom Image
Axle Set P/N
Pad Type
Compound
Non-Bedded Pads - by Compounds
150-9136K
7812
BP-10
150-20-7812K
7812
BP-20
150-28-7812K
7812
BP-28
150-30-7812K
7812
BP-30
150-35-7812K
7812
BP-35
150-40-7812K
7812
BP-40
150-45-7812K
7812
BP-45
150-Q-7812K
7812
BP-Q
15B-9836K
7812
PolyMatrix B
Mount Dimensions & Part Numbers

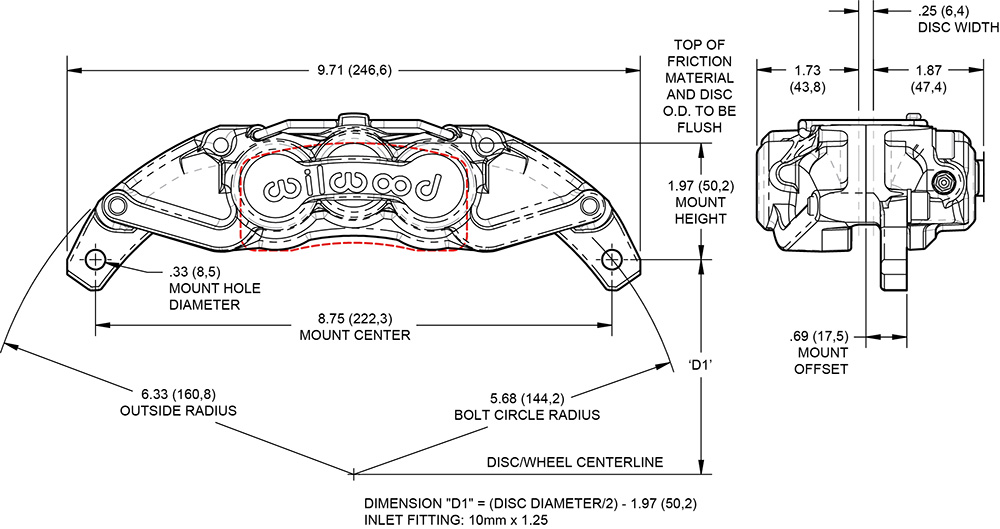

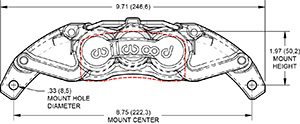

Dimensions for the UTV6 Caliper Dimensions for the UTV6 Caliper Zoom Image

Additional Notes


Parts & Accessories

O-Ring Kit 130-17376
Replacement Dust Boot N-A
Replacement Piston 1 200-12953
Replacement Piston 2 200-12953
Replacement Piston 3 200-12953
Replacement Piston 4 N-A
Cross-Over O-Ring Kit 130-10540
Bridge Bolt Kit
Wear Plate L/H 300-10829
Wear Plate R/H 300-10828
Pad Retainer 300-16565
Bleed Screw Kit 220-0627
Self Bleeder Tube N-A
Cross-Over Tube N-A
