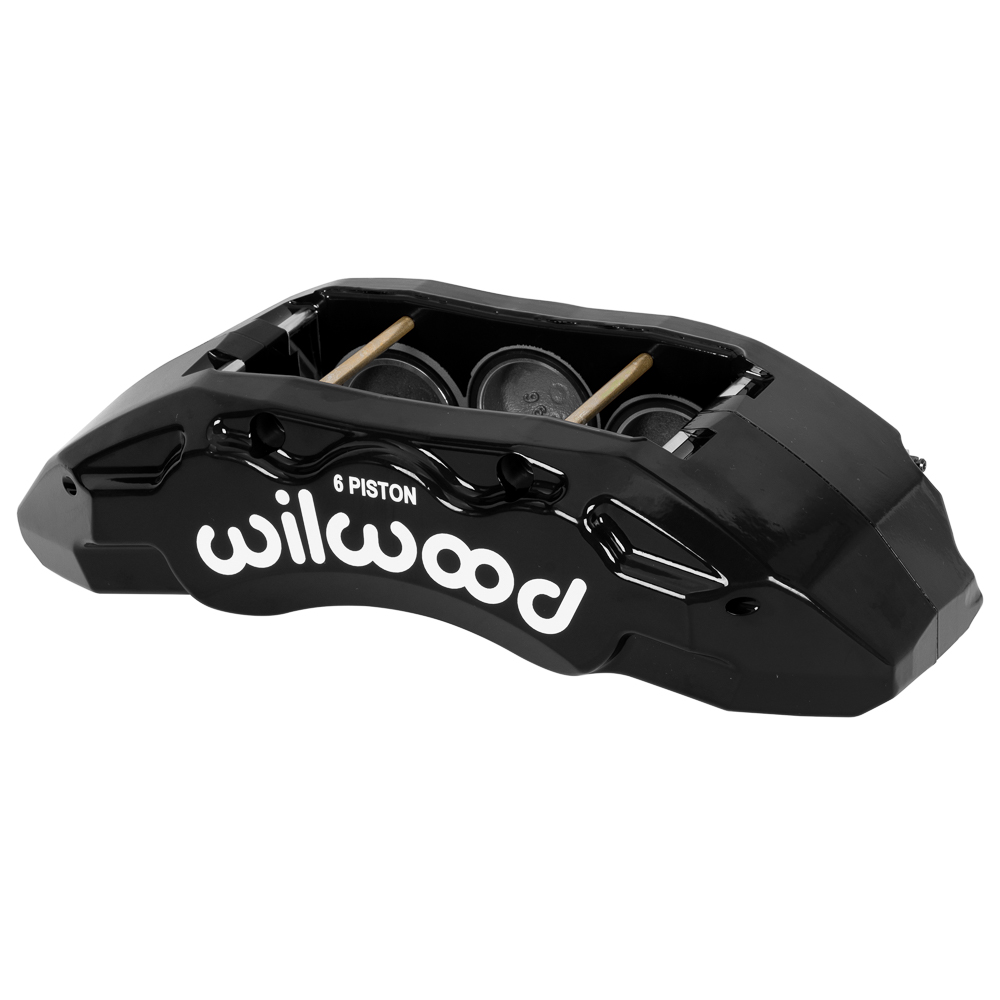

TX6-DM Forged Lug Mount

The Tactical Xtreme TX6-DM direct lug mount six-piston calipers are engineered and purpose built for severe duty service on heavy duty Trucks and SUV's. The combination of the forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake rotors up to 1.50” thick, make the TX6-DM the ultimate choice for high strength, lightweight, and tactical level braking capacity for all types of highway and off-road extreme duty service applications. TX6-DM calipers have a hard anodized finish on base models with options for gloss black or red powder coat.

Tactical Xtreme TX6-DM calipers features include: a specific direct lug mount spacing and offset for specific vehicles. A Stress flow forged aluminum 6-piston body design with Stainless steel pistons with high-temp internal bore seals. Currently developed for rotors in the 15.00” diameter range and rotor widths of 1.50”. Easy access top loaded type 10120,.770” thick pads with rigid .240” thick backing plates. Stainless steel bridge plates and Protected single bleed design with internal fluid ports.
