Search Results Category: MC4 Mechanical
MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.19
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.00" Floating Mount
Rotor Width: 0.81
Max Rotor Dia: 12.88

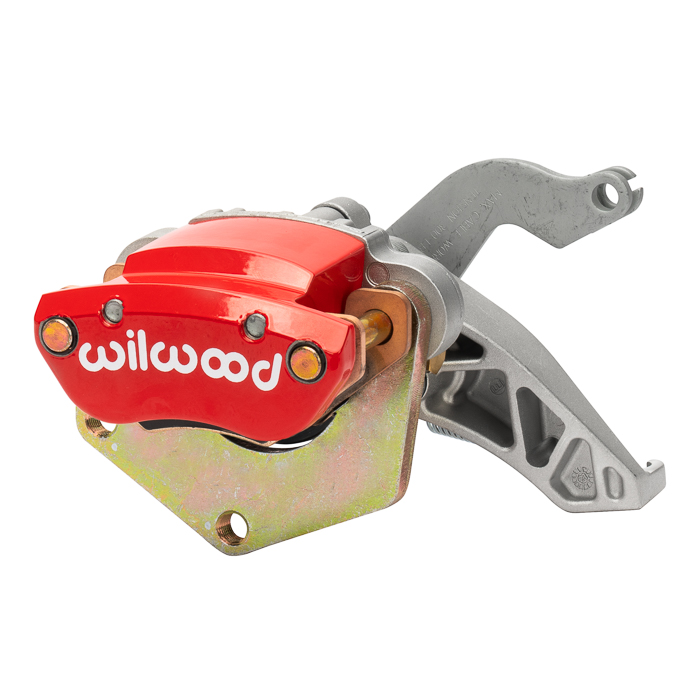

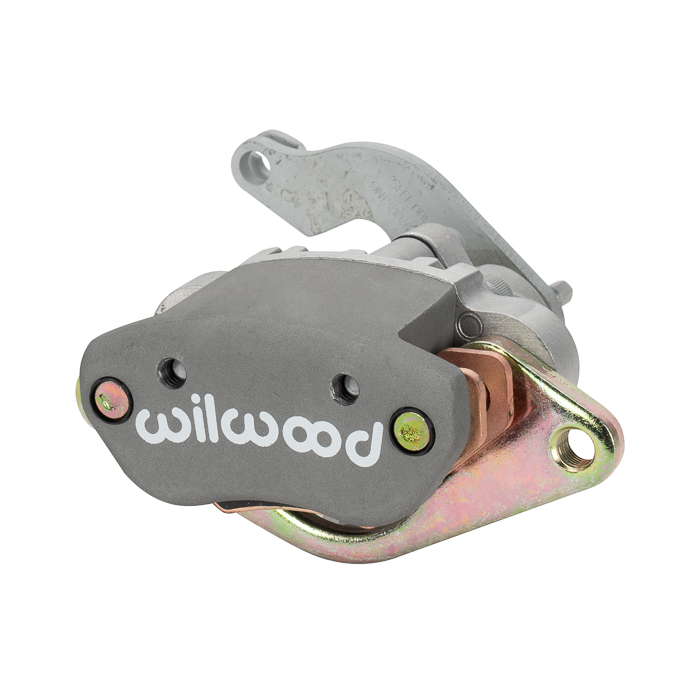

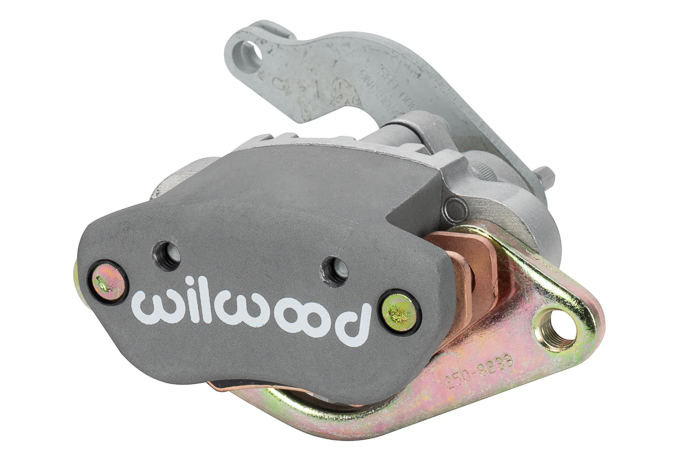

MC4 Mechanical Caliper MC4 Mechanical Caliper Zoom Image

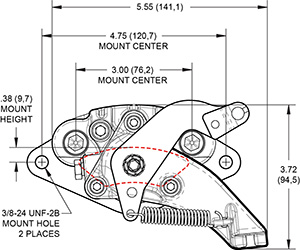

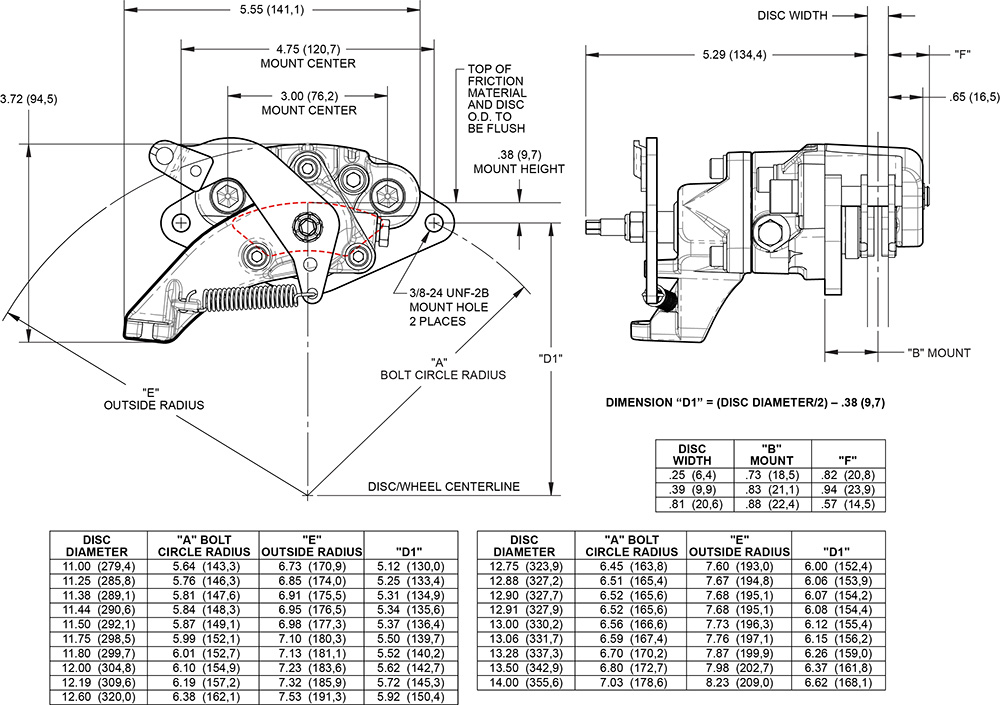

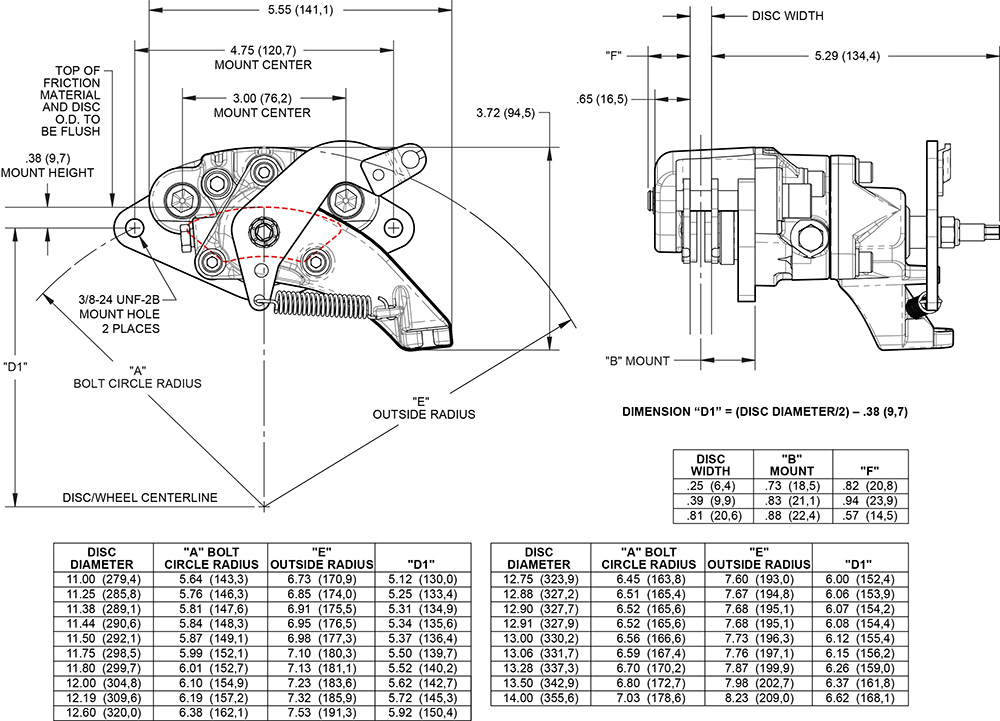

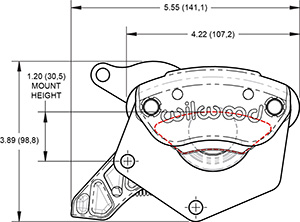

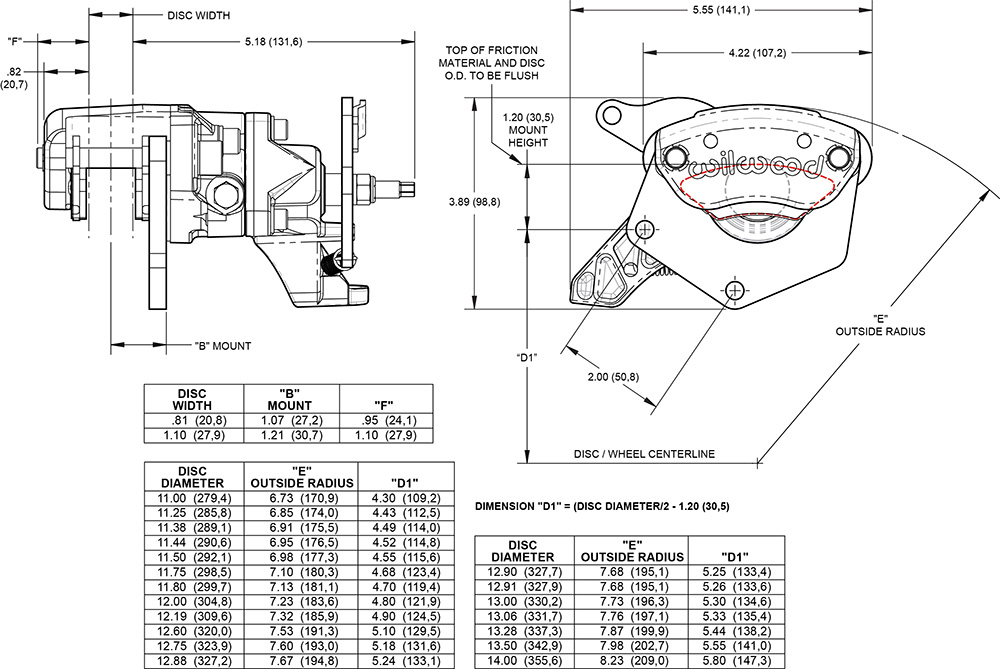

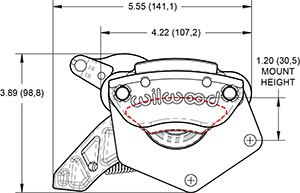

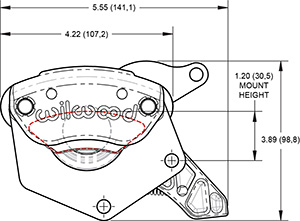

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.

Ordering Information for MC4 Mechanical
Item No 120-15354-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $180.83
Purchase
Call (805) 388-1188
Item No 120-15353-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $180.83
Purchase
Call (805) 388-1188
Item No 120-15354-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $180.83
Purchase
Call (805) 388-1188
Item No 120-15353-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $180.83
Purchase
Call (805) 388-1188

MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.19
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.00" Floating Mount
Rotor Width: 0.81
Max Rotor Dia: 12.88

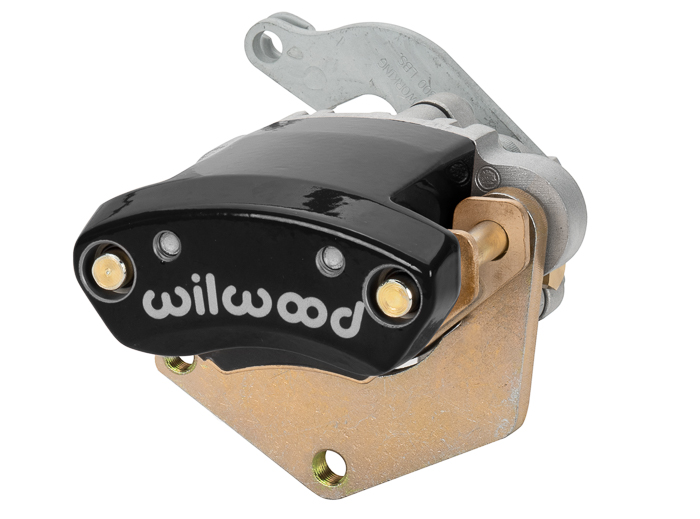

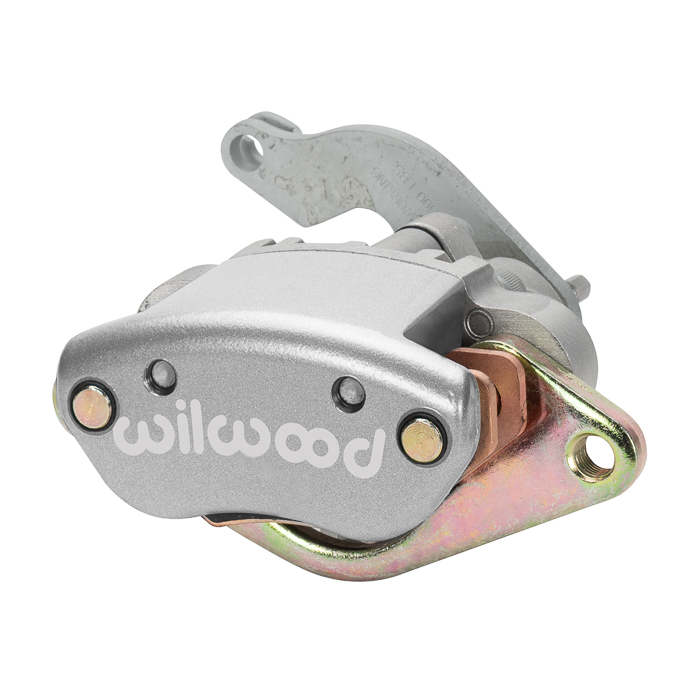

MC4 Mechanical Caliper MC4 Mechanical Caliper Zoom Image

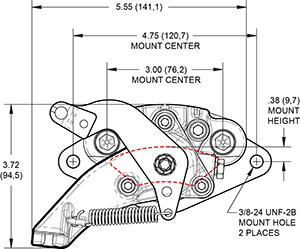

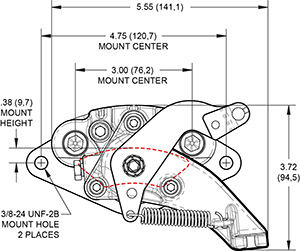

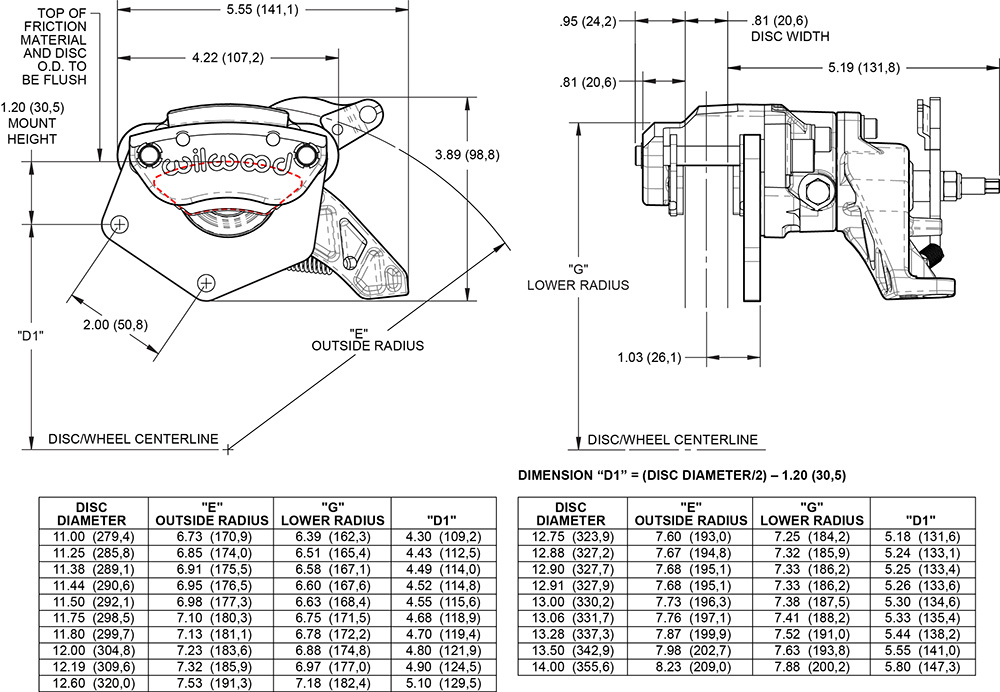

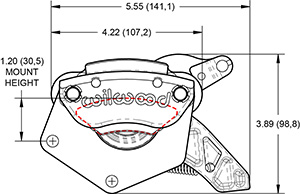

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing Zoom Image
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.

Ordering Information for MC4 Mechanical
Item No 120-12070-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $129.12
Purchase
Call (805) 388-1188
Item No 120-12069-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $129.12
Purchase
Call (805) 388-1188
Item No 120-12070-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $129.12
Purchase
Call (805) 388-1188
Item No 120-12069-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $129.12
Purchase
Call (805) 388-1188
Item No 120-12070
Info Details
Mount Location Left Hand
Finish & Color Silver Powder Coat
Price $129.12
Purchase
Call (805) 388-1188
Item No 120-12069
Info Details
Mount Location Right Hand
Finish & Color Silver Powder Coat
Price $129.12
Purchase
Call (805) 388-1188

MC4 Mechanical
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.19
Piston 1 Dia: 1.19
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.00" Floating Mount
Rotor Width: 1.10
Max Rotor Dia: 12.88

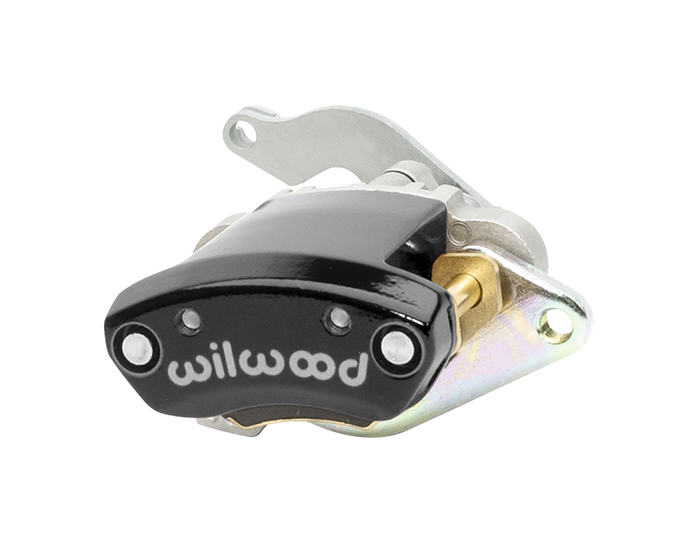

MC4 Mechanical Caliper MC4 Mechanical Caliper Zoom Image

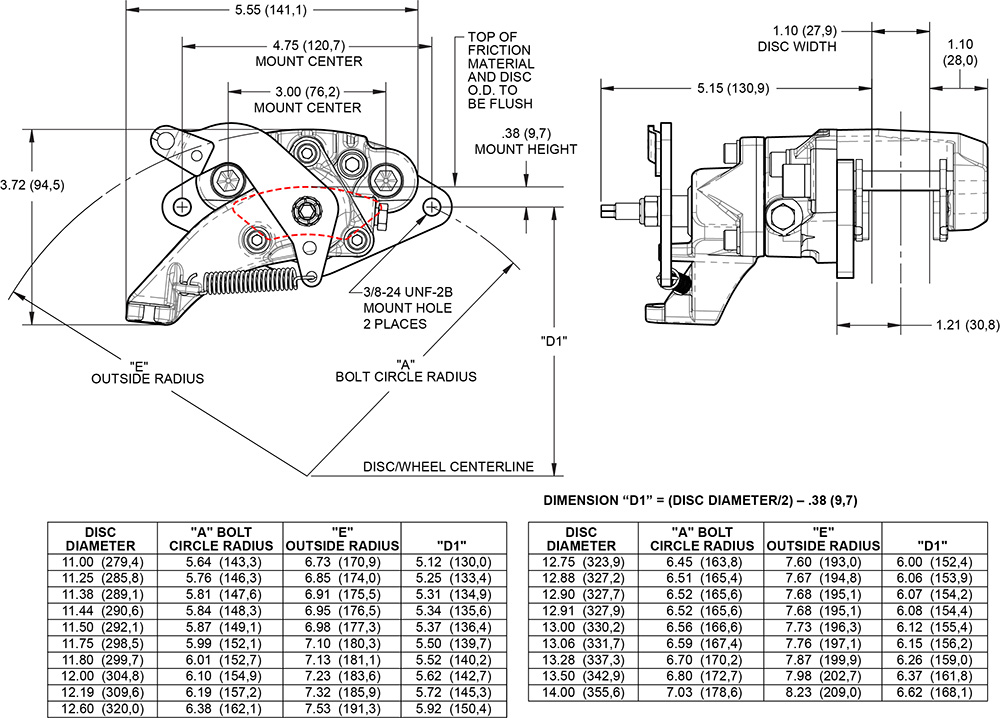

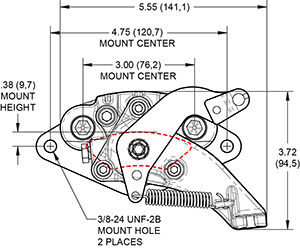

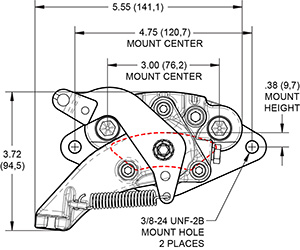

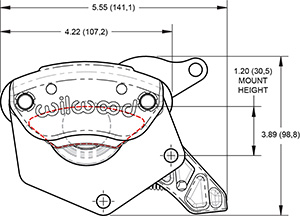

MC4 Mechanical Caliper Drawing MC4 Mechanical Caliper Drawing Zoom Image
Brake Pad Plate # 6407


View Custom Caliper Colors

MC4 Mechanical Description

Wilwood’s MC4 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are from 0.81" to 1.10” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields.

Ordering Information for MC4 Mechanical
Item No 120-15485-BK
Info Details
Mount Location Left Hand
Finish & Color Black Powder Coat
Price $164.93
Purchase
Call (805) 388-1188
Item No 120-15484-BK
Info Details
Mount Location Right Hand
Finish & Color Black Powder Coat
Price $164.93
Purchase
Call (805) 388-1188
Item No 120-15485-RD
Info Details
Mount Location Left Hand
Finish & Color Red Powder Coat
Price $164.93
Purchase
Call (805) 388-1188
Item No 120-15484-RD
Info Details
Mount Location Right Hand
Finish & Color Red Powder Coat
Price $164.93
Purchase
Call (805) 388-1188
