Search Results Category: DH4
DH4 Dual Hydraulic
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.77
Piston 1 Dia: 1.50
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.38" Floating Mount
Rotor Width: 0.19
Max Rotor Dia: 9.00

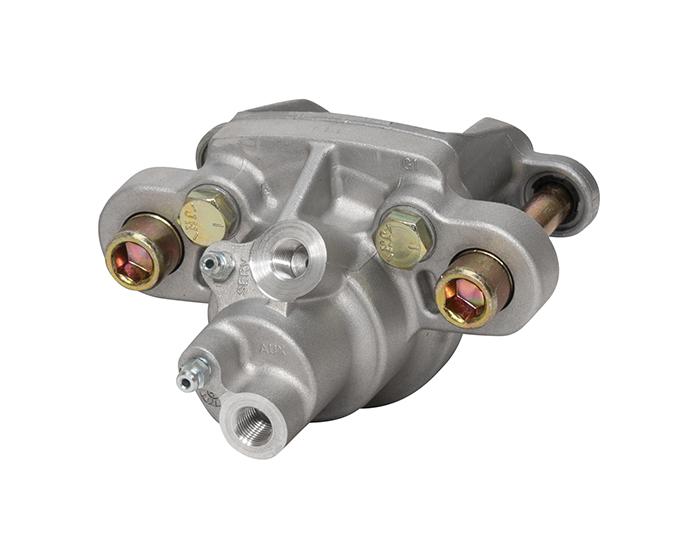

DH4 Dual Hydraulic Caliper DH4 Dual Hydraulic Caliper Zoom Image

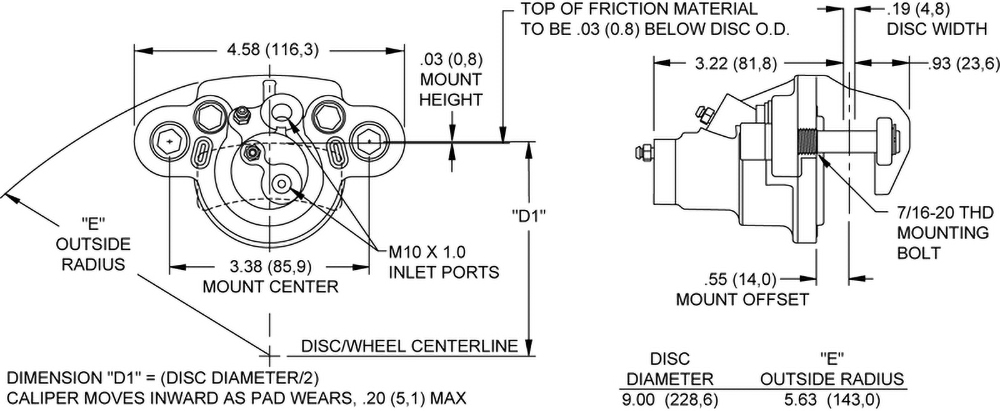

DH4 Dual Hydraulic Caliper Drawing DH4 Dual Hydraulic Caliper Drawing Zoom Image
Brake Pad Plate # 4508


DH4 Dual Hydraulic Description

Wilwood’s DH4, Dual Hydraulic Calipers offers a step bore piston with a unique primary braking circuit and an additional isolated secondary hydraulic actuated parking brake. Primary piston bore is 1.50” inches, secondary is .94 “diameter and is further isolated with dual 10mm x 1.00 fluid inlets. Designed for rotors no larger 9.00” diameter and .19” width. DH4 caliper feature a floating, single piston design with 3.38” wide slide pin mounting. The DH4’s Low squeeze version use a modified seal design to maximize piston retraction in applications where low drag is paramount. Calipers are supplied without brackets. Additional steel brackets are available.

Ordering Information for DH4 Dual Hydraulic
Item No 120-9234
Info Details
Mount Location Universal
Finish & Color Clear Anodize
Price $105.92
Purchase
Call (805) 388-1188

DH4 Dual Hydraulic
Number Pistons: 1
Piston Type: Aluminum
Piston Area: 1.77
Piston 1 Dia: 1.50
Piston 2 Dia: -
Piston 3 Dia: -
Mount Description: 3.38" Floating Mount
Rotor Width: 0.19
Max Rotor Dia: 9.00

DH4 Dual Hydraulic Caliper DH4 Dual Hydraulic Caliper Zoom Image

DH4 Dual Hydraulic Caliper Drawing DH4 Dual Hydraulic Caliper Drawing Zoom Image
Brake Pad Plate # 4508


DH4 Dual Hydraulic Description

Wilwood’s DH4, Dual Hydraulic Calipers offers a step bore piston with a unique primary braking circuit and an additional isolated secondary hydraulic actuated parking brake. Primary piston bore is 1.50” inches, secondary is .94 “diameter and is further isolated with dual 10mm x 1.00 fluid inlets. Designed for rotors no larger 9.00” diameter and .19” width. DH4 caliper feature a floating, single piston design with 3.38” wide slide pin mounting. The DH4’s Low squeeze version use a modified seal design to maximize piston retraction in applications where low drag is paramount. Calipers are supplied without brackets. Additional steel brackets are available.

Ordering Information for DH4 Dual Hydraulic
Item No 120-8476
Info Details
Mount Location Universal
Finish & Color Clear Anodize
Price $105.92
Purchase
Call (805) 388-1188
