Search Results Category: D11
D11 Caliper
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.12
Piston 1 Dia: 1.62
Piston 2 Dia: 1.62
Piston 3 Dia: -
Mount Description: 2.75" Lug Mount
Rotor Width: 0.94
Max Rotor Dia: 11.30

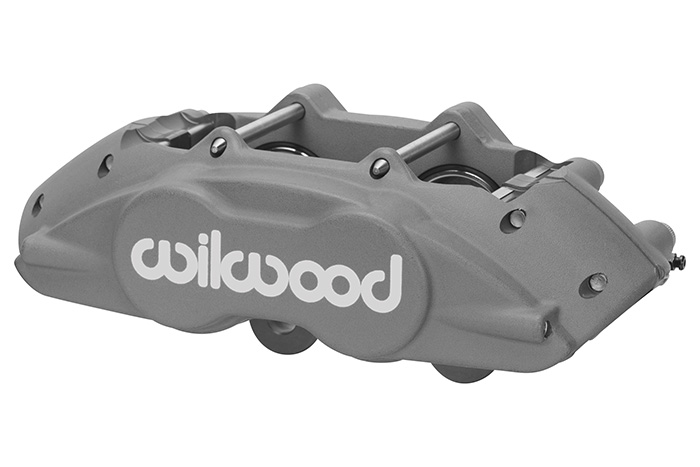

Type III Anodize D11 Caliper Caliper

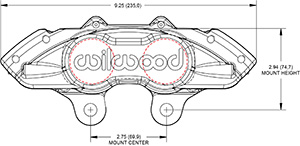

D11 Caliper Caliper Drawing D11 Caliper Caliper Drawing Zoom Image
Brake Pad Plate # D11

View Custom Caliper Colors

D11 Caliper Description

Wilwood's D11 four piston calipers are a direct bolt-on replacement for the original equipment Kelsey-Hayes calipers on all 1965-67 Ford Mustang, Fairlane, Ranchero, Falcon, Comet, and Mercury Cougar.

Forged billet aluminum bodies, internal fluid crossover, stainless steel pistons, and high-temperature seals put an end to the rust, leaking, bore pitting and seal failures that plague the OE caliper design. D11 calipers can use factory-style brake pads, and fit in stock location with original brackets and rotors.

Ordering Information for D11 Caliper
Item No 120-16510
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $303.10
Call (805) 388-1188
Item No 120-16510-BK
Info Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $405.39
Call (805) 388-1188
Item No 120-16510-RD
Info Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $405.39
Call (805) 388-1188
