DPC56 Caliper
Number Pistons: 4
Piston Type: Stainless
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 5.04" Lug Mount
Rotor Width: 1.04
Max Rotor Dia: 12.00
Red Powder Coat DPC56 Caliper  Caliper

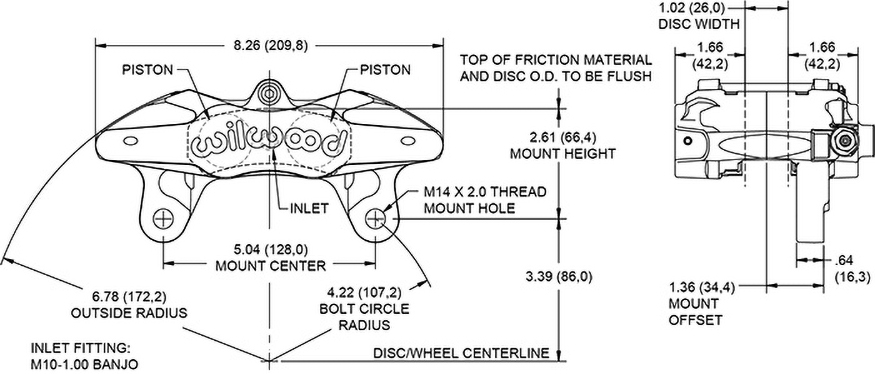

DPC56 Caliper Caliper Drawing DPC56 Caliper Caliper Drawing Zoom Image
Brake Pad Plate # 4812


View Custom Caliper Colors

DPC56 Caliper Description

DPC56 rear calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. DPC56 calipers add high-tech styling and provide the positive response and balanced pad loading provided by a fixed mount, four piston caliper. The DPC56 is a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using 12.00” diameter rear rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.

Ordering Information for DPC56 Caliper
Item No 120-13916-BK
Info Details
Mount Location Universal
Finish & Color Black Powder Coat
Price $363.81
Purchase
Call (805) 388-1188
Item No 120-13916-RD
Info Details
Mount Location Universal
Finish & Color Red Powder Coat
Price $363.81
Purchase
Call (805) 388-1188
