Brake Pad Part No: 150-15798K


Power Sports / Industrial Pads

Pad#: 6407
Compound: Sintered Metallic
Prod #: 150-15798K
Price: $46.74
Wilwood Brake Pad Plate #6407 Wilwood Brake Pad Plate #6407 Zoom Image
Sintered Metallic
Sintered Metallic Coming Soon
Picture shown is for illustrative purposes only
Pad Dimensions
Thickness(in) .27
Area(in²) 1.7
Volume(in³) 0.26
Bedded N
UPC Number
UPC 889545092462
Dust & Noise Ratings
Dust Production Rating
Pad Noise Rating
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Sintered Metallic Compound

Pad Characteristics

  • Medium friction pad, high effective temperature range in medium temperature pad group
  • Smooth engagement, friction rises with increased temperature
  • Medium wear rate at high temperature
  • Formulation for Power Sports and Industrial applications

Pad Applications

  • Street use okay
  • UTV
  • ATV
  • Kart
  • Small vehical usage
  • Industrial applications

Rotor Material

  • Steel
Sintered Metallic Performance Stats Sintered Metallic Performance Stats
Sintered Metallic Friction Coefficient and Temperature Values Sintered Metallic Friction Coefficient and Temperature Values Zoom Image

The above friction data (μ) was recorded through braking cycles from 95 mph to 40 mph at a 0.5g deceleration. Snubs were consecutively done until rotor temperature reached 1300°F. This graph represents average data and is for general trend visualisations only comparing Wilwood pads. Chart data should not be used in comparison with other manufacturer's data. Test conditions, variables, and environment can affect test results.

Temperature range and overall friction value are the primary considerations for pad selection. The pads must maintain the proper amount of friction for stopping power within the temperatures that will be realized on the track. Overall wear rate must also be considered. For most asphalt and road race applications, compounds in the high-temperature range over 1000°F are usually necessary. Dirt track, drag race, and street performance applications usually operate at temperatures between 500° and 1000°F. Keep in mind that these are general ranges and not absolute values. Many factors and unforeseen influences can affect brake temperatures. The best indicator for pad selection will always be on-track performance. If pad fade (friction loss) due to overheating occurs, improved cooling, a heavier rotor, or a higher temperature range pad may become necessary.

Wilwood Compatible Caliper(s) for Pad #6407

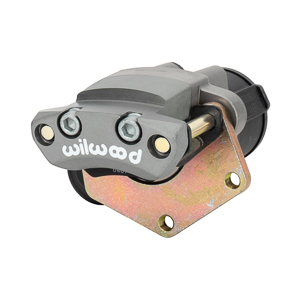

Electric Parking Brake
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.00
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 1.25
Max Rotor Diameters (in) 14.00

Electric Parking Brake Calipers

Wilwood’s new Electronic Parking Brake Caliper (EPB), is a high-torque alternative to manual cable actuated brakes. Offering a simplified installation with additional electronic control systems also available from Wilwood. Available in popular rotor widths of 0.81”, 1.10” and 1.25”. View Electronic Parking Brake Calipers

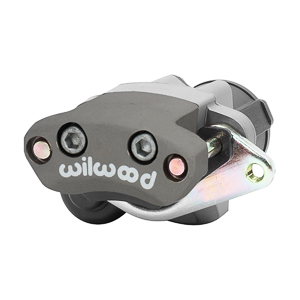

Electric Parking Brake
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.00
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.81
Max Rotor Diameters (in) 14.00

Electric Parking Brake Calipers

Wilwood’s new Electronic Parking Brake Caliper (EPB), is a high-torque alternative to manual cable actuated brakes. Offering a simplified installation with additional electronic control systems also available from Wilwood. Available in popular rotor widths of 0.81”, 1.10” and 1.25”. View Electronic Parking Brake Calipers

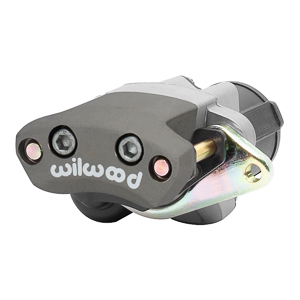

Electric Parking Brake
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.00
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 1.10
Max Rotor Diameters (in) 14.00

Electric Parking Brake Calipers

Wilwood’s new Electronic Parking Brake Caliper (EPB), is a high-torque alternative to manual cable actuated brakes. Offering a simplified installation with additional electronic control systems also available from Wilwood. Available in popular rotor widths of 0.81”, 1.10” and 1.25”. View Electronic Parking Brake Calipers
Electric Parking Brake
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.00
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.39
Max Rotor Diameters (in) 14.00

Electric Parking Brake Calipers

Wilwood’s new Electronic Parking Brake Caliper (EPB), is a high-torque alternative to manual cable actuated brakes. Offering a simplified installation with additional electronic control systems also available from Wilwood. Available in popular rotor widths of 0.81”, 1.10” and 1.25”. View Electronic Parking Brake Calipers
Electric Parking Brake
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.00
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.81
Max Rotor Diameters (in) 14.00

Electric Parking Brake Calipers

Wilwood’s new Electronic Parking Brake Caliper (EPB), is a high-torque alternative to manual cable actuated brakes. Offering a simplified installation with additional electronic control systems also available from Wilwood. Available in popular rotor widths of 0.81”, 1.10” and 1.25”. View Electronic Parking Brake Calipers
HM1 Hydra-Mechanical
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.79
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.19
Max Rotor Diameters (in) 9.00

HM1 Hydra-Mechanical Calipers

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper. View HM Hydra-Mechanical Calipers
HM2 Hydra-Mechanical
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.06
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 11.20

HM2 Hydra-Mechanical Calipers

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper. View HM Hydra-Mechanical Calipers
HM4 Hydra-Mechanical
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.79
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.19
Max Rotor Diameters (in) 11.20

HM4 Hydra-Mechanical Calipers

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper. View HM Hydra-Mechanical Calipers
HM5 Hydra-Mechanical
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.06
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.19
Max Rotor Diameters (in) 11.20

HM5 Hydra-Mechanical Calipers

Wilwood's HM series Hydra-Mechanical calipers are the perfect rear caliper for utilty vehicles. HM calipers offer options of both left-hand and right-hand units, with piston sizing of either 1.00" or 1.19. HM calipers utilizes a cost effective die cast construction with advanced design and manufacturing techniques which results in a rigid, lightweight and durable caliper. View HM Hydra-Mechanical Calipers
MC3 Mechanical
Caliper Dimensions
Piston Count 0
Piston Area Range (in²) 0.00
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 9.00

MC3 Mechanical Calipers

Wilwood’s innovative MC Series of Mechanical Calipers is an efficient, multi-use cable operated brake caliper which combines high output performance with simplicity in design and construction. This lightweight, high strength die cast caliper operates in a fixed mount position and requires no additional external return springs. Perfect for Yard Karts, Industrial and Commercial applications. View MC2 / MC3 Calipers
MC4 Mechanical
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.11
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.81
Max Rotor Diameters (in) 12.88

MC4 Mechanical Calipers

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields. View MC4 Mechanical Calipers
MC4 Mechanical
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.11
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.81
Max Rotor Diameters (in) 12.88

MC4 Mechanical Calipers

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are 1.10” thick, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields. View MC4 Mechanical Calipers
MC4 Mechanical
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.11
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 1.10
Max Rotor Diameters (in) 12.88

MC4 Mechanical Calipers

Wilwood's MC4 Mechanical Parking Brake Caliper is a multi-use, cable-operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are 1.10” thick, with an 11.00” - 14.00” diameter range, the MC4 combines an efficient die-cast body with a forged billet anvil for superior strength under load yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads and are pre-fitted with noise-canceling shields. View MC4 Mechanical Calipers
MC4 Mechanical - Less Logo
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.11
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.81
Max Rotor Diameters (in) 12.88

MC4 Mechanical - Less Logo Calipers

Wilwood’s MC4 Mechanical Parking Brake Caliper (Less Logo)is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .810” thick, with 11.00” - 12.88” diameter range, the MC4 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields. View MC4 Mechanical Calipers
MC5 Mechanical
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.19
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 12.88

MC5 Mechanical Calipers

Wilwood’s MC5 Mechanical Parking Brake Caliper is a multi-use, cable operated brake caliper that combines high output performance with simplicity in design and construction, and is the perfect solution for vehicle applications requiring a separate, mechanically actuated parking brake caliper. Built to accept rotors that are .250” thick, with 11.00” - 12.88” diameter range, the MC5 combines an efficient die cast body with a forged billet anvil for superior strength under load, yet is lightweight at only 3.30 (2.95 without pads) pounds. Supplied with each caliper are our Composite Metallic (CM) high-friction, high static-hold brake pads, and are pre-fitted with noise cancelling shields. View MC5 Mechanical Calipers
SC1 Single Piston
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.23
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 9.00

SC1 Single Piston Calipers

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo. View SC1 / SC2 / SC3 Calipers
SC2 Single Piston
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 1.06
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 9.00

SC2 Single Piston Calipers

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo. View SC1 / SC2 / SC3 Calipers
SC3 Single Piston
Caliper Dimensions
Piston Count 1
Piston Area Range (in²) 0.87
Pad Area Range (in²) 1.7
Pad Volume Range (in³) 0.26
Max Rotor Widths (in) 0.25
Max Rotor Diameters (in) 9.00

SC3 Single Piston Calipers

Designed, engineered and manufactured in the U.S.A., this floating die cast aluminum caliper is a strong, compact, inexpensive answer to the braking needs of recreational, agricultural and industrial vehicles. Features of this single piston design include availability of either 1.06”, 1.19” or 1.25” bore size, fitted dust seal to prevent ingress of environmental contamination, dual bleed fittings for versatility in mounting position and fluid inlets in M10 x 1.0 banjo. View SC1 / SC2 / SC3 Calipers
