Rear Brake Kit – Part No: 140-12214
Call (805) 388-1188
D154 Rear Parking Brake Kit
Prod #: 140-12214
Price: $1,005.39
Rear Brake Kit - Rear Kit


Kit Contents

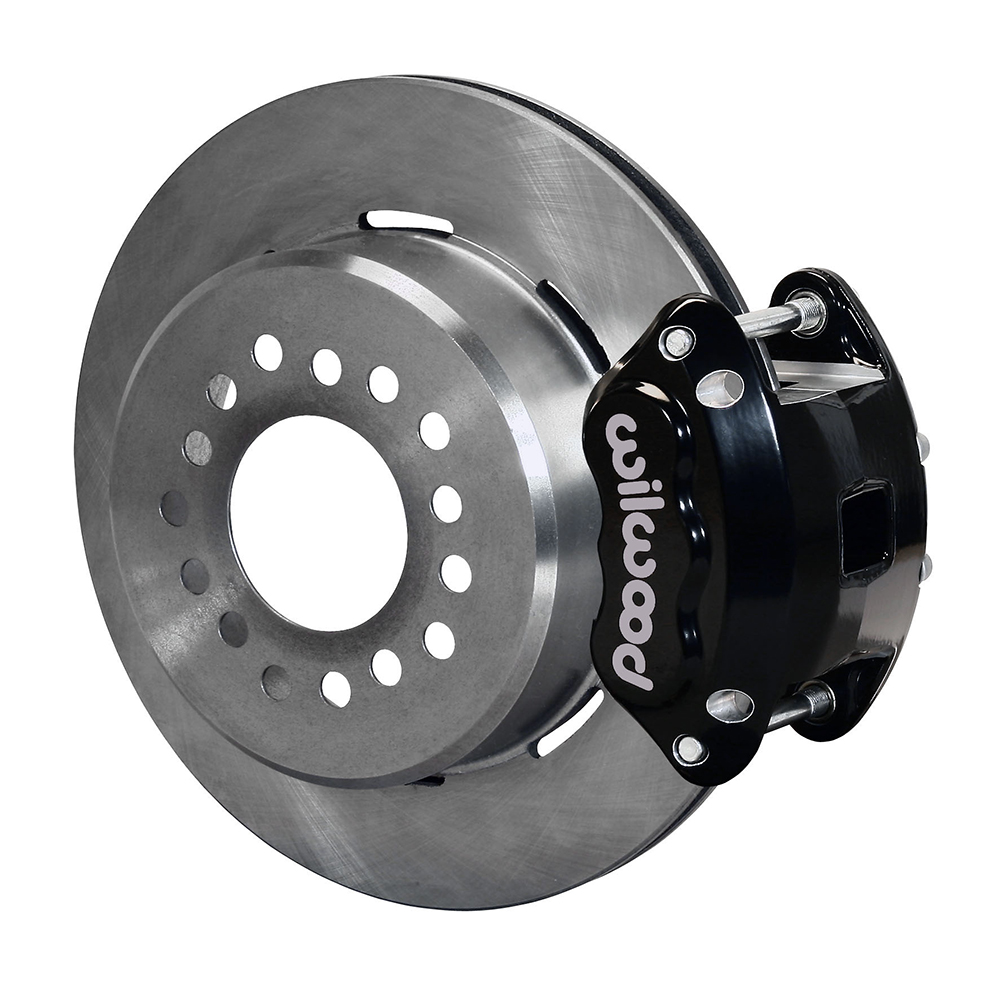

Wilwood D154 Rear Parking Brake Kit Parts Laid Out - Black Powder Coat Caliper - Plain Face Rotor Wilwood D154 Rear Parking Brake Kit Parts Laid Out - Black Powder Coat Caliper - Plain Face Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: Mopar/Dana
Axle Offset: 2.36
Mount Type: Floating
Caliper Type: 2 - Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 16
*This Brake Kit may fit 16-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 889545015515

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


D154 Rear Parking Brake Kit

D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.


Fitment & Installation Details

D154 Rear Parking Brake Kit Assembly Schematic

D154 Rear Parking Brake Kit Assembly Schematic D154 Rear Parking Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

Mopar/Dana Flange 		Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.36
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram Zoom Image
Part 1
Notes
1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.




Compatible Vehicles for this Brake Kit

BRAKE KIT:   D154 Rear Parking Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:   Chrysler Dodge Magnum Force Plymouth

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   Mopar/Dana - Rear Kit

AXLE OFFSET:   2.36

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
fitment 1
Offset: 2.36


Kit Components & Specifications
Calipers
Left Hand - Part No: 120-11875-BK
Right Hand - Part No: 120-11875-BK
Type: D154
Finish Color: Black Powder Coat
Piston Count: 2
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Floating
Brake Pad Plate: D154
Brake Pad Area (In²): 8.7
Brake Pad Volume (In³): 2.9
Pad Compound: BP-10
D154 Caliper - Black Powder Coat D154 Caliper - Black Powder Coat Zoom Image
Rotors
Left Hand - Part No: 160-7508
Right Hand - Part No: 160-7508
Type: Ultralite HP 32 & Hat
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Ultralite HP 32 & Hat - Iron - Plain Ultralite HP 32 & Hat - Iron - Plain Zoom Image
Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:
Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories
Caliper Parts
O-ring Kit: 130-2579
Replacement Dustboot: N-A
Replacement Piston 1: 200-11795
Replacement Piston 2: N-A
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: N-A
Wear Plate - Right Hand: N-A
Pad Retainer: N-A
Bleed Screw Kit: 220-0627
Brake Lines
Front Line Kit:
 		220-12630
Parking Brake Cable: 330-9371
Hat
Bolt Kit:
Hub
Bolt Kit:
