Name: Forged Narrow Superlite 4R Front Brake Kit
Brand: Wilwood
Availability: InStock

Front Brake Kit – Part No: 140-16679-DY

Call (805) 388-1188

Forged Narrow Superlite 4R Front Brake Kit

Prod #: 140-16679-DY

Price: $1,255.80

Available Brake Kit #140-16679 Configurations

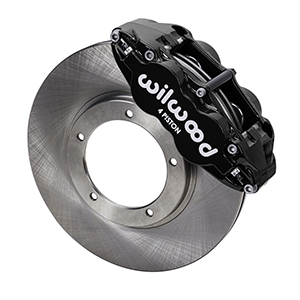

140-16679
Black Calipers
11.10-inch Rotors
Undrilled Rotors

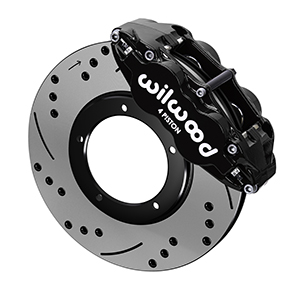

140-16679-D
Black Calipers
11.10-inch Rotors
Drilled & Slotted Rotors

140-16679-DR
Red Calipers
11.10-inch Rotors
Drilled & Slotted Rotors

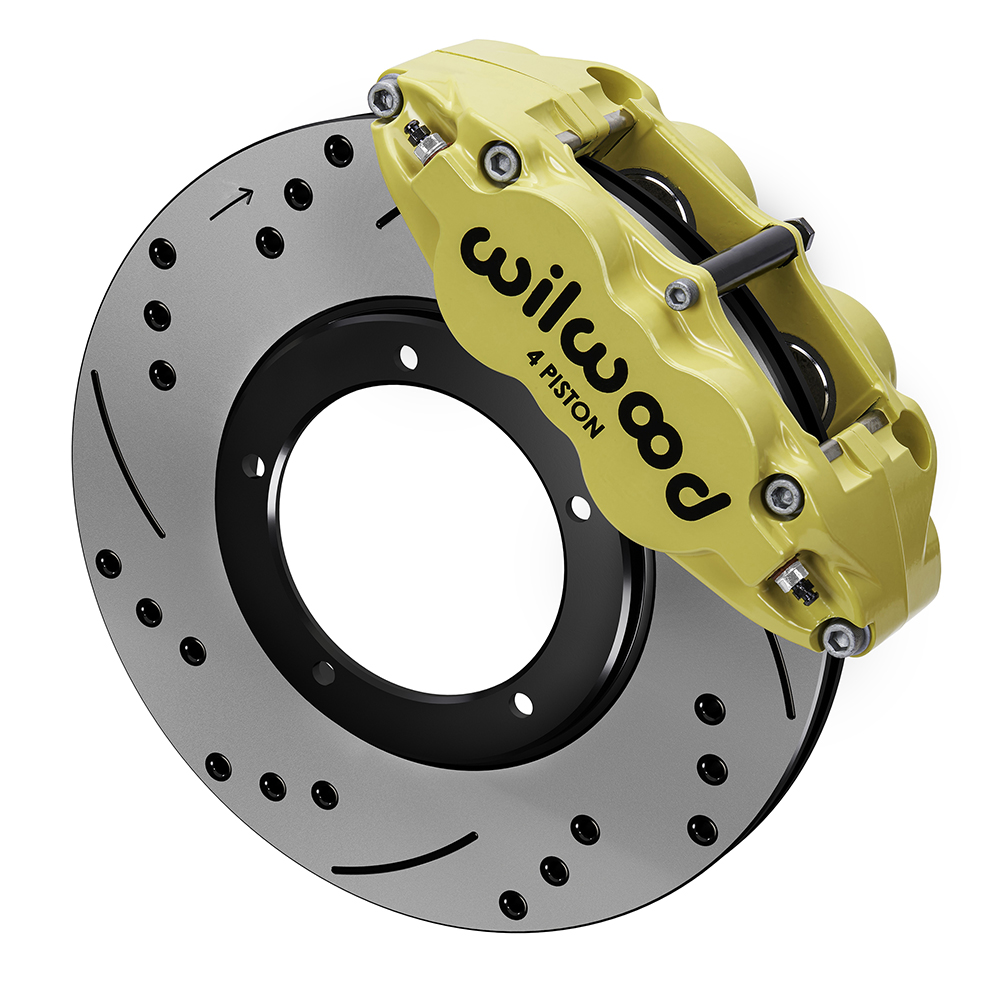

140-16679-DY
Yellow Calipers
11.10-inch Rotors
Drilled & Slotted Rotors

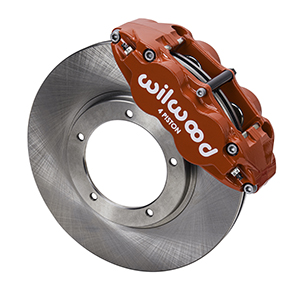

140-16679-R
Red Calipers
11.10-inch Rotors
Undrilled Rotors

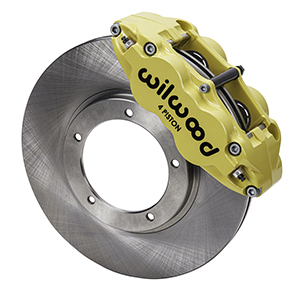

140-16679-Y
Yellow Calipers
11.10-inch Rotors
Undrilled Rotors

Available Brake Kit #140-16679 Configurations

140-16679
Black Calipers
11.10-inch Rotors
Undrilled Rotors

140-16679-D
Black Calipers
11.10-inch Rotors
Drilled & Slotted Rotors

140-16679-DR
Red Calipers
11.10-inch Rotors
Drilled & Slotted Rotors

140-16679-DY
Yellow Calipers
11.10-inch Rotors
Drilled & Slotted Rotors

140-16679-R
Red Calipers
11.10-inch Rotors
Undrilled Rotors

140-16679-Y
Yellow Calipers
11.10-inch Rotors
Undrilled Rotors

Front Brake Kit — 140-16679-DY

Kit Contents

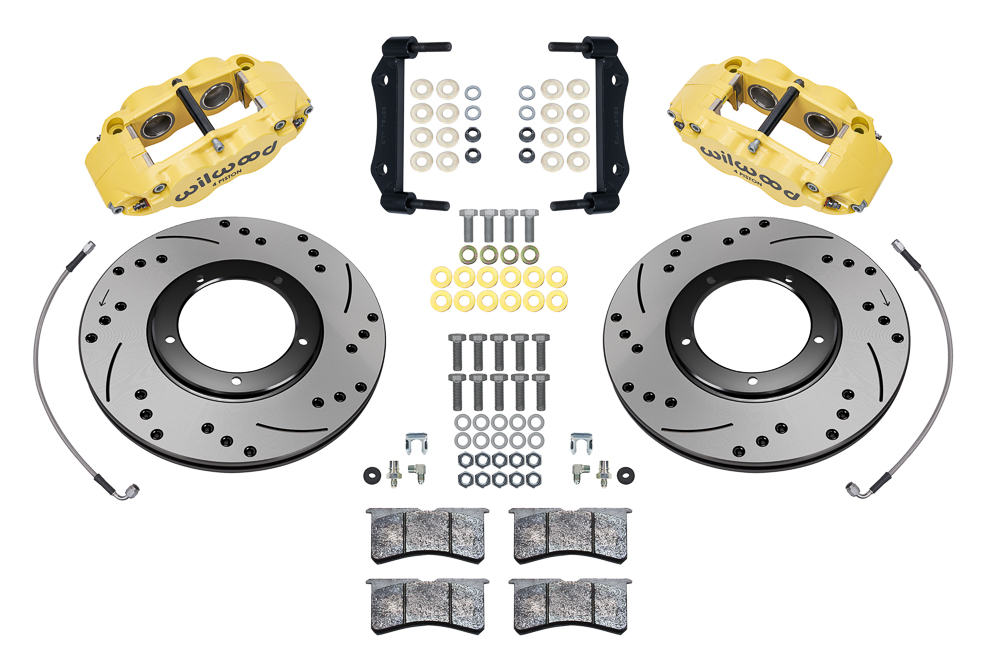

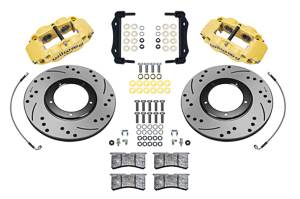

Wilwood Forged Narrow Superlite 4R Front Brake Kit Parts Laid Out - Yellow Powder Coat Caliper - SRP Drilled & Slotted Rotor Click Image to Close
View Custom Caliper Colors

Kit Summary


Spindle Type:	Factory Disc Spindle
Mount Type:	Radial
Caliper Type:	4 - Yellow Powder Coat
Rotor Diameter:	11.10
Min Wheel Diameter Req'd*:	15

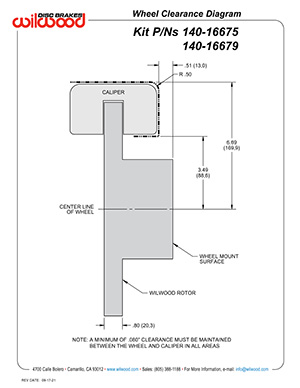

*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram

UPC Number
UPC	889545104783

	WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
	Applicable to Brake Pads Only

Forged Narrow Superlite 4R Front Brake Kit

Forged Narrow Superlite Radial caliper, pad, and rotor kits are engineered as high performance street and race for import cars. These kits combine the high-tech styling and superior performance of the FNSL4R calipers, 11.10” to 12.19" diameter HD or SRP series drilled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the front strut without the need for additional brackets or adapters. Braided stainless flexlines are incluuded.

Watch more videos!

How to Measure Porsche 911 Strut Tab Mounts

Fitment & Installation Details

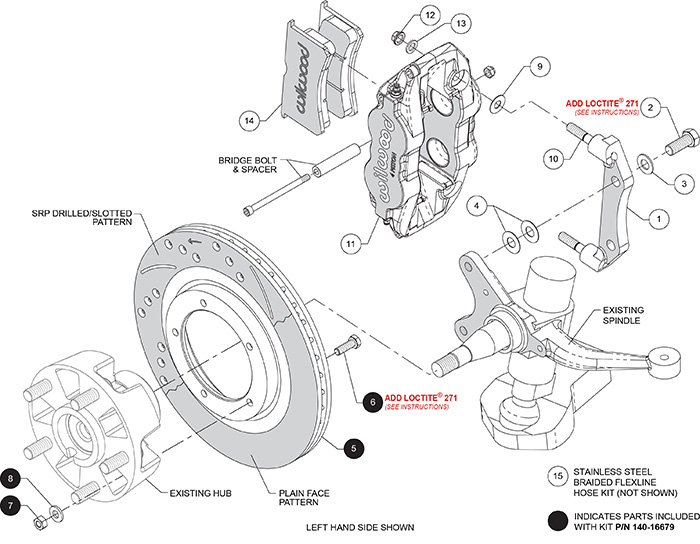

Forged Narrow Superlite 4R Front Brake Kit Assembly Schematic

Forged Narrow Superlite 4R Front Brake Kit Assembly Schematic Zoom Image

Compatible Vehicles for this Brake Kit

BRAKE KIT: Forged Narrow Superlite 4R Front Brake Kit

SPINDLE TYPE:

Factory Disc Spindle;

This Brake Kit is Compatible with the Following Vehicle Makes: Porsche

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

View All Vehicles

Caution
	THIS BRAKE KIT HAS A HUB OFFSET OF: This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Wheel Clearance	Assembly Instructions

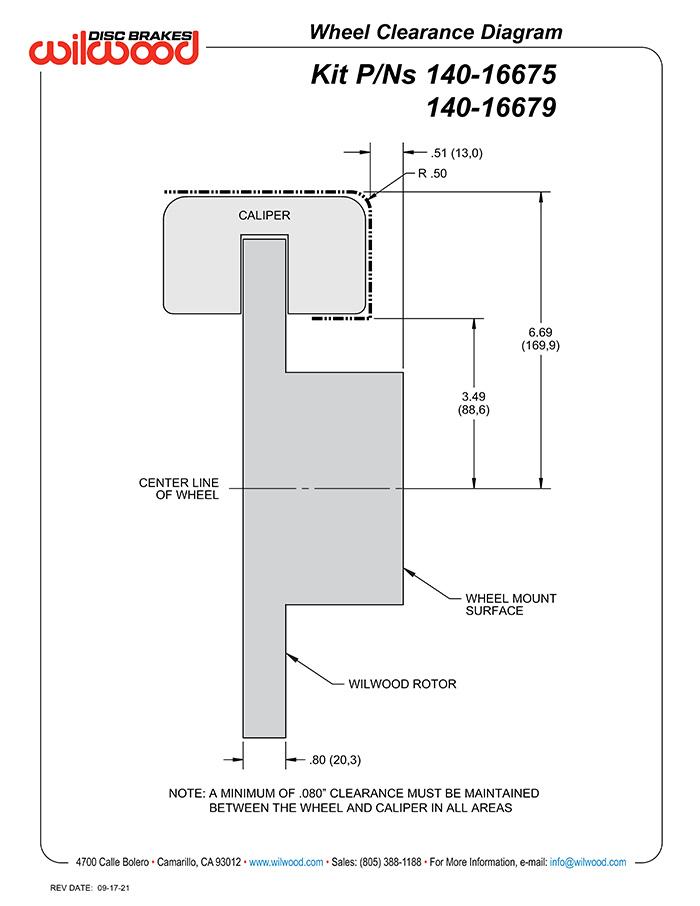

Wheel Clearance Diagram Click Image to Close	Assembly Instructions

Notes
1. Kit will only fit "S" or "A" type struts with 3.50" caliper mount spacing.

Kit Components & Specifications

Calipers
Left Hand - Part No:	120-14055-Y
Right Hand - Part No:	120-14055-Y
Type:	Forged Narrow Superlite 4R
Finish Color:	Yellow Powder Coat
Piston Count:	4
Piston 1 Bore (in):	1.38
Piston 2 Bore (in):	1.38
Piston Area (In²):	3.00
Piston Type:	Stainless
Mount Type:	Radial
Brake Pad Plate:	7416
Brake Pad Area (In²):	8.2
Brake Pad Volume (In³):	3.8
Pad Compound:	BP-10

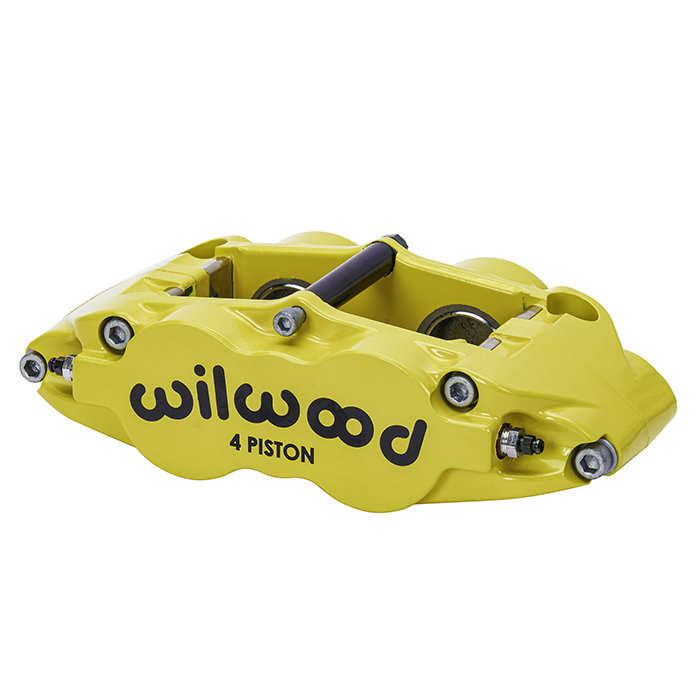

Forged Narrow Superlite 4R Caliper - Yellow Powder Coat Click Image to Close

Rotors
Left Hand - Part No:	160-16694-BK
Right Hand - Part No:	160-16693-BK
Type:	SRP Drilled Rotor & Hat
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Iron
Outside Diameter (in):	11.10
Width (in):	0.80
Vane Count:	Vented
Design Type:	SRP-BLK
Bedded:	No
Dynamically Balanced:	No
SRP Drilled Rotor & Hat - Iron - Black Electro Coat Click Image to Close

Rotor Hats
Hat - Part No:
Type:
Material:
Finish Color:
Hat Offset Dimension (in):
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Hubs
Hub - Part No:
Type:
Material:
Finish Color:
Mount Style:
Bolt Circle 1:
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:
Stud Diameter - BC 2:
Stud Diameter - BC 3:

Parts & Accessories

Caliper Parts
O-ring Kit:	130-2658
Replacement Dustboot:	N-A
Replacement Piston 1:	200-7518
Replacement Piston 2:	200-7518
Replacement Piston 3:	N-A
Replacement Piston 4:	N-A
CrossOver O-Ring Kit:	130-10540
Crossover Tube:	N-A
Self-Bleeder Tube:	N-A
Bridge Bolt Kit:
Wear Plate - Left Hand:	300-6596
Wear Plate - Right Hand:	300-6595
Pad Retainer:	N-A
Bleed Screw Kit:	220-0627

Brake Lines
Front Line Kit:	220-16709

Hat
Bolt Kit:

Hub
Bolt Kit:
