Brake Kits Found: 2
Rotor Diameter
Wheel Diameter*

*Minimum diameter is required. Check wheel clearance diagram before purchasing or installing.

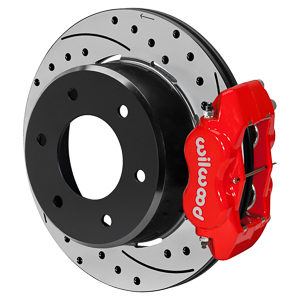

Forged Dynalite Rear Parking Brake Kit (6 x 5.50 Rotor)
Item No: 140-16712
Pistons: 4
Rotor Diameter: 12.19
Caliper Mount: Lug
Min. Wheel Diameter: 15
Axle Flange: Large Chevy C10
Axle Offset:
From: $1,220.92


Forged Dynalite Rear Parking Brake Kit (6 x 5.50 Rotor) Description

This group of FDL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Forged Dynapro Low-Profile Rear Parking Brake Kit (6 x 5.50 Rotor)
Item No: 140-16711
Pistons: 4
Rotor Diameter: 11.00
Caliper Mount: Lug
Min. Wheel Diameter: 14
Axle Flange: Large Chevy C10
Axle Offset:
From: $1,223.72


Forged Dynapro Low-Profile Rear Parking Brake Kit (6 x 5.50 Rotor) Description

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.



*Minimum diameter is required. Check wheel clearance diagram before purchasing or installing.





All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
