AERO4 Big Brake Rear Brake Kit For OE Parking Brake Description

AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
Note 1. 14" Rotor Note 2. Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.

Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake Description

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 13”-14” rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for cars, trucks, and SUV’s retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 13” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.
Note 1. 14" Rotor Note 2. Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.

Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6 Description

Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00” rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.
Note 1. Use flexline kit 220-8177 for all 1997-04 C5 Note 2. Use flexline kit 220-9101 for all 2005-13 C6 Note 3. Requires 2005-09 J55 code Z51 13.00” rear rotor.

Forged Narrow Superlite 4R Big Brake Rear Brake Kit (Race) Description

Forged Narrow Superlite 4R/ST four piston radial mount race caliper rear kits are the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. FNSL4R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane 13.00” rotors are dynamically mounted using our new Dynamic Lug Mounting system to forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This championship proven system is completed with high temperature, high friction, race compound pads selected specifically by application. Installation requires the separate purchase of the stainless steel braided flexline kit that must be ordered according to the model year.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear. Note 2. Kit may fit some 17" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Forged Narrow Superlite 4R Big Brake Rear Brake Kit For OE Parking Brake Description

Forged Narrow Superlite 4R four piston calipers are combined with BP-10 compound pads and 13”-14” rotors in this group of big brake kits for custom high performance street and show machines. This group of specialized kits for cars, trucks, and SUV’s retain full use of the OE parking brake, master cylinder output, and ABS where used. FNSL4R rear kits provide complimentary style and performance with 13” and larger front brake upgrades in conjunction with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs enable the builder to match style and performance on all applications.

DPC56 Rear Replacement Caliper and Rotor Kit Description

DPC56 rear caliper, pad, and rotor kits are engineered as high performance street and custom show replacements for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the DPC56 calipers, 12.00” diameter SRP series drilled and slotted e-coat rotors, and the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits bolt directly to the rear spindle of any model C5 or C6 from 1997-2013, without the need for additional brackets or adapters.
Note 1. Kit fits 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor. Note 2. DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.

DPC56 Rear Brake Kit (Race) Description

DPC56 Rear Brake and Rotor Kits (Race) offer measurable brake performance improvements to racers and enthusiasts using the OE diameter rotors. Includes DP56 brake calipers and High-Performance pad compounds. Two-piece rotors and aluminum hat assemblies are used to provide high temperature durability for the track. DPC56 calipers add high-tech styling and provide the positive response and balanced pad loading provided by a fixed mount, four piston calipers. The DPC56 is a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using 12.00” diameter rear rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.
Note 1. Road Race kits contain high temperature racing pads. Extended low temperature use will cause premature rotor and pad wear.

DPC56 Rear Replacement Caliper Kit Description

DPC56 rear calipers are engineered as a high performance street and custom replacement for Corvettes and hot rods using Corvette suspension. These kits combine the high-tech styling and superior performance of the SLC56 calipers with the positive response, long wear, high fade resistance, and easy clean properties of the BP-10 compound Smart Pads. These kits are a direct bolt-on replacement for the OE calipers on all models of the C5 from 1997 to 2004, and all base model C6’s from 2005 to 2013 using the existing 12.00” diameter OE dimension rear rotors. The calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.
Note 1. Kit fits 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor. Note 2. DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.

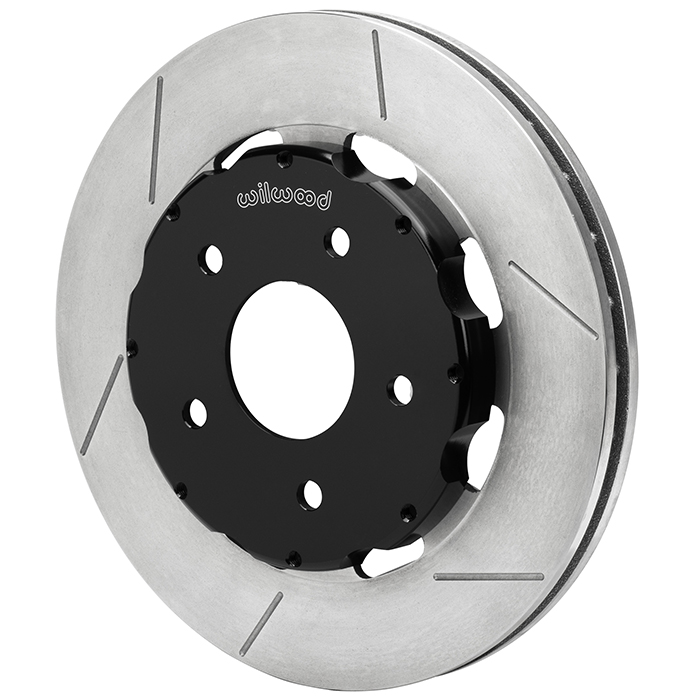

Promatrix Rear Rotor Kit (Race) Description

Promatrix Rear Rotor Kits (Race) offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers and High performance pad compounds. Two piece rotors and aluminium hat assemblies are used to provide high temperature durability for the track.
