Bolt-On Brake Kits


(1) Brake Kits Available

Classic Series Forged Superlite 4 Front Brake Kit
Pistons: 4
Rotor Diameter: 11.72
Caliper Mount: Lug
Min. Wheel Diameter: 15

Classic Series Forged Superlite 4 Front Brake Kit Description

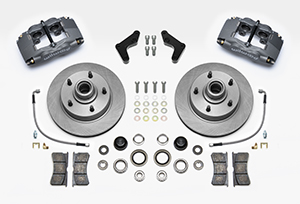

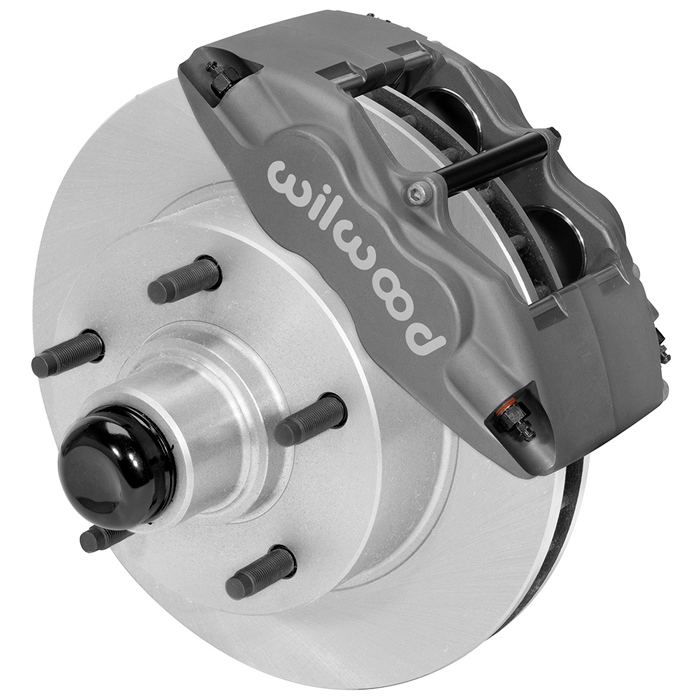

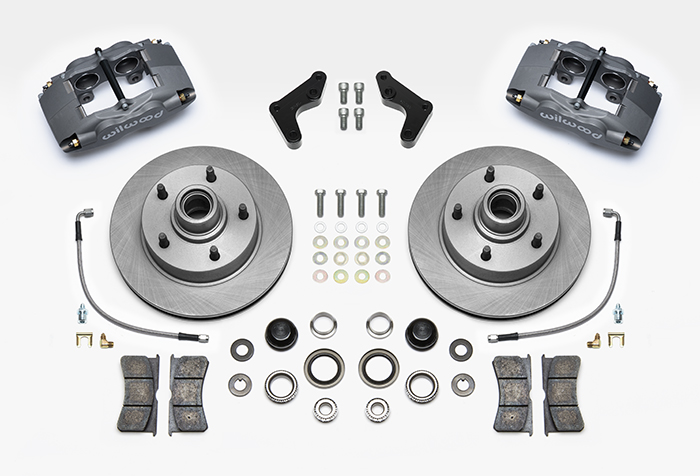

Wilwood's Classic Series front disc brake kits for Ford Trucks from 1948 to 1956, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a one piece 11.72" x 1.19” rotor and hub assembly with a 5 x 5.50" wheel bolt circle. Based on the venerable Forged Billet Superlite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FSL4 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and hub assembly, brackets, hardware and line kit.

This kit fits the following vehicles:
Ford F Series 1948-1955 Ford F1 1948-1952 Ford F-100 1953-1956
Ordering Information for Classic Series Forged Superlite 4 Front Brake Kit
Item No 140-14190
Info Details
Caliper Color Type III Ano
Rotor Undrilled
Line Kit 220-10509 *
Price $783.99
