Brake Fluid No.: 290-6209


Call (805) 388-1188
EXP600 PLUS Brake Fluid
Prod #: 290-6209
Price: $26.04


290-6209 — Product Summary
Dry Boiling Point 626 °F
Wet Boiling Point 417 °F
Quantity 1 each
Size 16.9 oz bottle
UPC 889545069518
Product Documents
Click To View Click to View

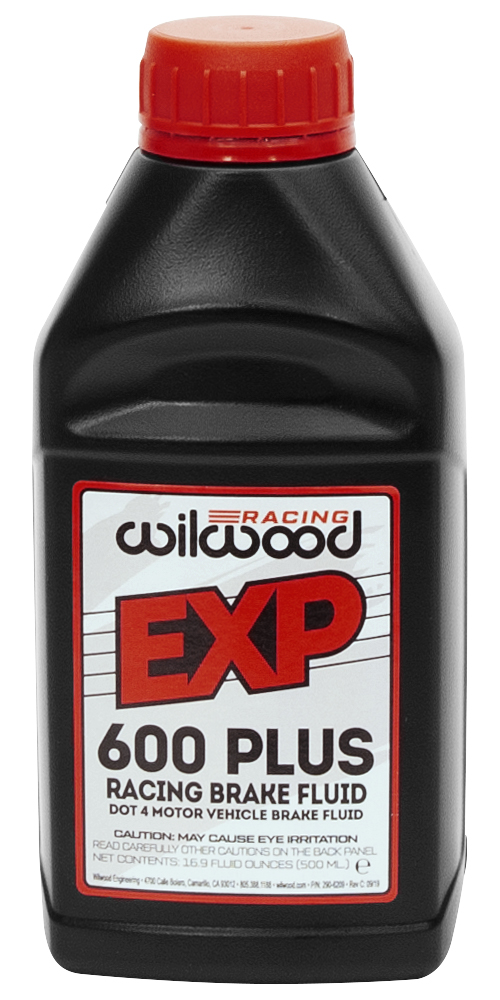

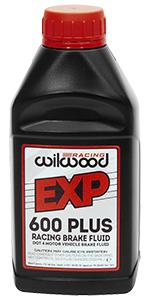

EXP600 PLUS Brake Fluid
Wilwood EXP Super Hi-Temp 600 Plus Racing Brake Fluid has been specially formulated for racing applications where brake systems consistently operate at very high temperatures. In addition to guarding against vapor lock, EXP Super Hi-Temp 600 Plus Racing Brake Fluid maintains its viscosity and lubricity under extreme temperatures for maintaining brake system reliability and performance. EXP Super Hi-Temp 600 Plus Racing Brake Fluid conforms to, and exceeds U.S. specification FMVSS No. 116 DOT 4. Typical dry boiling point: 594° F (312° C). Typical wet boiling point: 399° F (204 °C).

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov

Additional Information

NOTE: Only use fresh un-opened fluid. Once opened, use immediately. Do not store opened bottles or cans, or reuse old fluid.

Due to a high-performance brake system's extreme operating temperatures, standard parts' store brake fluid is not recommended. Never mix brake fluids of different DOT classifications.

Dry Boiling Point

Of critical importance is the brake fluid's dry boiling point - the temperature at which a brake fluid will boil in its virgin non-contaminated state. The minimum dry boiling point temperature is 401° F for DOT 3 fluid, and 446° F for DOT 4. All Wilwood brake fluids exceed these standards, with Hi-Temp° 570 rated at 570° F, EXP600 Plus rated at 626° F, and XR Race-Only at 645° F.

Wet Boiling Point

Moisture enters your brake system through condensation, weather, ambient humidity, or washing the exterior. Glycol based brake fluids are hygroscopic (they absorb moisture), and over time the boiling point is gradually reduced. The DOT 3 minimum wet (roughly 4% water absorbed) boiling point temperature is 284° F, DOT 4 is 311° F. All Wilwood brake fluids exceed these wet boiling standards, with Hi-Temp° 570 rated at 313° F, EXP600 Plus rated at 417° F, and XR Race-Only at 432° F.

DOT 5 Silicone Fluid

Silicone DOT5 fluid is often used in classics, show cars, and pre-ABS Harley-Davidson motorcycles to prevent corrosion. Silicone fluids have a neutral PH and do not attract moisture like DOT 3 and DOT 4 fluids and is paint-safe if spilled. However, DOT 5 is not compatible with glycol-based DOT 3, DOT 4, or DOT 5.1 fluids, and will turn to gel if mixed. Wilwood does not recommend using silicone-based DOT 5 fluid in racing applications because it is prone to aeration and foaming under normal braking conditions, providing a spongy brake feel.

Flushing

Whenever you add fresh fluid to your existing system, it immediately becomes contaminated, lowering the new fluid's boiling point. For maximum performance, use a high boiling point fluid and flush the system thoroughly. For street cars, flush and refill the fluid every year. For race or track driven cars it can be beneficial to change the fluid after every race weekend, especially after racing in the rain, severe temperature use, or brake fluid boiling.
