Brake Fluid No.: 290-16353


Call (805) 388-1188
XR Racing Brake Fluid
Prod #: 290-16353
Price: $48.56

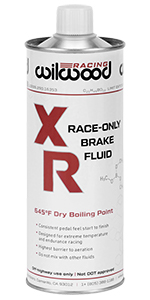

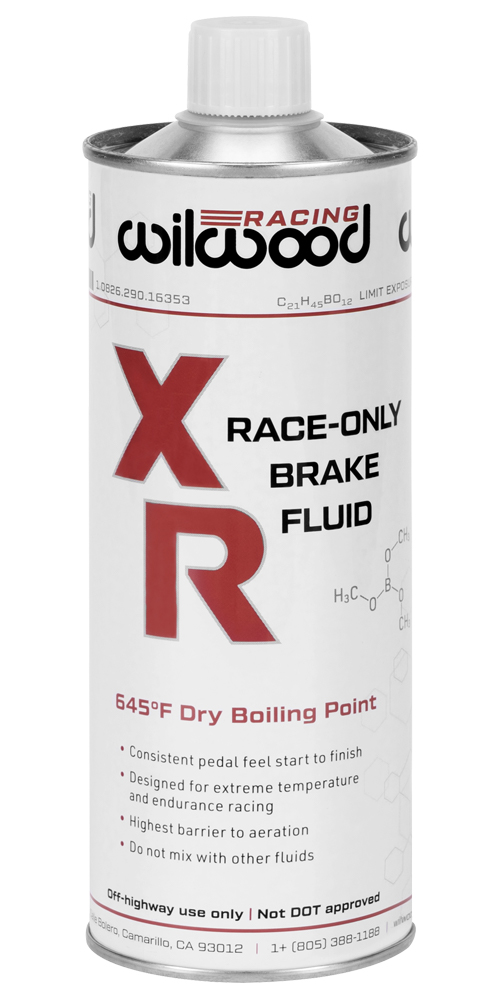

Wilwood XR Racing Brake Fluid Wilwood XR Racing Brake Fluid Zoom Image

290-16353 — Product Summary
Dry Boiling Point 645 °F
Wet Boiling Point 432 °F
Quantity 1 each
Size 16.9 oz bottle
UPC 889545099522
Product Documents
Click To View Click to View

XR Racing Brake Fluid
Wilwood’s new XR Race-Only* brake fluid is the same extreme high-temperature fluid used in Formula 1, World Rally Championship, FIA World Endurance, and Moto GP. Laboratory testing indicates XR Race-Only fluid has a dry boiling point of 645° F thanks to a proprietary blend of high-performance polymer electrolytes and borate esters. This polyglycol-ether-based, DOT4 type brake fluid combines the lowest compressibility, lowest moisture affinity, and highest resistance to aeration of any brake fluid available. XR Race-Only Brake Fluid is formulated to deliver the absolute best, most consistent pedal feel, start to finish, even in the most adverse racing conditions. The premium metal 16.9 ounce can with airtight safety seal ensures fresh, clean fluid upon opening. (* For off-highway use only. Not DOT approved.)
Additional Information

NOTE: Only use fresh un-opened fluid. Once opened, use immediately. Do not store opened bottles or cans, or reuse old fluid.

Due to a high-performance brake system's extreme operating temperatures, standard parts' store brake fluid is not recommended. Never mix brake fluids of different DOT classifications.

Dry Boiling Point

Of critical importance is the brake fluid's dry boiling point - the temperature at which a brake fluid will boil in its virgin non-contaminated state. The minimum dry boiling point temperature is 401° F for DOT 3 fluid, and 446° F for DOT 4. All Wilwood brake fluids exceed these standards, with Hi-Temp° 570 rated at 570° F, EXP600 Plus rated at 626° F, and XR Race-Only at 645° F.

Wet Boiling Point

Moisture enters your brake system through condensation, weather, ambient humidity, or washing the exterior. Glycol based brake fluids are hygroscopic (they absorb moisture), and over time the boiling point is gradually reduced. The DOT 3 minimum wet (roughly 4% water absorbed) boiling point temperature is 284° F, DOT 4 is 311° F. All Wilwood brake fluids exceed these wet boiling standards, with Hi-Temp° 570 rated at 313° F, EXP600 Plus rated at 417° F, and XR Race-Only at 432° F.

DOT 5 Silicone Fluid

Silicone DOT5 fluid is often used in classics, show cars, and pre-ABS Harley-Davidson motorcycles to prevent corrosion. Silicone fluids have a neutral PH and do not attract moisture like DOT 3 and DOT 4 fluids and is paint-safe if spilled. However, DOT 5 is not compatible with glycol-based DOT 3, DOT 4, or DOT 5.1 fluids, and will turn to gel if mixed. Wilwood does not recommend using silicone-based DOT 5 fluid in racing applications because it is prone to aeration and foaming under normal braking conditions, providing a spongy brake feel.

Flushing

Whenever you add fresh fluid to your existing system, it immediately becomes contaminated, lowering the new fluid's boiling point. For maximum performance, use a high boiling point fluid and flush the system thoroughly. For street cars, flush and refill the fluid every year. For race or track driven cars it can be beneficial to change the fluid after every race weekend, especially after racing in the rain, severe temperature use, or brake fluid boiling.




All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
