Wilwood Standard Pedal Assemblies


Standard Pedals

Wilwood Disc Brakes offers a selection of standard forward and reverse mount brake and clutch pedal assemblies engineered to provide superior brake system performance and custom appeal. Below is a list of the pedal categories. If you need additional information, or would like to place an order contact our technical experts at (805) 388-1188.

Standard Pedals and Mounts

The Wilwood standard pedal group include all single cylinder mount clutch or brake pedals, and all multiple cylinder balance bar brake pedals and master cylinder mounts that utilize the traditional slide bearing balance bar adjuster to affect pressure differential changes between the front and rear circuits. The slide bearing balance bar provides excellent utility service for mechanical bias adjustment. When the balance bar bias is adjusted, the center pivot bearing moves laterally within the pedal arm to affect the load sharing ratio between each master cylinder and resulting pressure differentials.

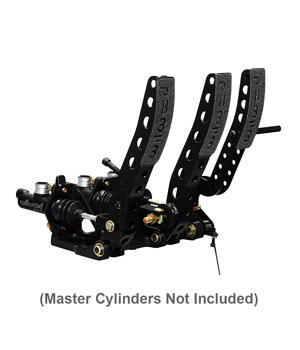

Wilwood’s new floor mount pedal assemblies has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle.
Wilwood’s new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet master cylinder and a hydraulic clutch master cylinder in a forward position outside the firewall.

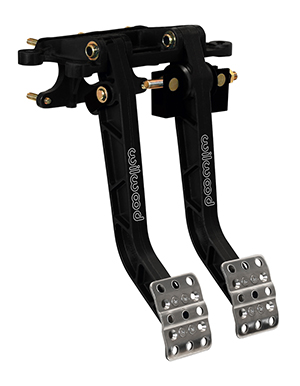

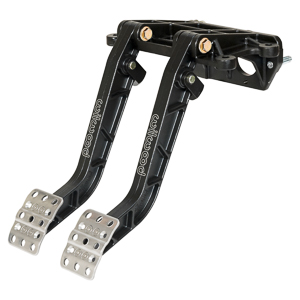

These swinging mount pedal assemblies combine the brake and clutch pedals in one unit with the master cylinders in a forward facing position.

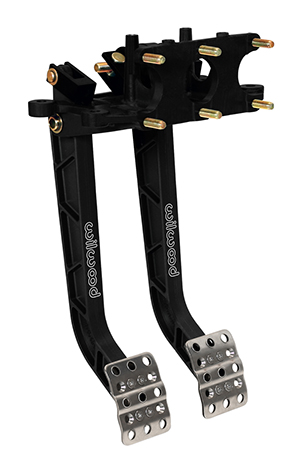

These swinging mount brake pedal assemblies either combine the brake and clutch pedals in one unit or a single brake pedal with the master cylinders in a reverse facing position
These swinging mount pedal assemblies combines dual master cylinders and balance bar assembly in one unit with the master cylinders in a forward facing position.
These floor mount pedal assemblies mounts two single outlet brake master cylinders with a balance bar in a forward facing position outside the firewall.

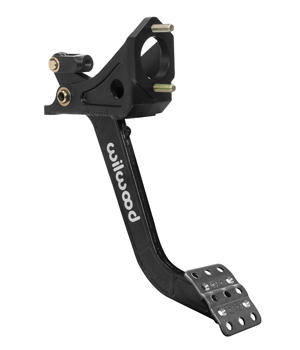

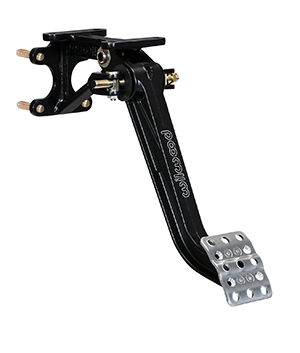

This swinging mount clutch/brake pedal assembly is often used as a clutch pedal with a single outlet master cylinder, or as a brake pedal in conjunction with dual outlet, tandem master cylinders. Available in a reverse facing position.

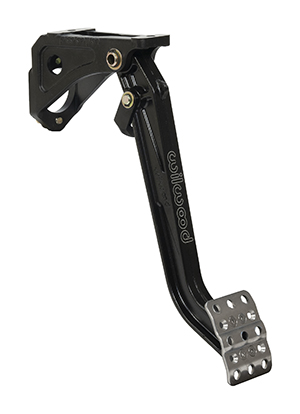

These swinging mount pedal assemblies are often used as a clutch pedal with a single outlet master cylinder, or as a brake pedal in conjunction with dual outlet, tandem master cylinders. Available in a forward facing position.

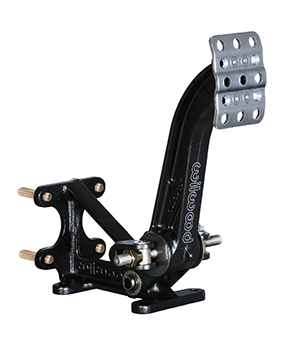

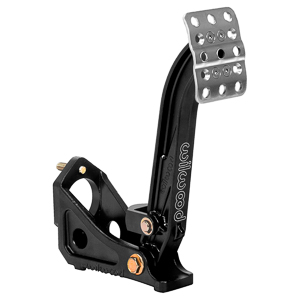

These floor mount pedal assemblies are often used as a clutch pedal with a single outlet master cylinder, or as a brake pedal in conjunction with dual outlet, tandem master cylinders. Available in a forward facing position.

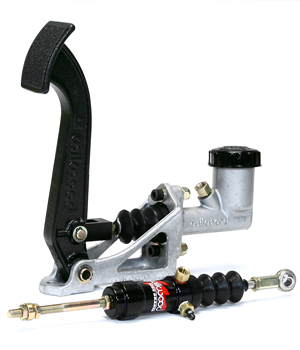

Wilwood’s Clutch Pedal Kit comes with either a floor mount clutch pedal of a 6 to 1 ratio or a swing mount with a 7 to 1 ratio, Integral Reservoir Master cylinder in a ¾ bore and universal pull type slave cylinder.
This lightweight unit is ideal for Dirt Modifieds, Champ Cars, Sprint Cars, Midgets, or any application where the master cylinders and bias balance bar must be mounted in a remote location from the pedal.the master cylinders are mounted at 60 degrees.

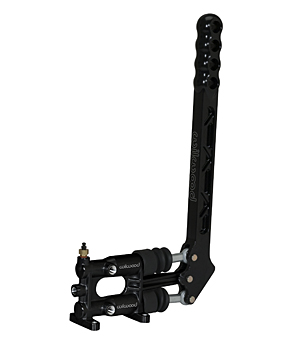

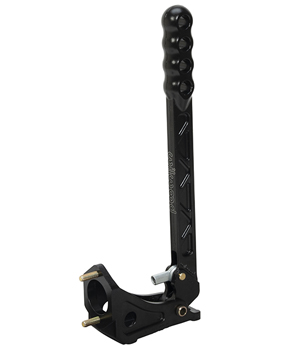

Wilwood handbrake lever assemblies provide a lightweight, high-leverage component for any application where hand-actuation of one or more brake calipers is employed. With a lightweight aluminum forged 11:1 ratio “H” beam lever with ergonomic grip in a choice of vertical or horizontal static lever positioning.
Wilwood’s Dual Cylinder Inline Cutting Brake kits utilize a single inlet, twin outlet flow-through master cylinder to simplify plumbing of the existing calipers and deliver precise steering-brake control for all types of off-road competition vehicles. This unit features a weight-saving, all-aluminum design with a high-leverage forged lever arm and an ergonomic full-length hand grip.

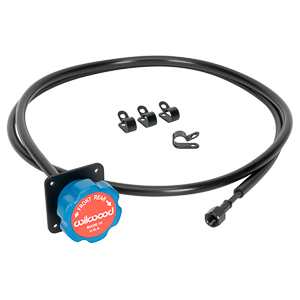

Remote Balance Bar Adjuster

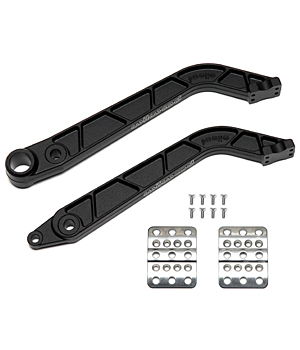

Accessories and replacement parts for Wilwood pedals.


All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
