Hub No: 270-16183
Call (805) 388-1188
Wide 5 Drive Flange 2-Deg
Prod #: 270-16183
Call for OE Pricing

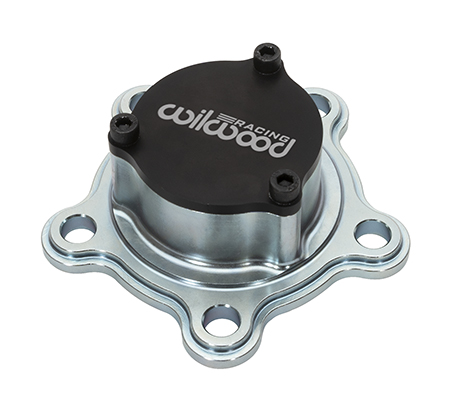

Wide 5 Drive Flange 2-Deg - Product Description

All steel construction Drive Flange for wide 5 type hubs that allow racers to take the performance advantage of adjusting camber up to 2 degrees safely with the best camber drive flange available. Offering up to 2 degrees of misalignment, heat treated components, polished internal ball spline for less friction and improved performance. With its plated drive flange finish and high quality components, Wilwood’s Cambered Drive Flange offer long life and compatibility with all 24 spline drive shafts.


Material & Finish
Material Steel
Finish Plated
Weight (lbs) 1.7
UPC Number
UPC 889545098280
Rotor Compatibility
Rotor Mount Bolt Circle (in) 5 x 3.98
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in)
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in)
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Wide Five - 5 Bolt Hubs
  • Starlight 55, 5 bolt cambered Drive Flange


    • Hub Dimensions

    Wide 5 Drive Flange 2-Deg Drawing Wide 5 Drive Flange 2-Deg Drawing
    Hub Dimensions (in)
    Dim A Dim N
    Dim D Dim P
    Dim H Dim Q
    Dim M

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing
    Inner Bearing Set - BCA#:
    Outer Bearing
    Outer Bearing Set - BCA#:
    Inner Hub Bearing - Race
    Outer Hub Bearing - Race

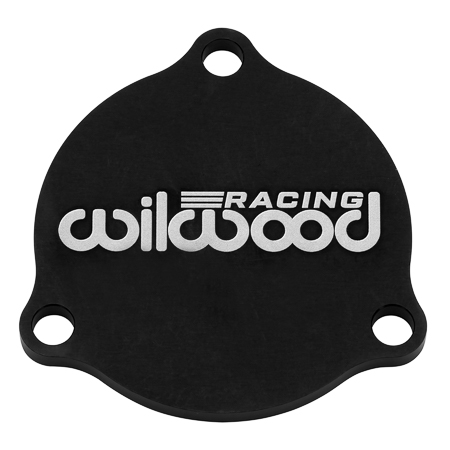

    Products commonly used with this item:




    $20.92
    More Details
    $18.93
    More Details
