Bracket Kit, Open Wheel - Front - 250-14313


Call (805) 388-1188
Bracket Kit, Open Wheel - Front
Prod #: 250-14313
Price: $34.57

Wilwood Bracket Kit, Open Wheel - Front Wilwood Bracket Kit, Open Wheel - Front Zoom Image

Bracket Kit, Caliper Mount

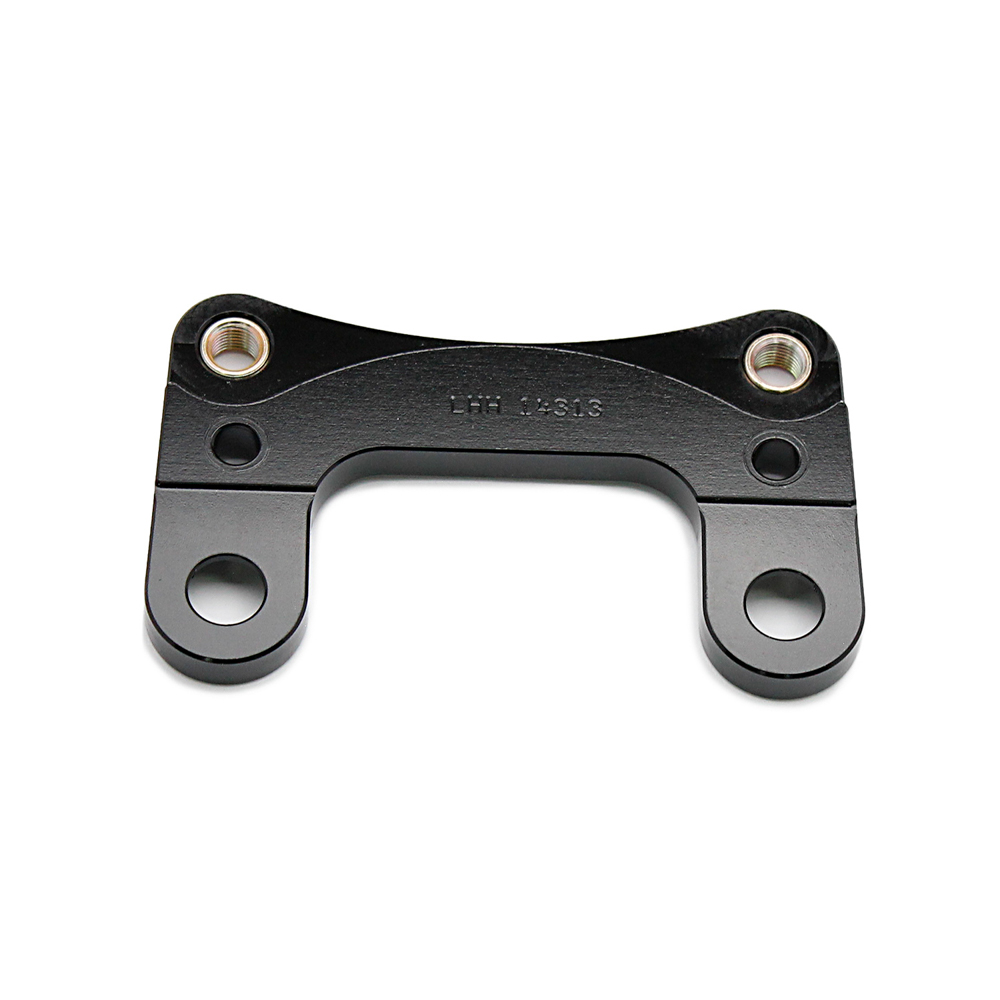

Wilwood's Open Wheel Front Bracket kits are manufactured from high-strength aluminum alloy with an e-coat finish. Bracket 250-14313 is designed for Modified Dirt front spindles with a 3.75" mount using the Dynappro Single 2 piston caliper with a 3.75” mount and 11.75” diameter rotor.



Bracket Kit, Open Wheel - Front Description
Type Bracket Kit, Open Wheel - Front
Material Aluminum
Finish
Weight (oz) 0.300
Packet Qty Each
Mount Info
Mount Side L/H or R/H
Mount Type Lug
UPC Number
UPC 889545079937
Notes
Desc 1 BRACKET,CALIPER,3.750,.11 OFFSET,3.75 MT
Desc 2 1.95 HT
Cautionary Info

Product Data Sheets
Data Sheet


Bracket Kit, Open Wheel - Front Dimensions

 Drawing Drawing
Dimensions
Dim Mount Center 3.75
Thread Size 3/8-24
Stud No N-A
Dim Rotor Dia (in) 11.75
Additional Notes
