Search Results All
Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 1.98
Piston 1 Dia: 1.12
Piston 2 Dia: 1.12
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00

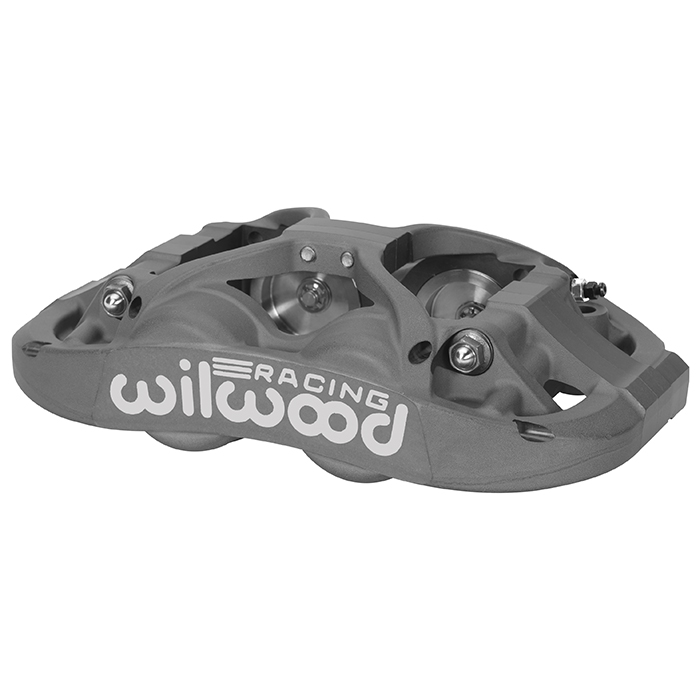

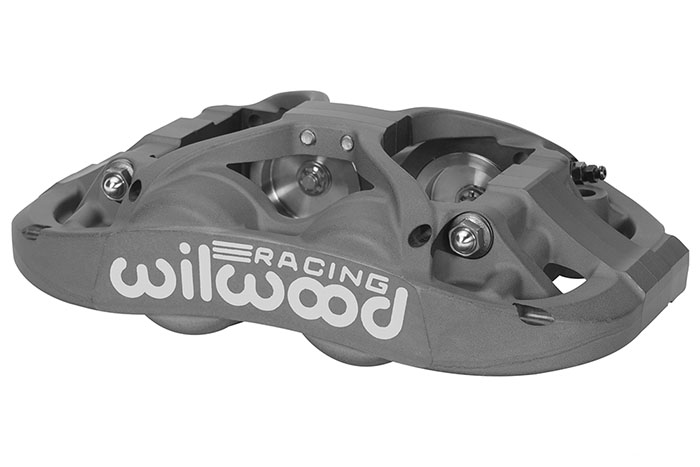

Type III Anodize Forged Superlite 4 Radial Mount Caliper

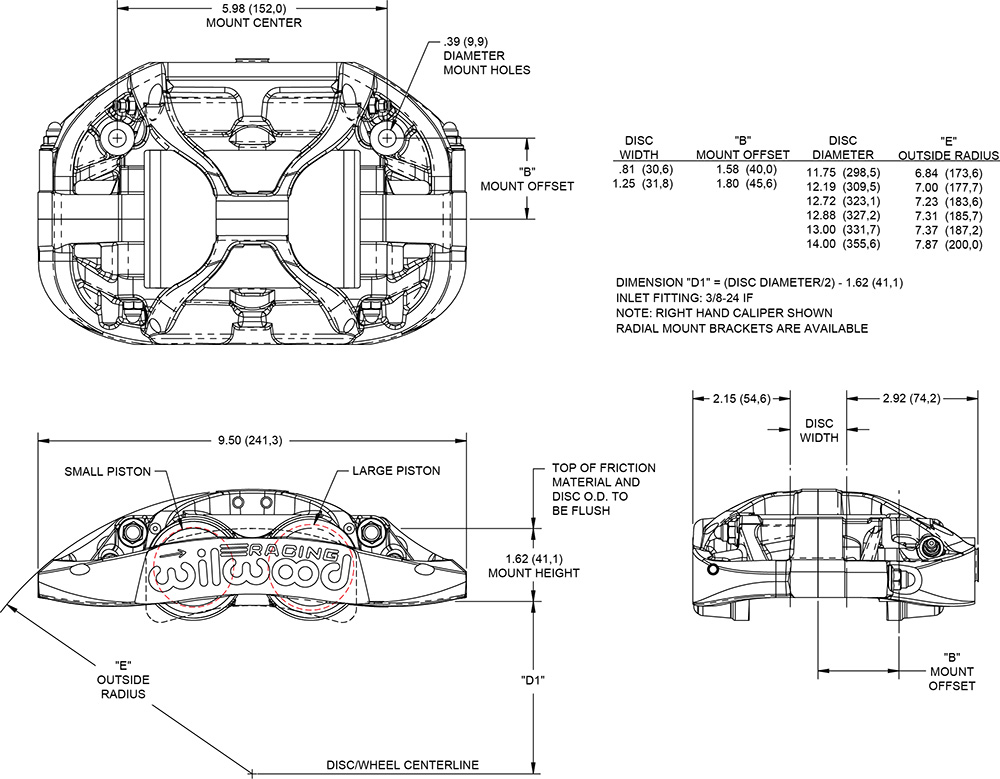

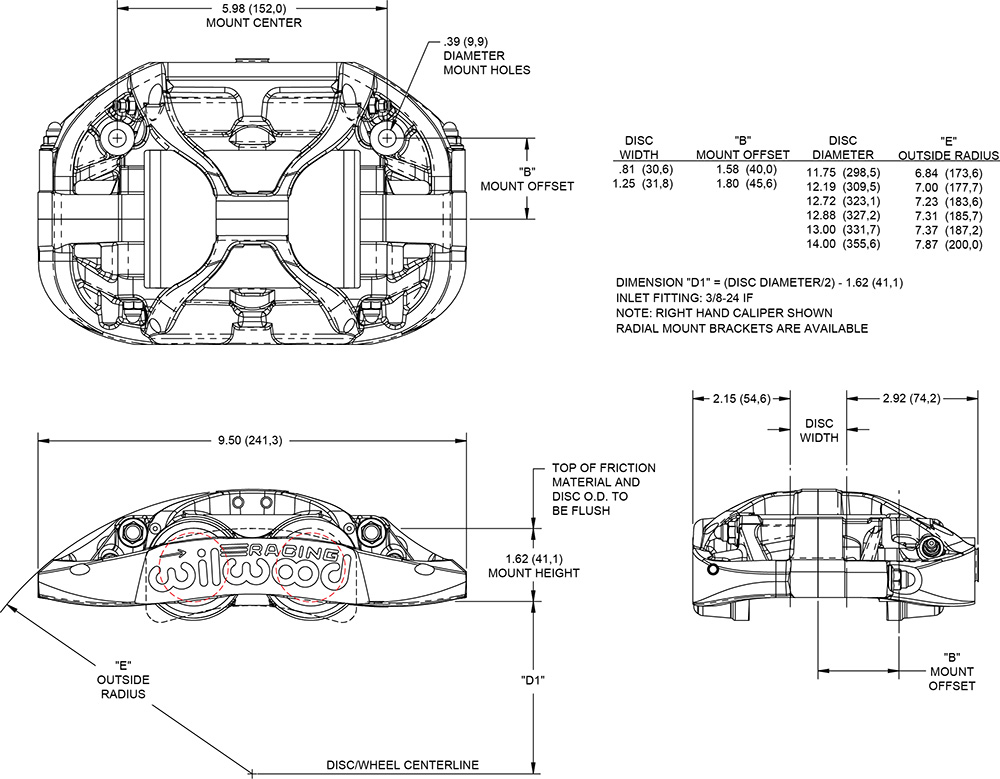

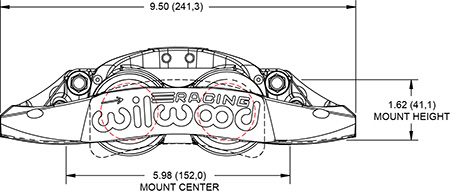

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite 4 Radial Mount Description

The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13234
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite 4 Radial Mount Description

The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13233
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite 4 Radial Mount Description

The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13232
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


Forged Superlite 4 Radial Mount Description

FSL4R/ST calipers provide performance advantages of Thermlock® pistons for ultimate heat protection. Thermlock® pistons used in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. Featuring Type III Anodize finish, these are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13575
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $460.09
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


Forged Superlite 4 Radial Mount Description

FSL4R/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. Featuring a wear resistant Type III hard anodize finish, these are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13576
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $460.09
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.84
Piston 1 Dia: 1.88
Piston 2 Dia: 1.62
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite 4 Radial Mount Description

The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13229
Info *New* Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188
Item No 120-13230
Info *New* Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 4.84
Piston 1 Dia: 1.88
Piston 2 Dia: 1.62
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


Forged Superlite 4 Radial Mount Description

FSL4R/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. Featuring a wear resistant Type III hard anodize finish, these are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13265
Info *New* Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $460.09
Purchase
Call (805) 388-1188
Item No 120-13266
Info *New* Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $460.09
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite 4 Radial Mount Description

The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13826
Info *New* Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188
Item No 120-13827
Info *New* Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Stainless
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite 4 Radial Mount Description

The Superlite 4R caliper series is the benchmark in asphalt short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, rally and sport driving applications. The new FSL4R model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes. The transfer tube has been replaced with two additional bleed screw assemblies which allow symmetrical piston bore models to be mounted either right or left in a leading or trailing position. Differential bore models still require left hand and right hand orientation, but no leading or trailing configuration is necessary.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13227
Info *New* Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188
Item No 120-13228
Info *New* Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $286.84
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


Forged Superlite 4 Radial Mount Description

FSL4R/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. Featuring a wear resistant Type III hard anodize finish, these are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13828
Info *New* Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $460.09
Purchase
Call (805) 388-1188
Item No 120-13829
Info *New* Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $460.09
Purchase
Call (805) 388-1188

Forged Superlite 4 Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize Forged Superlite 4 Radial Mount Caliper

Forged Superlite 4 Radial Mount Caliper Drawing Forged Superlite 4 Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 7420


Forged Superlite 4 Radial Mount Description

FSL4R/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. Featuring a wear resistant Type III hard anodize finish, these are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite 4 Radial Mount
Item No 120-13263
Info *New* Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $460.09
Purchase
Call (805) 388-1188
Item No 120-13264
Info *New* Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $460.09
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 1.98
Piston 1 Dia: 1.12
Piston 2 Dia: 1.12
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 0.81
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11125
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 0.81
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11126
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 2.46
Piston 1 Dia: 1.25
Piston 2 Dia: 1.25
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.25
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11127
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 3.00
Piston 1 Dia: 1.38
Piston 2 Dia: 1.38
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 0.81
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11128
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 3.00
Piston 1 Dia: 1.38
Piston 2 Dia: 1.38
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.10
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11129
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $235.54
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 3.00
Piston 1 Dia: 1.38
Piston 2 Dia: 1.38
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.25
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11130
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.12
Piston 1 Dia: 1.62
Piston 2 Dia: 1.62
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 0.81
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11131
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.12
Piston 1 Dia: 1.62
Piston 2 Dia: 1.62
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.10
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11132
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $235.54
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.12
Piston 1 Dia: 1.62
Piston 2 Dia: 1.62
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.25
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11133
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.80
Piston 1 Dia: 1.75
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 0.81
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11134
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188
Item No 120-11134-SI
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $256.35
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.80
Piston 1 Dia: 1.75
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.10
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11135
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $235.54
Purchase
Call (805) 388-1188

Forged Superlite Internal
Number Pistons: 4
Piston Type: Stainless
Piston Area: 4.80
Piston 1 Dia: 1.75
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.25
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal Caliper

Forged Superlite Internal Caliper Drawing Forged Superlite Internal Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal Description

The Superlite caliper series is the benchmark in short track, late model, modified and open wheel competition. It also enjoys prominence in a variety of road-race, off-road, rally and sport driving applications. The new FSLI model series is the latest innovation to this Superlite family of calipers. It has been redesigned with internal fluid ports that eliminate the external fluid cross-over tubes, along with any potential problems that could arise from a damaged tube. The transfer tube has been replaced with two additional bleed screw assemblies which allows this group of symmetrical piston bore models to be mounted either right or left in a leading or trailing position.

Ordering Information for Forged Superlite Internal
Item No 120-11136
Info Details
Mount Location Universal
Finish & Color Type III Anodize
Price $229.14
Purchase
Call (805) 388-1188

Forged Superlite Internal 4
Number Pistons: 4
Piston Type: Stainless
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 0.81
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal 4 Caliper

Forged Superlite Internal 4 Caliper Drawing Forged Superlite Internal 4 Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal 4 Description

FSLI4 and FSLI4/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. These are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite Internal 4
Item No 120-11137
Info Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $247.66
Purchase
Call (805) 388-1188
Item No 120-11138
Info Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $247.66
Purchase
Call (805) 388-1188

Forged Superlite Internal 4
Number Pistons: 4
Piston Type: Stainless
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.25
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal 4 Caliper

Forged Superlite Internal 4 Caliper Drawing Forged Superlite Internal 4 Caliper Drawing Zoom Image
Brake Pad Plate # 7420


View Custom Caliper Colors

Forged Superlite Internal 4 Description

FSLI4 and FSLI4/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. These are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite Internal 4
Item No 120-11329
Info Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $247.66
Purchase
Call (805) 388-1188
Item No 120-11330
Info Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $247.66
Purchase
Call (805) 388-1188

Forged Superlite Internal 4 ST
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 0.81
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal 4 ST Caliper

Forged Superlite Internal 4 ST Caliper Drawing Forged Superlite Internal 4 ST Caliper Drawing Zoom Image
Brake Pad Plate # 7420


Forged Superlite Internal 4 ST Description

FSLI4 and FSLI4/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. These are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite Internal 4 ST
Item No 120-13155
Info Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $420.91
Purchase
Call (805) 388-1188
Item No 120-13156
Info Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $420.91
Purchase
Call (805) 388-1188

Forged Superlite Internal 4 ST
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 3.50" Lug Mount
Rotor Width: 1.25
Max Rotor Dia: 13.06
Type III Anodize Forged Superlite Internal 4 ST Caliper

Forged Superlite Internal 4 ST Caliper Drawing Forged Superlite Internal 4 ST Caliper Drawing Zoom Image
Brake Pad Plate # 7420


Forged Superlite Internal 4 ST Description

FSLI4 and FSLI4/ST calipers provide the pad wear performance advantages of differential bore pistons with the option for ultimate heat protection using Thermlock® pistons in the ST models. Differential piston bores compensate for leading-edge mechanical loading and temperature variances across the pad face to reduce pad taper wear in sustained high temperature applications. Thermlock® pistons in the ST models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. These are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.

Ordering Information for Forged Superlite Internal 4 ST
Item No 120-11331
Info Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $420.91
Purchase
Call (805) 388-1188
Item No 120-11332
Info Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $420.91
Purchase
Call (805) 388-1188

XRZ4R Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 3.00
Piston 1 Dia: 1.38
Piston 2 Dia: 1.38
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Type III Anodize XRZ4R Radial Mount Caliper

XRZ4R Radial Mount Caliper Drawing XRZ4R Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 10420


XRZ4R Radial Mount Description

Wilwood’s next-generation XRZero race calipers combine decades of race experience, computer finite element analysis (FEA), and state-of-the-art machining into a race caliper that is lighter and stiffer, with zero drag. The unique shape of the high surface area body creates a caliper with superior brake fluid cooling and allows more airflow through the rotor. Optimized profile high-temperature seals provide better piston retraction resulting in less drag. The unique center X-bridge strengthens the caliper body without adding mass or obstructing airflow to the brake rotor or pads. Computer FEA design and precision CNC machining of the stress-flow forged aluminum body results in a caliper weighing just 4.66 pounds - 1/2 pound less than a comparable sized Wilwood Superlite caliper.

Ordering Information for XRZ4R Radial Mount
Item No 120-16467
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $863.94
Purchase
Call (805) 388-1188

XRZ4R Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 3.00
Piston 1 Dia: 1.38
Piston 2 Dia: 1.38
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize XRZ4R Radial Mount Caliper

XRZ4R Radial Mount Caliper Drawing XRZ4R Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 10420


XRZ4R Radial Mount Description

Wilwood’s next-generation XRZero race calipers combine decades of race experience, computer finite element analysis (FEA), and state-of-the-art machining into a race caliper that is lighter and stiffer, with zero drag. The unique shape of the high surface area body creates a caliper with superior brake fluid cooling and allows more airflow through the rotor. Optimized profile high-temperature seals provide better piston retraction resulting in less drag. The unique center X-bridge strengthens the caliper body without adding mass or obstructing airflow to the brake rotor or pads. Computer FEA design and precision CNC machining of the stress-flow forged aluminum body results in a caliper weighing just 4.66 pounds - 1/2 pound less than a comparable sized Wilwood Superlite caliper.

Ordering Information for XRZ4R Radial Mount
Item No 120-16466
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $863.94
Purchase
Call (805) 388-1188

XRZ4R Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 3.54
Piston 1 Dia: 1.50
Piston 2 Dia: 1.50
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Type III Anodize XRZ4R Radial Mount Caliper

XRZ4R Radial Mount Caliper Drawing XRZ4R Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 10420


XRZ4R Radial Mount Description

Wilwood’s next-generation XRZero race calipers combine decades of race experience, computer finite element analysis (FEA), and state-of-the-art machining into a race caliper that is lighter and stiffer, with zero drag. The unique shape of the high surface area body creates a caliper with superior brake fluid cooling and allows more airflow through the rotor. Optimized profile high-temperature seals provide better piston retraction resulting in less drag. The unique center X-bridge strengthens the caliper body without adding mass or obstructing airflow to the brake rotor or pads. Computer FEA design and precision CNC machining of the stress-flow forged aluminum body results in a caliper weighing just 4.66 pounds - 1/2 pound less than a comparable sized Wilwood Superlite caliper.

Ordering Information for XRZ4R Radial Mount
Item No 120-16465
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $863.94
Purchase
Call (805) 388-1188

XRZ4R Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 3.54
Piston 1 Dia: 1.50
Piston 2 Dia: 1.50
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize XRZ4R Radial Mount Caliper

XRZ4R Radial Mount Caliper Drawing XRZ4R Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 10420


XRZ4R Radial Mount Description

Wilwood’s next-generation XRZero race calipers combine decades of race experience, computer finite element analysis (FEA), and state-of-the-art machining into a race caliper that is lighter and stiffer, with zero drag. The unique shape of the high surface area body creates a caliper with superior brake fluid cooling and allows more airflow through the rotor. Optimized profile high-temperature seals provide better piston retraction resulting in less drag. The unique center X-bridge strengthens the caliper body without adding mass or obstructing airflow to the brake rotor or pads. Computer FEA design and precision CNC machining of the stress-flow forged aluminum body results in a caliper weighing just 4.66 pounds - 1/2 pound less than a comparable sized Wilwood Superlite caliper.

Ordering Information for XRZ4R Radial Mount
Item No 120-16464
Info *New* Details
Mount Location Universal
Finish & Color Type III Anodize
Price $863.94
Purchase
Call (805) 388-1188

XRZ4R Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 0.81
Max Rotor Dia: 14.00
Type III Anodize XRZ4R Radial Mount Caliper

XRZ4R Radial Mount Caliper Drawing XRZ4R Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 10420


XRZ4R Radial Mount Description

Wilwood’s next-generation XRZero race calipers combine decades of race experience, computer finite element analysis (FEA), and state-of-the-art machining into a race caliper that is lighter and stiffer, with zero drag. The unique shape of the high surface area body creates a caliper with superior brake fluid cooling and allows more airflow through the rotor. Optimized profile high-temperature seals provide better piston retraction resulting in less drag. The unique center X-bridge strengthens the caliper body without adding mass or obstructing airflow to the brake rotor or pads. Computer FEA design and precision CNC machining of the stress-flow forged aluminum body results in a caliper weighing just 4.66 pounds - 1/2 pound less than a comparable sized Wilwood Superlite caliper.

Ordering Information for XRZ4R Radial Mount
Item No 120-16462
Info *New* Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $863.94
Purchase
Call (805) 388-1188
Item No 120-16463
Info *New* Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $863.94
Purchase
Call (805) 388-1188

XRZ4R Radial Mount
Number Pistons: 4
Piston Type: Thermlock
Piston Area: 5.18
Piston 1 Dia: 1.88
Piston 2 Dia: 1.75
Piston 3 Dia: -
Mount Description: 5.98" Radial Mount
Rotor Width: 1.25
Max Rotor Dia: 14.00
Type III Anodize XRZ4R Radial Mount Caliper

XRZ4R Radial Mount Caliper Drawing XRZ4R Radial Mount Caliper Drawing Zoom Image
Brake Pad Plate # 10420


XRZ4R Radial Mount Description

Wilwood’s next-generation XRZero race calipers combine decades of race experience, computer finite element analysis (FEA), and state-of-the-art machining into a race caliper that is lighter and stiffer, with zero drag. The unique shape of the high surface area body creates a caliper with superior brake fluid cooling and allows more airflow through the rotor. Optimized profile high-temperature seals provide better piston retraction resulting in less drag. The unique center X-bridge strengthens the caliper body without adding mass or obstructing airflow to the brake rotor or pads. Computer FEA design and precision CNC machining of the stress-flow forged aluminum body results in a caliper weighing just 4.66 pounds - 1/2 pound less than a comparable sized Wilwood Superlite caliper.

Ordering Information for XRZ4R Radial Mount
Item No 120-16460
Info *New* Details
Mount Location Right Hand
Finish & Color Type III Anodize
Price $863.94
Purchase
Call (805) 388-1188
Item No 120-16461
Info *New* Details
Mount Location Left Hand
Finish & Color Type III Anodize
Price $863.94
Purchase
Call (805) 388-1188


Wilwood Temperature Strips for Calipers
Wilwood Brake Bleed Bottle



All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
Copyright © 1977 - 2024 Wilwood Engineering, Inc. - All Rights Reserved
Version: 3.05 June 23, 2023
​ ​
