Search: 260-1037


Product Groups found: 3

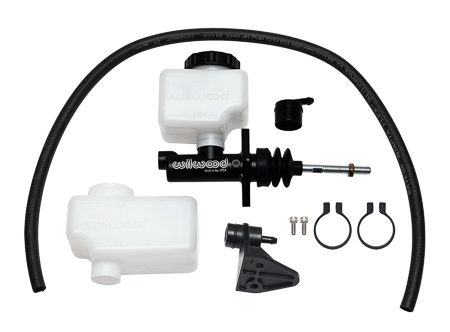

Compact Remote Flange Mount Master Cylinder

Compact Remote Flange Mount Master Cylinder

Wilwood’s Compact Combination Master Cylinders have been designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contain 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.



Ordering Information for Compact Remote Flange Mount Master Cylinder
Details
KIT,M/C,COMPACT REMOTE,5/8in. W/RESERVOIR
$104.70
260-10371
Call (805) 388-1188
Details
KIT,M/C,COMPACT REMOTE,3/4in. W/RESERVOIR
$104.70
260-10372
Call (805) 388-1188
Details
KIT,M/C,COMPACT REMOTE,13/16in. W/RESERVOIR
$112.53
260-10373
Call (805) 388-1188
Details
KIT,M/C,COMPACT REMOTE,7/8in. W/RESERVOIR
$104.70
260-10374
Call (805) 388-1188
Details
KIT,M/C,COMPACT REMOTE,1.00in. W/RESERVOIR
$104.70
260-10375
Call (805) 388-1188
Details
KIT,M/C,COMPACT REMOTE,1.12in. W/RESERVOIR
$112.53
260-10376
Call (805) 388-1188

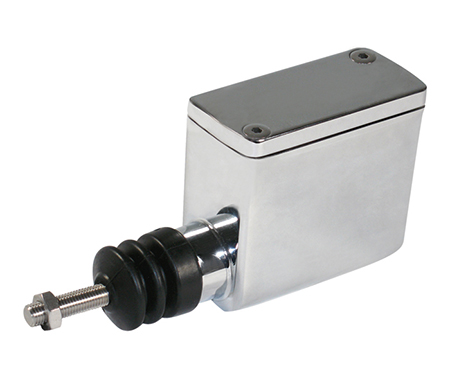

Motorcycle Forward Control Master Cylinder

Motorcycle Forward Control Master Cylinder

Ordering Information for Motorcycle Forward Control Master Cylinder
Details
M/C,5/8,PEDAL,FOOT,R/H,CHROME WILWOOD (OBSOLESCENT)
$301.72
260-10377
Call (805) 388-1188
Details
M/C,5/8,PEDAL,FOOT,L/H,CHROME WILWOOD (OBSOLETE)
$301.72
260-10378
Call (805) 388-1188

Motorcycle Forward Control Master Cylinder

Motorcycle Forward Control Master Cylinder

Ordering Information for Motorcycle Forward Control Master Cylinder
Details
M/C,5/8,PEDAL,FOOT,R/H,CHROME WILWOOD (OBSOLESCENT)
$301.72
260-10377
Call (805) 388-1188
Details
M/C,5/8,PEDAL,FOOT,L/H,CHROME WILWOOD (OBSOLETE)
$301.72
260-10378
Call (805) 388-1188



PDFs found: 2

Data Sheet: ds608.pdf

SHORT REMOTE MASTER CYLINDER

Flyer: fl210.pdf

COMPACT COMBINATION FLANGE MOUNT MASTER CYLINDER KITS
