Search Results: brake bias adjuster


Product Groups found: 13

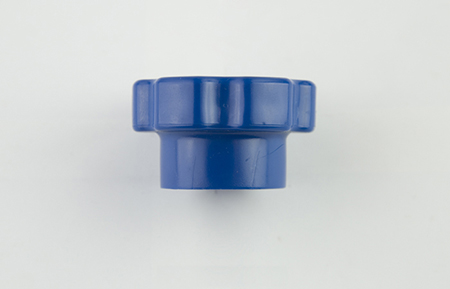

Remote Adjuster Hardware

Remote Adjuster Hardware

Remote Balance Bar Adjuster Knob used in 340-4990 Cable Adjuster Assembly. Engineered from high strength ABS with a blue finish.

Ordering Information for Remote Adjuster Hardware
Details
KNOB,REMOTE BRAKE BIAS ADJUSTER
$10.32
330-4969
Call (805) 388-1188
Details
CABLE ASSEMBLY,REMOTE BRAKE BIAS ADJUSTER
$38.04
330-4996
Call (805) 388-1188
Details
KNOB,ADJUSTER,BALANCE BAR
$25.27
330-4746
Call (805) 388-1188

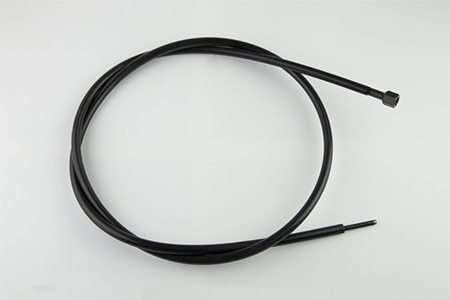

Remote Adjuster Hardware

Remote Adjuster Hardware

Replacement cable used in 340-4990 Cable Adjuster Assembly. Engineered from high strength steel cable and black poly protective sheath.

Ordering Information for Remote Adjuster Hardware
Details
KNOB,REMOTE BRAKE BIAS ADJUSTER
$10.32
330-4969
Call (805) 388-1188
Details
CABLE ASSEMBLY,REMOTE BRAKE BIAS ADJUSTER
$38.04
330-4996
Call (805) 388-1188
Details
KNOB,ADJUSTER,BALANCE BAR
$25.27
330-4746
Call (805) 388-1188

60 Degree Mount Tru-Bar Pedal

60 Degree Mount Tru-Bar Pedal

This Tru-bar unit is ideal for Sprint Cars, Midgets, Dirt Modifieds, or any application where the master cylinders must be mounted remotely from the pedal. This unit features a variable leverage, machined billet pivot arm that multiplies input force on average by 1.5:1 - a 5:1 pedal becomes 7.5:1, 6:1 becomes 9:1. To accommodate fitment where space is at a premium, the master cylinders mount one above the other, twisted 60 degrees with remote fluid reservoirs. When mounted within the driver's reach, the included knob can adjust bias on track quickly and easily.

Wilwood's Remote Mount Tru-Bar pedal utilizes a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments to deliver professional, championship caliber braking performance. A larger diameter 7/16-20 bar is more rigid and provides quicker adjustment, with a 3/8" diameter end that works with standard remote adjuster cables. It provides the ultimate in precision bias adjustment, control, and fine-tuning on race vehicles equipped with dual brake master cylinder systems and proportionally sized calipers.

Ordering Information for 60 Degree Mount Tru-Bar Pedal
Details
PEDAL ASSEMBLY,DUAL M/C,60 DEG,REMOTE TRUNNION
$317.95
340-14380
Call (805) 388-1188

Swing Mount Tru-Bar Brake and Clutch Pedal

Swing Mount Tru-Bar Brake and Clutch Pedal

Wilwood’s Tru-Bar balance bar system is now available in a Forward Swing mount pedal with a 6.25:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Ordering Information for Swing Mount Tru-Bar Brake and Clutch Pedal
Details
PEDAL ASSEMBLY,FORWARD MT,6.25:1,TRIPLE M/C,TRUNNION
$498.94
340-15072
Call (805) 388-1188

Reverse Swing Mount Tru-Bar Brake and Clutch Pedal

Reverse Swing Mount Tru-Bar Brake and Clutch Pedal

Wilwood’s Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 5:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Ordering Information for Reverse Swing Mount Tru-Bar Brake and Clutch Pedal
Details
PEDAL ASSEMBLY,REVERSE MT,5:1,TRIPLE M/C TRUNNION
$498.94
340-15073
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,TRIPLE M/C,TRUNNION
$498.94
340-15074
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,BRAKE TRIPLE M/C,5:1 CLUTCH,TRUNNION
$498.94
340-15075
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,5:1,DUAL M/C TRUNNION
$421.47
340-15076
Call (805) 388-1188

Reverse Swing Mount Tru-Bar Brake and Clutch Pedal

Reverse Swing Mount Tru-Bar Brake and Clutch Pedal

Wilwood’s Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 6.25:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Ordering Information for Reverse Swing Mount Tru-Bar Brake and Clutch Pedal
Details
PEDAL ASSEMBLY,REVERSE MT,5:1,TRIPLE M/C TRUNNION
$498.94
340-15073
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,TRIPLE M/C,TRUNNION
$498.94
340-15074
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,BRAKE TRIPLE M/C,5:1 CLUTCH,TRUNNION
$498.94
340-15075
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,DUAL M/C,TRUNNION
$421.47
340-15077
Call (805) 388-1188

Reverse Swing Mount Tru-Bar Brake and Clutch Pedal

Reverse Swing Mount Tru-Bar Brake and Clutch Pedal

Wilwood’s Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 6.25:1 ratio and 5;1 clutch. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Ordering Information for Reverse Swing Mount Tru-Bar Brake and Clutch Pedal
Details
PEDAL ASSEMBLY,REVERSE MT,5:1,TRIPLE M/C TRUNNION
$498.94
340-15073
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,TRIPLE M/C,TRUNNION
$498.94
340-15074
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,BRAKE TRIPLE M/C,5:1 CLUTCH,TRUNNION
$498.94
340-15075
Call (805) 388-1188

Reverse Swing Mount Tru-Bar Brake Pedal

Reverse Swing Mount Tru-Bar Brake Pedal

Wilwood’s Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 5:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Ordering Information for Reverse Swing Mount Tru-Bar Brake Pedal
Details
PEDAL ASSEMBLY,REVERSE MT,5:1,TRIPLE M/C TRUNNION
$498.94
340-15073
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,5:1,DUAL M/C TRUNNION
$421.47
340-15076
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,DUAL M/C,TRUNNION
$421.47
340-15077
Call (805) 388-1188

Reverse Swing Mount Tru-Bar Brake Pedal

Reverse Swing Mount Tru-Bar Brake Pedal

Wilwood’s Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 6.25:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Ordering Information for Reverse Swing Mount Tru-Bar Brake Pedal
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,TRIPLE M/C,TRUNNION
$498.94
340-15074
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,5:1,DUAL M/C TRUNNION
$421.47
340-15076
Call (805) 388-1188
Details
PEDAL ASSEMBLY,REVERSE MT,6.25:1,DUAL M/C,TRUNNION
$421.47
340-15077
Call (805) 388-1188

Floor Mount Tru-Bar Brake Pedal

Floor Mount Tru-Bar Brake Pedal

Wilwood’s Tru-Bar balance bar system is now available in a Forward Floor mount pedal with a 6:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Ordering Information for Floor Mount Tru-Bar Brake Pedal
Details
PEDAL ASSEMBLY,6:1,DUAL M/C,TRUNNION
$379.20
340-15078
Call (805) 388-1188

Swing Mount Tru-Bar Brake Pedal

Swing Mount Tru-Bar Brake Pedal

Wilwood’s Tru-Bar balance bar system is now available in a Forward Swing mount pedal with a 7:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.

Ordering Information for Swing Mount Tru-Bar Brake Pedal
Details
PEDAL ASSEMBLY,7:1,DUAL M/C,TRUNNION
$379.20
340-15079
Call (805) 388-1188

60 Degree Mount Pedal

60 Degree Mount Pedal

This lightweight 1.8-pound unit is ideal for Sprint Cars, Midgets, Dirt Modifieds, or any application where the master cylinders must be mounted remotely from the pedal. This unit features a variable leverage, machined billet pivot arm that multiplies input force on average by 1.5:1 - a 5:1 pedal becomes 7.5:1, 6:1 becomes 9:1. To accommodate fitment where space is at a premium, the master cylinders are mounted one above the other, twisted 60 degrees with remote fluid reservoirs. The balance bar incorporates a positive detent stop each complete turn to maintain setting and facilitate on-track driver adjustment.

Wilwood's Remote Mount Pedal uses a pin and clevis pushrod attachment system that provides the highest possible degree of misalignment angle for bind-free operation through the entire range of travel. It gives precision bias adjustment, control, and fine-tuning on race vehicles equipped with dual brake master cylinder systems and proportionally sized calipers. When mounted within the driver's reach, the included adjustment knob can be used for quick and easy bias adjustments, or a remote adjuster cable can be attached.

Ordering Information for 60 Degree Mount Pedal
Details
PEDAL ASSEMBLY,DUAL M/C,60 DEG,REMOTE
$254.59
340-4630
Call (805) 388-1188

Remote Bias Adjuster

Remote Bias Adjuster

Wilwood’s Remote Balance Bar Cable Adjuster is used with balance bars to adjust front-to-rear brake bias during changing race conditions. The highly visible bright blue knob features a special bi-directional detente control providing the driver with positive adjustment feedback. The special five foot cable and housing (which can be cut to any length for a custom fit) provides an optimum bending radius for easy installation and smooth performance in tight confines. The assembly comes with two label faces for either front-to-rear or rear-to-front adjustment. Standard 3/8-24 thread fits Wilwood and most commonly used balance bars.

Ordering Information for Remote Bias Adjuster
Details
REMOTE BRAKE BIAS ADJUSTER
$59.25
340-4990
Call (805) 388-1188



PDFs found: 2

Wilwood Engineering’s New Tru-Bar Balance Bar Pedal System

Wilwood’s Tru-Bar balance bar system is now available in the eight popular pedal styles used in virtually all types of competition applications. Tru-Bar pedals utilize a fixed-trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control and adjustment of the brake bias on race-prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance.

Wilwood Racing Releases Reverse Floor Mount Trunnion Brake & Clutch Pedal Assembly

Wilwood Racing has engineered two new reverse floor mount brake pedal assemblies, one with a standard bias adjuster Balance Bar and the other with a precision Tru-Bar. Both models incorporate an adjustable clutch pedal assembly.
