Porportioning Valves & Pressure Valves

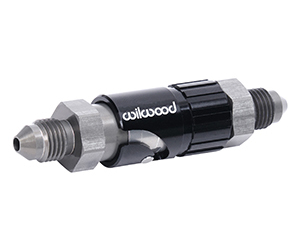

Dry Break No-Bleed Quick Disconnect Kit - Male and Female
Material: Aluminum
Finish: Type III Ano / Black Ano

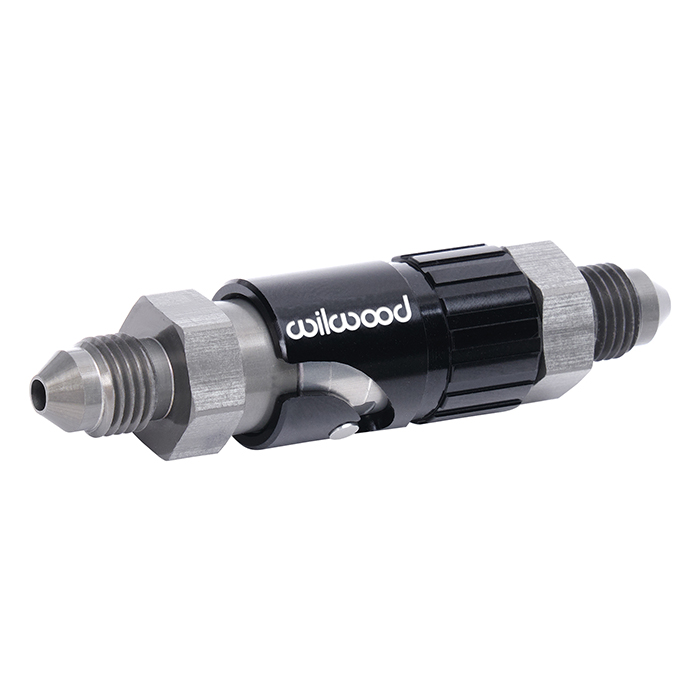

No-Bleed Quick Disconnect Fitting Kit No-Bleed Quick Disconnect Fitting Kit Zoom Image

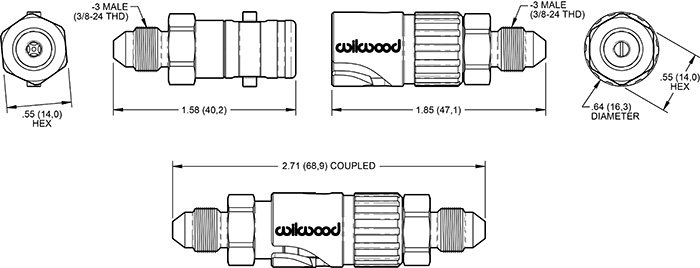

No-Bleed Quick Disconnect Fitting Kit Drawing No-Bleed Quick Disconnect Fitting Kit Drawing Zoom Image

No-Bleed Quick Disconnect Fittings Description

Wilwood dry break quick connect/disconnect -3 AN fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flexline fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping.

Engineered explicitly for high-pressure hydraulic brake fluid systems. Configure hydraulic component spares with the appropriate adapter and pre-bleed for instant use, when needed. Race-proven in circle track, off-road, and endurance road racing. Lightweight (0.6 ounces) aluminum, precision engineered and hard anodized with male fittings on each end.

Ordering Information for No-Bleed Quick Disconnect Fittings
Item No 260-16771
Info *New* Details
Material Aluminum
Finish Type III Ano / Black Ano
Price $124.18
Purchase
Call (805) 388-1188

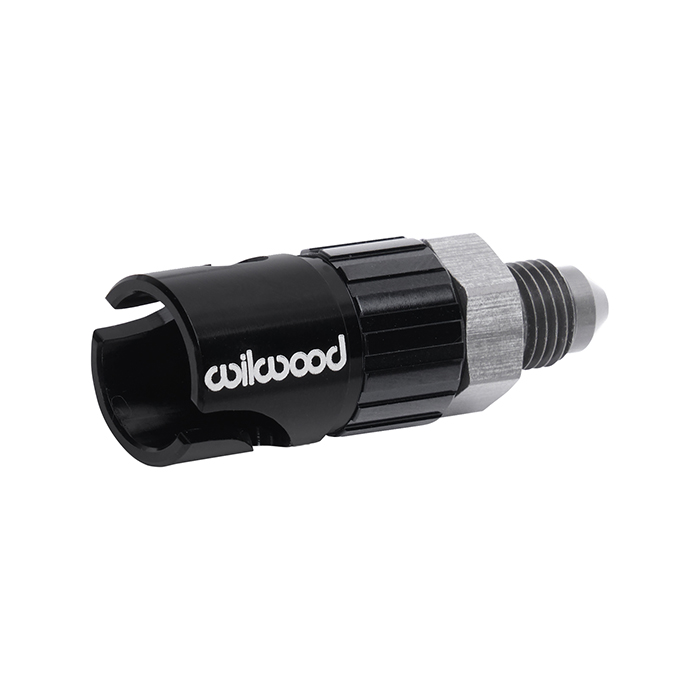

Dry Break No-Bleed Quick Disconnect -Female
Material: Aluminum
Finish: Type III Ano / Black Ano

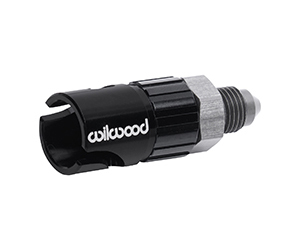

No-Bleed Quick Disconnect Fitting-Female No-Bleed Quick Disconnect Fitting-Female Zoom Image

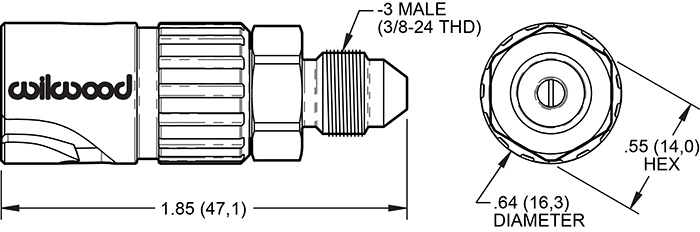

No-Bleed Quick Disconnect Fitting-Female Drawing No-Bleed Quick Disconnect Fitting-Female Drawing Zoom Image

No-Bleed Quick Disconnect Fittings Description

Wilwood dry break quick connect/disconnect fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flexline fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping.

Engineered explicitly for high-pressure hydraulic brake fluid systems. Configure hydraulic component spares with the appropriate adapter and pre-bleed for instant use, when needed. Race-proven in circle track, off-road, and endurance road racing. Lightweight (0.6 ounces) aluminum, precision engineered and hard anodized with female quick disconnect to -3 AN male fitting.

Ordering Information for No-Bleed Quick Disconnect Fittings
Item No 260-16770
Info *New* Details
Material Aluminum
Finish Type III Ano / Black Ano
Price $85.17
Purchase
Call (805) 388-1188

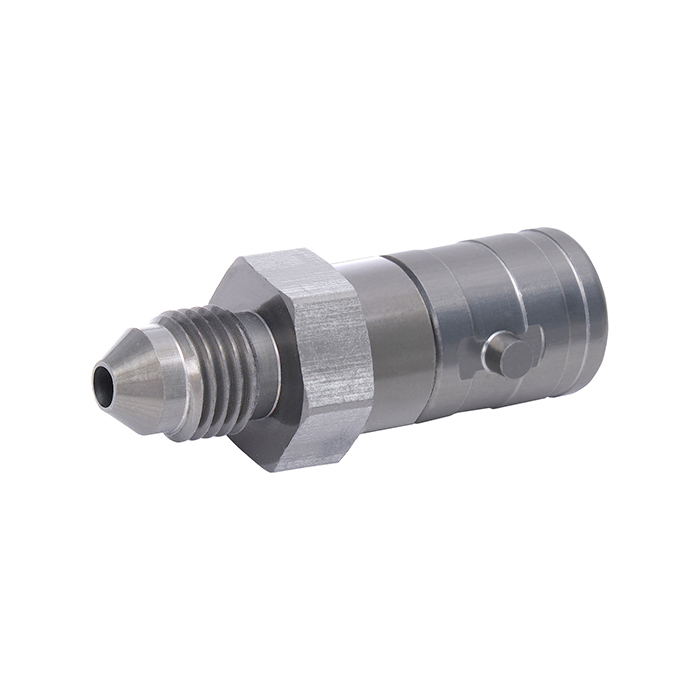

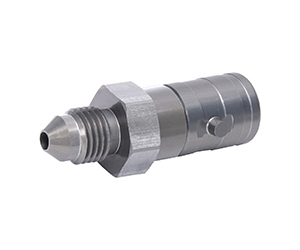

Dry Break No-Bleed Quick Disconnect - Male
Material: Aluminum
Finish: Type III Ano

No-Bleed Quick Disconnect Fitting-Male No-Bleed Quick Disconnect Fitting-Male Zoom Image

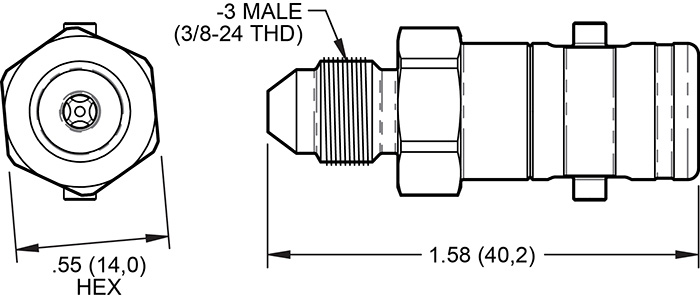

No-Bleed Quick Disconnect Fitting-Male Drawing No-Bleed Quick Disconnect Fitting-Male Drawing Zoom Image

No-Bleed Quick Disconnect Fittings Description

Wilwood dry break quick connect/disconnect fittings make changing brake components faster with no need to bleed the system. A quick quarter-turn disconnects it, without tools, but they connect as secure as a threaded flexline fitting. The internal spring-loaded seal prevents air from entering or fluid from escaping.

Engineered explicitly for high-pressure hydraulic brake fluid systems. Configure hydraulic component spares with the appropriate adapter and pre-bleed for instant use, when needed. Race-proven in circle track, off-road, and endurance road racing. Lightweight (0.6 ounces) aluminum, precision engineered and hard anodized with -3 AN male fitting to male quick disconnect.

Ordering Information for No-Bleed Quick Disconnect Fittings
Item No 260-16769
Info *New* Details
Material Aluminum
Finish Type III Ano
Price $85.17
Purchase
Call (805) 388-1188

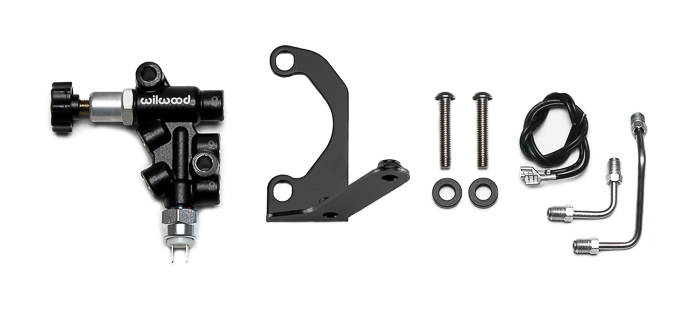

Combination Proportioning Valve w/ Tubes and R/H Mounting Bracket
Material: Aluminum / Steel
Finish: Clear Anodize / Black E-coat

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing

Proportioning Valve - Combo Description

Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. Specifically designed to work in conjunction with Wilwood Compact Tandem Master Cylinders (P/N’s 260-14957 thru 260-14960 and 260-15520 thru 260-15541), in manual or boosted system applications. Kit includes: Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the black e-coated R/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.

Ordering Information for Proportioning Valve - Combo
Item No 260-15667
Info *New* Details
Material Aluminum / Steel
Finish Clear Anodize / Black E-coat
Price $147.27
Purchase
Call (805) 388-1188

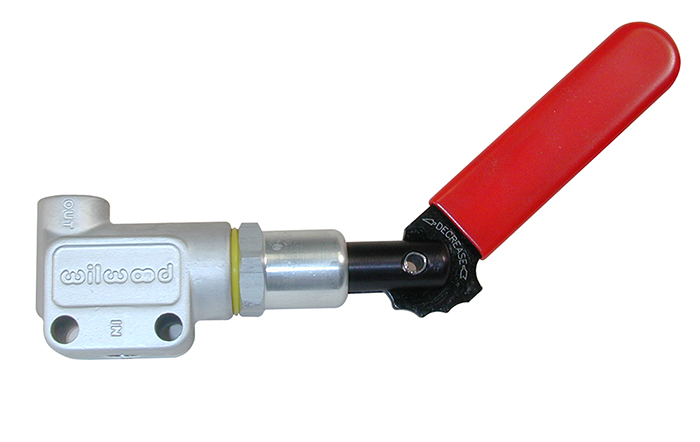

Proportioning Valve, Lever Style, , 10mm x 1.00 seats.
Material: Aluminum / Steel
Finish: Clear Anodize

Proportioning Valve Proportioning Valve Zoom Image

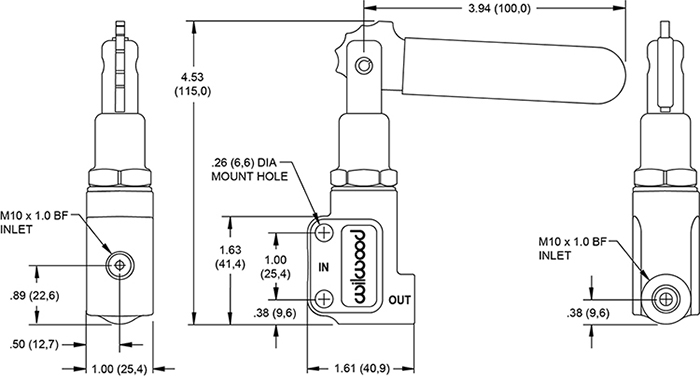

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Compact Lever Description

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 10MM X 1 bubble flare.

Ordering Information for Proportioning Valve - Compact Lever
Item No 260-15832
Info Details
Material Aluminum / Steel
Finish Clear Anodize
Price $121.20
Purchase
Call (805) 388-1188

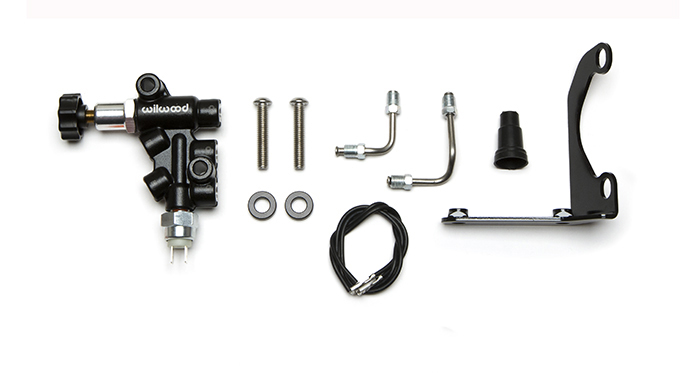

Combination Proportioning Valve w/ Tubes and L/H Mounting Bracket, Remote Tandem Cylinders.
Material: Aluminum / Steel
Finish: Clear Anodize / Black E-coat

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Combo Description

Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. Specifically designed to work in conjunction with Wilwood Remote Tandem Master Cylinders in manual or boosted system applications. Kit includes: Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the black e-coated L/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.

Ordering Information for Proportioning Valve - Combo
Item No 260-14248
Info *New* Details
Material Aluminum / Steel
Finish Clear Anodize / Black E-coat
Price $147.27
Purchase
Call (805) 388-1188

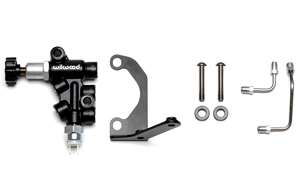

Combination Proportioning Valve w/ Tubes and R/H Mounting Bracket
Material: Aluminum / Steel
Finish: Clear Anodize / Black E-coat

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Combo Description

Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. • Specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders (P/N’s 260-8555, 260-8556, 260-9439, 260-12900 or 260-13375), in manual or boosted system applications. Kit includes: • Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. • Stainless steel button head fasteners thread into the black e-coated R/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.

Ordering Information for Proportioning Valve - Combo
Item No 260-15048
Info Details
Material Aluminum / Steel
Finish Clear Anodize / Black E-coat
Price $147.27
Purchase
Call (805) 388-1188

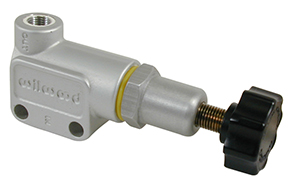

Proportioning Valve, Knob Style, 3/8-24 seats.
Material: Aluminum / Steel
Finish: Clear Anodize

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Compact Knob Description

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25" side mounting holes spaced 1.00" apart. This valve varies from our standard Knob Style Proportioning valve, as the in and out ports are 3/8-24 inverted flare seats and do not require tube nut adapters to directly install 3/16 tubing with inverted flare 3/8-24 nuts.

Ordering Information for Proportioning Valve - Compact Knob
Item No 260-10922
Info Details
Material Aluminum / Steel
Finish Clear Anodize
Price $52.32
Purchase
Call (805) 388-1188

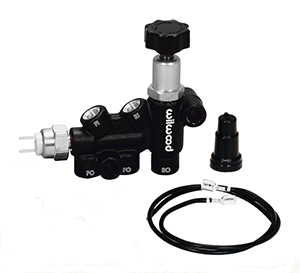

Combination Proportioning Valve
Material: Aluminum / Steel
Finish: Clear Anodize

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Combo Knob Description

Wilwood’s new Combination Proportioning Valve substantially simplifies mounting, plumbing, wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and can be used in conjunction with any tandem outlet or dual mount master cylinder assemblies. The rear circuit has a single inlet and single outlet with the adjustable proportioning valve. The front circuit has a single inlet with two outlets. It can be run as a single outlet with one outlet plugged, or used to split the plumbing on its way to the front calipers.

Ordering Information for Proportioning Valve - Combo Knob
Item No 260-11179
Info *New* Details
Material Aluminum / Steel
Finish Clear Anodize
Price $112.20
Purchase
Call (805) 388-1188
Proportioning Valve, Knob Style, 10mm x 1.00 seats.
Material: Aluminum / Steel
Finish: Clear Anodize

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Compact Description

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. This valve varies from our standard Knob Style Proportioning valve, as the inlet and outlet ports are 10MM X 1 bubble flare seats and do not require tube nut adapters to directly install tubing with bubble flare 10MM x 1 nuts.

Ordering Information for Proportioning Valve - Compact
Item No 260-12627
Info Details
Material Aluminum / Steel
Finish Clear Anodize
Price $52.32
Purchase
Call (805) 388-1188

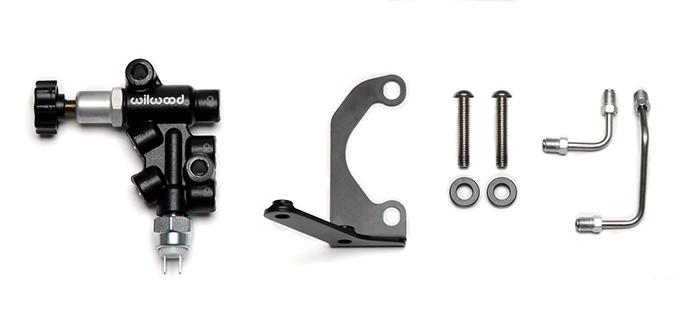

Combination Proportioning Valve w/ Tubes and L/H Mounting Bracket
Material: Aluminum / Steel
Finish: Clear Anodize / Black E-coat

Proportioning Valve Proportioning Valve Zoom Image

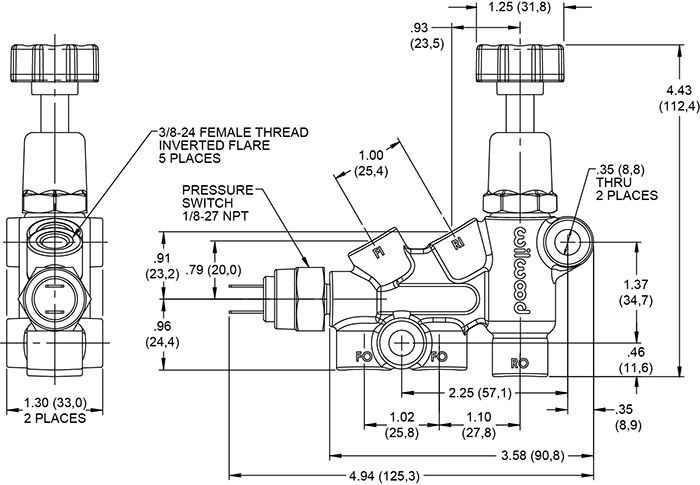

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Combo Description

Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. • Specifically designed to work in conjunction with Wilwood Aluminum Tandem Master Cylinders (P/N’s 260-8555, 260-8556, 260-9439, 260-12900 or 260-13375), in manual or boosted system applications. Kit includes: • Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. • Stainless steel button head fasteners thread into the black e-coated L/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.

Ordering Information for Proportioning Valve - Combo
Item No 260-13190
Info Details
Material Aluminum / Steel
Finish Clear Anodize / Black E-coat
Price $147.27
Purchase
Call (805) 388-1188

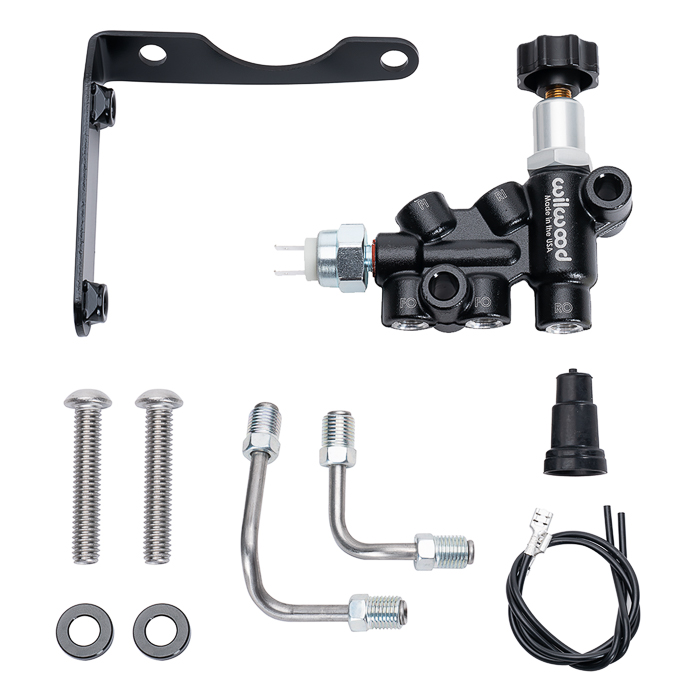

Combination Proportioning Valve w/ Tubes and L/H Mounting Bracket for Mopar 4-bolt
Material: Aluminum / Steel
Finish: Clear Anodize / Black E-coat

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing

Proportioning Valve - Combo Description

Wilwood finally has an elegant answer to the question, “Where do I mount my Combination Proportioning Valve?” with their new Mounting Bracket Kit. Specifically designed to work in conjunction with Wilwood Mopar Compact Tandem Master Cylinders (P/N’s 260-16791 thru 260-16854) in manual or boosted system applications. Kit includes: Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the black e-coated R/H bracket for a simple installation and years of durable, rust-free performance. This complete Mounting Bracket Kit includes all the mounting hardware, plus a Combination Proportioning Valve, 260-11179.

Ordering Information for Proportioning Valve - Combo
Item No 260-17117
Info Details
Material Aluminum / Steel
Finish Clear Anodize / Black E-coat
Price $147.27
Purchase
Call (805) 388-1188

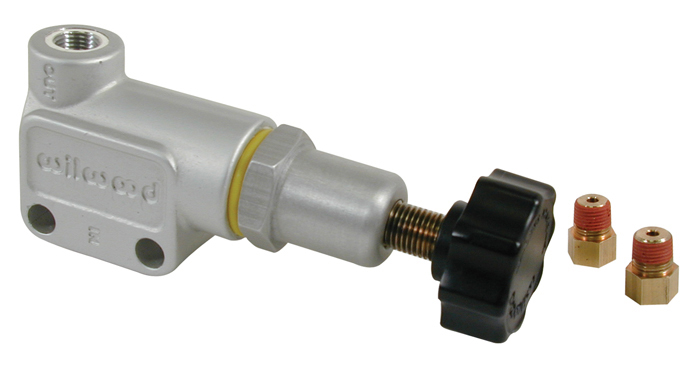

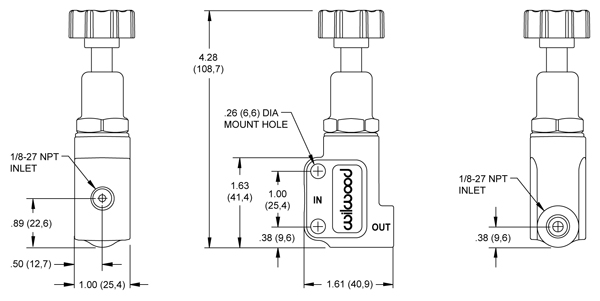

Proportioning Valve, Knob Style.
Material: Aluminum / Steel
Finish: Clear Anodize

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Compact Knob Description

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Ordering Information for Proportioning Valve - Compact Knob
Item No 260-8419
Info Details
Material Aluminum / Steel
Finish Clear Anodize
Price $52.32
Purchase
Call (805) 388-1188

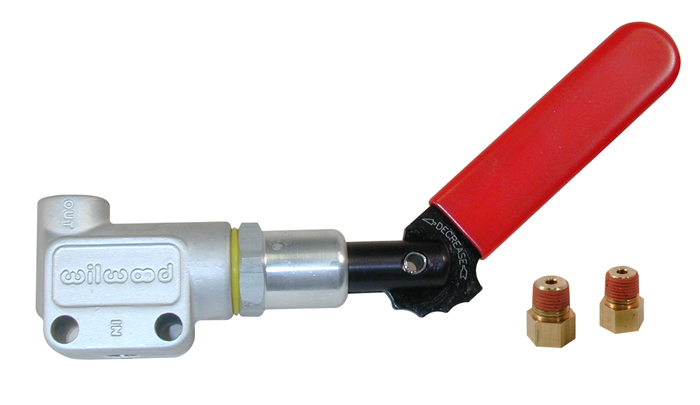

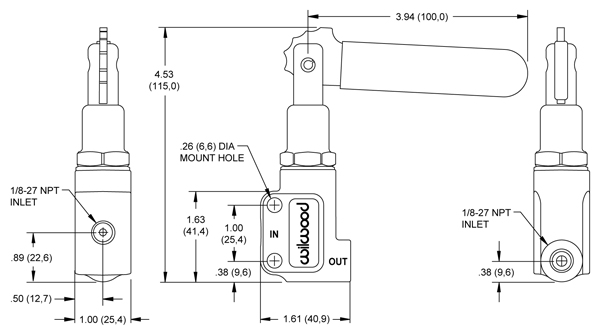

Proportioning Valve, Lever Style.
Material: Aluminum / Steel
Finish: Clear Anodize

Proportioning Valve Proportioning Valve Zoom Image

Proportioning Valve Drawing Proportioning Valve Drawing Zoom Image

Proportioning Valve - Compact Lever Description

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Ordering Information for Proportioning Valve - Compact Lever
Item No 260-8420
Info Details
Material Aluminum / Steel
Finish Clear Anodize
Price $103.87
Purchase
Call (805) 388-1188

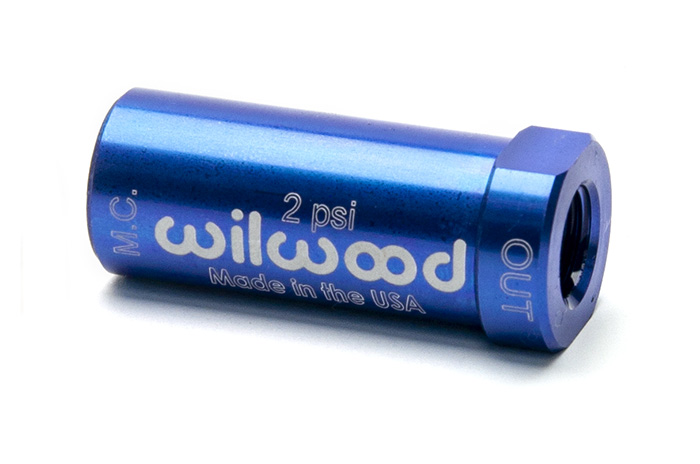

Residual Pressure Valve 2lb, Blue, w/o Fittings.
Material: Aluminum
Finish: Blue Anodize

Residual Pressure Valve Residual Pressure Valve Zoom Image

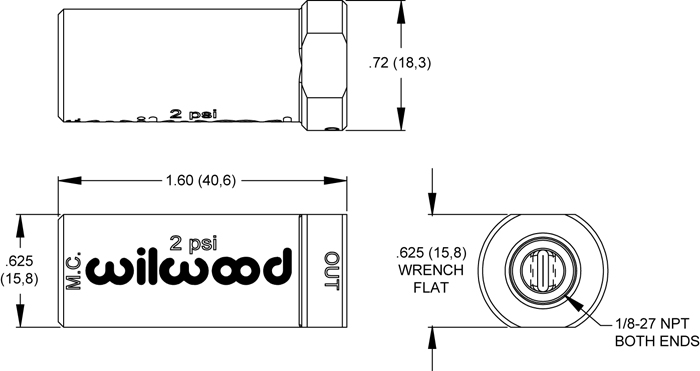

Residual Pressure Valve Drawing Residual Pressure Valve Drawing Zoom Image

Residual Pressure Valve - 2lb Description

Wilwood's two, four and ten pound residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The two pound valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration, thereby causing excessive caliper piston retraction and a longer brake pedal stroke. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. Four pound valves can be beneficial in high vibration brake systems such as off-road or dirt circle track racing. With drum brakes, a ten pound valve is used to compensate for return spring tension and maintain wheel cylinder sealing in the drums. Residual Pressure Valves are made from billet aluminum and color coded for easy identification. Valves are available with or without additional fittings. Valves with fittings are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Ordering Information for Residual Pressure Valve - 2lb
Item No 260-13706
Info Details
Material Aluminum
Finish Blue Anodize
Price $22.38
Purchase
Call (805) 388-1188

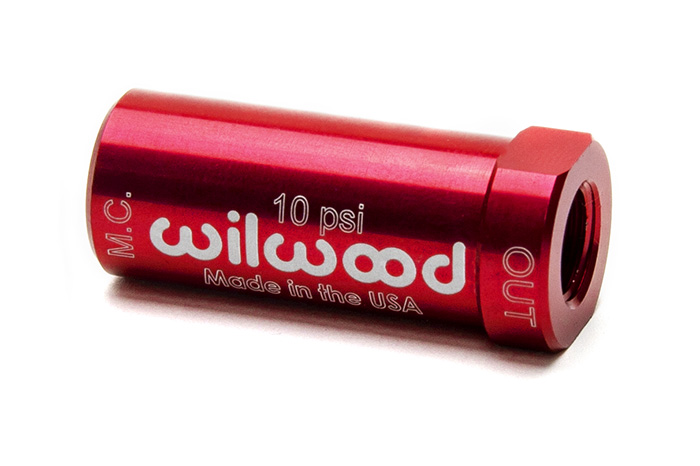

Residual Pressure Valve 10lb, Red, w/o Fittings.
Material: Aluminum
Finish: Red Anodize

Residual Pressure Valve Residual Pressure Valve Zoom Image

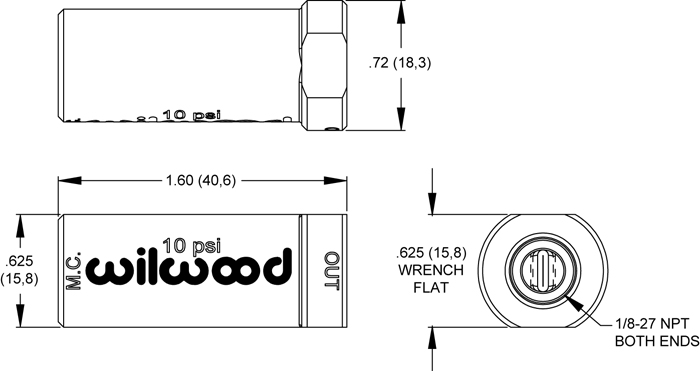

Residual Pressure Valve Drawing Residual Pressure Valve Drawing Zoom Image

Residual Pressure Valve - 10lb Description

Wilwood's two, four and ten pound residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The two pound valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration, thereby causing excessive caliper piston retraction and a longer brake pedal stroke. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. Four pound valves can be beneficial in high vibration brake systems such as off-road or dirt circle track racing. With drum brakes, a ten pound valve is used to compensate for return spring tension and maintain wheel cylinder sealing in the drums. Residual Pressure Valves are made from billet aluminum and color coded for easy identification. Valves are available with or without additional fittings. Valves with fittings are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Ordering Information for Residual Pressure Valve - 10lb
Item No 260-13707
Info Details
Material Aluminum
Finish Red Anodize
Price $22.38
Purchase
Call (805) 388-1188

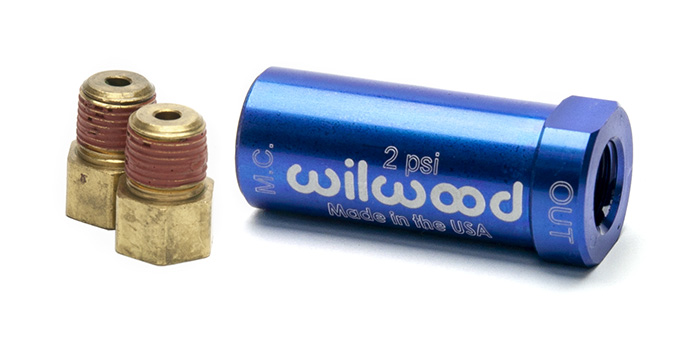

Residual Pressure Valve 2lb, Blue, w/ Fittings.
Material: Aluminum
Finish: Blue Anodize

Residual Pressure Valve Residual Pressure Valve Zoom Image

Residual Pressure Valve Drawing Residual Pressure Valve Drawing Zoom Image

Residual Pressure Valve - 2lb Description

Wilwood's two, four and ten pound residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The two pound valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration, thereby causing excessive caliper piston retraction and a longer brake pedal stroke. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. Four pound valves can be beneficial in high vibration brake systems such as off-road or dirt circle track racing. With drum brakes, a ten pound valve is used to compensate for return spring tension and maintain wheel cylinder sealing in the drums. Residual Pressure Valves are made from billet aluminum and color coded for easy identification. Valves are available with or without additional fittings. Valves with fittings are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Ordering Information for Residual Pressure Valve - 2lb
Item No 260-13783
Info Details
Material Aluminum
Finish Blue Anodize
Price $24.66
Purchase
Call (805) 388-1188

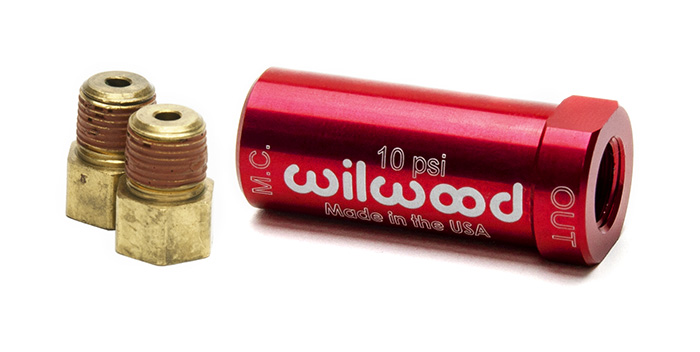

Residual Pressure Valve 10lb, Red, w/ Fittings.
Material: Aluminum
Finish: Red Anodize

Residual Pressure Valve Residual Pressure Valve Zoom Image

Residual Pressure Valve Drawing Residual Pressure Valve Drawing Zoom Image

Residual Pressure Valve - 10lb Description

Wilwood's two, four and ten pound residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The two pound valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration, thereby causing excessive caliper piston retraction and a longer brake pedal stroke. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. Four pound valves can be beneficial in high vibration brake systems such as off-road or dirt circle track racing. With drum brakes, a ten pound valve is used to compensate for return spring tension and maintain wheel cylinder sealing in the drums. Residual Pressure Valves are made from billet aluminum and color coded for easy identification. Valves are available with or without additional fittings. Valves with fittings are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Ordering Information for Residual Pressure Valve - 10lb
Item No 260-13784
Info Details
Material Aluminum
Finish Red Anodize
Price $24.66
Purchase
Call (805) 388-1188

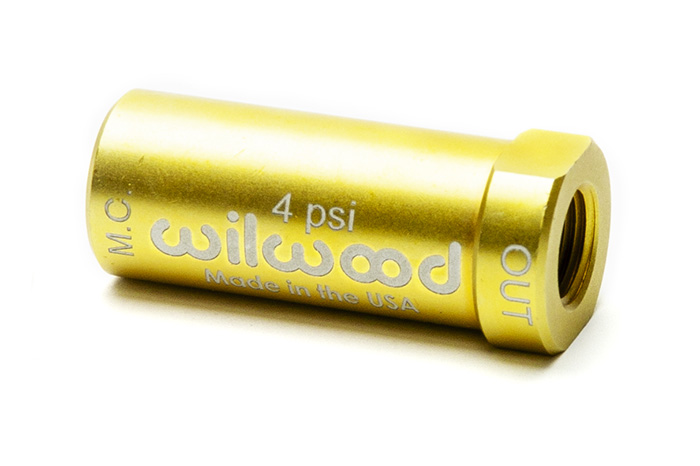

Residual Pressure Valve 4lb, Gold, w/o Fittings.
Material: Aluminum
Finish: Gold Anodize

Residual Pressure Valve Residual Pressure Valve Zoom Image

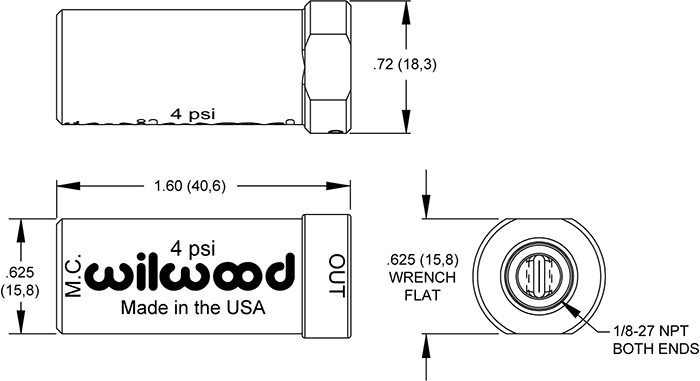

Residual Pressure Valve Drawing Residual Pressure Valve Drawing Zoom Image

Residual Pressure Valve -4lb Description

Wilwood's two, four and ten pound residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The two pound valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration, thereby causing excessive caliper piston retraction and a longer brake pedal stroke. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. Four pound valves can be beneficial in high vibration brake systems such as off-road or dirt circle track racing. With drum brakes, a ten pound valve is used to compensate for return spring tension and maintain wheel cylinder sealing in the drums. Residual Pressure Valves are made from billet aluminum and color coded for easy identification. Valves are available with or without additional fittings. Valves with fittings are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Ordering Information for Residual Pressure Valve -4lb
Item No 260-15365
Info Details
Material Aluminum
Finish Gold Anodize
Price $24.93
Purchase
Call (805) 388-1188

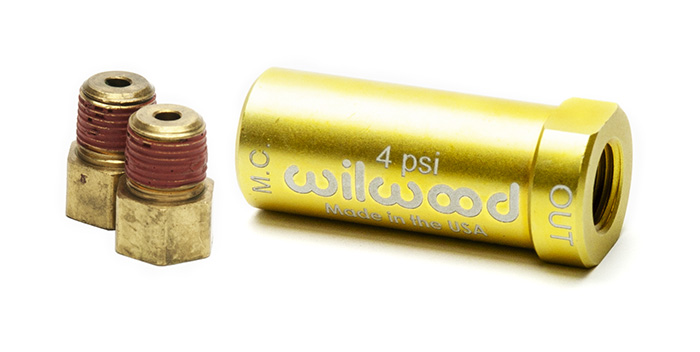

Residual Pressure Valve 4lb, Gold, w/ Fittings.
Material: Aluminum
Finish: Gold Anodize

Residual Pressure Valve Residual Pressure Valve Zoom Image

Residual Pressure Valve Drawing Residual Pressure Valve Drawing Zoom Image

Residual Pressure Valve -4lb Description

Wilwood's two, four and ten pound residual pressure valves retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The two pound valve is used in disc brake applications where the master cylinder is mounted below the horizontal plane of the calipers and fluid drain back occurs from gravity and vibration, thereby causing excessive caliper piston retraction and a longer brake pedal stroke. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. Four pound valves can be beneficial in high vibration brake systems such as off-road or dirt circle track racing. With drum brakes, a ten pound valve is used to compensate for return spring tension and maintain wheel cylinder sealing in the drums. Residual Pressure Valves are made from billet aluminum and color coded for easy identification. Valves are available with or without additional fittings. Valves with fittings are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Ordering Information for Residual Pressure Valve -4lb
Item No 260-15366
Info Details
Material Aluminum
Finish Gold Anodize
Price $27.21
Purchase
Call (805) 388-1188

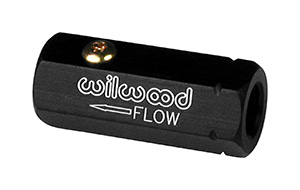

Self Bleed Check Valve, Black.
Material: Aluminum
Finish: Black Anodize

Self Bleed Check Valve Self Bleed Check Valve Zoom Image

Self Bleed Check Valve Drawing Self Bleed Check Valve Drawing Zoom Image

Self Bleed Check Valve Description

Wilwood Check Valves, or Flow Control Valves are used in conjunction with our caliper Self Bleed Lines. Together they form a closed loop brake fluid system that allows small amounts of brake fluid to circulate every time the brake pedal is depressed, thereby eliminating the possibility of localized fluid boiling and build-up of gases within the brake fluid. Gases end up being vented back into the master cylinder reservoir rather than trapped within the caliper and brake lines. Our Check Valve accepts standard 1/8-27 NPT fittings. For plumbing instructions request Wilwood’s Data Sheet, DS-213.

Ordering Information for Self Bleed Check Valve
Item No 260-3501
Info Details
Material Aluminum
Finish Black Anodize
Price $79.63
Purchase
Call (805) 388-1188
Brake Shutoff Valve & Solenoid, Electric.
Material: Aluminum / Steel
Finish: Clear Anodize

Shutoff Valve Shutoff Valve Zoom Image

Shutoff Valve Drawing Shutoff Valve Drawing Zoom Image

Shutoff Valve Description

This valve can be used as a brake shut-off. When energized, the valve will block pressure from reaching downstream. The valve does not prevent fluid from returning to the master cylinder. This eliminates the possibility of trapping pressure when activating the valve. Requires a 12 Volt, 5 amp (recommended) fused power source through a toggle switch.

Warning: Not a line lock assembly. Not for street use. Please read instruction sheet DS572 before attempting installation.

Ordering Information for Shutoff Valve
Item No 260-9921
Info Details
Material Aluminum / Steel
Finish Clear Anodize
Price $193.98
Purchase
Call (805) 388-1188

All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
Copyright © 1977 - 2024 Wilwood Engineering, Inc. - All Rights Reserved
Version: 3.05 June 23, 2023
​ ​
