Search: 140-1684


Product Groups found: 3
Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Ordering Information for Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)
Details
KIT,FRONT,HONDA CIVIC,13-UP,OEM 57mm PISTON CALIPER,12.88 ROTOR,W/LINES
Black
$2,180.90
140-16847
Call (805) 388-1188
Details
KIT,FRONT,HONDA CIVIC,13-UP,OEM 57mm PISTON CALIPER,12.88 ROTOR,SRP,W/LINES
Black
$2,180.90
140-16847-D
Call (805) 388-1188
Details

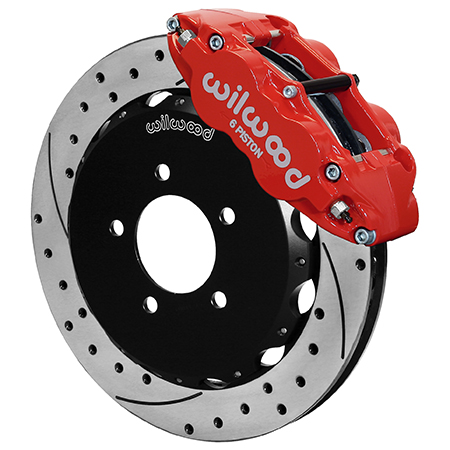

KIT,FRONT,HONDA CIVIC,13-UP,OEM 57mm PISTON CALIPER,12.88 RTR,SRP,RED,W/LINES
Red
$2,180.90
140-16847-DR
Call (805) 388-1188
Details
KIT,FRONT,HONDA CIVIC,13-UP,OEM 57mm PISTON CALIPER,12.88 ROTOR,RED,W/LINES
Red
$2,180.90
140-16847-R
Call (805) 388-1188

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Race)

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Race)

These kits are configured for dedicated road racing and requires 17” or larger wheels designed with additional inside clearance to accommodate the larger than stock brake package. The six piston FNSL6R/ST radial mount calipers used in this kit feature a forged aluminum body with a Type III Mil-Spec hard anodized, medium gray color finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and to extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Spec37 alloy, GT competition series 12.88” diameter directional vane rotors are dynamically or fixed mounted to the OE hubs with weight saving forged aluminum hats.

Ordering Information for Forged Narrow Superlite 6R Big Brake Front Brake Kit (Race)
Details
KIT,FRONT,HONDA CIVIC 13-UP,ROAD RACE FNSL6R/ST,GT48,SPEC 37,12.88 RTR,W/LINES
Anodize
$2,599.50
140-16848
Call (805) 388-1188

Electronic Parking Brake Rear Retrofit Brake Kit

Electronic Parking Brake Rear Retrofit Brake Kit

Wilwood’s Electronic Parking Brake kits provides a complete parking brake solution for 0.81" and 1.10" rotor width rear brake kits. The Black or Red powder coat external electronic parking brake provides superior static holding power and a simplified installation with the included controller, harness and switch assembly. Installation would require custom bracket assemblies to fit to most applications.

Ordering Information for Electronic Parking Brake Rear Retrofit Brake Kit
Details
KIT,CALIPER,EPB,1.25 ROTOR,BLACK,W/ SWITCH,HARNESS,CONTROLLER
Black
$1,256.79
140-16849-BK
Call (805) 388-1188
Details
KIT,CALIPER,EPB,1.25 ROTOR,RED,W/SWITCH HARNESS,CONTROLLER
Red
$1,256.79
140-16849-RD
Call (805) 388-1188



PDFs found: 4

Wilwood Disc Brakes Releases Street and Track Big Brake Kits for 2013-20 Honda Civic

Wilwood has added two new big brake kits for the 2013-2020 Honda Civic featuring Superlite calipers and 12.88” (327mm) rotors. More than 1-inch in diameter larger than stock, and manufactured using proprietary Spec37 iron, these rotors deliver more brake torque and resist distortion from extreme heat. Motorsports-proven Superlite calipers have less deflection so more pedal effort is directly converted to clamping force.

Data Sheet: ds1508.pdf

FRONT 2013-PRESENT CIVIC / 2011-2015 CRZ - SUPERLITE 6R - 12.88" VENTED ROTOR - FLEXLINES

Data Sheet: ds1509.pdf

FRONT 2013-PRESENT CIVIC / 2011-2015 CRZ - SUPERLITE 6R/ST - 12.88" VENTED ROTOR - FLEXLINES - ROAD RACE

Flyer: fl556.pdf

2013-20 HONDA CIVIC BRAKE KITS
