Pedals & Accessories

Pedals

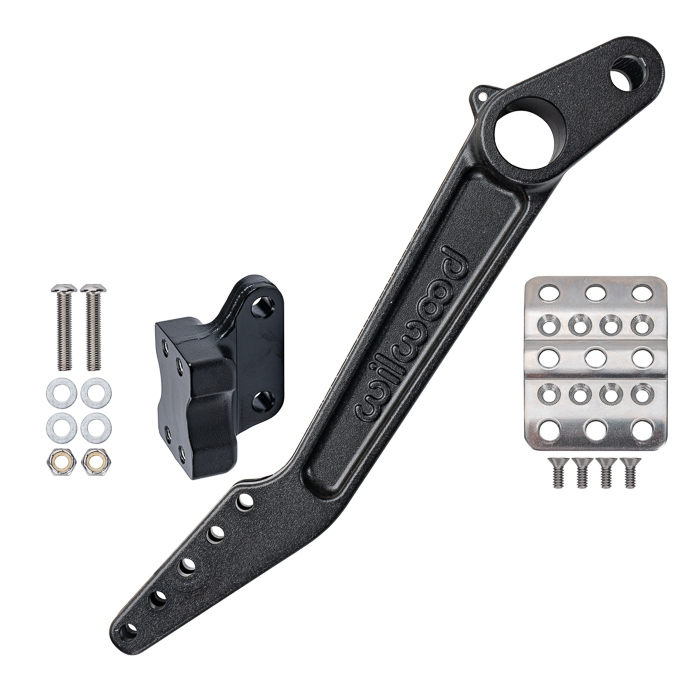

Pedal Kit,Adjustable Brake Forward Mount
Mount Location: Swing
Mount Facing: Forward
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 6.25-7:1

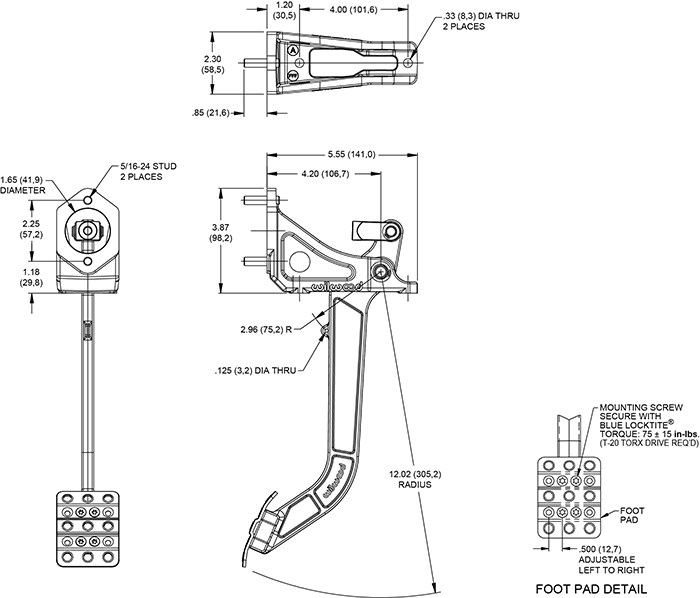

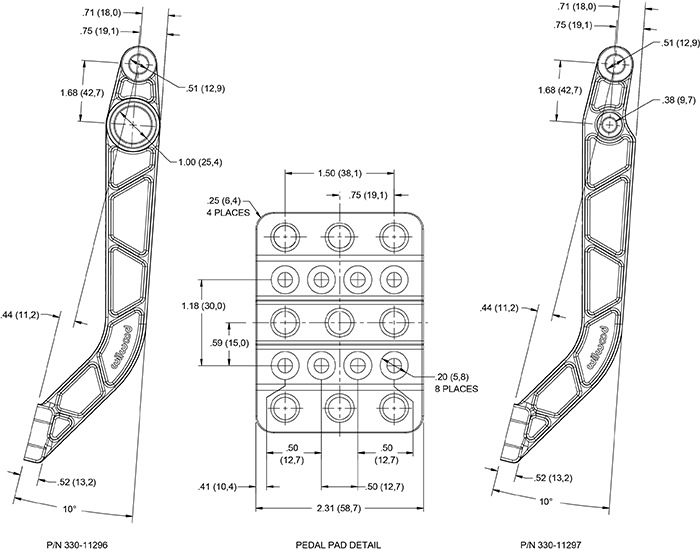

Pedal Accessories Drawing Pedal Accessories Drawing

Pedal Accessories Description

Wilwood’s new Adjustable Forward Mount Pedal Replacement Kit includes the Adjustable Brake pedal & balance bar assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio. Also Included with this assembly: clevis hardware required in the conversion. 340-16403 kits will convert the following 7 to 1 ratio forward mount assemblies: 340-1287 and 340-13832



Ordering Information for Pedal Accessories
Item No 340-16412
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $119.62
Purchase
Call (805) 388-1188

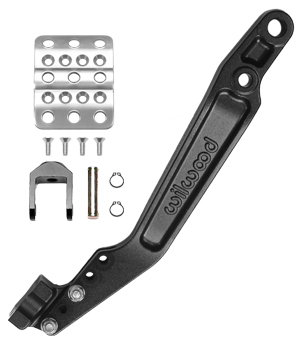

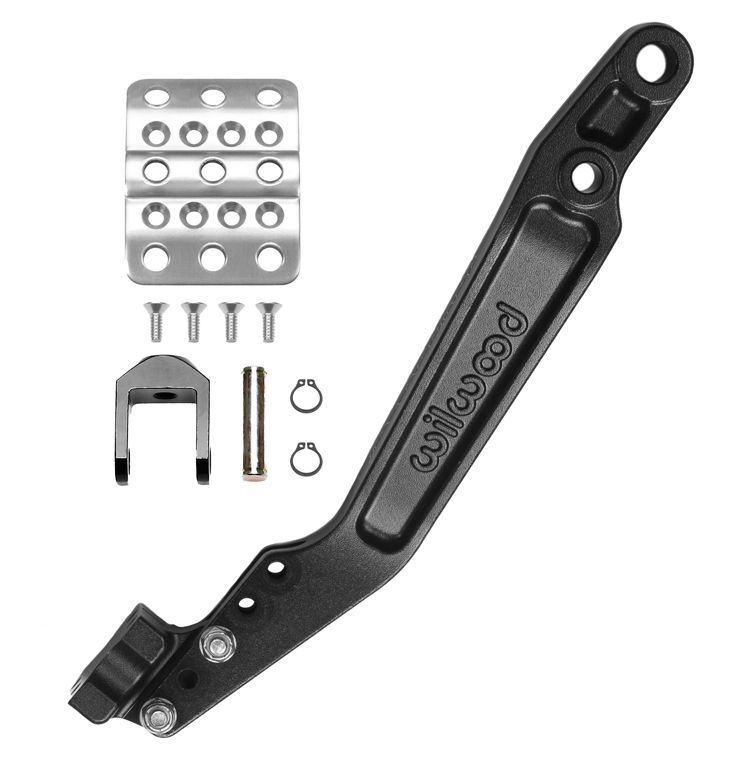

Pedal Kit,Adjustable Clutch Forward Mount 2.00" Offset
Mount Location: Swing
Mount Facing: Forward
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1

Pedal Accessories Drawing Pedal Accessories Drawing

Pedal Accessories Description

Wilwood’s new Adjustable Forward Mount 2.00" Offset Clutch Pedal Replacement Kit includes the Adjustable Clutch pedal assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio. Also Included with this assembly is clevis hardware required in the conversion. 340-16352 kits will convert the following 6.25 to 1 ratio forward mount assemblies: 340-11295 and 340-3950.



Ordering Information for Pedal Accessories
Item No 340-16352
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $123.61
Purchase
Call (805) 388-1188

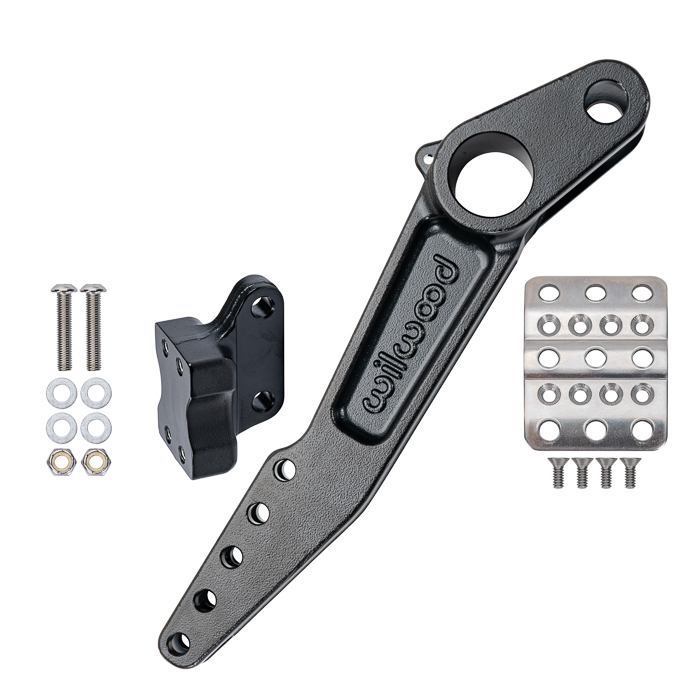

Pedal Kit,Adjustable Brake Floor Mount
Mount Location: Floor
Mount Facing: Forward
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 5.25-6:1

Pedal Accessories Drawing Pedal Accessories Drawing

Pedal Accessories Description

Wilwood’s new Adjustable Floor Mount Pedal Replacement Kit includes the Adjustable Brake pedal & balance bar assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.25, 5.63, or 6.00:1 ratio. Also Included with this assembly: clevis hardware required in the conversion. 340-16397 kits will convert the following 6 to 1 ratio floor mount assemblies: 340-1285 and 340-13831.



Ordering Information for Pedal Accessories
Item No 340-16397
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $119.62
Purchase
Call (805) 388-1188

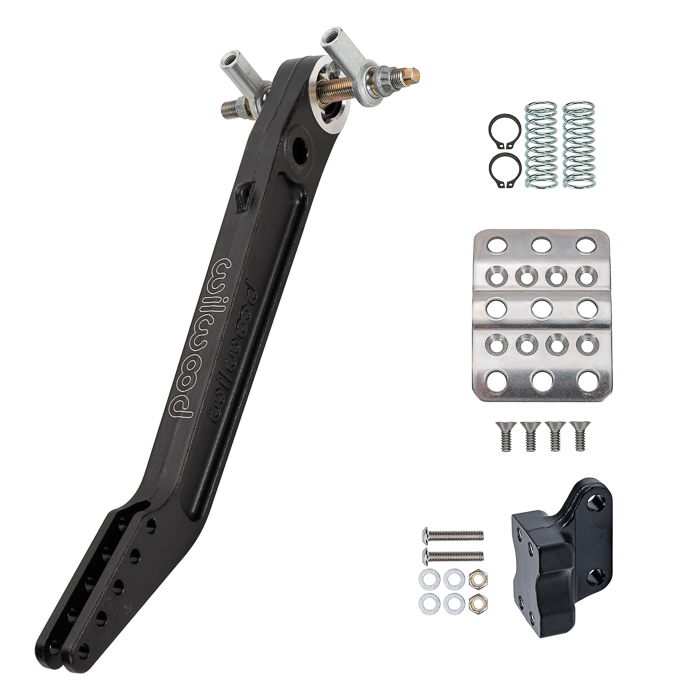

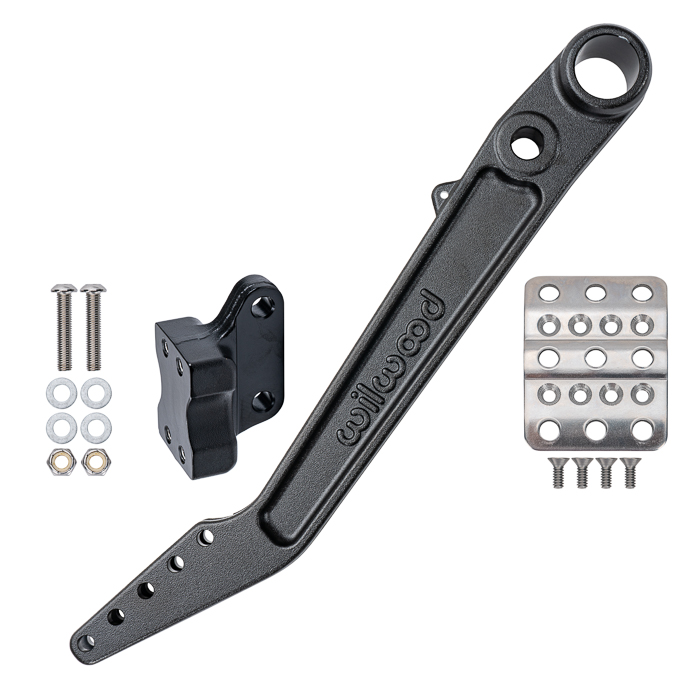

Pedal Kit,Adjustable Brake Reverse Mount
Mount Location: Swing
Mount Facing: Reverse
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1

Pedal Accessories Drawing Pedal Accessories Drawing

Pedal Accessories Description

Wilwood’s new Adjustable Reverse Mount Pedal Replacement Kit includes the Adjustable Brake pedal & balance bar assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio. Also Included with this assembly: trunnion, clevis hardware required in the conversion. 340-16399 kits will convert the following 5.1-6.25 to 1 ratio reverse mount assemblies: 340-11299,340-12509,340-13835,340-13836,340-13837,340-3342,340-4828, 340-5180,340-5181 and 340-6451.



Ordering Information for Pedal Accessories
Item No 340-16399
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $119.62
Purchase
Call (805) 388-1188

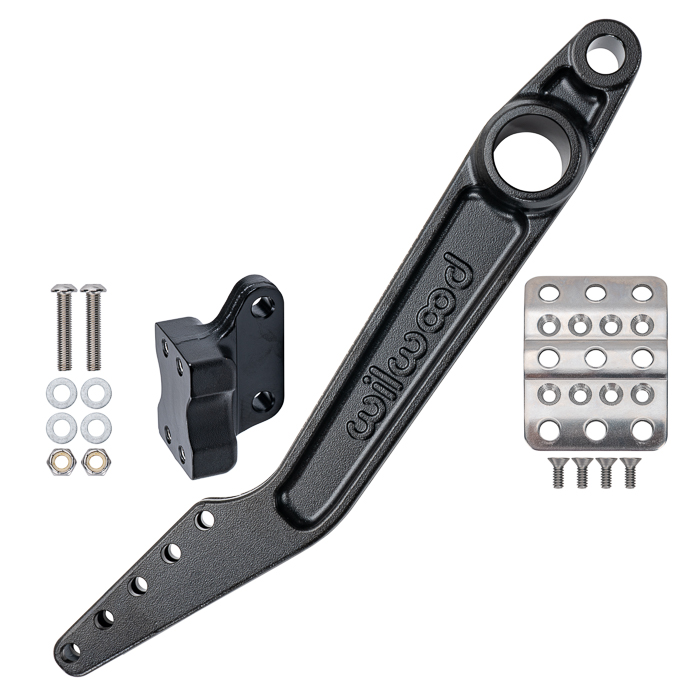

Pedal Kit,Adjustable Brake Forward Mount
Mount Location: Swing
Mount Facing: Forward
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1

Pedal Accessories Drawing Pedal Accessories Drawing

Pedal Accessories Description

Wilwood’s new Adjustable Forward Mount Pedal Replacement Kit includes the Adjustable Brake pedal & balance bar assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio. Also Included with this assembly: clevis hardware required in the conversion. 340-16401 kits will convert the following 5.1-6.25 to 1 ratio forward mount assemblies: 340-11295 and 340-3950



Ordering Information for Pedal Accessories
Item No 340-16401
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $119.62
Purchase
Call (805) 388-1188

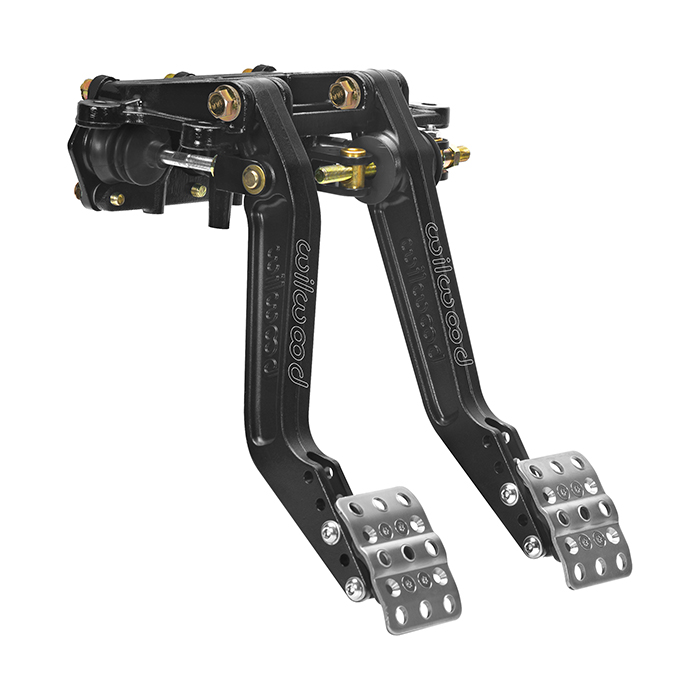

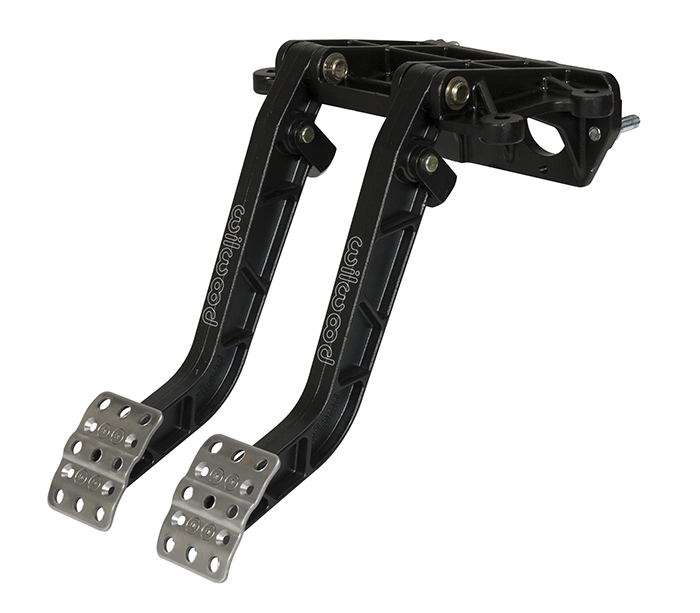

Swing Mount Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1
Pedal 2 Ratio: 5.5-6.25:1

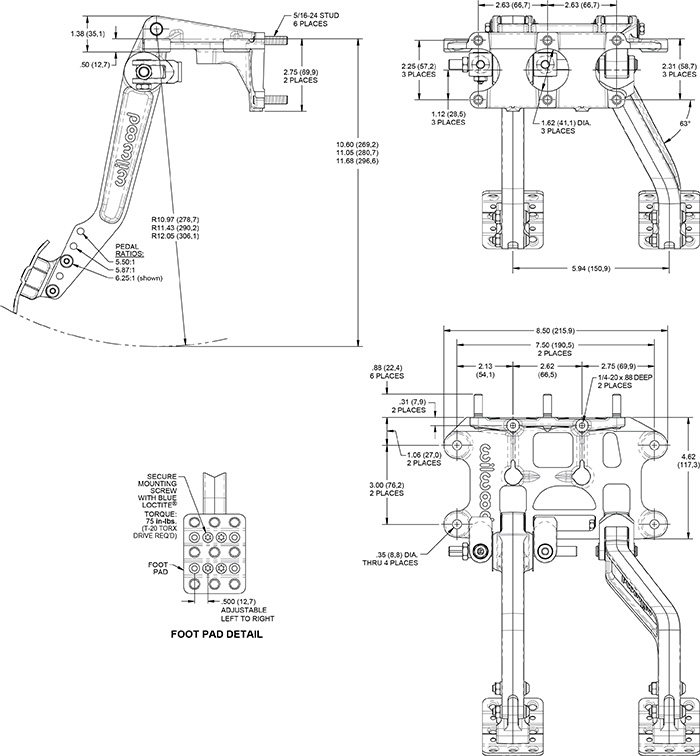

Swing Mount Brake and Clutch Pedal-Adj Ratio Drawing Swing Mount Brake and Clutch Pedal-Adj Ratio Drawing Zoom Image

Swing Mount Brake and Clutch Pedal-Adj Ratio Description

Adjustable ratio balance bar brake pedal with offset clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly through the firewall, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 5 to 7 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts any three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Swing Mount Brake and Clutch Pedal-Adj Ratio
Item No 340-16350
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $339.76
Purchase
Call (805) 388-1188

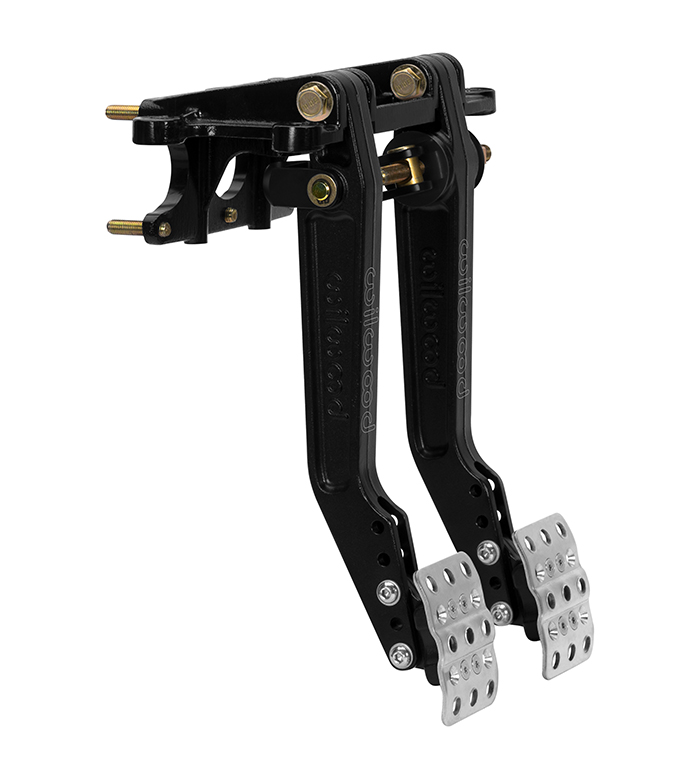

Swing Mount Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1
Pedal 2 Ratio: 5.5-6.25:1

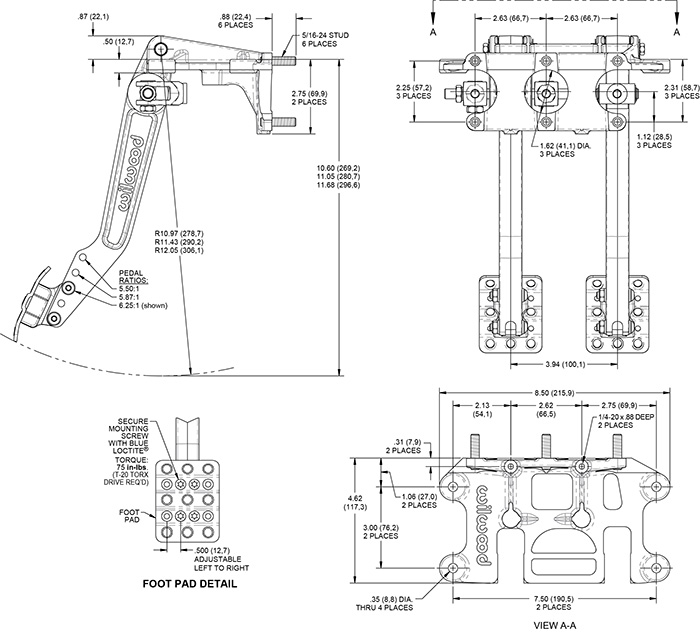

Swing Mount Brake and Clutch Pedal-Adj Ratio Drawing Swing Mount Brake and Clutch Pedal-Adj Ratio Drawing Zoom Image

Swing Mount Brake and Clutch Pedal-Adj Ratio Description

Adjustable ratio balance bar brake pedal and clutch pedal combo, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly through the firewall, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts any three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Swing Mount Brake and Clutch Pedal-Adj Ratio
Item No 340-16382
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $339.76
Purchase
Call (805) 388-1188

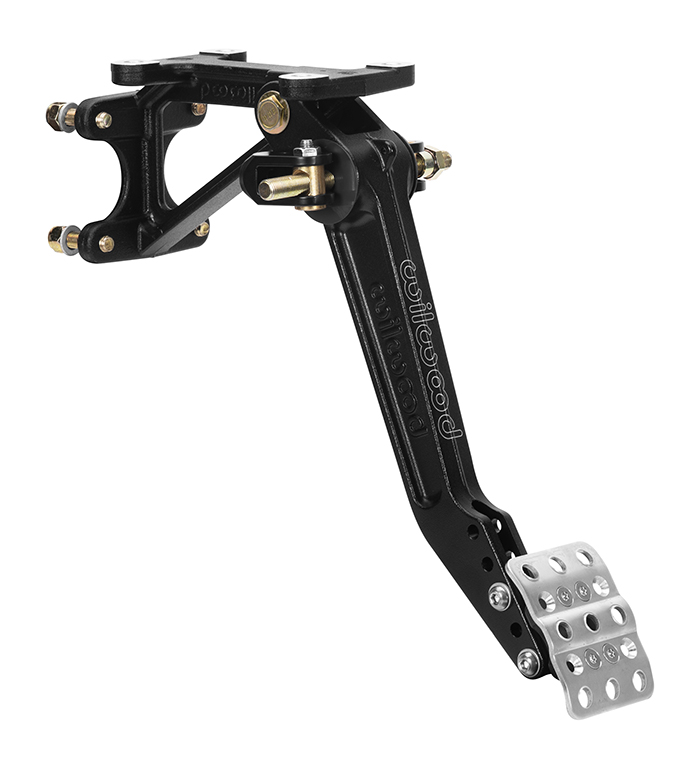

Swing Mount Brake Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 6.25-7:1

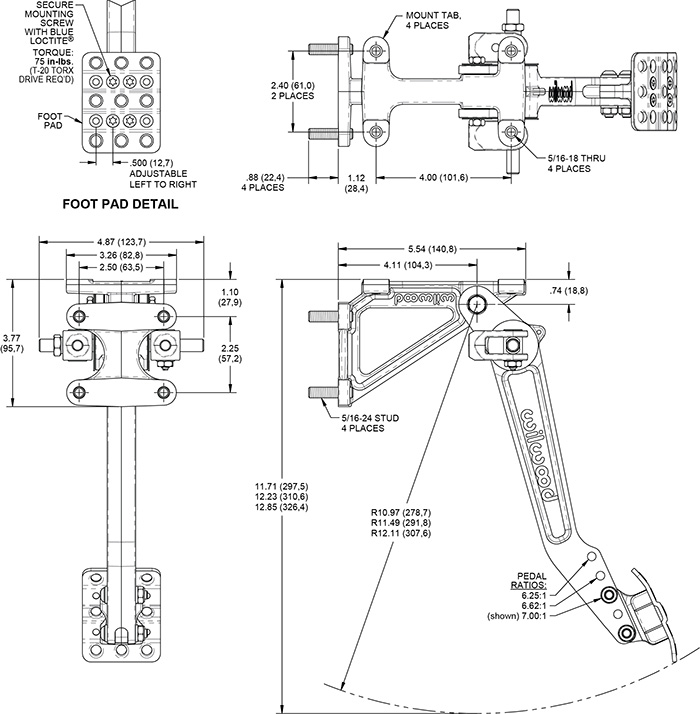

Swing Mount Brake Pedal-Adjusatble Ratio Drawing Swing Mount Brake Pedal-Adjusatble Ratio Drawing Zoom Image

Swing Mount Brake Pedal-Adjusatble Ratio Description

Adjustable ratio balance bar brake pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. Two brake master cylinders mount to the assembly through the firewall, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference.The pedal feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arm. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts any two Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Swing Mount Brake Pedal-Adjusatble Ratio
Item No 340-16379
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $198.32
Purchase
Call (805) 388-1188

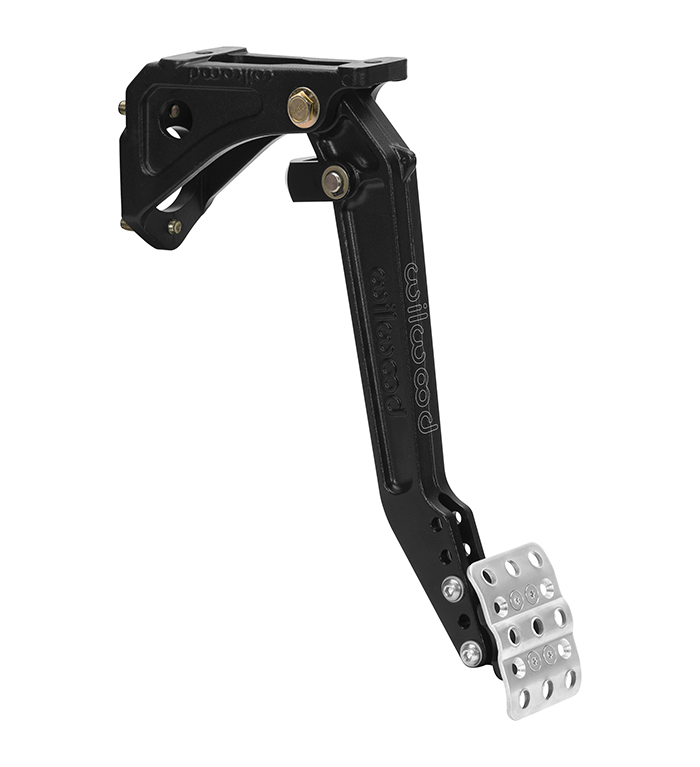

Swing Mount Clutch / Brake Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 6.25-7:1

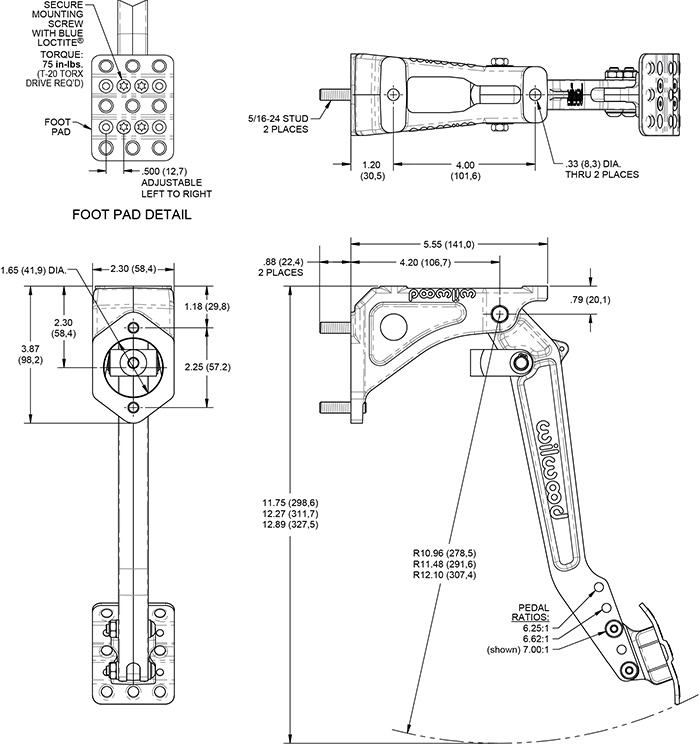

Swing Mount Clutch / Brake Pedal-Adjustable Ratio Drawing Swing Mount Clutch / Brake Pedal-Adjustable Ratio Drawing Zoom Image

Swing Mount Clutch / Brake Pedal-Adjustable Ratio Description

Adjustable ratio single clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.



Ordering Information for Swing Mount Clutch / Brake Pedal-Adjustable Ratio
Item No 340-16381
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $147.17
Purchase
Call (805) 388-1188

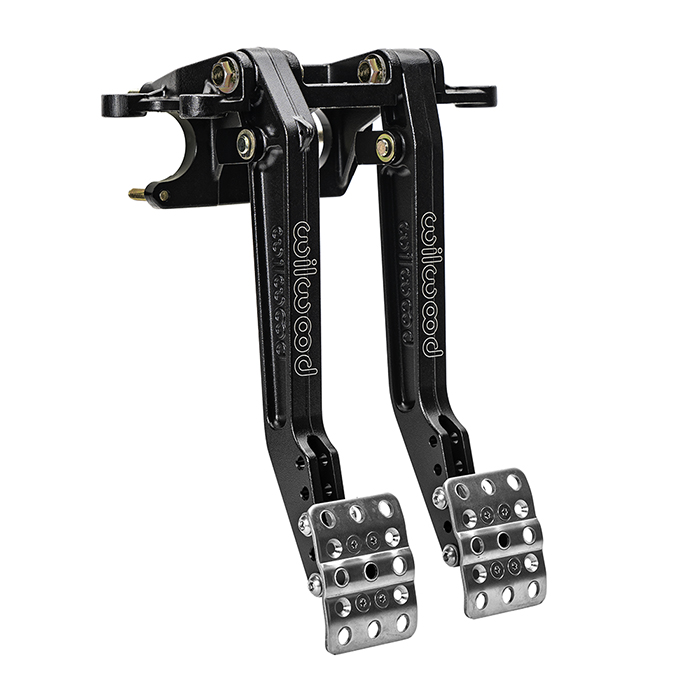

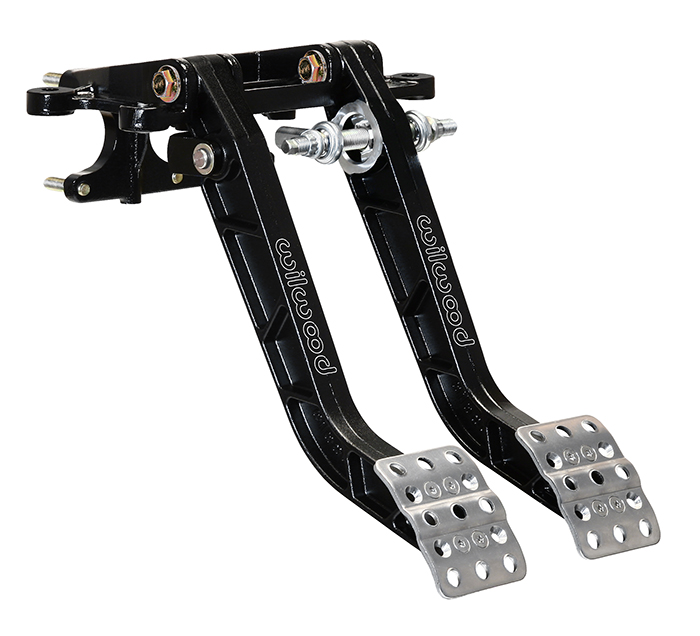

Swing Mount Tandem Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 6.25-7:1
Pedal 2 Ratio: 6.25-7:1

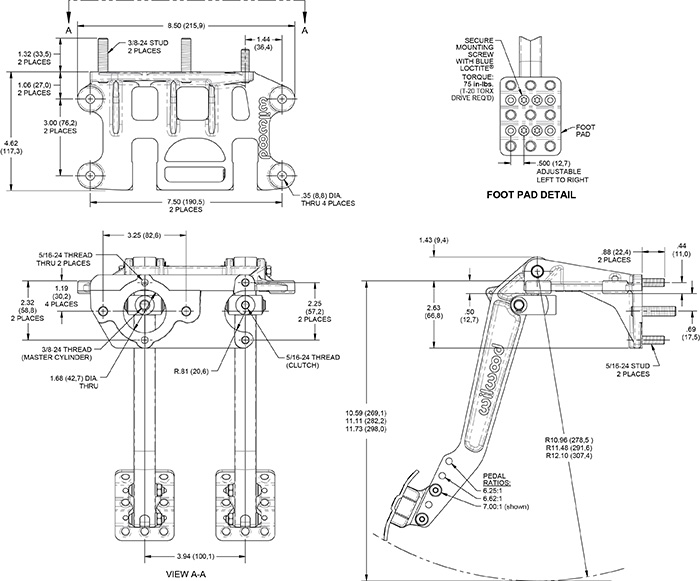

Swing Mount Tandem Brake and Clutch Pedal-Adj Rt Drawing Swing Mount Tandem Brake and Clutch Pedal-Adj Rt Drawing Zoom Image

Swing Mount Tandem Brake and Clutch Pedal-Adj Rt Description

Adjustable ratio brake pedal and clutch pedal combo, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference.The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts a 2.25 inch vertical mount flange single outlet master cylinder for the clutch, and a Wilwood 3.25 inch horizontal flange tandem master cylinder for the brakes, available separately in a variety of styles and bore sizes.



Ordering Information for Swing Mount Tandem Brake and Clutch Pedal-Adj Rt
Item No 340-16384
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $294.42
Purchase
Call (805) 388-1188

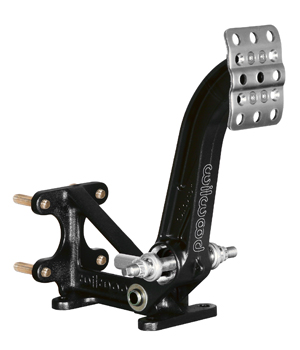

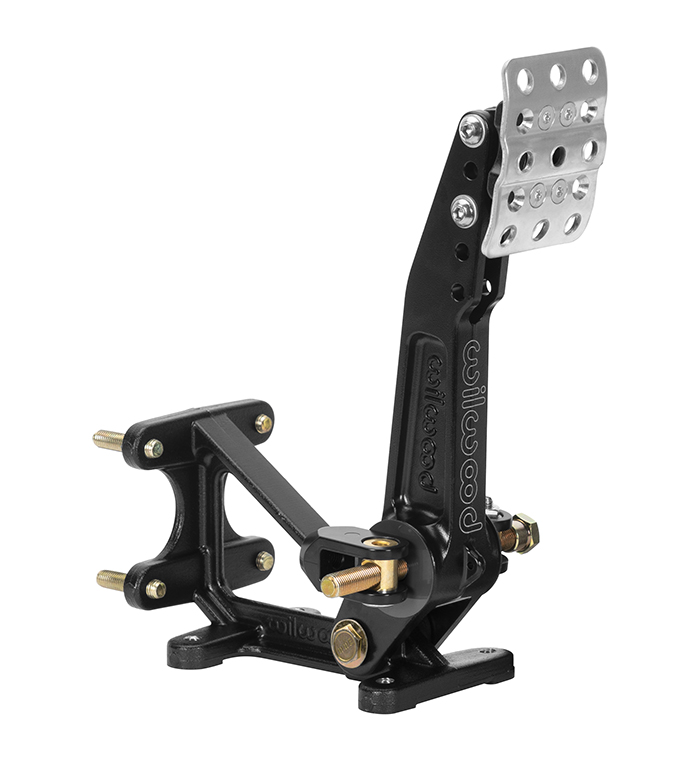

Floor Mount Brake Pedal
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.25-6:1

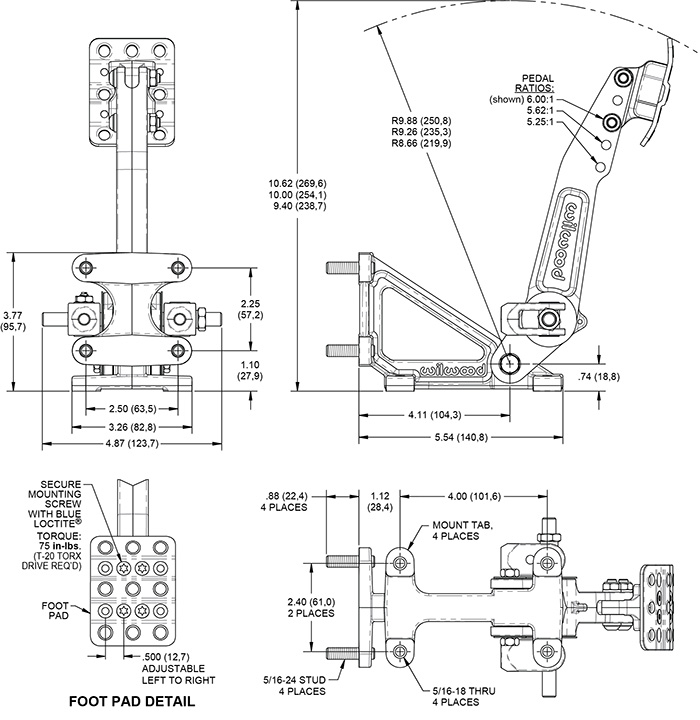

Floor Mount Brake Pedal-Adustble Ratio Drawing Floor Mount Brake Pedal-Adustble Ratio Drawing Zoom Image

Floor Mount Brake Pedal-Adustble Ratio Description

Adjustable ratio balance bar single brake pedal, in a floor mount assembly. Pedal head adjusts vertically to provide a 5.25, 5.63, or 6.00:1 ratio for more feel or less pedal effort. Two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedal features a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arm. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts two Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Floor Mount Brake Pedal-Adustble Ratio
Item No 340-16376
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $198.32
Purchase
Call (805) 388-1188

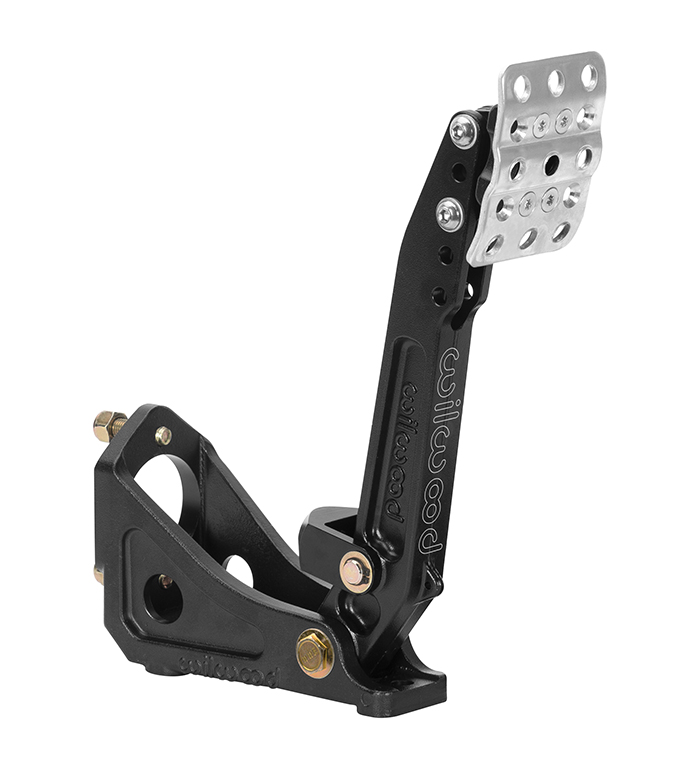

Floor Mount Clutch / Brake Pedal
Mount Location: Floor
Mount Facing: Forward
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 5.25-6:1

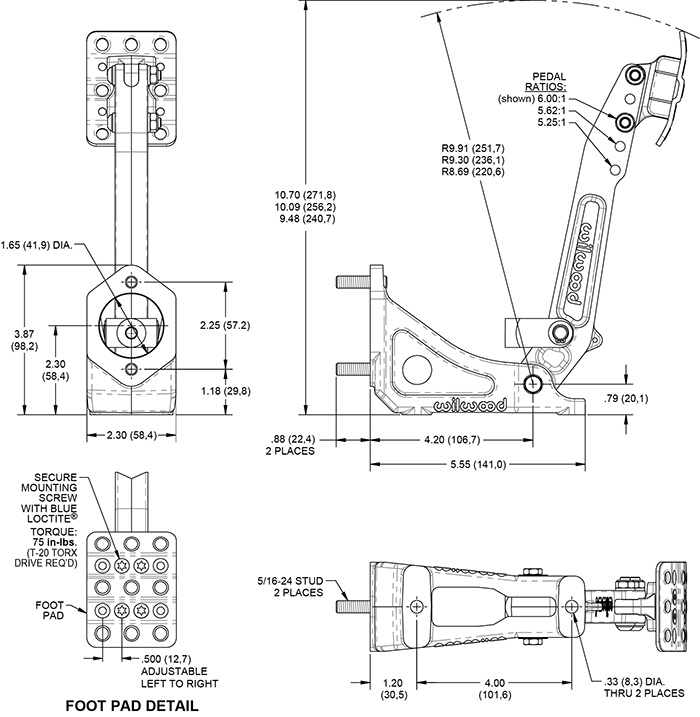

Floor Mount Clutch / Brake Pedal-Adjustable Ratio Drawing Floor Mount Clutch / Brake Pedal-Adjustable Ratio Drawing Zoom Image

Floor Mount Clutch / Brake Pedal-Adjustable Ratio Description

Adjustable ratio single clutch pedal, in a floor mount assembly. Pedal head adjusts vertically to provide a 5.25, 5.63, or 6.00:1 ratio for more feel or less pedal effort. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedal features a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arm. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.



Ordering Information for Floor Mount Clutch / Brake Pedal-Adjustable Ratio
Item No 340-16378
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $147.17
Purchase
Call (805) 388-1188

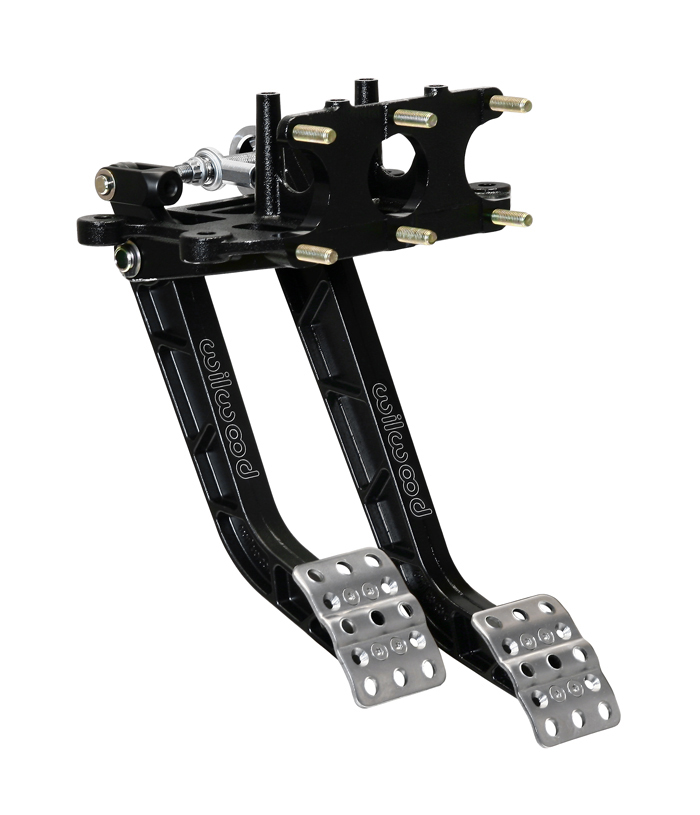

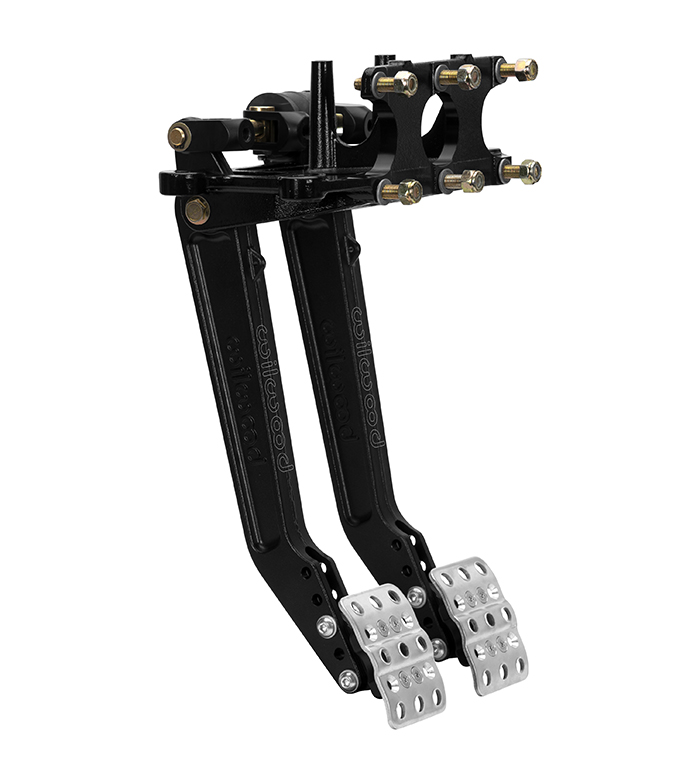

Swing Mount Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1
Pedal 2 Ratio: 5.5-6.25:1

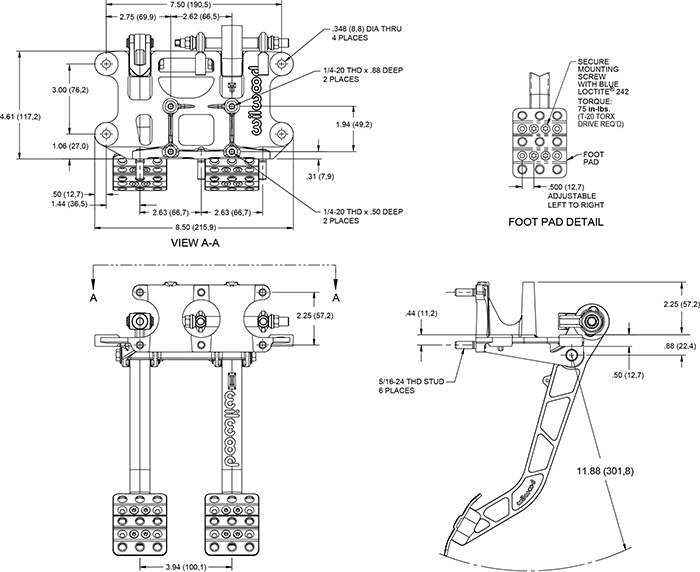

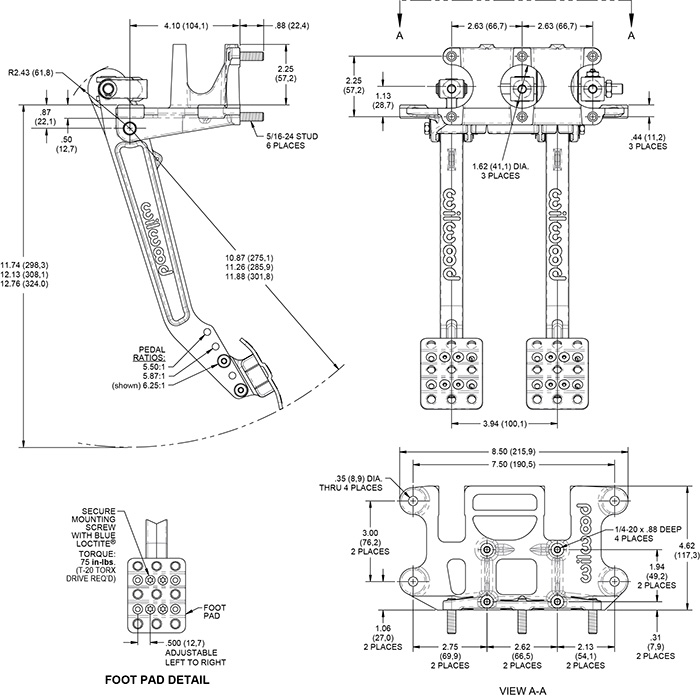

Reverse Swing Mount Brake and Clutch Pedal-Adj Rt Drawing Reverse Swing Mount Brake and Clutch Pedal-Adj Rt Drawing Zoom Image

Reverse Swing Mount Brake and Clutch Pedal-Adj Rt Description

Adjustable ratio balance bar brake pedal and clutch pedal combo, in a reverse swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts any three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Reverse Swing Mount Brake and Clutch Pedal-Adj Rt
Item No 340-16385
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $339.76
Purchase
Call (805) 388-1188

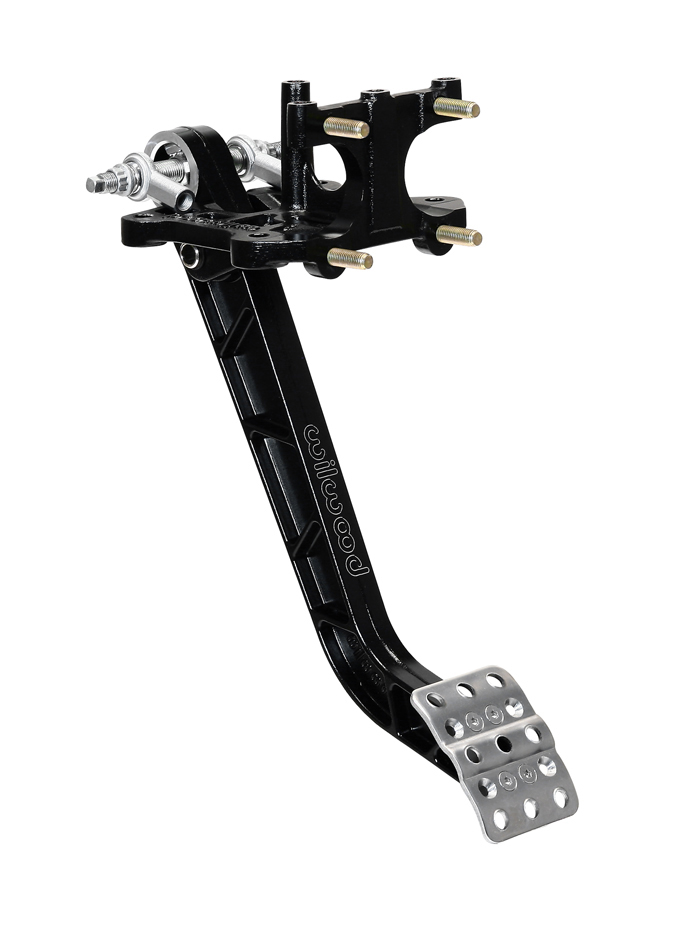

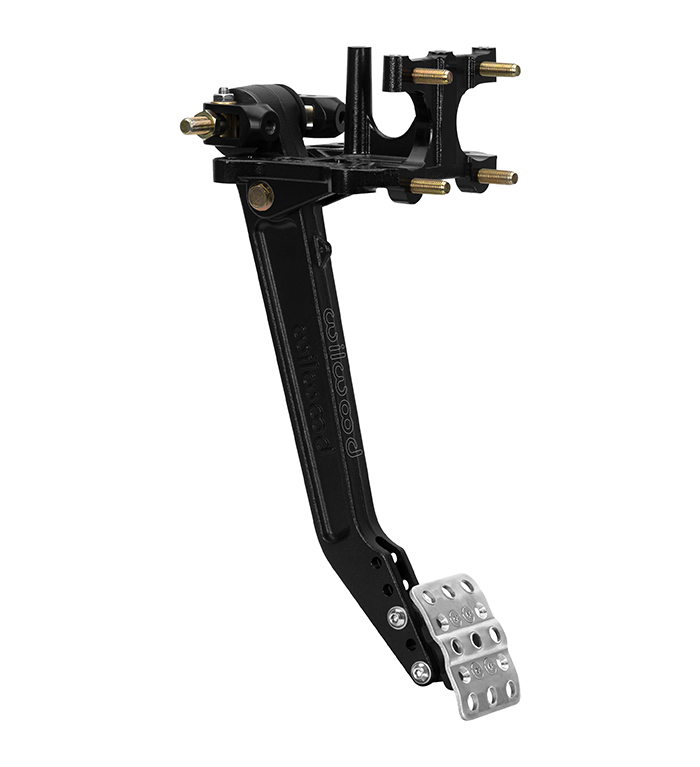

Swing Mount Brake Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.25-6:1

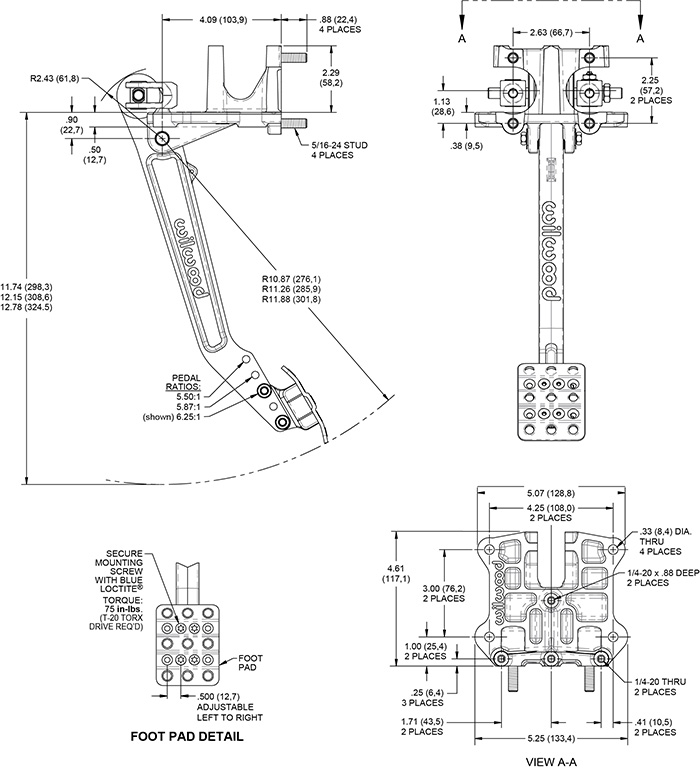

Reverse Swing Mount Brake Pedal-Adj Ratio Drawing Reverse Swing Mount Brake Pedal-Adj Ratio Drawing Zoom Image

Reverse Swing Mount Brake Pedal-Adj Ratio Description

Adjustable ratio balance bar brake pedal, in a reverse swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. Two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedal features a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts any two Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Reverse Swing Mount Brake Pedal-Adj Ratio
Item No 340-16387
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $247.92
Purchase
Call (805) 388-1188

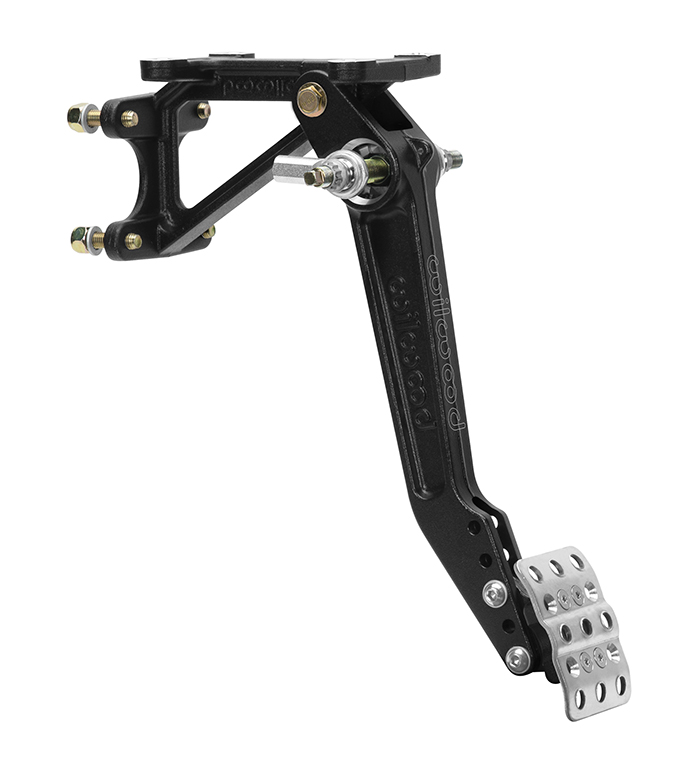

Swing Mount Tru-Bar Brake Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 6.25-7:1

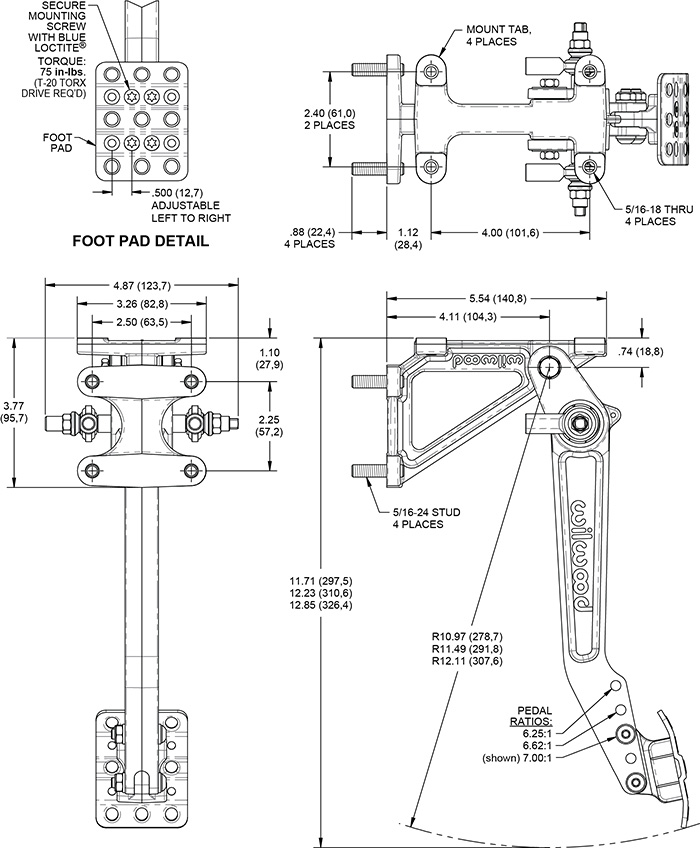

Swing Mount Tru-Bar Brake Pedal-Adjustable Ratio Drawing Swing Mount Tru-Bar Brake Pedal-Adjustable Ratio Drawing Zoom Image

Swing Mount Tru-Bar Brake Pedal-Adjustable Ratio Description

Adjustable ratio Tru-Bar balance bar brake pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio for more feel or less pedal effort. Two brake master cylinders mount to the assembly through the firewall, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedal features a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arm. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts any two Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Swing Mount Tru-Bar Brake Pedal-Adjustable Ratio
Item No 340-16380
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $457.94
Purchase
Call (805) 388-1188

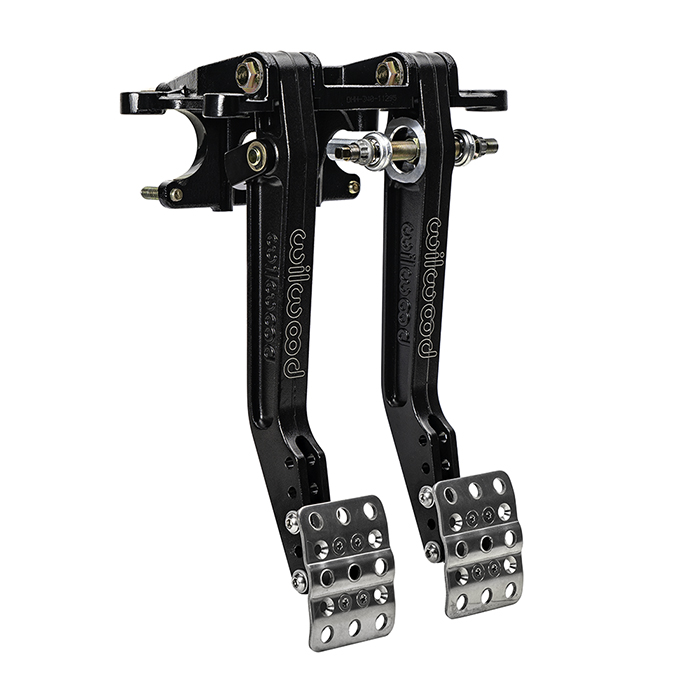

Swing Mount Tru-Bar Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1
Pedal 2 Ratio: 5.5-6.25:1

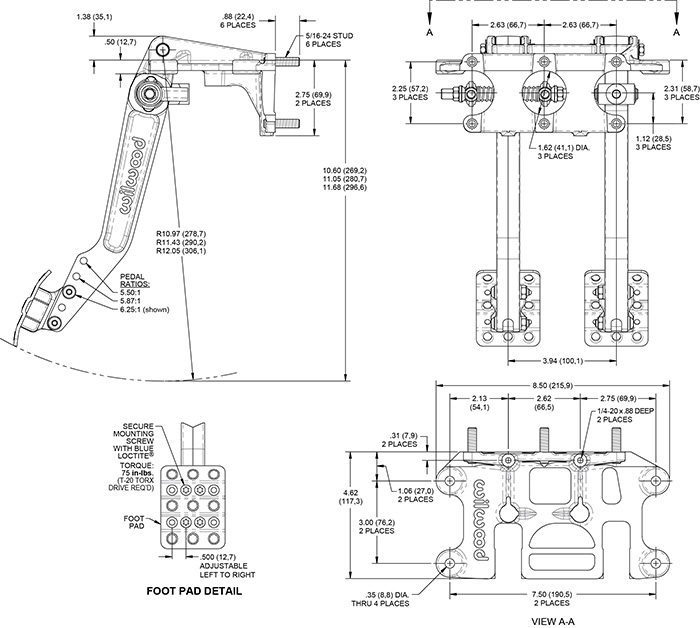

Swing Mnt Tru-Bar Brake and Clutch Pedal-Adj Ratio Drawing Swing Mnt Tru-Bar Brake and Clutch Pedal-Adj Ratio Drawing Zoom Image

Swing Mnt Tru-Bar Brake and Clutch Pedal-Adj Ratio Description

Adjustable ratio Tru-Bar balance bar brake pedal and clutch pedal combo, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly through the firewall, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts any three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Swing Mnt Tru-Bar Brake and Clutch Pedal-Adj Ratio
Item No 340-16383
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $598.06
Purchase
Call (805) 388-1188

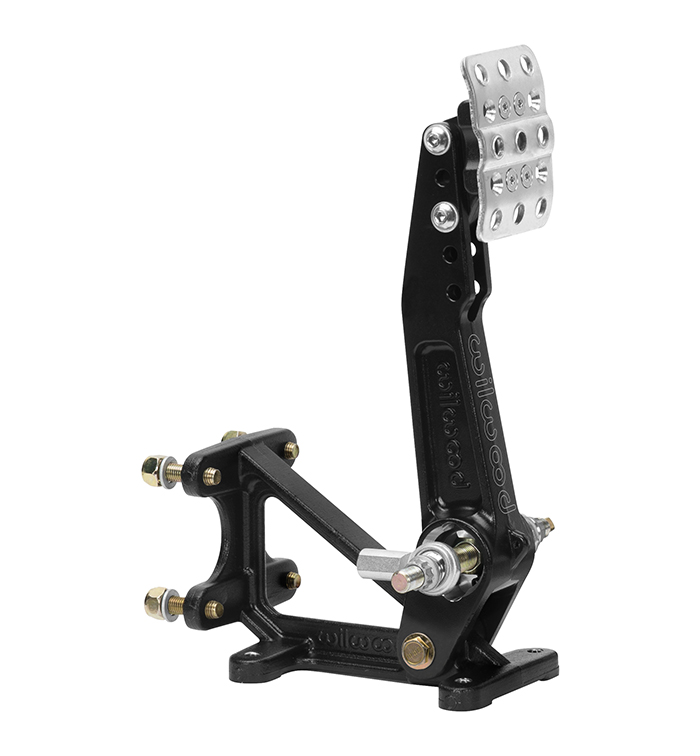

Floor Mount Tru-Bar Brake Pedal
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.25-6:1

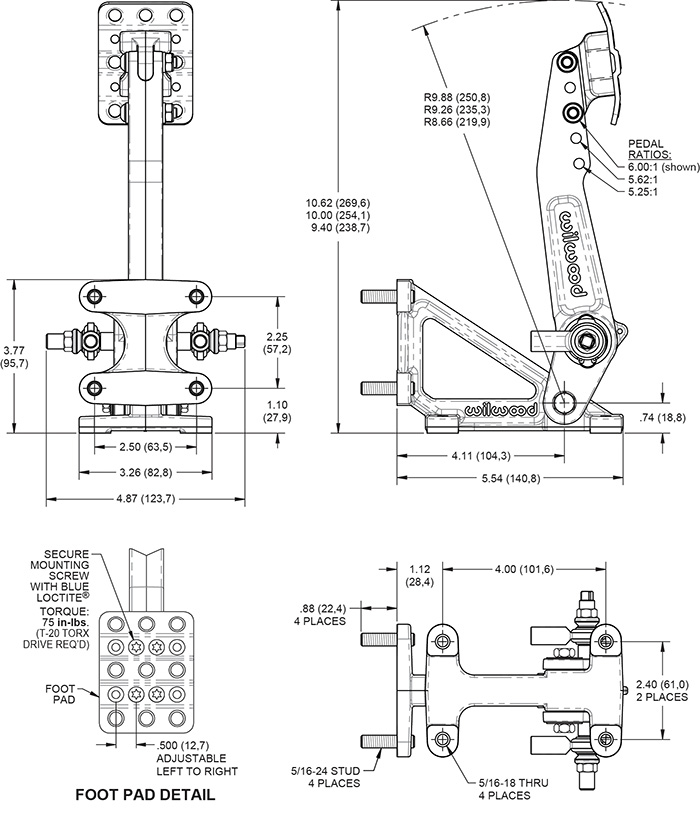

Floor Mount Tru-Bar Brake Pedal-Adjustable Ratio Drawing Floor Mount Tru-Bar Brake Pedal-Adjustable Ratio Drawing Zoom Image

Floor Mount Tru-Bar Brake Pedal-Adjustable Ratio Description

Adjustable ratio Tru-Bar single brake pedal, in a floor mount assembly. Pedal head adjusts vertically to provide a 5.25, 5.63, or 6.00:1 ratio for more feel or less pedal effort. Two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference.The pedal features a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arm. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts two Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Floor Mount Tru-Bar Brake Pedal-Adjustable Ratio
Item No 340-16377
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $457.94
Purchase
Call (805) 388-1188

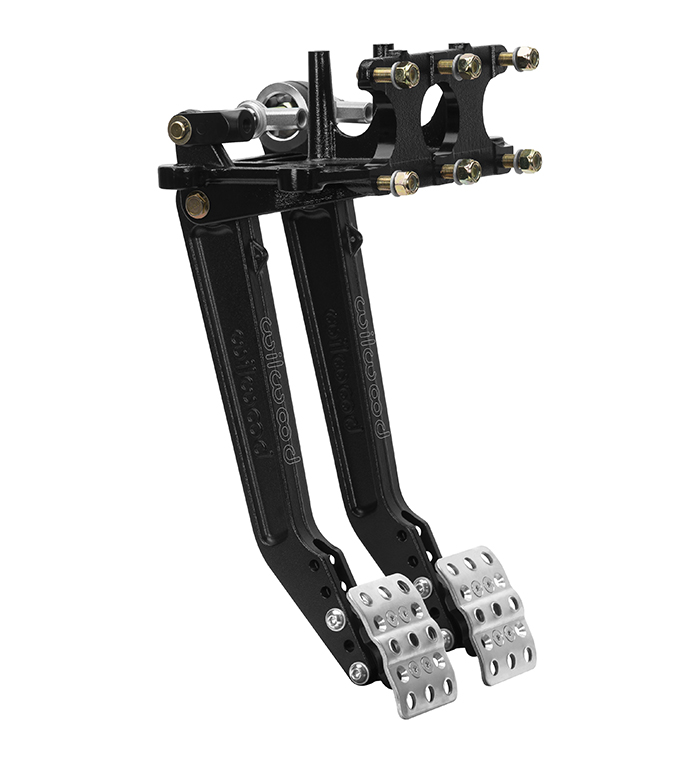

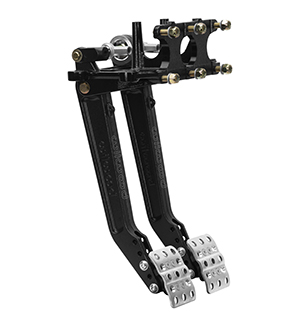

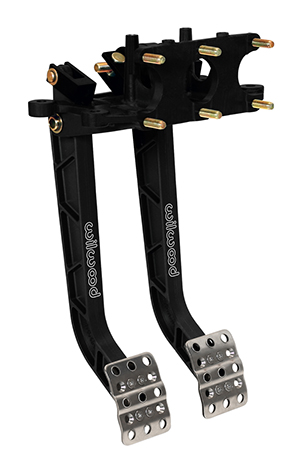

Reverse Swing Mount Tru-Bar Brake and Clutch Pedals
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1
Pedal 2 Ratio: 5.5-6.25:1

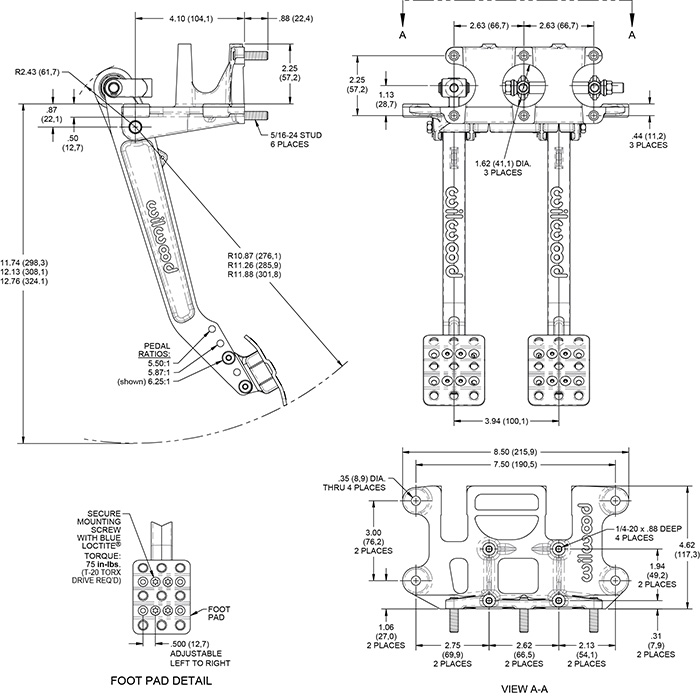

Rev Swing Mnt Tru-Bar Brake and Clutch Pedal-Adj Drawing Rev Swing Mnt Tru-Bar Brake and Clutch Pedal-Adj Drawing Zoom Image

Rev Swing Mnt Tru-Bar Brake and Clutch Pedal-Adj Description

Adjustable ratio balance bar brake pedal and clutch pedal combo, in a reverse swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3 to 5 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts any three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Rev Swing Mnt Tru-Bar Brake and Clutch Pedal-Adj
Item No 340-16386
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $598.06
Purchase
Call (805) 388-1188

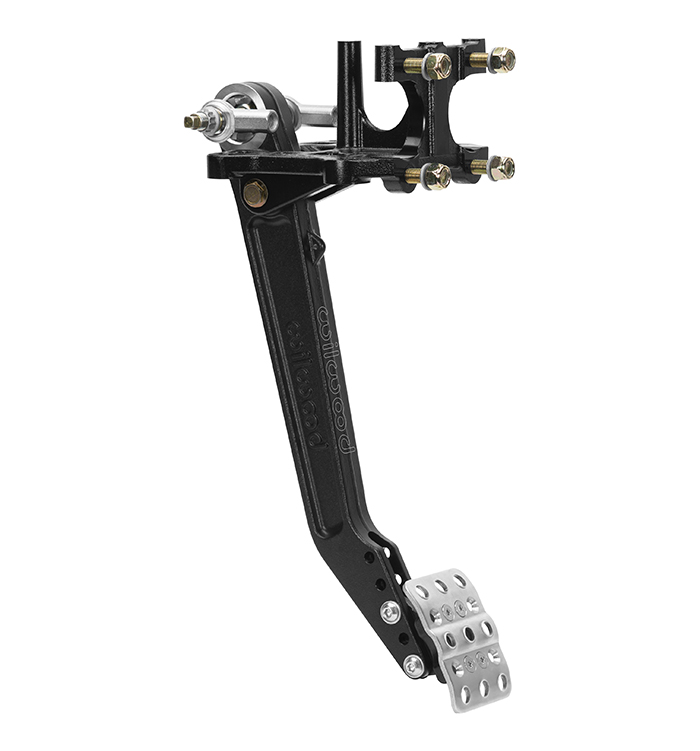

Reverse Swing Mount Tru-Bar Brake Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.25-6:1

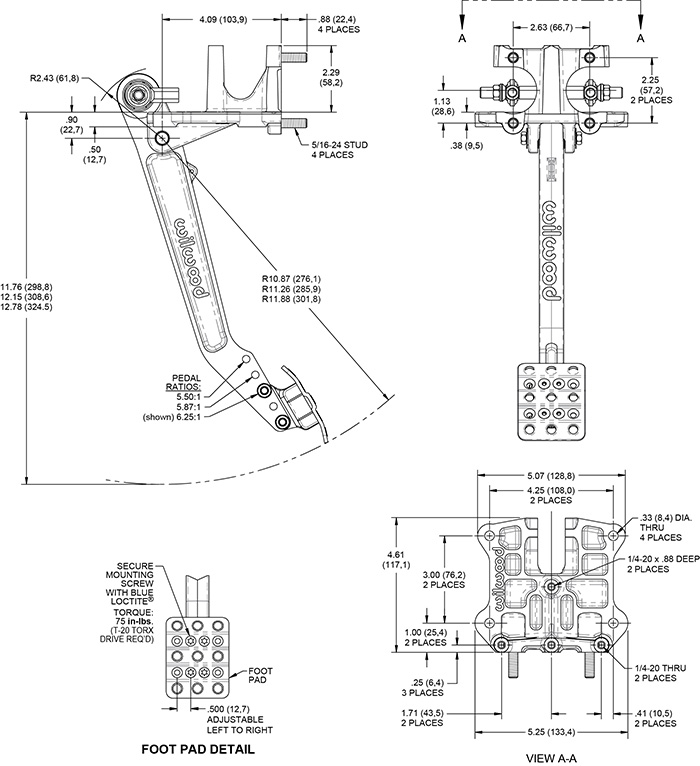

Reverse Swing Mount Tru-Bar Brake Pedal-Adj Ratio Drawing Reverse Swing Mount Tru-Bar Brake Pedal-Adj Ratio Drawing Zoom Image

Reverse Swing Mount Tru-Bar Brake Pedal-Adj Ratio Description

Adjustable ratio balance bar brake pedal, in a reverse swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. Two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pad can be laterally adjusted 1/2 inch in either direction for driver preference. The pedal features a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts any two Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Reverse Swing Mount Tru-Bar Brake Pedal-Adj Ratio
Item No 340-16388
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $505.22
Purchase
Call (805) 388-1188

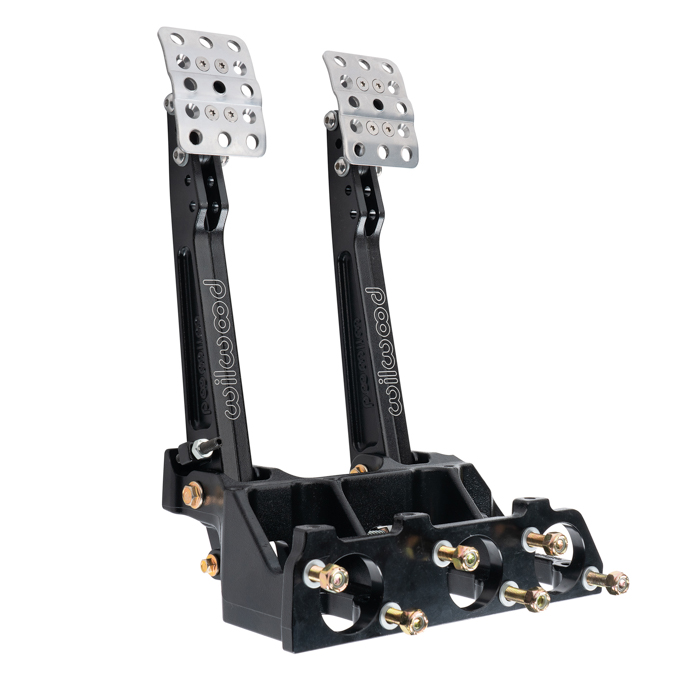

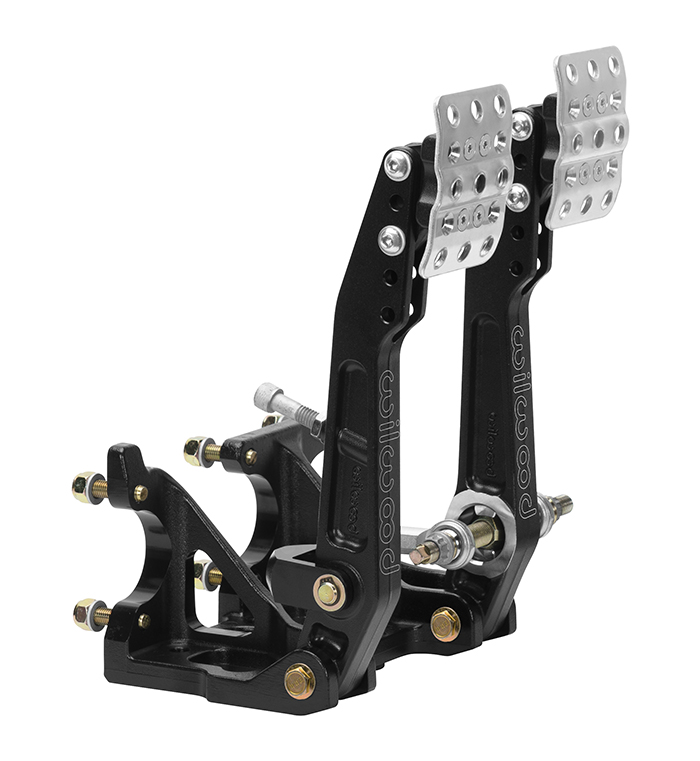

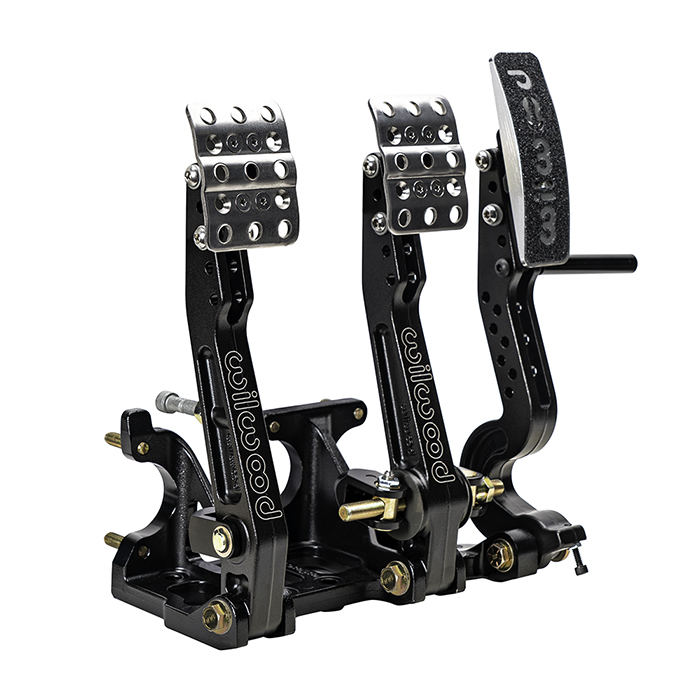

Brake / Clutch and Throttle Pedal-w/o Throttle Link
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 4.75-5.75
Pedal 2 Ratio: 4.75-5.75

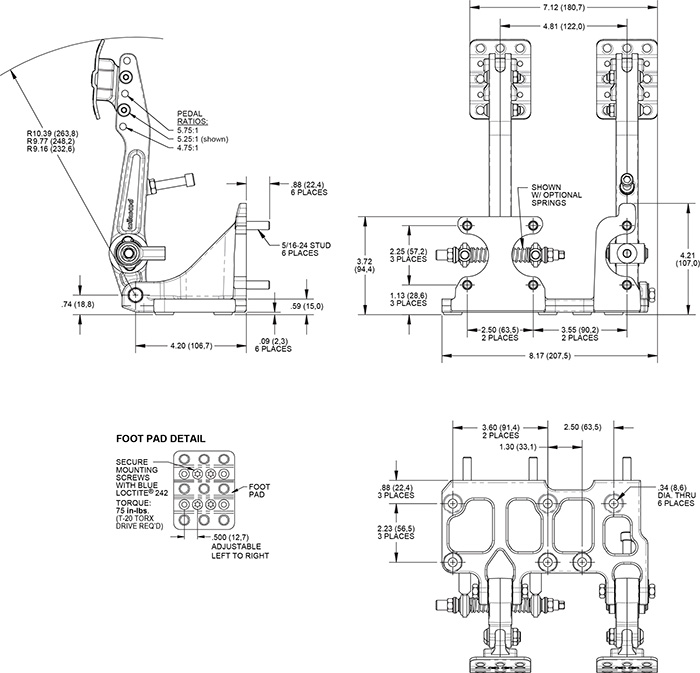

Brake / Clutch and Throttle Pedal-Adj Ratio Drawing Brake / Clutch and Throttle Pedal-Adj Ratio Drawing Zoom Image

Brake / Clutch and Throttle Pedal-Adj Ratio Description

Adjustable ratio balance bar brake pedal, in a floor mount throttle, brake and clutch pedal assembly for rear engine cars. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The throttle pedal includes a pull rod for rear engine applications. The non-skid waffled pedal pads can be laterally adjusted to place the clutch and brake from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Brake / Clutch and Throttle Pedal-Adj Ratio
Item No 340-16602
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $480.42
Purchase
Call (805) 388-1188
Brake / Clutch and Throttle Pedal-w/ Throttle Link
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 4.75-5.75
Pedal 2 Ratio: 4.75-5.75

Brake / Clutch and Throttle Pedal-Adj Ratio Drawing Brake / Clutch and Throttle Pedal-Adj Ratio Drawing Zoom Image

Brake / Clutch and Throttle Pedal-Adj Ratio Description

Adjustable ratio balance bar brake pedal, in a floor mount throttle, brake and clutch pedal assembly with throttle linkage for front engine cars. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The throttle pedal includes an adjustable ratio bell crank for front engine applications. The non-skid waffled pedal pads can be laterally adjusted to place the clutch and brake from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Brake / Clutch and Throttle Pedal-Adj Ratio
Item No 340-16603
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $613.72
Purchase
Call (805) 388-1188
Tru-Bar Brake / Clutch and Throttle Pedal-w/o Throttle Link
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 4.75-5.75
Pedal 2 Ratio: 4.75-5.75

Tru-Bar Brake / Clutch and Throttle Pedal-Adj Rt Drawing Tru-Bar Brake / Clutch and Throttle Pedal-Adj Rt Drawing Zoom Image

Tru-Bar Brake / Clutch and Throttle Pedal-Adj Rt Description

Adjustable ratio Tru-Bar brake pedal, in a floor mount throttle, brake and clutch pedal assembly for rear engine cars. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The throttle pedal includes a pull rod for rear engine applications. The non-skid waffled pedal pads can be laterally adjusted to place the clutch and brake from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms.The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Tru-Bar Brake / Clutch and Throttle Pedal-Adj Rt
Item No 340-16604
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $697.42
Purchase
Call (805) 388-1188
Tru-Bar Brake / Clutch and Throttle Pedal-w/ Throttle Link
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 4.75-5.75
Pedal 2 Ratio: 4.75-5.75

Tru-Bar Brake / Clutch and Throttle Pedal-Adj Rt Drawing Tru-Bar Brake / Clutch and Throttle Pedal-Adj Rt Drawing Zoom Image

Tru-Bar Brake / Clutch and Throttle Pedal-Adj Rt Description

Adjustable ratio Tru-Bar brake pedal, in a floor mount throttle, brake and clutch pedal assembly with throttle linkage for front engine cars. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The throttle pedal includes an adjustable ratio bell crank for front engine applications. The non-skid waffled pedal pads can be laterally adjusted to place the clutch and brake from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Tru-Bar Brake / Clutch and Throttle Pedal-Adj Rt
Item No 340-16605
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $836.92
Purchase
Call (805) 388-1188
Floor Mount Brake and Clutch Pedal
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 4.75-5.75
Pedal 2 Ratio: 4.75-5.75

Floor Mount Brake and Clutch Pedal-Adj Ratio Drawing Floor Mount Brake and Clutch Pedal-Adj Ratio Drawing Zoom Image

Floor Mount Brake and Clutch Pedal-Adj Ratio Description

Adjustable ratio balance bar brake pedal, in a floor mount brake and clutch pedal assembly. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with an adjustable balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Floor Mount Brake and Clutch Pedal-Adj Ratio
Item No 340-16606
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $371.92
Purchase
Call (805) 388-1188
Floor Mount Tru-Bar Brake and Clutch Pedal
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 4.75-5.75
Pedal 2 Ratio: 4.75-5.75

Floor Mount Tru-Bar Brake and Clutch Pedal-Adj Rt Drawing Floor Mount Tru-Bar Brake and Clutch Pedal-Adj Rt Drawing Zoom Image

Floor Mount Tru-Bar Brake and Clutch Pedal-Adj Rt Description

Adjustable ratio Tru-Bar brake pedal, in a floor mount brake and clutch pedal assembly. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The non-skid waffled pedal pads can be laterally adjusted to be from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts three Wilwood 2.25 inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes.





Ordering Information for Floor Mount Tru-Bar Brake and Clutch Pedal-Adj Rt
Item No 340-16607
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $905.12
Purchase
Call (805) 388-1188
Swing Mount Tandem Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1
Pedal 2 Ratio: 5.5-6.25:1

Swing Mnt Tandem Brake and Offset Clutch Pedal Drawing Swing Mnt Tandem Brake and Offset Clutch Pedal Drawing Zoom Image

Swing Mnt Tandem Brake and Offset Clutch Pedal Description

Adjustable ratio brake pedal with offset clutch pedal, in a forward swing hanging assembly. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio for more feel or less pedal effort. A clutch master cylinder and tandem brake master cylinder mount to the assembly through the firewall. The non-skid waffled pedal pads can be laterally adjusted to be from 5 to 7 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. A pin and clevis pushrod attachment system ensures the smallest possible misalignment angle for bind free operation through the entire range of travel. The clutch pedal accepts a 2.25 inch vertical mount flange single outlet master cylinder, while the brake uses a 3.25 inch horizontal mount flange tandem master cylinder, available separately in a variety of styles and bore sizes.



Ordering Information for Swing Mnt Tandem Brake and Offset Clutch Pedal
Item No 340-16833
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $294.42
Purchase
Call (805) 388-1188
Universal Tandem Mount Balance Bar Assembly
Mount Location: N-A
Mount Facing: N-A
Balance Bar: Yes
Material: Aluminum / Steel
Pedal 1 Ratio: N-A

Universal Tandem Mount Balance Bar Assembly Drawing Universal Tandem Mount Balance Bar Assembly Drawing Zoom Image

Universal Tandem Mount Balance Bar Assembly Description

Wilwood’s Tandem Mount Balance Bar Assembly bolts in place of a typical horizontal bolt pattern tandem master cylinder and provides a sturdy mounting location for two race-type vertical bolt pattern master cylinders, with no custom fabrication needed. Providing The ultimate in brake bias control for performance and race vehicles is an adjustable balance bar with dual master cylinders. Ideal for modified street cars/trucks needing fast and easy brake bias adjustability to optimize braking for different performance driving situations and skillsets.



Ordering Information for Universal Tandem Mount Balance Bar Assembly
Item No 340-16920
Info Details
Mount Location N-A
Finish & Color Type III Ano
Price $237.58
Purchase
Call (805) 388-1188
Universal Tandem Mount Balance Bar Assembly
Mount Location: N-A
Mount Facing: N-A
Balance Bar: Yes
Material: Aluminum / Steel
Pedal 1 Ratio: N-A

Universal Tandem Mount Balance Bar Assy w/Eyelet Drawing Universal Tandem Mount Balance Bar Assy w/Eyelet Drawing Zoom Image

Universal Tandem Mount Balance Bar Assy w/Eyelet Description

Wilwood’s Tandem Mount Balance Bar Assembly bolts in place of a typical horizontal bolt pattern tandem master cylinder and provides a sturdy mounting location for two race-type vertical bolt pattern master cylinders, with no custom fabrication needed. Providing The ultimate in brake bias control for performance and race vehicles is an adjustable balance bar with dual master cylinders. Ideal for modified street cars/trucks needing fast and easy brake bias adjustability to optimize braking for different performance driving situations and skillsets.



Ordering Information for Universal Tandem Mount Balance Bar Assy w/Eyelet
Item No 340-16928
Info Details
Mount Location N-A
Finish & Color Type III Ano
Price $253.78
Purchase
Call (805) 388-1188
Pedal Kit, Adjustable Tru-Bar Brake Forward Mount
Mount Location: Swing
Mount Facing: Forward
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 6.25-7:1

Pedal Kit, Tru-Bar Brake Drawing Pedal Kit, Tru-Bar Brake Drawing

Pedal Kit, Tru-Bar Brake Description

Wilwood’s new Tru-Bar Forward Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal & trunnion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 6.25, 6.63, or 7.00:1 ratio. Also Included with this assembly: trunnion, clevis hardware required in the conversion. 340-16402 kits will convert the following 7 to 1 ratio forward mount assemblies: 340-1287,340-13832,340-15079 and 340-16379.



Ordering Information for Pedal Kit, Tru-Bar Brake
Item No 340-16413
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $338.62
Purchase
Call (805) 388-1188
Pedal Kit, Adjustable Tru-Bar Brake Forward Mount
Mount Location: Swing
Mount Facing: Forward
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1

Pedal Kit, Tru-Bar Brake Drawing Pedal Kit, Tru-Bar Brake Drawing

Pedal Kit, Tru-Bar Brake Description

Wilwood’s new Tru-Bar Forward Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal & trunnion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio. Also Included with this assembly: trunnion, clevis hardware required in the conversion. 340-16402 kits will convert the following 5.1-6.25 to 1 ratio forward mount assemblies: 340-11295,340-15072,340-16350,340-16382,340-16383 and 340-3950



Ordering Information for Pedal Kit, Tru-Bar Brake
Item No 340-16402
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $338.62
Purchase
Call (805) 388-1188
Pedal Kit, Adjustable Tru-Bar Brake Reverse Mount
Mount Location: Swing
Mount Facing: Reverse
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 5.5-6.25:1

Pedal Kit, Tru-Bar Brake Drawing Pedal Kit, Tru-Bar Brake Drawing

Pedal Kit, Tru-Bar Brake Description

Wilwood’s new Tru-Bar Reverse Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal & trunnion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.50, 5.88, or 6.25:1 ratio. Also Included with this assembly: trunnion, clevis hardware required in the conversion. 340-16400 kits will convert the following 5.1-6.25 to 1 ratio reverse mount assemblies: 340-11299,340-12509,340-13835,340-13836,340-13837,340-15073,340-15074,340-15075,340-15076,340-15077, 340-3342,340-4828, 340-5180,340-5181 and 340-6451.



Ordering Information for Pedal Kit, Tru-Bar Brake
Item No 340-16400
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $338.62
Purchase
Call (805) 388-1188
Pedal Kit, Adjustable Tru-Bar Brake Floor Mount
Mount Location: Floor
Mount Facing: Forward
Balance Bar:
Material: Aluminum
Pedal 1 Ratio: 5.25-6:1

Pedal Kit, Tru-Bar Brake Drawing Pedal Kit, Tru-Bar Brake Drawing

Pedal Kit, Tru-Bar Brake Description

Wilwood’s new Tru-Bar Floor Mount Pedal Replacement Kit includes the Tru-Bar Brake pedal & trunnion assembly with the appropriate hardware to retrofit earlier design forged or cast pedal assemblies. Pedals feature an all-aluminum frame and forged aluminum pedal arms with ladder style construction. Pedal pads and pedal head are of special adjustable design that allows fine-tuning of the pedal location and clearance. Pedal head adjusts vertically to provide a 5.25, 5.63, or 6.00:1 ratio. Also Included with this assembly: trunnion, clevis hardware required in the conversion. 340-16398 kits will convert the following 6 to 1 ratio floor mount assemblies: 340-1285, 340-13831 and 340-15078



Ordering Information for Pedal Kit, Tru-Bar Brake
Item No 340-16398
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $338.62
Purchase
Call (805) 388-1188
60 Degree Mount Tru-Bar Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 1.50 to 1
Pedal 1 Length: 2.55
Mount Length: 1.74

60 Degree Mount Tru-Bar Pedal Drawing 60 Degree Mount Tru-Bar Pedal Drawing Zoom Image

60 Degree Mount Tru-Bar Pedal Description

This Tru-bar unit is ideal for Sprint Cars, Midgets, Dirt Modifieds, or any application where the master cylinders must be mounted remotely from the pedal. This unit features a variable leverage, machined billet pivot arm that multiplies input force on average by 1.5:1 - a 5:1 pedal becomes 7.5:1, 6:1 becomes 9:1. To accommodate fitment where space is at a premium, the master cylinders mount one above the other, twisted 60 degrees with remote fluid reservoirs. When mounted within the driver's reach, the included knob can adjust bias on track quickly and easily.

Wilwood's Remote Mount Tru-Bar pedal utilizes a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments to deliver professional, championship caliber braking performance. A larger diameter 7/16-20 bar is more rigid and provides quicker adjustment, with a 3/8" diameter end that works with standard remote adjuster cables. It provides the ultimate in precision bias adjustment, control, and fine-tuning on race vehicles equipped with dual brake master cylinder systems and proportionally sized calipers.





Ordering Information for 60 Degree Mount Tru-Bar Pedal
Item No 340-14380
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $317.95
Purchase
Call (805) 388-1188
Swing Mount Tandem Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 6.25 to 1
Pedal 2 Ratio: 6.25 to 1
Pedal 1 Length: 12.05
Pedal 2 Length: 12.05
Mount Length: 12.38

Swing Mount Tandem Brake and Clutch Pedal Drawing Swing Mount Tandem Brake and Clutch Pedal Drawing Zoom Image

Swing Mount Tandem Brake and Clutch Pedal Description

Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in either 6.25:1 or 7.00:1 ratios. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.25” vertical mount and will use most popular single outlet cylinders.



Ordering Information for Swing Mount Tandem Brake and Clutch Pedal
Item No 340-14360
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $242.47
Purchase
Call (805) 388-1188
Swing Mount Tandem Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 7.0 to 1
Pedal 2 Ratio: 7.0 to 1
Pedal 1 Length: 12.10
Pedal 2 Length: 12.10
Mount Length: 12.43

Swing Mount Tandem Brake and Clutch Pedal Drawing Swing Mount Tandem Brake and Clutch Pedal Drawing Zoom Image

Swing Mount Tandem Brake and Clutch Pedal Description

Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in either 6.25:1 or 7.00:1 ratios. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.25” vertical mount and will use most popular single outlet cylinders.



Ordering Information for Swing Mount Tandem Brake and Clutch Pedal
Item No 340-14361
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $242.47
Purchase
Call (805) 388-1188
Hand Brake Assembly
Mount Location: Floor
Mount Facing: Horizontal
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 11.0 to 1
Pedal 1 Length: 14.51

Hand Brake Assemblies Drawing Hand Brake Assemblies Drawing Zoom Image

Hand Brake Assemblies Description

Wilwood handbrake lever assemblies provide a lightweight, high-leverage component for drift cars, drag race cars and rally cars or any application where hand-actuation of one or more brake calipers is employed. With a lightweight aluminum forged 11:1 ratio “H” beam lever with ergonomic grip in a choice of vertical or horizontal static lever positioning Accepts any vertical flange master cylinder with 2.25” mount centers. Finished an a durable long lasting e-coat finish for corrosion resistance.



Ordering Information for Hand Brake Assemblies
Item No 340-14768
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $187.05
Purchase
Call (805) 388-1188
Hand Brake Assembly
Mount Location: Floor
Mount Facing: Vertical
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 11.0 to 1
Pedal 1 Length: 14.51
Mount Length: 15.30

Hand Brake Assemblies Drawing Hand Brake Assemblies Drawing Zoom Image

Hand Brake Assemblies Description

Wilwood handbrake lever assemblies provide a lightweight, high-leverage component for drift cars, drag race cars and rally cars or any application where hand-actuation of one or more brake calipers is employed. With a lightweight aluminum forged 11:1 ratio “H” beam lever with ergonomic grip in a choice of vertical or horizontal static lever positioning Accepts any vertical flange master cylinder with 2.25” mount centers. Finished an a durable long lasting e-coat finish for corrosion resistance.



Ordering Information for Hand Brake Assemblies
Item No 340-14769
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $187.05
Purchase
Call (805) 388-1188
Hand Cutting Brake Assembly
Mount Location: Floor
Mount Facing: Vertical
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 11.0 to 1
Pedal 1 Length: 14.51
Mount Length: 16.48

Hand Cutting Brake Assembly Drawing Hand Cutting Brake Assembly Drawing Zoom Image

Hand Cutting Brake Assembly Description

Wilwood's Dual Cylinder Inline Cutting Brake kits utilize a single inlet, twin outlet flow-through master cylinder to simplify plumbing of the existing calipers and deliver precise steering-brake control for all types of off-road competition vehicles. This unit features a weight-saving, all-aluminum design with a high-leverage forged lever arm and an ergonomic full-length hand grip. Twin 3/4" bore cylinders combine with the high leverage lever arm to create instant high-pressure with minimal operator effort. The one-piece cast body incorporates integral mounting lugs to make for easy and secure mounting. The entire assembly is e-coat finished to resist weathering and oxidation.



Ordering Information for Hand Cutting Brake Assembly
Item No 340-14744
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $346.42
Purchase
Call (805) 388-1188
Rod End and Spacer Kit
Mount Location:
Mount Facing:
Balance Bar:
Material: steel

Rod End and Spacer Kit Drawing Rod End and Spacer Kit Drawing

Rod End and Spacer Kit Description

Replacement Rod End and spacer kit for Tru-bar pedals. Contains 2 quantity 330-13830 Female Rod Ends, 2 quantity 330-13990 Trunnion Pedal Spacers in a convenient kit.



Ordering Information for Rod End and Spacer Kit
Item No 340-15595
Info Details
Mount Location
Finish & Color None
Price $43.23
Purchase
Call (805) 388-1188
Floor Mount Brake Pedal
Mount Location: Floor
Mount Facing: Forward
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 5.25-6:1

Floor Mount Tandem M/C Brake Pedal-Adj Ratio Drawing Floor Mount Tandem M/C Brake Pedal-Adj Ratio Drawing Zoom Image

Floor Mount Tandem M/C Brake Pedal-Adj Ratio Description

Wilwood has engineered a new pedal assembly and bases to accommodate popular tandem master cylinders in both swing and floor mount applications. Pedal assemblies include all necessary hardware for mounting most master cylinders. Adjustable pedals allow the pedal length and ratio to be optimized for the vehicle application. Black E-coated base and lever with bright finish stainless steel waffle style pedals round out the package.



Ordering Information for Floor Mount Tandem M/C Brake Pedal-Adj Ratio
Item No 340-17698
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $173.93
Purchase
Call (805) 388-1188
Swing Mount Brake Pedal
Mount Location: Swing
Mount Facing: Forward
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 6.25-7:1

Swing Mount Tandem M/C Brake Pedal-Adj Ratio Drawing Swing Mount Tandem M/C Brake Pedal-Adj Ratio Drawing Zoom Image

Swing Mount Tandem M/C Brake Pedal-Adj Ratio Description

Wilwood has engineered a new pedal assembly and bases to accommodate popular tandem master cylinders in both swing and floor mount applications. Pedal assemblies include all necessary hardware for mounting most master cylinders. Adjustable pedals allow the pedal length and ratio to be optimized for the vehicle application. Black E-coated base and lever with bright finish stainless steel waffle style pedals round out the package.



Ordering Information for Swing Mount Tandem M/C Brake Pedal-Adj Ratio
Item No 340-17699
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $173.93
Purchase
Call (805) 388-1188
Pedal Pivot Bolt kit
Mount Location:
Mount Facing:
Balance Bar:
Material: Steel

Pedal Accessories Drawing Pedal Accessories Drawing

Pedal Accessories Description

Wilwood's Pedal Pivot Bolt Kit contains Pedal Pivot, Pivot Bolt and Shim Washers.



Ordering Information for Pedal Accessories
Item No 230-17422
Info Details
Mount Location
Finish & Color Ano
Price $11.92
Purchase
Call (805) 388-1188
Swing Mount Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 6.25 to 1
Pedal 2 Ratio: 6.25 to 1
Pedal 1 Length: 11.89
Pedal 2 Length: 11.89
Mount Length: 12.22

Reverse Swing Mount Brake and Clutch Pedal Drawing Reverse Swing Mount Brake and Clutch Pedal Drawing Zoom Image

Reverse Swing Mount Brake and Clutch Pedal Description

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 6.25:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.



Ordering Information for Reverse Swing Mount Brake and Clutch Pedal
Item No 340-11299
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $281.85
Purchase
Call (805) 388-1188
Swing Mount Brake Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.1 to 1
Pedal 1 Length: 10.14
Mount Length: 11.04

Reverse Swing Mount Brake and Clutch Pedal Drawing Reverse Swing Mount Brake and Clutch Pedal Drawing Zoom Image

Reverse Swing Mount Brake and Clutch Pedal Description

This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 5.1:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.





Ordering Information for Reverse Swing Mount Brake and Clutch Pedal
Item No 340-13837
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $204.37
Purchase
Call (805) 388-1188
Swing Mount Brake Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 6.25 to 1
Pedal 1 Length: 11.71
Mount Length: 12.06

Reverse Swing Mount Brake and Clutch Pedal Drawing Reverse Swing Mount Brake and Clutch Pedal Drawing Zoom Image

Reverse Swing Mount Brake and Clutch Pedal Description

This swinging mount pedal assembly mounts two single outlet brake master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6.25:1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size



Ordering Information for Reverse Swing Mount Brake and Clutch Pedal
Item No 340-12509
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $204.37
Purchase
Call (805) 388-1188
Swing Mount Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.1 to 1
Pedal 2 Ratio: 5.1 to 1
Pedal 1 Length: 10.14
Pedal 2 Length: 10.14
Mount Length: 11.02

Reverse Swing Mount Brake and Clutch Pedal Drawing Reverse Swing Mount Brake and Clutch Pedal Drawing Zoom Image

Reverse Swing Mount Brake and Clutch Pedal Description

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged 5.1:1 ratio pedal arms. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size.





Ordering Information for Reverse Swing Mount Brake and Clutch Pedal
Item No 340-13835
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $281.85
Purchase
Call (805) 388-1188
Swing Mount Brake and Clutch Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 6.25 to 1
Pedal 2 Ratio: 5.1 to 1
Pedal 1 Length: 11.89
Pedal 2 Length: 10.14
Mount Length: 12.77

Reverse Swing Mount Brake and Clutch Pedal Drawing Reverse Swing Mount Brake and Clutch Pedal Drawing Zoom Image

Reverse Swing Mount Brake and Clutch Pedal Description

This swinging mount pedal assembly combines the brake and clutch pedals in one unit with the master cylinders in a reverse position inside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms. The brake pedal uses a 6.25:1 ratio arm, but with a shorter 5.1:1 ratio arm on the clutch pedal for additional clearance when necessary. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable for quick on-track adjustments. This pedal accepts any Wilwood vertical mount flange single outlet master cylinders that are ordered separately by style and bore size. .





Ordering Information for Reverse Swing Mount Brake and Clutch Pedal
Item No 340-13836
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $281.85
Purchase
Call (805) 388-1188
Swing Mount Clutch / Brake Pedal
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: No
Material: Aluminum
Pedal 1 Ratio: 6.0 to 1
Pedal 1 Length: 12.02
Mount Length: 11.28

Reverse Swing Mount Clutch / Brake Pedal Drawing Reverse Swing Mount Clutch / Brake Pedal Drawing Zoom Image

Reverse Swing Mount Clutch / Brake Pedal Description

This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6;1 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.



Ordering Information for Reverse Swing Mount Clutch / Brake Pedal
Item No 340-13574
Info Details
Mount Location Swing
Finish & Color Black E-coat
Price $111.33
Purchase
Call (805) 388-1188
Floor Mount Tru-Bar Brake Pedal
Mount Location: Floor
Mount Facing: Forward
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 6.0 to 1
Pedal 1 Length: 9.60
Mount Length: 10.34

Floor Mount Tru-Bar Brake Pedal Drawing Floor Mount Tru-Bar Brake Pedal Drawing Zoom Image

Floor Mount Tru-Bar Brake Pedal Description

Wilwood’s Tru-Bar balance bar system is now available in a Forward Floor mount pedal with a 6:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.





Ordering Information for Floor Mount Tru-Bar Brake Pedal
Item No 340-15078
Info Details
Mount Location Floor
Finish & Color Black E-coat
Price $379.20
Purchase
Call (805) 388-1188
Reverse Swing Mount Tru-Bar Brake and Clutch Pedals
Mount Location: Swing
Mount Facing: Reverse
Balance Bar: Yes
Material: Aluminum
Pedal 1 Ratio: 5.1 to 1
Pedal 2 Ratio: 5.1 to 1
Pedal 1 Length: 10.14
Pedal 2 Length: 10.14
Mount Length: 11.02

Reverse Swing Mount Tru-Bar Brake and Clutch Pedal Drawing Reverse Swing Mount Tru-Bar Brake and Clutch Pedal Drawing Zoom Image

Reverse Swing Mount Tru-Bar Brake and Clutch Pedal Description

Wilwood’s Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 5:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.





Ordering Information for Reverse Swing Mount Tru-Bar Brake and Clutch Pedal
