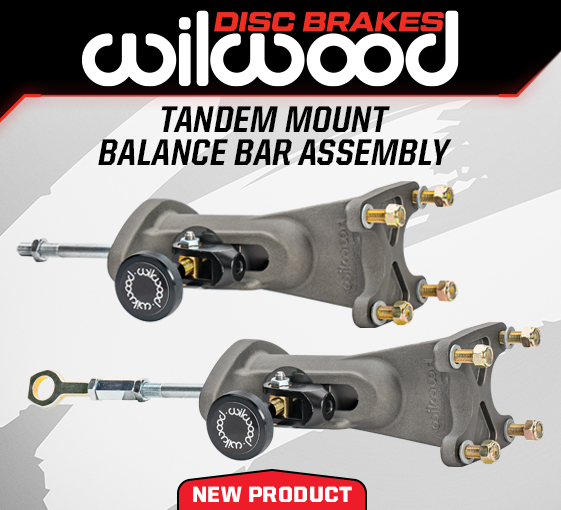

For the ultimate control on the street or track, dual master cylinders with an adjustable balance bar allow brake bias to be fine-tuned to conditions and driver preference. Wilwood’s new solution is the Tandem Mount Balance Bar Assembly, giving modified street cars and trucks the precision-control usually reserved for race vehicles. This lightweight, forged billet aluminum assembly bolts to the firewall, replacing the tandem master cylinder with a balance bar and dual master cylinder mounts.

Precision-engineered, this assembly features oval mounting holes for firewall studs 3.22”-3.40” (81.6-86.4mm) on center, horizontally. The balance bar end is sized to mount a pair of single master cylinders of differing bore sizes. The same Wilwood balance bar mechanism has been proven on the track in millions of laps in various forms of racing. Set the initial bias with the master cylinder bore sizes, then take full advantage of tires, suspension, downforce, and track conditions with the built-in adjustment knob. Optional remote adjuster kit makes even on-the-fly changes possible from the driver’s seat. Available with 3/8-24 UNF pushrod or an eyelet-end model (P/N 340-16928).

MSRP starts at $237.59

Call us today to get your dealer pricing!

(805) 388-1188
