Line Fittings

Quick Links to Brake Line Fittings & Plumbing:
•Bleed Screws
•Caliper Inlet Fittings
•Chassis Fittings
•Master Cylinder Fittings
•Pressure Guage Fittings
Wilwood Flexline Fittings Instructions

Bleed Screw Fittings

1/8-27 - Bleed Screw Kit

Bleed Screw Kit - 220-0627 Bleed Screw Kit - 220-0627 Zoom Image

Bleed Screw Kit Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for 1/8-27 - Bleed Screw Kit
Item No 220-0627
Info Details
Qty Each 1
Qty Per Kit 4
Fitting Size 1/8-27
Weight (lbs) 0.20
Price $15.51
Purchase
Call (805) 388-1188

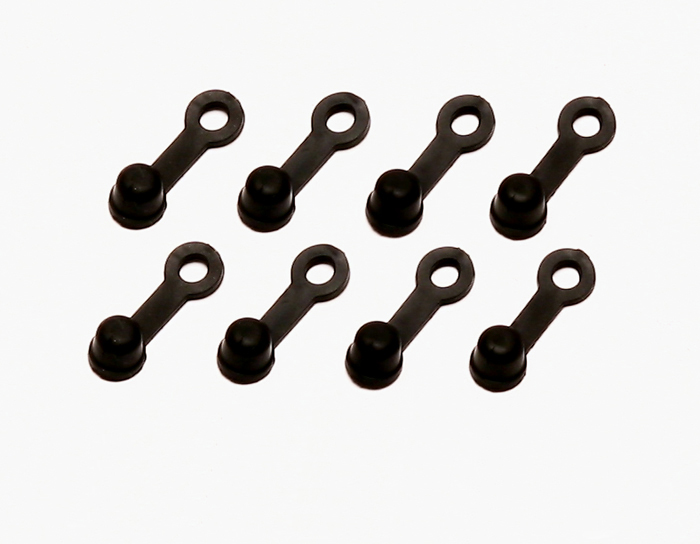

- Bleed Screw Cap Kit

Bleed Screw Cap Kit - 220-12487 Bleed Screw Cap Kit - 220-12487 Zoom Image

Bleed Screw Cap Kit Description

Wilwood’s Bleed Screw cap kit contains 8 protective EPDM protective caps. Will fit all standard ¼-28 bleed screw. Protect your bleed screw from dirt and corrosion.

Ordering Information for  - Bleed Screw Cap Kit
Item No 220-12487
Info Details
Qty Each 1
Qty Per Kit 8
Fitting Size
Weight (lbs) 0.10
Price $11.41
Purchase
Call (805) 388-1188

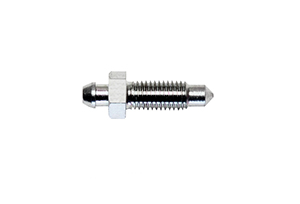

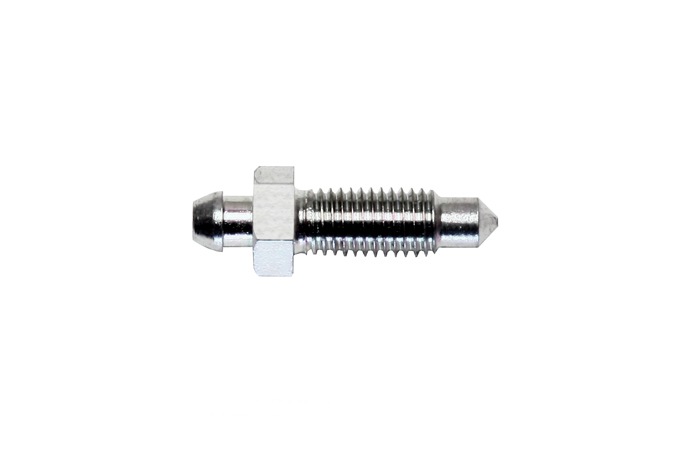

7MM x 1.00 - Bleed Screw

Bleed Screw - 220-13367 Bleed Screw - 220-13367 Zoom Image

Bleed Screw Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood Master Cylinder. Please see the Wilwood Parts and Technical catalog or visit the Master Cylinderr section of this website for your caliper application.

Ordering Information for 7MM x 1.00 - Bleed Screw
Item No 220-13367
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 7MM x 1.00
Weight (lbs) 0.10
Price $3.90
Purchase
Call (805) 388-1188

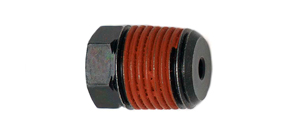

- Bleed Screw

Bleed Screw - 220-16119 Bleed Screw - 220-16119 Zoom Image

Bleed Screw Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for  - Bleed Screw
Item No 220-16119
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size
Weight (lbs) 0.00
Price $2.76
Purchase
Call (805) 388-1188

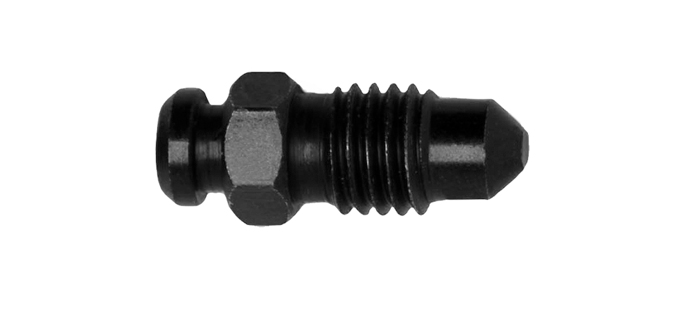

1/4-28 - Bleed Screw

Bleed Screw - 220-16120 Bleed Screw - 220-16120 Zoom Image

Bleed Screw Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for 1/4-28 - Bleed Screw
Item No 220-16120
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/4-28
Weight (lbs) 0.00
Price $1.36
Purchase
Call (805) 388-1188

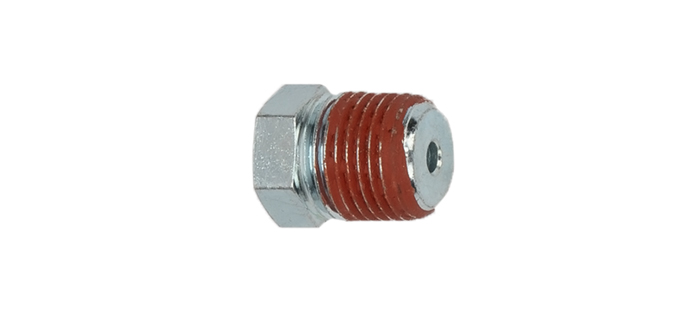

1/8-27 - Bleed Screw

Bleed Screw - 220-17322 Bleed Screw - 220-17322

Bleed Screw Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for 1/8-27 - Bleed Screw
Item No 220-17322
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/8-27
Weight (lbs) 0.00
Price $2.76
Purchase
Call (805) 388-1188

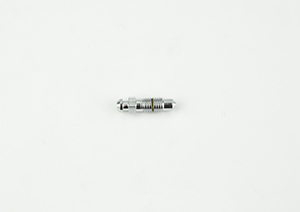

1/4-28 - Bleed Screw

Bleed Screw - 220-3537 Bleed Screw - 220-3537 Zoom Image

Bleed Screw Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for 1/4-28 - Bleed Screw
Item No 220-3537
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/4-28
Weight (lbs) 0.10
Price $3.73
Purchase
Call (805) 388-1188

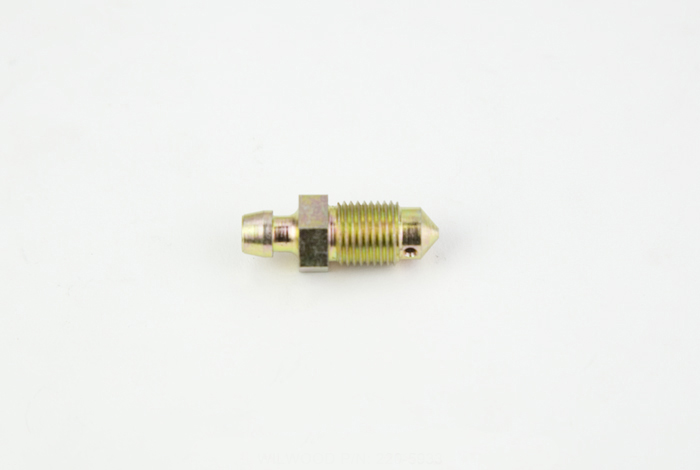

10mm x 1.0 - Bleed Screw

Bleed Screw - 220-5933 Bleed Screw - 220-5933 Zoom Image

Bleed Screw Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for 10mm x 1.0 - Bleed Screw
Item No 220-5933
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 10mm x 1.0
Weight (lbs) 0.20
Price $2.59
Purchase
Call (805) 388-1188
10mm x 1.0 - Bleed Screw Kit

Bleed Screw Kit - 220-6069 Bleed Screw Kit - 220-6069 Zoom Image

Bleed Screw Kit Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for 10mm x 1.0 - Bleed Screw Kit
Item No 220-6069
Info Details
Qty Each 1
Qty Per Kit 4
Fitting Size 10mm x 1.0
Weight (lbs) 0.20
Price $18.97
Purchase
Call (805) 388-1188

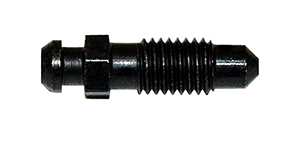

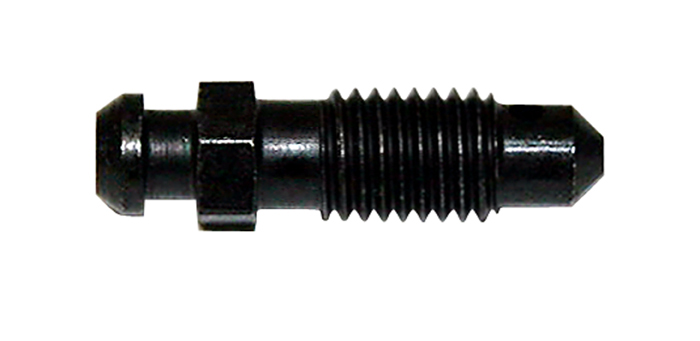

1/4-28 - Bleed Screw

Bleed Screw - 220-7496 Bleed Screw - 220-7496 Zoom Image

Bleed Screw Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for 1/4-28 - Bleed Screw
Item No 220-7496
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/4-28
Weight (lbs) 0.20
Price $1.36
Purchase
Call (805) 388-1188

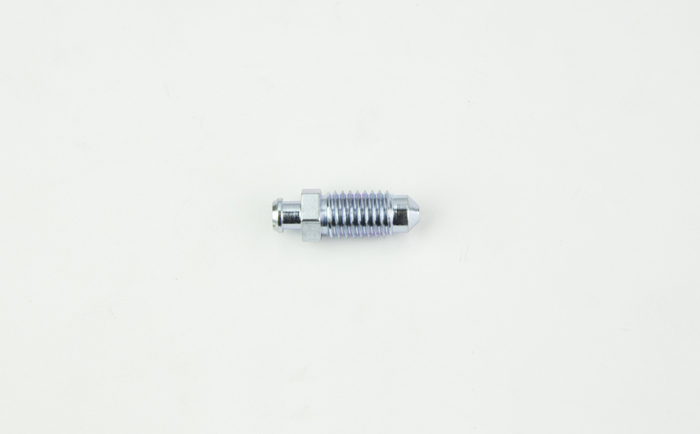

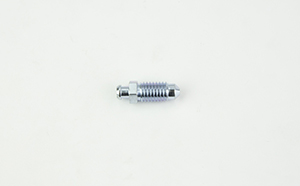

10mm x 1.5 - Bleed Screw

Bleed Screw - 220-8932 Bleed Screw - 220-8932 Zoom Image

Bleed Screw Description

Wilwood’s bleed individual bleed screws and bleed screw kits are manufactured to high quality standards and are available in different thread sizes. These premium grade fittings have been designed for use in repair and maintenance of your Wilwood calipers. Please see the Wilwood Parts and Technical catalog or visit the caliper section of this website for your caliper application.

Ordering Information for 10mm x 1.5 - Bleed Screw
Item No 220-8932
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 10mm x 1.5
Weight (lbs) 0.20
Price $3.90
Purchase
Call (805) 388-1188

Caliper Inlet Fittings

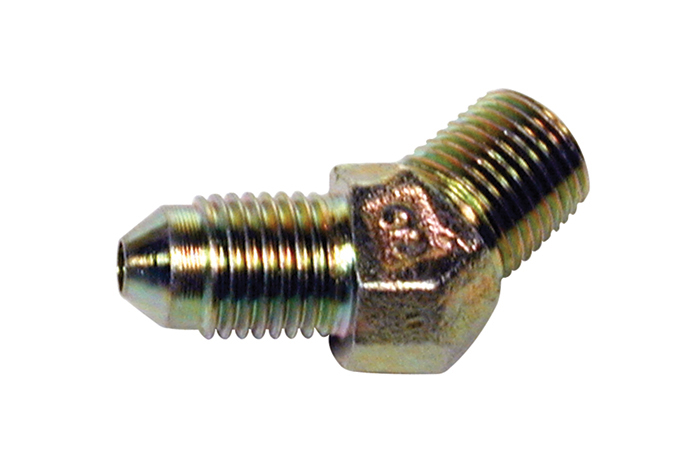

45 Degree - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-6412 Caliper Inlet Fitting - 220-6412 Zoom Image

Caliper Inlet Fitting Description

1/8-27 NPT to AN-3  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel 1/8-27 NPT to AN-3 fitting with 45 degree elbow for connecting calipers to braided stainless -3 flexlines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-6412
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle 45 Degree
Fitting Thread 1/8-27 NPT
Weight 0.20
Price $11.25
Purchase
Call (805) 388-1188

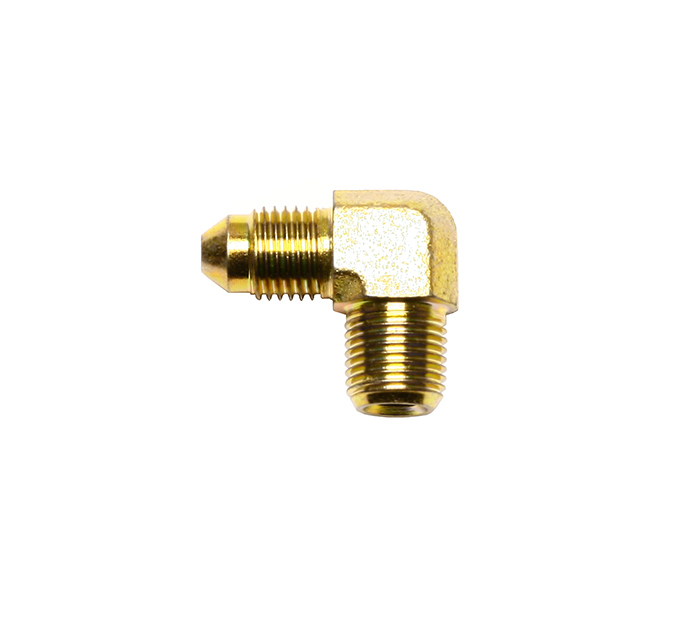

90 Degree - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-13125 Caliper Inlet Fitting - 220-13125 Zoom Image

Caliper Inlet Fitting Description

1/8-27 NPT to AN-3  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel 1/8-27 NPT to AN-3 fitting with 90 degree elbow for connecting calipers to braided stainless -3 flexlines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-13125
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle 90 Degree
Fitting Thread 1/8-27 NPT
Weight 0.20
Price $10.32
Purchase
Call (805) 388-1188

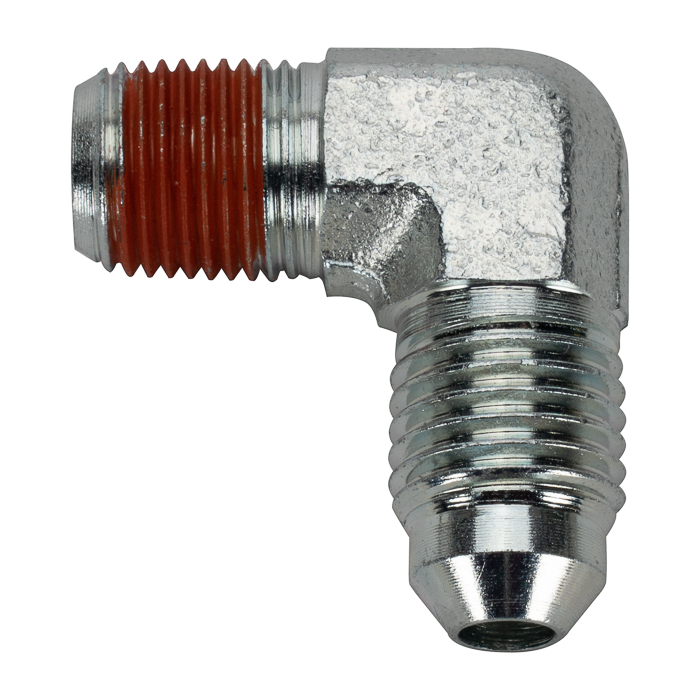

90 Degree - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-16896 Caliper Inlet Fitting - 220-16896 Zoom Image

Caliper Inlet Fitting Description

1/8-27 NPT to AN-4  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel 1/8-27 NPT to AN-4 fitting with 90 degree elbow for connecting calipers to braided stainless -4 flexlines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-16896
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle 90 Degree
Fitting Thread 1/8-27 NPT
Weight 0.20
Price $10.42
Purchase
Call (805) 388-1188

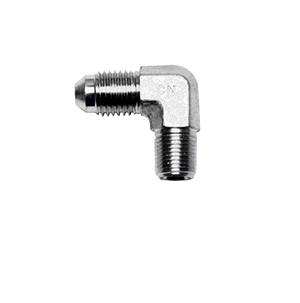

90 Degree - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-9924 Caliper Inlet Fitting - 220-9924 Zoom Image

Caliper Inlet Fitting Description

1/8-27 NPT to AN-4  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel 1/8-27 NPT to AN-4 fitting with 90 degree elbow for connecting calipers to braided stainless -4 flexlines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-9924
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle 90 Degree
Fitting Thread 1/8-27 NPT
Weight 0.20
Price $8.58
Purchase
Call (805) 388-1188

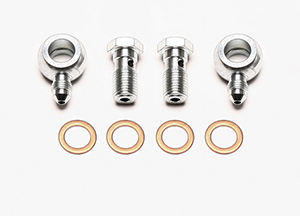

Banjo 0° - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-11565 Caliper Inlet Fitting - 220-11565 Zoom Image

Caliper Inlet Fitting Description

7/16" Banjo to AN-3  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. This kit includes a pair of 7/16” banjo to AN-3 fittings, banjo bolts, and copper washers, to connect Wilwood D52 calipers to braided stainless -3 flex lines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-11565
Info Details
Qty Each 1
Qty Per Kit 2
Fitting Angle Banjo 0°
Fitting Thread 7/16" Banjo
Weight 0.50
Price $43.23
Purchase
Call (805) 388-1188
Banjo 0° - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-10416 Caliper Inlet Fitting - 220-10416 Zoom Image

Caliper Inlet Fitting Description

10mm to AN-3  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. 10mm to AN-3 banjo fitting for Wilwood Combination Parking Brake (CPB) caliper.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-10416
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle Banjo 0°
Fitting Thread 10mm Banjo
Weight 0.10
Price $15.51
Purchase
Call (805) 388-1188

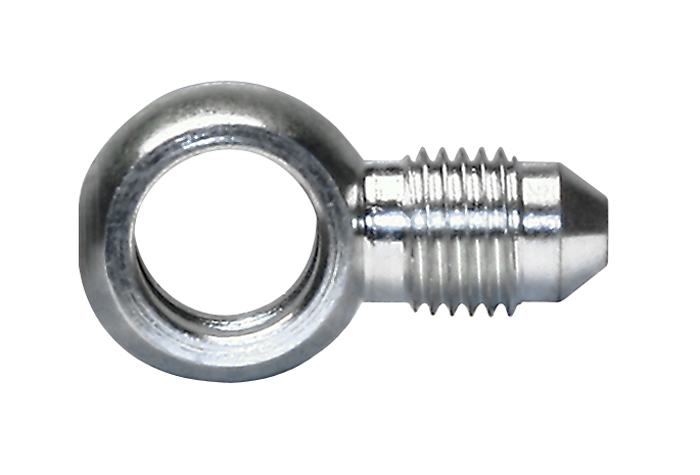

Banjo 0° - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-11325 Caliper Inlet Fitting - 220-11325 Zoom Image

Caliper Inlet Fitting Description

7/16" to AN-3  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. 7/16” to AN-3 banjo fitting to connect Wilwood D52 calipers to braided stainless -3 flex lines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-11325
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle Banjo 0°
Fitting Thread 7/16" Banjo
Weight 0.20
Price $12.40
Purchase
Call (805) 388-1188

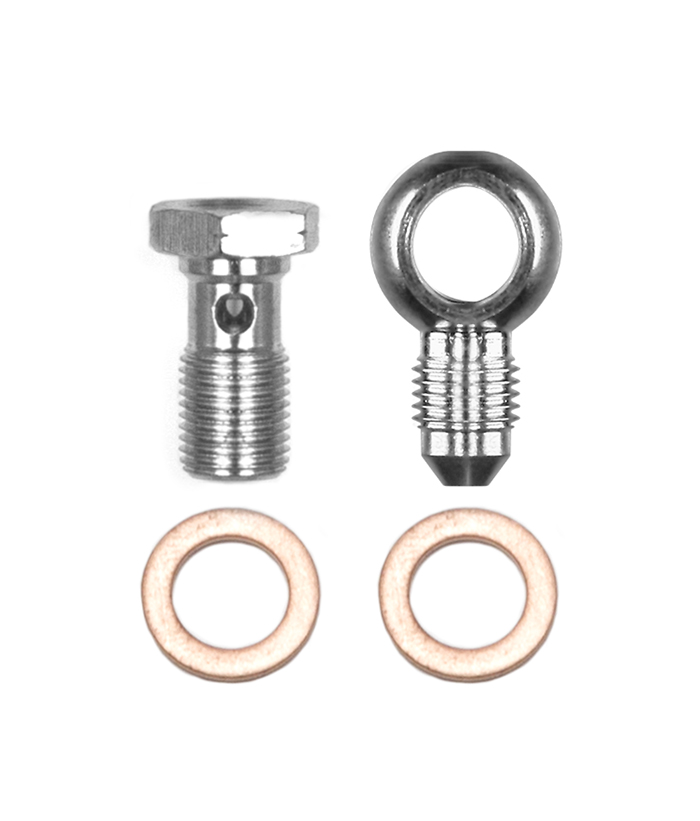

Banjo 0° - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-14431 Caliper Inlet Fitting - 220-14431 Zoom Image

Caliper Inlet Fitting Description

10mm-1.00 Banjo to AN-3  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. This kit includes one 10mm banjo to AN-3 fitting, banjo bolt, and copper washers, to connect Wilwood CPB calipers or others with a 10mm-1.00 thread to braided stainless -3 flex lines.220-14431

Ordering Information for  - Caliper Inlet Fitting
Item No 220-14431
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle Banjo 0°
Fitting Thread 10mm Banjo
Weight 0.12
Price $20.71
Purchase
Call (805) 388-1188

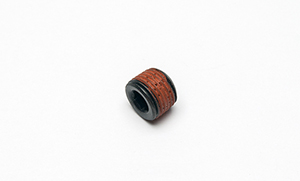

Pipe Plug - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-0098 Caliper Inlet Fitting - 220-0098 Zoom Image

Caliper Inlet Fitting Description

Plug  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Use these pipe plugs to seal extra 1/8-27 NPT ports or bleeder screw holes.

Ordering Information for 1/8-27 NPT - Caliper Inlet Fitting
Item No 220-0098
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle Pipe Plug
Fitting Thread
Weight 0.10
Price $0.85
Purchase
Call (805) 388-1188

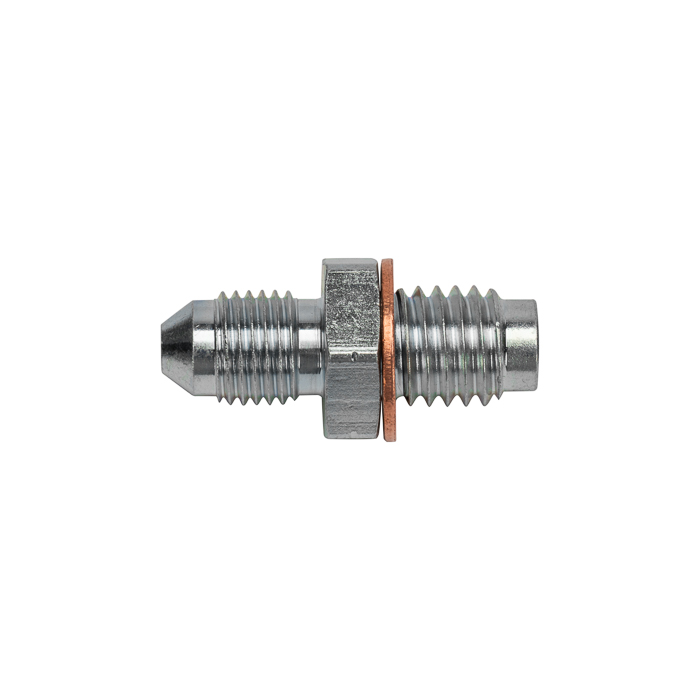

Straight - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-17471 Caliper Inlet Fitting - 220-17471

Caliper Inlet Fitting Description

AN-3 to 10mm-1.50  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. These zinc plated steel AN-3 to 10mm-1.50 fittings with straight inlet and washer for connecting GM Metric calipers to braided stainless -3 flexlines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-17471
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle Straight
Fitting Thread 10mm-1.50
Weight 0.20
Price $11.87
Purchase
Call (805) 388-1188

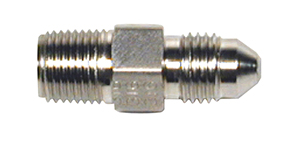

Straight - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-6956 Caliper Inlet Fitting - 220-6956 Zoom Image

Caliper Inlet Fitting Description

1/8-27 NPT to AN-3  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel 1/8-27 NPT to AN-3 straight fitting for connecting calipers to braided stainless -3 flexlines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-6956
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle Straight
Fitting Thread 1/8-27 NPT
Weight 0.20
Price $10.90
Purchase
Call (805) 388-1188

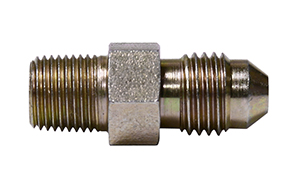

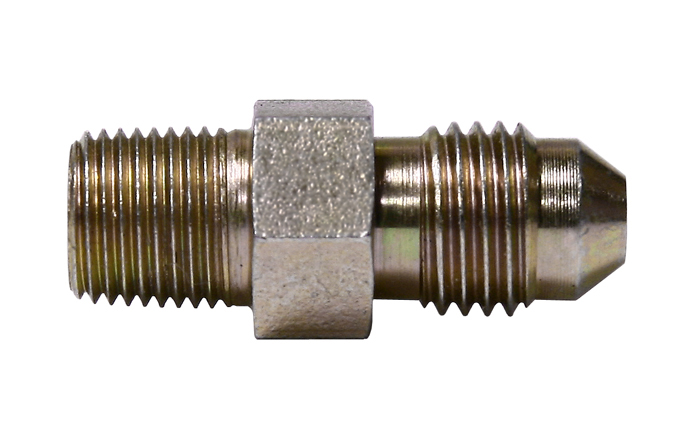

Straight - Caliper Inlet Fitting

Caliper Inlet Fitting - 220-9075 Caliper Inlet Fitting - 220-9075 Zoom Image

Caliper Inlet Fitting Description

1/8-27 NPT to AN-4  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel 1/8-27 NPT to AN-4 straight fitting for connecting calipers to braided stainless -4 flexlines.

Ordering Information for  - Caliper Inlet Fitting
Item No 220-9075
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Angle Straight
Fitting Thread 1/8-27 NPT
Weight 0.20
Price $6.85
Purchase
Call (805) 388-1188

Chassis Fittings

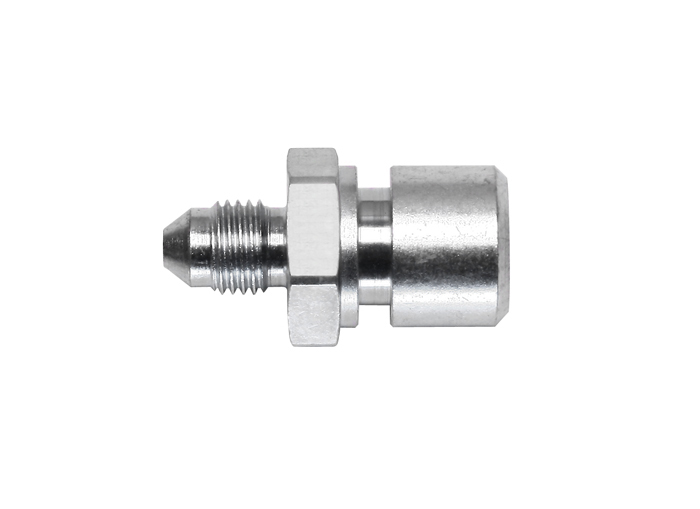

-3 to 3/8-24 IF - Chassis Fitting

Chassis Fitting - 220-13124 Chassis Fitting - 220-13124 Zoom Image

Chassis Fitting Description

AN-3 to 3/8-24 IF  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel AN-3 to 3/8-24 IF universal chassis fitting to connect braided stainless flexline to inverted flare hard line.

Ordering Information for -3 to 3/8-24 IF - Chassis Fitting
Item No 220-13124
Info Details
Qty Each 1
Qty Per Kit 1
Chassis Fitting -3 to 3/8-24 IF
Fitting Thread
Weight 0.20
Price $10.32
Purchase
Call (805) 388-1188

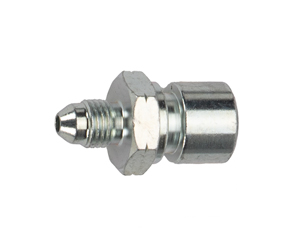

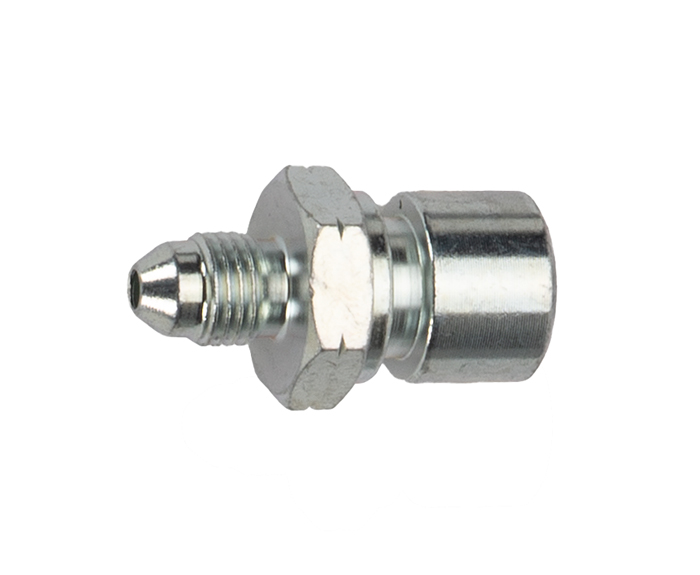

-3 to M10 x 1.5 IF - Chassis Fitting

Chassis Fitting - 220-13923 Chassis Fitting - 220-13923 Zoom Image

Chassis Fitting Description

Wilwood's fittings are manufactured to high quality standards and are available in various styles. These premium grade fittings have been designed for use in completion of your brake system and consist of chassis fitting, caliper adapters, master cylinder fittings and adapters necessary to complete your brake system needs.

Ordering Information for -3 to M10 x 1.5 IF - Chassis Fitting
Item No 220-13923
Info Details
Qty Each 1
Qty Per Kit 1
Chassis Fitting -3 to M10 x 1.5 IF
Fitting Thread
Weight 0.20
Price $12.05
Purchase
Call (805) 388-1188

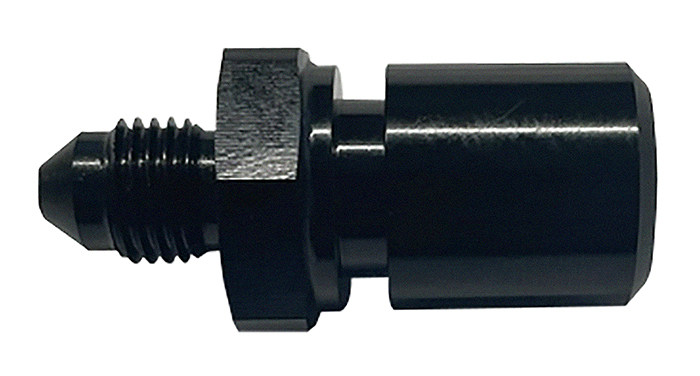

-3 to 3/8-20 IF - Chassis Fitting

Chassis Fitting - 220-15158 Chassis Fitting - 220-15158 Zoom Image

Chassis Fitting Description

AN-3 to 3/8-20 IF  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel AN-3 to 3/8-20 IF chassis fitting sized for MG to connect braided stainless flexline to inverted flare hard line.

Ordering Information for -3 to 3/8-20 IF - Chassis Fitting
Item No 220-15158
Info Details
Qty Each 1
Qty Per Kit 1
Chassis Fitting -3 to 3/8-20 IF
Fitting Thread
Weight 0.20
Price $27.64
Purchase
Call (805) 388-1188
-3 to M10 x 1 IF - Chassis Fitting

Chassis Fitting - 220-6413 Chassis Fitting - 220-6413 Zoom Image

Chassis Fitting Description

AN-3 to M10 x 1.0 IF  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel AN-3 to M10 x 1.0 IF universal chassis fitting to connect braided stainless flexline to metric inverted flare hard line.

Ordering Information for -3 to M10 x 1 IF - Chassis Fitting
Item No 220-6413
Info Details
Qty Each 1
Qty Per Kit 1
Chassis Fitting -3 to M10 x 1 IF
Fitting Thread
Weight 0.20
Price $10.95
Purchase
Call (805) 388-1188
-3 to 7/16-24 IF - Chassis Fitting

Chassis Fitting - 220-6457 Chassis Fitting - 220-6457 Zoom Image

Chassis Fitting Description

AN-3 to 7/16-24 IF  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel AN-3 to 7/16-24 IF universal chassis fitting to connect braided stainless flexline to inverted flare hard line.

Ordering Information for -3 to 7/16-24 IF - Chassis Fitting
Item No 220-6457
Info Details
Qty Each 1
Qty Per Kit 1
Chassis Fitting -3 to 7/16-24 IF
Fitting Thread
Weight 0.20
Price $10.95
Purchase
Call (805) 388-1188
-3 to M10 x 1 BF - Chassis Fitting

Chassis Fitting - 220-6890 Chassis Fitting - 220-6890 Zoom Image

Chassis Fitting Description

AN-3 to M10 x 1.0 BF  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel AN-3 to M10 x 1.0 BF universal chassis fitting to connect braided stainless flexline to metric bubble flare hard line.

Ordering Information for -3 to M10 x 1 BF - Chassis Fitting
Item No 220-6890
Info Details
Qty Each 1
Qty Per Kit 1
Chassis Fitting -3 to M10 x 1 BF
Fitting Thread
Weight 0.20
Price $16.57
Purchase
Call (805) 388-1188
-4 to 7/16-24 IF - Chassis Fitting

Chassis Fitting - 220-9076 Chassis Fitting - 220-9076 Zoom Image

Chassis Fitting Description

AN-4 to 7/16-24 IF  Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc plated steel AN-4 to 7/16-24 IF universal chassis fitting to connect braided stainless flexline to inverted flare hard line.

Ordering Information for -4 to 7/16-24 IF - Chassis Fitting
Item No 220-9076
Info Details
Qty Each 1
Qty Per Kit 1
Chassis Fitting -4 to 7/16-24 IF
Fitting Thread
Weight 0.20
Price $10.95
Purchase
Call (805) 388-1188

Master Cylinder Fittings

11/16-20 to 1/8-27 - M/C Fitting

M/C Fitting - 220-14909 M/C Fitting - 220-14909 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Connects Wilwood Compact Remote and Remote Tandem Master Cylinder 11/16-20 reservoir inlet to 1/8-27 NPT fittings. Supplied with sealing O-ring.

Ordering Information for  - M/C Fitting
Item No 220-14909
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 11/16-20 to 1/8-27
Weight 0.20
Price $13.78
Purchase
Call (805) 388-1188
1/20 t0 9/16-18 IF - M/C Fitting

M/C Fitting - 220-16740 M/C Fitting - 220-16740

M/C Fitting Description



Ordering Information for  - M/C Fitting
Item No 220-16740
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/20 t0 9/16-18 IF
Weight 0.10
Price $6.85
Purchase
Call (805) 388-1188
-3 to 3/8-24 Banjo - M/C Fitting

M/C Fitting - 220-3406 M/C Fitting - 220-3406 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc-plated steel AN-3 to 3/8-24 banjo bolt and fitting to connect braided stainless flexline via banjo bolt to the outlet of Wilwood’s Compact Remote Master Cylinder. With copper sealing washers.

Ordering Information for  - M/C Fitting
Item No 220-3406
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size -3 to 3/8-24 Banjo
Weight 0.10
Price $3.73
Purchase
Call (805) 388-1188
3/8-24 IF to 3/8-24 - M/C Fitting

M/C Fitting - 220-3407 M/C Fitting - 220-3407 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Zinc-plated steel 3/8-24 IF to 3/8-24 master cylinder fitting to allow flared hard line to connect to the outlet of a Compact Remote Master Cylinder.

Ordering Information for  - M/C Fitting
Item No 220-3407
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 3/8-24 IF to 3/8-24
Weight 0.10
Price $3.73
Purchase
Call (805) 388-1188
1/8-27 to 3/8-24 IF - M/C Fitting

M/C Fitting - 220-4669 M/C Fitting - 220-4669 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and available in various sizes. This brass 90-degree elbow adapts 1/8-27 NPT to a 3/8-24 inverted flare fitting, the size commonly used on 3/16” hard lines. It is meant for the outlet port of the Wilwood Compact Remote Master Cylinder.

Ordering Information for  - M/C Fitting
Item No 220-4669
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/8-27 to 3/8-24 IF
Weight 0.10
Price $6.12
Purchase
Call (805) 388-1188
1/2-20 IF for 3/16 - M/C Fitting

M/C Fitting - 220-5247 M/C Fitting - 220-5247 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Steel 1/2-20 Inverted Flare fitting for installation on 3/16 custom flared line when connecting to master cylinder outlets.

Ordering Information for  - M/C Fitting
Item No 220-5247
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/2-20 IF for 3/16
Weight 0.10
Price $4.32
Purchase
Call (805) 388-1188
9/16-20 IF for 3/16 - M/C Fitting

M/C Fitting - 220-5248 M/C Fitting - 220-5248 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Steel 9/16-20 Inverted Flare fitting for installation on 3/16 custom flared line when connecting to master cylinder outlets.

Ordering Information for  - M/C Fitting
Item No 220-5248
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 9/16-20 IF for 3/16
Weight 0.10
Price $4.32
Purchase
Call (805) 388-1188
-6 to 3/8 Hose - M/C Fitting

M/C Fitting - 220-7534 M/C Fitting - 220-7534 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Connects Wilwood remote reservoirs to GS Compact Remote Master Cylinders via 3/8" rubber hose when paired with 220-7537 (7/16-20 to AN-6 fitting).

Ordering Information for  - M/C Fitting
Item No 220-7534
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size -6 to 3/8 Hose
Weight 0.20
Price $17.07
Purchase
Call (805) 388-1188
-6 to 7/16-20 - M/C Fitting

M/C Fitting - 220-7537 M/C Fitting - 220-7537 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Connects GS Compact Remote Master Cylinder inlet to AN-6 braided stainless flexlines or 3/8" rubber hose when paired with 220-7534 (AN-6 to hose barb fitting).

Ordering Information for  - M/C Fitting
Item No 220-7537
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size -6 to 7/16-20
Weight 0.20
Price $30.49
Purchase
Call (805) 388-1188
1/2-20 to 1/2-20 IF - M/C Fitting

M/C Fitting - 220-8574 M/C Fitting - 220-8574 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Wilwood tandem master cylinder outlets are tapped 1/2-20. This aluminum fitting adapts them to connect to 1/2-20 inverted flare line fittings.

Ordering Information for  - M/C Fitting
Item No 220-8574
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/2-20 to 1/2-20 IF
Weight 0.10
Price $6.85
Purchase
Call (805) 388-1188
1/2-20 to 9/16-18 IF - M/C Fitting

M/C Fitting - 220-8575 M/C Fitting - 220-8575 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Wilwood tandem master cylinder outlets are tapped 1/2-20. This aluminum fitting adapts them to connect to 9/16-18 inverted flare line fittings.

Ordering Information for  - M/C Fitting
Item No 220-8575
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/2-20 to 9/16-18 IF
Weight 0.10
Price $6.85
Purchase
Call (805) 388-1188
1/2-20 Plug - M/C Fitting

M/C Fitting - 220-8576 M/C Fitting - 220-8576 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Aluminum plugs for unused 1/2-20 tapped outlets on Wilwood tandem master cylinders.

Ordering Information for  - M/C Fitting
Item No 220-8576
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/2-20 Plug
Weight 0.10
Price $6.85
Purchase
Call (805) 388-1188
1/2-20 to 3/8-24 IF - M/C Fitting

M/C Fitting - 220-8849 M/C Fitting - 220-8849 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Wilwood tandem master cylinder outlets are tapped 1/2-20. This aluminum fitting adapts them to connect to 3/8-24 inverted flare fittings, the size commonly used on 3/16” hard lines.

Ordering Information for  - M/C Fitting
Item No 220-8849
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/2-20 to 3/8-24 IF
Weight 0.10
Price $6.85
Purchase
Call (805) 388-1188
9/16-18 to -3 - M/C Fitting

M/C Fitting - 220-12943 M/C Fitting - 220-12943 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. This black anodized aluminum fitting connects Wilwood Billet Aluminum Reservoir 9/16-16 bottom outlet to AN-3 braided stainless flexline for remote reservoir plumbing of Remote Tandem or Compact Remote Master Cylinders. Supplied with sealing O-ring.

Ordering Information for  - M/C Fitting
Item No 220-12943
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 9/16-18 to -3
Weight 0.25
Price $12.40
Purchase
Call (805) 388-1188
11/16-20 to -3 - M/C Fitting

M/C Fitting - 220-13130 M/C Fitting - 220-13130 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. This black anodized aluminum fitting connects Wilwood Remote Tandem or Compact Remote Master Cylinder 11/16-20 inlets to AN-3 braided stainless flexlines for remote reservoir mounting. Supplied with sealing O-ring and Reservoir Sleeve (300-15867).

Ordering Information for  - M/C Fitting
Item No 220-13130
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 11/16-20 to -3
Weight 0.20
Price $12.40
Purchase
Call (805) 388-1188
M15-1.0 to 3/8-24 IF - M/C Fitting

M/C Fitting - 220-13368 M/C Fitting - 220-13368 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Wilwood Tandem Remote Master Cylinder 260-7563 features outlets tapped with metric M15-1.00 threads. This steel fitting adapts them to connect to 3/8-24 inverted flare fittings, the size commonly used on 3/16” hard lines.

Ordering Information for  - M/C Fitting
Item No 220-13368
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size M15-1.0 to 3/8-24 IF
Weight 0.10
Price $17.25
Purchase
Call (805) 388-1188
-3 to 3/8-24 Banjo - M/C Fitting

M/C Fitting - 220-13674 M/C Fitting - 220-13674 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. These premium grade fittings have been designed for use in completion of your brake system and consist of chassis fitting, caliper adapters, master cylinder fittings and adapters necessary to complete your brake system needs.

Ordering Information for  - M/C Fitting
Item No 220-13674
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size -3 to 3/8-24 Banjo
Weight 0.10
Price $24.18
Purchase
Call (805) 388-1188
3/8-24 IF to 1/8-27 - M/C Fitting

M/C Fitting - 220-0628 M/C Fitting - 220-0628 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. Brass fitting adapts 1/8-27 NPT threaded ports to 3/8-24 inverted flare fittings commonly used on 3/16" hard lines. Wilwood uses 1/8-27 NPT thread on both sides of proportioning and residual valves, inlets on calipers, and outlets on some master cylinders. Packed four to a kit.

Ordering Information for  - M/C Fitting
Item No 220-0628
Info Details
Qty Each 1
Qty Per Kit 4
Fitting Size 3/8-24 IF to 1/8-27
Weight 0.20
Price $10.56
Purchase
Call (805) 388-1188
9/16-18 to -3 - M/C Fitting

M/C Fitting - 220-12942 M/C Fitting - 220-12942 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards. This fitting kit been designed for use with our Billet Aluminum Reservoir assemblies with 9/16-18 inlet thread and will adapt to -3 AN male fitting used most AN stainless brake lines assemblies. Also Includes the required o-ring seal (part # 210-3792)

Ordering Information for  - M/C Fitting
Item No 220-12942
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 9/16-18 to -3
Weight 0.25
Price $12.40
Purchase
Call (805) 388-1188
-3 to 7/16-20 - M/C Fitting

M/C Fitting - 220-14159 M/C Fitting - 220-14159 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. This zinc-plated steel fitting connects GS Compact Remote Master Cylinder inlet to AN-3 braided stainless flexlines for remote reservoir mounting.

Ordering Information for  - M/C Fitting
Item No 220-14159
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size -3 to 7/16-20
Weight 0.20
Price $6.85
Purchase
Call (805) 388-1188
-3 to 7/16-20 - M/C Fitting

M/C Fitting - 220-14204 M/C Fitting - 220-14204 Zoom Image

M/C Fitting Description

Wilwood’s fittings are manufactured to high quality standards and are available in various styles. This zinc-plated steel fitting connects GS Compact Remote Master Cylinder inlet to AN-3 braided stainless flexlines for remote reservoir mounting. Includes crush washer.

Ordering Information for  - M/C Fitting
Item No 220-14204
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size -3 to 7/16-20
Weight 0.20
Price $9.51
Purchase
Call (805) 388-1188

Pressure Guage Fittings

1/8-27 NPT to 1/4-28 - Pressure Gauge Fitting

Pressure Gauge Fitting - 220-0971 Pressure Gauge Fitting - 220-0971 Zoom Image

Pressure Gauge Fitting Description

A Wilwood high-quality fitting zinc-plated steel adapter allows you to quickly connect a pressure gauge using 1/8-27 NPT to a 1/4-28 bleed screw port on a bleeder valve at the caliper or master cylinder.

Ordering Information for  - Pressure Gauge Fitting
Item No 220-0971
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/8-27 NPT to 1/4-28
Weight 0.20
Price $24.00
Purchase
Call (805) 388-1188
1/8-27 NPT to 1/4-28 - Pressure Gauge Fitting

Pressure Gauge Fitting - 220-16727 Pressure Gauge Fitting - 220-16727

Pressure Gauge Fitting Description

A Wilwood high-quality fitting zinc-plated steel adapter allows you to quickly connect a pressure gauge using 1/8-27 NPT to a 1/4-28 bleed screw port on a bleeder valve at the caliper or master cylinder.

Ordering Information for  - Pressure Gauge Fitting
Item No 220-16727
Info Details
Qty Each 1
Qty Per Kit 1
Fitting Size 1/8-27 NPT to 1/4-28
Weight 0.20
Price $24.00
Purchase
Call (805) 388-1188

All images shown are for illustrative purposes only. Actual product received may be different than what is portrayed on the web site.
Wilwood makes every effort to maintain our web site to ensure the accuracy of prices and product information. However, product information and prices are subject to change without notice. Please call (805) 388-1188 before ordering to verify current prices and product information.
Copyright © 1977 - 2023 Wilwood Engineering, Inc. - All Rights Reserved
Version: 3.04 May 22, 2023
​ ​
