Brackets


Master Cylinder

Bracket, Reservoir Mount
  Length (in): N-A
  Thread: N-A
  Stud Thickness: N-A
  Rotor Dia (in): N-A

Bracket, Reservoir Mount Bracket, Reservoir Mount Zoom Image

Bracket, Reservoir Mount Drawing Bracket, Reservoir Mount Drawing

Bracket, Reservoir Mount Description

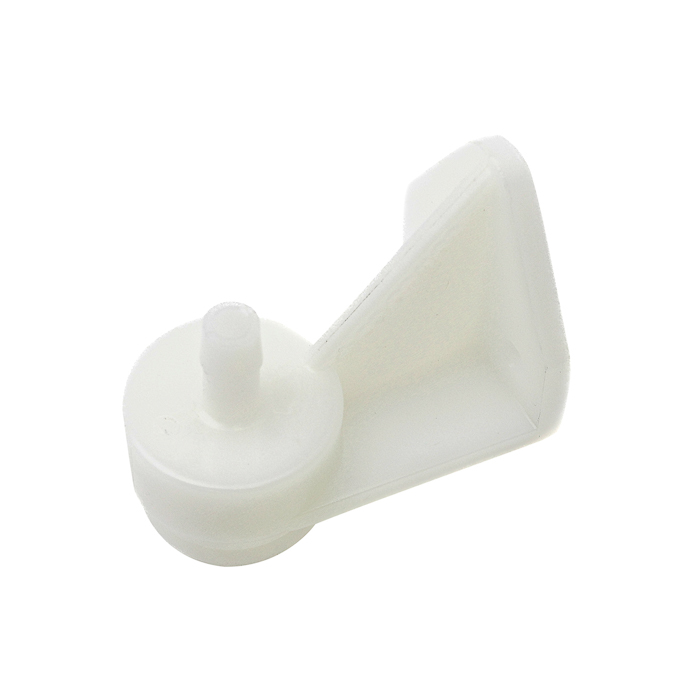

Remote Reservoir Mounting bracket for Combination Remote Master Cylinder reservoirs with a 1.36” nominal opening. Nylon construction.

BRACKET,MOUNTING,RESERVOIR,M/C WILWOOD,REMOTE TYPE


Ordering Information for Nylon Bracket, Reservoir Mount
Item No 250-3381
Info Details
Material Nylon
Finish Natural
Weight 0.136
Price $13.65
Purchase
Call (805) 388-1188

Bracket, Reservoir Mount
  Length (in): N-A
  Thread: N-A
  Stud Thickness: N-A
  Rotor Dia (in): N-A

Bracket, Reservoir Mount Bracket, Reservoir Mount Zoom Image

Bracket, Reservoir Mount Drawing Bracket, Reservoir Mount Drawing

Bracket, Reservoir Mount Description

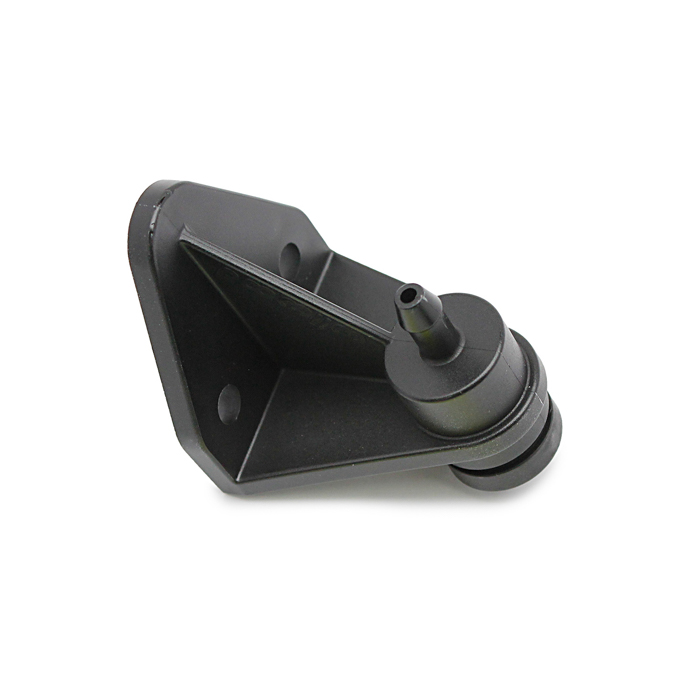

Remote Reservoir Mounting bracket for Compact Remote Master Cylinder reservoirs with a 0.875” nominal opening. Black nylon construction.

BRACKET,MOUNTING,ADAPTER,M/C,REMOTE TYPE


Ordering Information for Nylon Bracket, Reservoir Mount
Item No 250-10263
Info Details
Material Nylon
Finish Black
Weight 0.060
Price $8.58
Purchase
Call (805) 388-1188

Bracket, Prop Valve to Master Cylinder
  Length (in): N-A
  Thread: N-A
  Stud Thickness: N-A
  Rotor Dia (in): N-A

Bracket, Prop Valve to Master Cylinder Bracket, Prop Valve to Master Cylinder Zoom Image

Bracket, Prop Valve to Master Cylinder Drawing Bracket, Prop Valve to Master Cylinder Drawing

Bracket, Prop Valve to Master Cylinder Description

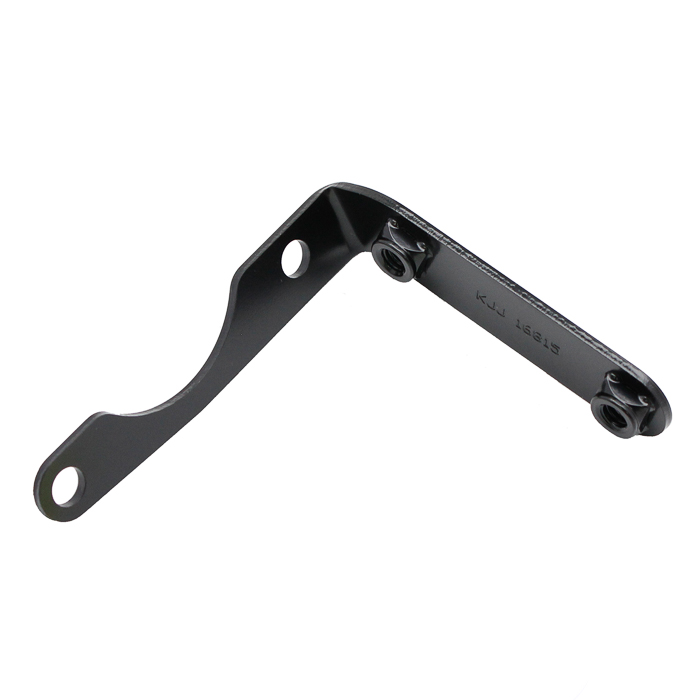

Proportioning Valve Mounting bracket for Wilwood Tandem Compact Mopar 4-bolt Master Cylinders. Steel construction with a plated finish. L/H side mount.

BRACKET,COMBO P-VALVE TO TANDEM DIECAST M/C,MOPAR,L/H,BLACK


Ordering Information for Steel Bracket, Prop Valve to Master Cylinder
Item No 250-16815
Info Details
Material Steel
Finish Black E-coat
Weight 0.280
Price $19.02
Purchase
Call (805) 388-1188

Bracket, Prop Valve to Master Cylinder
  Length (in): N-A
  Thread: N-A
  Stud Thickness: N-A
  Rotor Dia (in): N-A

Bracket, Prop Valve to Master Cylinder Bracket, Prop Valve to Master Cylinder Zoom Image

Bracket, Prop Valve to Master Cylinder Drawing Bracket, Prop Valve to Master Cylinder Drawing

Bracket, Prop Valve to Master Cylinder Description

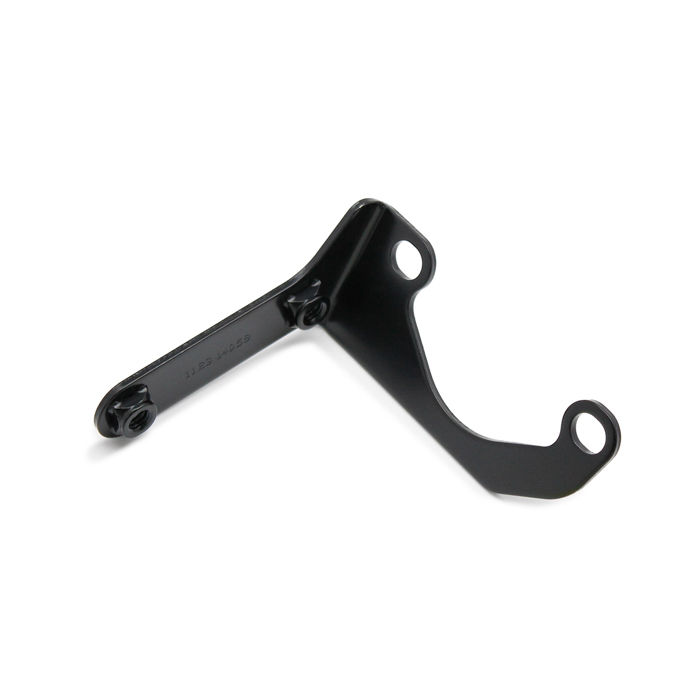

Proportioning Valve Mounting bracket for Wilwood Tandem Master Cylinders. Steel construction with a plated finish. R/H side mount.

BRACKET,COMBO P-VALVE TO TANDEM DIECAST M/C,R/H,BLACK


Ordering Information for Steel Bracket, Prop Valve to Master Cylinder
Item No 250-14059
Info Details
Material Steel
Finish Black E-coat
Weight 0.280
Price $19.02
Purchase
Call (805) 388-1188

Bracket, Prop Valve to Master Cylinder
  Length (in): N-A
  Thread: N-A
  Stud Thickness: N-A
  Rotor Dia (in): N-A

Bracket, Prop Valve to Master Cylinder Bracket, Prop Valve to Master Cylinder Zoom Image

Bracket, Prop Valve to Master Cylinder Drawing Bracket, Prop Valve to Master Cylinder Drawing

Bracket, Prop Valve to Master Cylinder Description

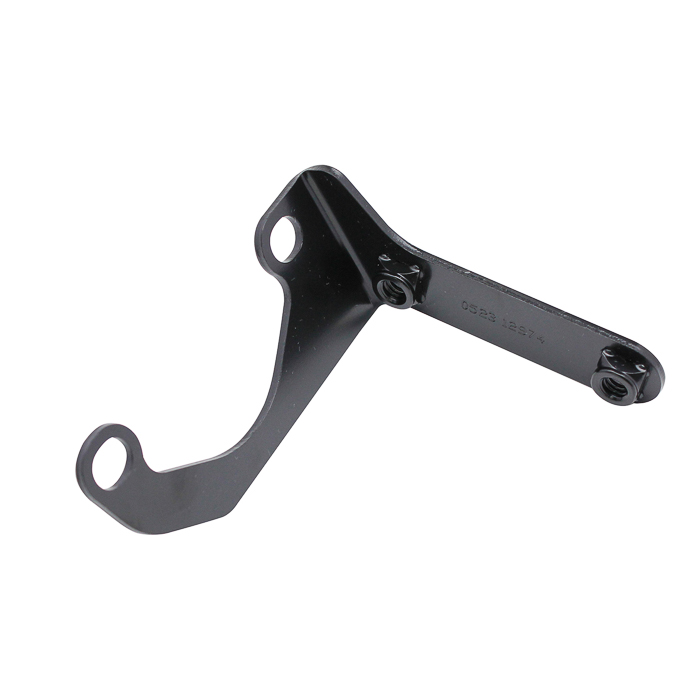

Proportioning Valve Mounting bracket for Wilwood Tandem Master Cylinders. Steel construction with a plated finish. L/H side mount.

BRACKET,COMBO P-VALVE TO TANDEM DIECAST M/C,L/H,BLACK


Ordering Information for Steel Bracket, Prop Valve to Master Cylinder
Item No 250-12974
Info Details
Material Steel
Finish Black E-coat
Weight 0.280
Price $19.02
Purchase
Call (805) 388-1188

NOTE: This mounting kit can only be used with a remote reservoir. See the Data Sheet instructions for details.
  Length (in): N-A
  Thread: N-A
  Stud Thickness: N-A
  Rotor Dia (in): N-A

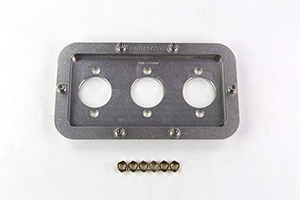

Bracket Kit, Firewall Mount Bracket Kit, Firewall Mount Zoom Image

Bracket Kit, Firewall Mount Drawing Bracket Kit, Firewall Mount Drawing

Bracket Kit, Firewall Mount Description

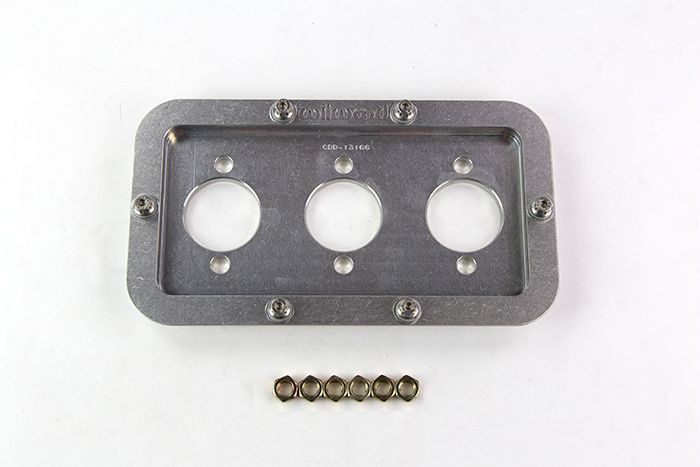

Wilwood's new billet aluminum Master Cylinder Firewall Mounting Kit, part number 250-13167. This mounting kit is specifically designed to work in conjunction with Wilwood’s Forward Mount Brake and Clutch Pedal Assembly and Flange Mounted Compact Remote Master Cylinders.The kit allows precision mounting of the pedal and master cylinders to the firewall, and leaves the engine compartment with a high-tech pro-finish look. The mounting plates recess the master cylinder mounting surface by .25”, which allows more clearance in the engine compartment. Both the engine compartment faceplate and interior side mounting plate are media burnished billet aluminum. The kit is designed to accept a firewall material thickness range of .040” - .080”, and requires a minimum flat area the size of the 4” x 8” faceplate. Also provided is all mounting hardware, including attractive, corrosion resistant stainless steel 12 point fasteners, and detailed installation instructions.

M/C MT KIT,FIREWALL,ASSEMBLY


Notes:
NOTE: This mounting kit can only be used with a remote reservoir. See the Data Sheet instructions for details.


Ordering Information for Aluminum Bracket Kit, Firewall Mount
Item No 250-13167
Info Details
Material Aluminum
Finish Clear Anodize
Weight 1.478
Price $230.91
Purchase
Call (805) 388-1188

Bracket Kit, Firewall Mount
  Length (in): N-A
  Thread: N-A
  Stud Thickness: N-A
  Rotor Dia (in): N-A

Bracket Kit, Firewall Mount Bracket Kit, Firewall Mount Zoom Image

Bracket Kit, Firewall Mount Drawing Bracket Kit, Firewall Mount Drawing Zoom Image

Bracket Kit, Firewall Mount Description

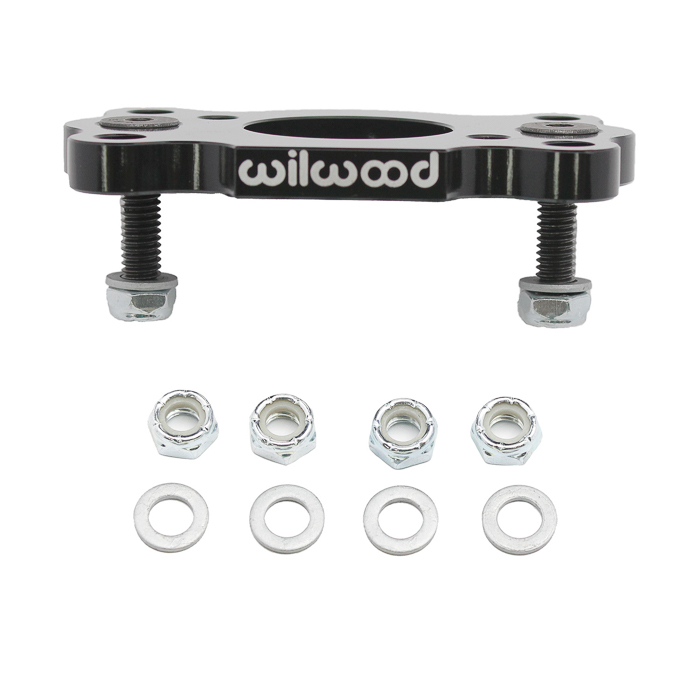

Wilwood's new Mopar 4 bolt to 2 bolt Master Cylinder Adapter allows installation on 1960's to 1970's (CDP) Chrysler / Dodge and Plymouth vehicle of a any Wilwood or other Mopar 'Style' two bolt master cylinder with 3.20" horizontal spacing. Manufactured from high strength aluminum alloy and with a black e-coat finish. Comes with the necessary fasteners for installation of the master cylinder.

KIT,ADAPTER,M/C,MOPAR


Ordering Information for Aluminum Bracket Kit, Firewall Mount
Item No 250-15448
Info Details
Material Aluminum
Finish Black E-coat
Weight
Price $56.11
Purchase
Call (805) 388-1188

Bracket, Go-Kart, Master Cylinder
  Length (in): N-A
  Thread: N-A
  Stud Thickness: N-A
  Rotor Dia (in): N-A

Bracket, Go-Kart, Master Cylinder Bracket, Go-Kart, Master Cylinder Zoom Image

Bracket, Go-Kart, Master Cylinder Drawing Bracket, Go-Kart, Master Cylinder Drawing

Bracket, Go-Kart, Master Cylinder Description

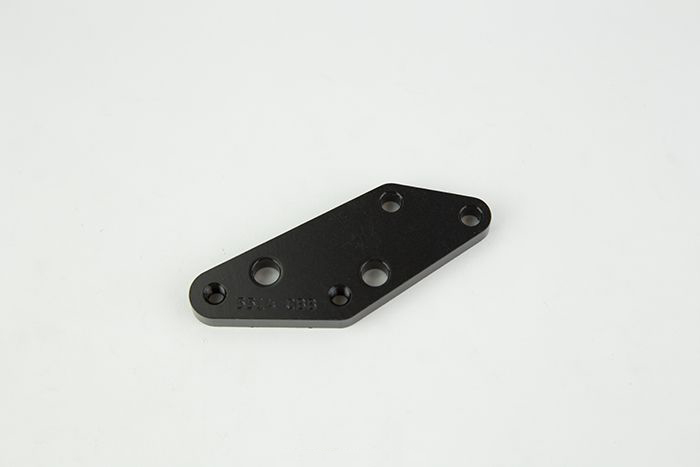

Go-Kart Master Cylinder Mounting bracket for Wilwood RM1 Master Cylinders. Aluminum construction with a black e-coat finish

BRACKET,M/C,RM1,GO-KART


Ordering Information for Aluminum Bracket, Go-Kart, Master Cylinder
Item No 250-5514
Info Details
Material Aluminum
Finish Black E-coat
Weight 0.125
Price $41.50
Purchase
Call (805) 388-1188
