Steel Rotors – Part No: 160-7663
Call (805) 388-1188

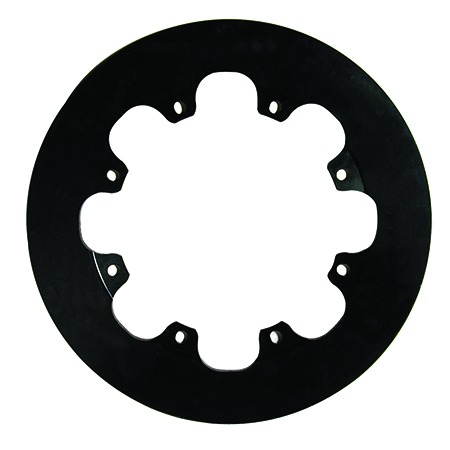

Solid Steel Rotor
Prod #: 160-7663
Price: $104.92

Solid Steel Rotor – Product Summary
Rotor No: 160-7663

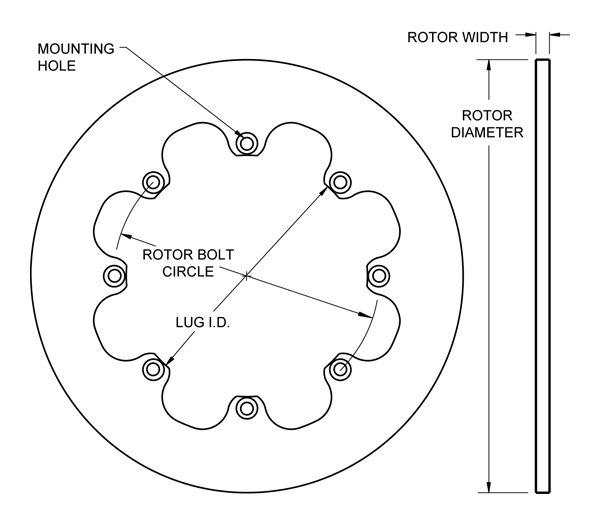

Rotor Dimension Diagram
Solid Steel Rotor Dimension Diagram Solid Steel Rotor Dimension Diagram Zoom Image

Rotor Dimensions
Width (in) 0.35
Diameter (in) 11.44
Mount Side Non_Direct
Rotor Design
Material Steel
Vane Count Solid
Weight(Lbs) 5.40
Rotor Style & Finish
Type Solid
Style Plain Face
Surface Finish Black Oxide
Rotor Upgrades
Bedded No
Balanced No
UPC Number
UPC 889545040258
160-7663 – Product Description

Solid Steel Rotor

Steel rotors have applications in all types of motorsports. Steel rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. This could be anything from a hard stopping drag race car at the end of a quarter mile, or a high speed stock car coming in from a qualifier at a super speedway. Steel rotors can also be found in lighter weight open wheel cars such as sprints and modifieds, and a variety of light weight, open wheel road course racers. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.


Performance Characteristics
• Obsolete Part Number
•  Use substitute part number: 160-12483



Vehicle Applications
Driving Environment Drag Racing
Vehicle Sub-Types
Application Duty Heavy Duty
Driving Environment Off Road
Vehicle Sub-Types
Application Duty Light Duty
Driving Environment Industrial
Vehicle Sub-Types
Application Duty Light Duty

Additional Rotor Dimensions

Rotor Bolt Circle (in) 8 x 7.00
Rotor Mount Hole Size (in) 0.316
Lug ID / Registration (in) 6.38
Far Side Inside Diameter (in)
Offset Dimension (in)

Shoe Inside Dimension (in)
Clearance Inside Diameter (in)
Wheel Bolt Circle (in
Stud Diameter (in)
Face Thickness (in)
