Wednesday, May 22, 2013
Brake Fluid & Assembly Lube
Assembly Lube
 Dry Boiling Point: N-A  Wet Boiling Point:  N-A  Size:  4oz Assembly Lube
Assembly Lube

Assembly Lube zoom image
Assembly Lube Description

Wilwood’s specially formulated Synthetic Assembly Lubricant is designed to be used on pistons and rubber components when overhauling brake calipers, wheel cylinders and master cylinders for maximum protection and performance.

Comes in a convienient 4oz bottle size, with applicator tip. Also available in a case of 12 - 4oz bottles.

   Ordering Information for Assembly Lube
InfoQty:Size:PricePart No / More InfoPurchase
14oz $8.63
Call (805) 388-1188
124oz $97.19
Call (805) 388-1188
EXP600 PLUS Brake Fluid
 Dry Boiling Point: 626 °F  Wet Boiling Point:  417 °F  Size:  16.5 oz EXP600 PLUS Brake Fluid
EXP600 PLUS Brake Fluid

EXP600 PLUS Brake Fluid zoom image
EXP600 PLUS Brake Fluid Description

EXP 600 Plus is a highly refined blend developed for extreme performance under the high heat and extreme pressure of professional motorsports.EXP 600 Plus has tested to 626 degrees Fahrenheit with a wet boiling point of 417 degrees Fahrenheit. These numbers far exceed any DOT or SAE specifications.

It is true that racing fluids need to have high boiling points. It is also true that fluids need to have low moisture affinity to slow the natural absorption rate of water vapor. But the true test of any fluid is how well it resists aeration and compressibility after it has been heated and pressure cycled a few hundred times. The real test is at the track. EXP has been proven to maintain firm pedal feel and quick response, long after others have failed.

   Ordering Information for EXP600 PLUS Brake Fluid
InfoQty:Size:PricePart No / More InfoPurchase
116.5 oz $20.25
Call (805) 388-1188
616.5 oz $118.88
Call (805) 388-1188
2016.5 oz $395.63
Call (805) 388-1188
HI-TEMP Brake Fluid
 Dry Boiling Point: 573 °F  Wet Boiling Point:  313 °F  Size:  12 oz HI-TEMP Brake Fluid
HI-TEMP Brake Fluid

HI-TEMP Brake Fluid zoom image
HI-TEMP Brake Fluid Description

Wilwood’s specially formulated Hi-Temp° 570 Racing Brake Fluid has a minimum 570° F. dry boiling point of to withstand the severe heat requirements of automotive racing. Hi-Temp° 570’s low viscosity allows easy bleeding of your brake system, eliminating aeration of the brake fluid caused by foaming due to excessive pumping of the pedal.

Hi-Temp° 570 comes in convenient 12 ounce containers hermetically sealed to guarantee against unwanted absorption of moisture which can drastically lower the fluids boiling point (fluid from larger containers tends to become contaminated with moisture, lowering its boiling point and making it unsuitable for racing applications.

   Ordering Information for HI-TEMP Brake Fluid
InfoQty:Size:PricePart No / More InfoPurchase
112 oz $10.76
Call (805) 388-1188
612 oz $53.96
Call (805) 388-1188
2412 oz $172.43
Call (805) 388-1188

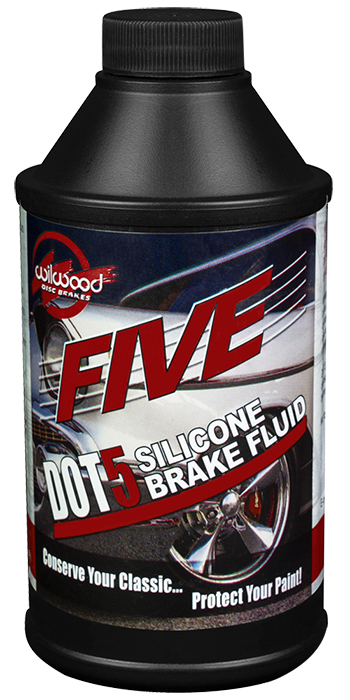

Wilwood Five Brake Fluid
 Dry Boiling Point: 500 °F  Wet Boiling Point:  356 °F  Size:  12 oz Wilwood Five Brake Fluid
Wilwood Five Brake Fluid

Wilwood Five Brake Fluid zoom image
Wilwood Five Brake Fluid Description

Wilwood FIVE is a highly refined silicone brake fluid, formulated to preserve the looks and reliability on classic vehicles and show cars. Its non-hygroscopic blend blocks moisture absorption to inhibit internal system corrosion. It is paint friendly and will not harm most custom finishes should a spill or leak occur.

Wilwood FIVE provides superior lubrication for all brake system wear surfaces with long life from the master cylinder and caliper pistons, bores, and seals. It is a fully DOT 5 compliant fluid meeting or exceeding FMVSS 116 and MIL-PRF-46176B-DOT specifications, and can be used in any vehicle that is OE specified for DOT 5 use. Wilwood does not recommend using DOT 5 fluid in any racing applications.

   Ordering Information for Wilwood Five Brake Fluid
InfoQty:Size:PricePart No / More InfoPurchase
112 oz $14.03
Call (805) 388-1188
612 oz $84.18
Call (805) 388-1188
2412 oz $322.86
Call (805) 388-1188
