Pedal No: 340-4745

Pedal Accessories

Balance Bar Replacement
Wilwood Pedal Accessories

Wilwood Pedal Accessories
zoom image
This balance bar assembly is used in all current Wilwood standard balance bar pedals and remote pedal 60 degree master cylinder mounts. It can be used to replace a damaged or worn balance bar, or to update an older model balance bar that did not included the detent assembly. The balance bar incorporates a positive detent stop every full turn to maintain adjustment position and driver awareness. A pin and clevis pushrod attachment system provides highest possible degree of misalignment angle for bind free operation through the entire range of travel. The balance bar can be locked in place with the included jam nut, or used with an optional remote cable or adjustment knob for quick on-track adjustments

<Go Back>

Call (805) 388-1188

Product Number: 340-4745     Price: $57.78
Pedal Accessories - Product Summary
Pedal Type
Type: Material: Finish:
Pedal Accessories Steel None
Pedal Description
Mount Loc: Mount Facing: Balance Bar: Mount Length (in):
Ratio / Length
Pedal 1 Ratio: Pedal 2 Ratio: Pedal 1 Length (in): Pedal 2 Length (in):
Desc 1: Desc 2:
Cautionary Info
Product Documents
Product Data Sheets
Click To View

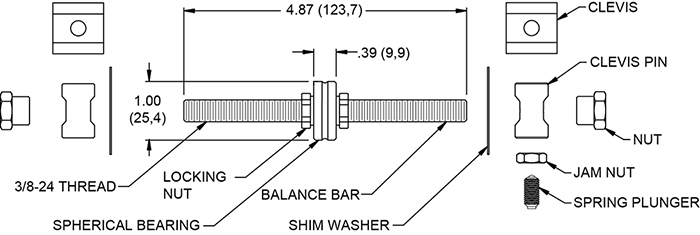

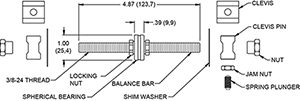

Pedal Dimensions

zoom image
Additional Pedal Dimensions
Mount Length (in):
Pedal 1 Length (in):
Pedal 2 Length (in):
Additional Notes:
