Hat Mount Hubs
Hubs Category
Search Hubs Hub - Hat Mount
  Select from the following options to display a list of Hubs matching your search criteria:
  Wheel Bolt Circle: MFG Bearing Set #: Bearing O.D. Length (M):


           Search Results: Hubs
   Sort Results List By:
Wide 5 - Starlite 55
Wheel Bolt Circle:  5 x 10.25 ;  Mount Type: Direct  Bearing O.D. Length (M):  4.6  Outer Bearing I.D.:  1.813  Inner Bearing I.D.:  2  Material:  Aluminum  Finish:  Black E-Coat
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

INSTALLATION NOTE:
Hub contains drilled & lightened wheel studs. Use with caution. Check for legality with your sanctio
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Wide 5 Spindle 270-9498 370-0314 370-0431 2 N-A 370-0315 370-0432 1.813 N-A $133.43
Call (805) 388-1188
Wide 5 - Starlite 55
Wheel Bolt Circle:  5 x 10.25 ;  Mount Type: Direct  Bearing O.D. Length (M):  4.6  Outer Bearing I.D.:  1.813  Inner Bearing I.D.:  2  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

INSTALLATION NOTE:

Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Wide 5 Spindle 270-9498 370-0314 370-0431 2 N-A 370-0315 370-0432 1.813 N-A $109.43
Call (805) 388-1188
Wide 5 - Starlite 55
Wheel Bolt Circle:  5 x 10.25 ;  Mount Type: Direct  Bearing O.D. Length (M):  4.6  Outer Bearing I.D.:  1.813  Inner Bearing I.D.:  2  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

INSTALLATION NOTE:

Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Wide 5 Spindle 270-6913 370-0314 370-0431 2 N-A 370-0315 370-0432 1.813 N-A $124.43
Call (805) 388-1188

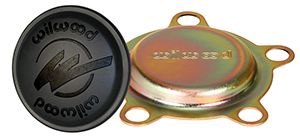

Starlite 55 Front Dust Cap - Press-in
Wheel Bolt Circle:  ;  Mount Type:   Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Nylon  Finish:  Black
Starlite 55 Front Dust Cap - Press-in

Starlite 55 Front Dust Cap - Press-in zoom image
 Starlite 55 Front Dust Cap - Press-in Drawing

Starlite 55 Front Dust Cap - Press-in Drawing
Starlite 55 Front Dust Cap - Press-in Side View Drawing

Starlite 55 Front Dust Cap - Press-in Side View Drawing zoom image

Starlite 55 Front Dust Cap - Press-in Description

Snap-Caps are manufactured from a high strength, high temperature fiber reinforced composite material that is extremely lightweight. A machined groove inside the hub snout locks the cap in place. A high temperature o-ring provides a positive seal to keep

INSTALLATION NOTE:

Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Starlite 55 Hub $17.22
Call (805) 388-1188
Hub - Solid Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Direct / Adapter  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.866  Inner Bearing I.D.:  1.378  Material:  Aluminum  Finish:  Bare
Hub - Solid Rotor Offset

Hub - Solid Rotor Offset zoom image
 Hub - Solid Rotor Offset Drawing

Hub - Solid Rotor Offset Drawing zoom image
 Hub - Solid Rotor Offset Side View Drawing

Hub - Solid Rotor Offset Side View Drawing zoom image

Hub - Solid Rotor Offset Description

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 4.75" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Pinto / Mustang II 270-2158 370-0883 370-0884 1.378 A13 370-0881 370-0882 0.866 A12 $131.70
Call (805) 388-1188

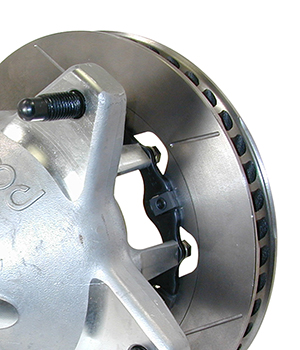

Wide 5 - Starlite 55 - Dynamic
Wheel Bolt Circle:  5 x 10.25 ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):  4.6  Outer Bearing I.D.:  1.813  Inner Bearing I.D.:  2  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55 - Dynamic

Wide 5 - Starlite 55 - Dynamic zoom image
 Wide 5 - Starlite 55 - Dynamic Drawing

Wide 5 - Starlite 55 - Dynamic Drawing zoom image
 Wide 5 - Starlite 55 - Dynamic Side View Drawing

Wide 5 - Starlite 55 - Dynamic Side View Drawing zoom image

Wide 5 - Starlite 55 - Dynamic Description

Starlite 55 Dynamic Mount hubs are specifically designed for use with dynamic mount rotor adapters. Dynamic mounting benefits include: moderating heat related distortion and run out of rotors in high temperature asphalt racing. Based on the lightweight 5-bolt drive flange design or lighter snap-cap fronts, Starlite hubs demonstrate superior strength from permanent mold, high-density aircraft aluminum construction.

INSTALLATION NOTE:

Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Wide 5 Spindle 270-6913 370-0314 370-0431 2 N-A 370-0315 370-0432 1.813 N-A $132.45
Call (805) 388-1188
Hub - Solid Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Direct / Adapter  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.844  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Bare
Hub - Solid Rotor Offset

Hub - Solid Rotor Offset zoom image
 Hub - Solid Rotor Offset Drawing

Hub - Solid Rotor Offset Drawing zoom image
 Hub - Solid Rotor Offset Side View Drawing

Hub - Solid Rotor Offset Side View Drawing zoom image

Hub - Solid Rotor Offset Description

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 4.75" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
80-87 GM G-Body 270-2158 370-0878 370-0879 1.25 A6 370-0881 370-0933 0.844 A34 $131.70
Call (805) 388-1188

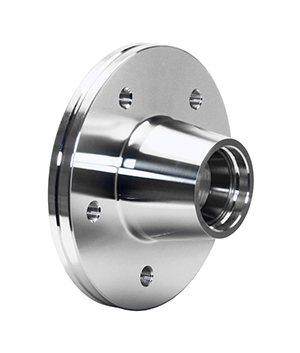

Hub - Hat Mount
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Hat  Bearing O.D. Length (M):  3.02  Outer Bearing I.D.:  0.866  Inner Bearing I.D.:  1.378  Material:  Aluminum  Finish:  Bare
Hub - Hat Mount

Hub - Hat Mount zoom image
 Hub - Hat Mount Drawing

Hub - Hat Mount Drawing zoom image
 Hub - Hat Mount Side View Drawing

Hub - Hat Mount Side View Drawing zoom image

Hub - Hat Mount Description

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats for Hubs are either single or double drilled from 5 on 4.50" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub contains 3 qty 1/4-20 holes for hat retention. Use bolt kit 230-7032 to retain hats drilled for
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Granada 270-2158 370-0883 370-0884 1.378 A13 370-0881 370-0882 0.866 A12 $157.50
Call (805) 388-1188
Hub - Hat Mount
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Hat  Bearing O.D. Length (M):  2.97  Outer Bearing I.D.:  0.75  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Bare
Hub - Hat Mount

Hub - Hat Mount zoom image
 Hub - Hat Mount Drawing

Hub - Hat Mount Drawing zoom image
 Hub - Hat Mount Side View Drawing

Hub - Hat Mount Side View Drawing zoom image

Hub - Hat Mount Description

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats for Hubs are either single or double drilled from 5 on 4.50" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub contains 3 qty 1/4-20 holes for hat retention. Use bolt kit 230-7032 to retain hats drilled for
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
55-57 Chevy 270-2158 370-0878 370-0879 1.25 A6 370-0876 370-0877 0.75 A2 $148.50
Call (805) 388-1188

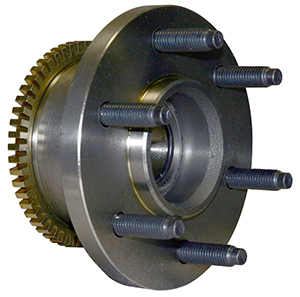

Truck
Wheel Bolt Circle:  6 x 5.32 ;  Mount Type: Hat  Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Steel  Finish:  Bare
Truck

Truck zoom image
 Truck Drawing

Truck Drawing
Truck Side View Drawing

Truck Side View Drawing zoom image

Truck Description

Wilwood's heavy duty truck hubs are a direct replacement for the OE application. Hubs come ready to install and include studs, bearing and retaining ring.

INSTALLATION NOTE:

Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
2004-UP Ford F150 $323.93
Call (805) 388-1188
Starlite 55 Front Dust Cap - Bolt-on
Wheel Bolt Circle:  ;  Mount Type:   Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Steel  Finish:  Plated
Starlite 55 Front Dust Cap - Bolt-on

Starlite 55 Front Dust Cap - Bolt-on zoom image
 Starlite 55 Front Dust Cap - Bolt-on Drawing

Starlite 55 Front Dust Cap - Bolt-on Drawing
Starlite 55 Front Dust Cap - Bolt-on Side View Drawing

Starlite 55 Front Dust Cap - Bolt-on Side View Drawing zoom image

Starlite 55 Front Dust Cap - Bolt-on Description

The Bolt-on Starlite 55 Dust Cap is deesigned to allow the rear hubs to be used on a front hub application. Punched from .045” thick steel plate for strength and durability. This cap won’t distort, crack or leak after repeated use and is cad plated for corrosion resistance.

INSTALLATION NOTE:
Bolt-on dust cap for Starlight 55 Rear Hubs, allows use as front hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Starlite 55 Hub $9.66
Call (805) 388-1188
Hub - Hat Mount
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Hat  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.866  Inner Bearing I.D.:  1.378  Material:  Aluminum  Finish:  Bare
Hub - Hat Mount

Hub - Hat Mount zoom image
 Hub - Hat Mount Drawing

Hub - Hat Mount Drawing zoom image
 Hub - Hat Mount Side View Drawing

Hub - Hat Mount Side View Drawing zoom image

Hub - Hat Mount Description

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats for Hubs are either single or double drilled from 5 on 4.50" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub contains 3 qty 1/4-20 holes for hat retention. Use bolt kit 230-7032 to retain hats drilled for
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Pinto / Mustang II 270-2158 370-0883 370-0884 1.378 A13 370-0881 370-0882 0.866 A12 $134.93
Call (805) 388-1188
Hub - Vented Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Adapter  Bearing O.D. Length (M):  4.12  Outer Bearing I.D.:  0.75  Inner Bearing I.D.:  1.19  Material:  Aluminum  Finish:  Bare
Hub - Vented Rotor Offset

Hub - Vented Rotor Offset zoom image
 Hub - Vented Rotor Offset Drawing

Hub - Vented Rotor Offset Drawing zoom image
 Hub - Vented Rotor Offset Side View Drawing

Hub - Vented Rotor Offset Side View Drawing zoom image

Hub - Vented Rotor Offset Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Early Ford 270-2158 370-1560 370-1561 1.19 N-A 370-0876 370-0877 0.75 A2 $131.70
Call (805) 388-1188
Hub - Solid Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Direct / Adapter  Bearing O.D. Length (M):  3.38  Outer Bearing I.D.:  0.688  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Bare
Hub - Solid Rotor Offset

Hub - Solid Rotor Offset zoom image
 Hub - Solid Rotor Offset Drawing

Hub - Solid Rotor Offset Drawing zoom image
 Hub - Solid Rotor Offset Side View Drawing

Hub - Solid Rotor Offset Side View Drawing zoom image

Hub - Solid Rotor Offset Description

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 4.75" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Vega 270-2158 370-0878 370-0879 1.25 A6 370-1238 370-1239 0.688 A1 $155.46
Call (805) 388-1188
Hub - Solid Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Direct / Adapter  Bearing O.D. Length (M):  2.93  Outer Bearing I.D.:  0.866  Inner Bearing I.D.:  1.38  Material:  Aluminum  Finish:  Bare
Hub - Solid Rotor Offset

Hub - Solid Rotor Offset zoom image
 Hub - Solid Rotor Offset Drawing

Hub - Solid Rotor Offset Drawing zoom image
 Hub - Solid Rotor Offset Side View Drawing

Hub - Solid Rotor Offset Side View Drawing zoom image

Hub - Solid Rotor Offset Description

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 4.75" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
87-93 Mustang 270-2158 370-2571 370-2609 1.38 A5 370-0881 370-0882 0.866 A12 $131.70
Call (805) 388-1188
Wide 5 - Starlite 5 - Dynamic
Wheel Bolt Circle:  5 x 10.25 ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):  4.6  Outer Bearing I.D.:  1.813  Inner Bearing I.D.:  2  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 5 - Dynamic

Wide 5 - Starlite 5 - Dynamic zoom image
 Wide 5 - Starlite 5 - Dynamic Drawing

Wide 5 - Starlite 5 - Dynamic Drawing zoom image
 Wide 5 - Starlite 5 - Dynamic Side View Drawing

Wide 5 - Starlite 5 - Dynamic Side View Drawing zoom image

Wide 5 - Starlite 5 - Dynamic Description

Starlite 5 Dynamic Mount hubs are specifically designed for use with dynamic mount rotor adapters. Dynamic mounting benefits include: moderating heat related distortion and run out of rotors in high temperature asphalt racing. Based on the traditional eight-bolt drive flange design, Starlite hubs demonstrate superior strength from permanent mold, high-density aircraft aluminum construction.

INSTALLATION NOTE:

Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Wide 5 Spindle 270-0374 370-0314 370-0431 2 N-A 370-0315 370-0432 1.813 N-A $115.95
Call (805) 388-1188
Hub - Solid Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Direct / Adapter  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.75  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Bare
Hub - Solid Rotor Offset

Hub - Solid Rotor Offset zoom image
 Hub - Solid Rotor Offset Drawing

Hub - Solid Rotor Offset Drawing zoom image
 Hub - Solid Rotor Offset Side View Drawing

Hub - Solid Rotor Offset Side View Drawing zoom image

Hub - Solid Rotor Offset Description

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 4.75" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
64-74 Chevy 270-2158 370-0878 370-0879 1.25 A6 370-0876 370-0877 0.75 A2 $131.70
Call (805) 388-1188
Hub - Vented Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Adapter  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.866  Inner Bearing I.D.:  1.378  Material:  Aluminum  Finish:  Bare
Hub - Vented Rotor Offset

Hub - Vented Rotor Offset zoom image
 Hub - Vented Rotor Offset Drawing

Hub - Vented Rotor Offset Drawing zoom image
 Hub - Vented Rotor Offset Side View Drawing

Hub - Vented Rotor Offset Side View Drawing zoom image

Hub - Vented Rotor Offset Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Pinto / Mustang II 270-2158 370-0883 370-0884 1.378 A13 370-0881 370-0882 0.866 A12 $131.70
Call (805) 388-1188
Wide 5 - Starlite 55 - Dynamic
Wheel Bolt Circle:  5 x 10.25 ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):  4.6  Outer Bearing I.D.:  1.813  Inner Bearing I.D.:  2  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55 - Dynamic

Wide 5 - Starlite 55 - Dynamic zoom image
 Wide 5 - Starlite 55 - Dynamic Drawing

Wide 5 - Starlite 55 - Dynamic Drawing zoom image
 Wide 5 - Starlite 55 - Dynamic Side View Drawing

Wide 5 - Starlite 55 - Dynamic Side View Drawing zoom image

Wide 5 - Starlite 55 - Dynamic Description

Starlite 55 Dynamic Mount hubs are specifically designed for use with dynamic mount rotor adapters. Dynamic mounting benefits include: moderating heat related distortion and run out of rotors in high temperature asphalt racing. Based on the lightweight 5-bolt drive flange design or lighter snap-cap fronts, Starlite hubs demonstrate superior strength from permanent mold, high-density aircraft aluminum construction.

INSTALLATION NOTE:
Hub contains drilled & lightened wheel studs. Use with caution. Check for legality with your sanctio
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Wide 5 Spindle 270-9498 370-0314 370-0431 2 N-A 370-0315 370-0432 1.813 N-A $123.45
Call (805) 388-1188
Hub - Vented Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Adapter  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.844  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Bare
Hub - Vented Rotor Offset

Hub - Vented Rotor Offset zoom image
 Hub - Vented Rotor Offset Drawing

Hub - Vented Rotor Offset Drawing zoom image
 Hub - Vented Rotor Offset Side View Drawing

Hub - Vented Rotor Offset Side View Drawing zoom image

Hub - Vented Rotor Offset Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
80-87 GM G-Body 270-2158 370-0878 370-0879 1.25 A6 370-0881 370-0933 0.844 A34 $134.93
Call (805) 388-1188
Wide 5 - Starlite 55
Wheel Bolt Circle:  5 x 10.25 ;  Mount Type: Direct  Bearing O.D. Length (M):  4.6  Outer Bearing I.D.:  1.813  Inner Bearing I.D.:  2  Material:  Aluminum  Finish:  Black E-Coat
Wide 5 - Starlite 55

Wide 5 - Starlite 55 zoom image
 Wide 5 - Starlite 55 Drawing

Wide 5 - Starlite 55 Drawing zoom image
 Wide 5 - Starlite 55 Side View Drawing

Wide 5 - Starlite 55 Side View Drawing zoom image

Wide 5 - Starlite 55 Description

Starlite "55" hubs provide the superior strength of permanent mold, high-density aircraft aluminum at weights comparable to the much higher priced magnesium hub assemblies. The Starlite "55" features the strength of our traditional Starlite hub, but redesigned to eliminate unnecessary weight in the hub and its related components. 5 bolt Drive flanges and snap-cap front hubs pare the 'loaded' weight of these hubs to being the lightest available.

INSTALLATION NOTE:

Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Wide 5 Spindle 270-9498 370-0314 370-0431 2 N-A 370-0315 370-0432 1.813 N-A $125.93
Call (805) 388-1188
Hub - Vented Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Adapter  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.844  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Polished
Hub - Vented Rotor Offset

Hub - Vented Rotor Offset zoom image
 Hub - Vented Rotor Offset Drawing

Hub - Vented Rotor Offset Drawing zoom image
 Hub - Vented Rotor Offset Side View Drawing

Hub - Vented Rotor Offset Side View Drawing zoom image

Hub - Vented Rotor Offset Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
80-87 GM G-Body 270-2158 370-0878 370-0879 1.25 A6 370-0881 370-0933 0.844 A34 $157.50
Call (805) 388-1188
Starlite 55 Drive Flange
Wheel Bolt Circle:  ;  Mount Type:   Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Aluminum  Finish:  Black Anodize
Starlite 55 Drive Flange

Starlite 55 Drive Flange zoom image
 Starlite 55 Drive Flange Drawing

Starlite 55 Drive Flange Drawing
Starlite 55 Drive Flange Side View Drawing

Starlite 55 Drive Flange Side View Drawing zoom image

Starlite 55 Drive Flange Description

Five-bolt drive flanges have a long standing reputation for durability. The five bolt drive flanges are machined from 7075-T6 alloy. Each five bolt drive flange kit includes the end plate with screws, and the drive bolts with lock washers.

INSTALLATION NOTE:
Standard weight Starlight 55 Drive Flange, 5 bolt
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Starlite 55 Hub $59.99
Call (805) 388-1188
Hub - Hat Mount
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Hat  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.75  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Bare
Hub - Hat Mount

Hub - Hat Mount zoom image
 Hub - Hat Mount Drawing

Hub - Hat Mount Drawing zoom image
 Hub - Hat Mount Side View Drawing

Hub - Hat Mount Side View Drawing zoom image

Hub - Hat Mount Description

Forged Billet Hat Mount Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with used with aluminum mounting hats for Hubs are either single or double drilled from 5 on 4.50" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub contains 3 qty 1/4-20 holes for hat retention. Use bolt kit 230-7032 to retain hats drilled for
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
64-74 Chevy 270-2158 370-0878 370-0879 1.25 A6 370-0876 370-0877 0.75 A2 $134.93
Call (805) 388-1188
Hub - Vented Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Adapter  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.844  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Bare
Hub - Vented Rotor Offset

Hub - Vented Rotor Offset zoom image
 Hub - Vented Rotor Offset Drawing

Hub - Vented Rotor Offset Drawing zoom image
 Hub - Vented Rotor Offset Side View Drawing

Hub - Vented Rotor Offset Side View Drawing zoom image

Hub - Vented Rotor Offset Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
79-81 Camaro 270-2158 370-0878 370-0879 1.25 A6 370-0881 370-0933 0.844 A34 $134.93
Call (805) 388-1188
Hub - Solid Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Direct / Adapter  Bearing O.D. Length (M):  4.12  Outer Bearing I.D.:  0.75  Inner Bearing I.D.:  1.19  Material:  Aluminum  Finish:  Bare
Hub - Solid Rotor Offset

Hub - Solid Rotor Offset zoom image
 Hub - Solid Rotor Offset Drawing

Hub - Solid Rotor Offset Drawing zoom image
 Hub - Solid Rotor Offset Side View Drawing

Hub - Solid Rotor Offset Side View Drawing zoom image

Hub - Solid Rotor Offset Description

Forged Billet Aluminum Solid Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 4.75" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Early Ford 270-2158 370-1560 370-1561 1.19 N-A 370-0876 370-0877 0.75 A2 $131.70
Call (805) 388-1188
Wide 5 - Starlite 55 - Dynamic
Wheel Bolt Circle:  5 x 10.25 ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):  4.6  Outer Bearing I.D.:  1.813  Inner Bearing I.D.:  2  Material:  Aluminum  Finish:  Bare
Wide 5 - Starlite 55 - Dynamic

Wide 5 - Starlite 55 - Dynamic zoom image
 Wide 5 - Starlite 55 - Dynamic Drawing

Wide 5 - Starlite 55 - Dynamic Drawing zoom image
 Wide 5 - Starlite 55 - Dynamic Side View Drawing

Wide 5 - Starlite 55 - Dynamic Side View Drawing zoom image

Wide 5 - Starlite 55 - Dynamic Description

Starlite 55 Dynamic Mount hubs are specifically designed for use with dynamic mount rotor adapters. Dynamic mounting benefits include: moderating heat related distortion and run out of rotors in high temperature asphalt racing. Based on the lightweight 5-bolt drive flange design or lighter snap-cap fronts, Starlite hubs demonstrate superior strength from permanent mold, high-density aircraft aluminum construction.

INSTALLATION NOTE:
Hub contains drilled & lightened wheel studs. Use with caution. Check for legality with your sanctio
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Wide 5 Spindle 270-6913 370-0314 370-0431 2 N-A 370-0315 370-0432 1.813 N-A $139.95
Call (805) 388-1188
Dust Cap
Wheel Bolt Circle:  ;  Mount Type:   Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Aluminum  Finish:  Bare
Dust Cap

Dust Cap zoom image
 Dust Cap Drawing

Dust Cap Drawing
Dust Cap Side View Drawing

Dust Cap Side View Drawing zoom image

Dust Cap Description

These screw-in dust caps with the Wilwood logo fit perfectly in our forged billet aluminum hubs. Supplied with sealing / tensioning o-ring to keep them from unscrewing.

INSTALLATION NOTE:

Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Pro Street Hub Cap $37.43
Call (805) 388-1188
Hub - Vented Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Adapter  Bearing O.D. Length (M):  3.15  Outer Bearing I.D.:  0.75  Inner Bearing I.D.:  1.25  Material:  Aluminum  Finish:  Bare
Hub - Vented Rotor Offset

Hub - Vented Rotor Offset zoom image
 Hub - Vented Rotor Offset Drawing

Hub - Vented Rotor Offset Drawing zoom image
 Hub - Vented Rotor Offset Side View Drawing

Hub - Vented Rotor Offset Side View Drawing zoom image

Hub - Vented Rotor Offset Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
65-69 Mustang 270-2158 370-0878 370-0879 1.25 A6 370-0876 370-0877 0.75 A2 $134.93
Call (805) 388-1188
Hub - Vented Rotor Offset
Wheel Bolt Circle:  5 x 4.50 ; 5 x 4.75  Mount Type: Adapter  Bearing O.D. Length (M):  3.02  Outer Bearing I.D.:  0.866  Inner Bearing I.D.:  1.378  Material:  Aluminum  Finish:  Bare
Hub - Vented Rotor Offset

Hub - Vented Rotor Offset zoom image
 Hub - Vented Rotor Offset Drawing

Hub - Vented Rotor Offset Drawing zoom image
 Hub - Vented Rotor Offset Side View Drawing

Hub - Vented Rotor Offset Side View Drawing zoom image

Hub - Vented Rotor Offset Description

Forged Billet Aluminum Vented Rotor Offset Hubs are made from premium grade alloy billets are forged into shape under high heat and pressure, then CNC machined for precise fit on each spindle application. Intended for use with intermediate adapter plates, but can also be used with aluminum mounting hats for custom applications. Hubs are either single or double drilled from 5 on 4.00" up 5 on 5.00" wheel lug patterns depending on part number. Hubs include bearing races and screw-on aluminum caps.

INSTALLATION NOTE:
Hub is intended for use with rotor mounting adapters. Can also be used as hat mount hub.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Granada 270-2158 370-0883 370-0884 1.378 A13 370-0881 370-0882 0.866 A12 $157.50
Call (805) 388-1188
Sprint Inboard Hub Kit - Dynamic
Wheel Bolt Circle:  Splined ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Aluminum  Finish:  Black Anodize
Sprint Inboard Hub Kit - Dynamic

Sprint Inboard Hub Kit - Dynamic
Sprint Inboard Hub Kit - Dynamic Drawing

Sprint Inboard Hub Kit - Dynamic Drawing
Sprint Inboard Hub Kit - Dynamic Side View Drawing

Sprint Inboard Hub Kit - Dynamic Side View Drawing zoom image

Sprint Inboard Hub Kit - Dynamic Description

Wilwood's Gen II Sprint inboard hub & adapter kit provides a basis to provide dynamic rotor mounting of either standard 6 x 5.50” or 8 x 7.00" bolt pattern rotors. Hub & adapter kits contain: rotor adapter and dynamic rotor mounting bolt kit. Manufactured from high strength aluminum, it provides a lightweight and strong solution for rotor mounting. Gen II hubs offer improved clearance and easier install due to widening of the rotor adapter attachment bolt spacing. Also new high strength T-nuts and bolts round out this complete assembly.

INSTALLATION NOTE:
Sprint / Midget use only.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Sprint Inboard $318.60
Call (805) 388-1188
Midget Inboard Hub Kit - Dynamic
Wheel Bolt Circle:  Splined ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Aluminum  Finish:  Black Anodize
Midget Inboard Hub Kit - Dynamic

Midget Inboard Hub Kit - Dynamic
Midget Inboard Hub Kit - Dynamic Drawing

Midget Inboard Hub Kit - Dynamic Drawing
Midget Inboard Hub Kit - Dynamic Side View Drawing

Midget Inboard Hub Kit - Dynamic Side View Drawing zoom image

Midget Inboard Hub Kit - Dynamic Description

Wilwood's Gen II Midget inboard hub & adapter kit provides a basis to provide dynamic rotor mounting of standard 6 x 5.50” bolt pattern rotors. Hub & adapter kits contain: rotor adapter and dynamic rotor mounting bolt kit. Manufactured from high strength aluminum, it provides a lightweight and strong solution for rotor mounting. Gen II hubs offer improved clearance and easier install due to widening of the rotor adapter attachment bolt spacing. Also new high strength T-nuts and bolts round out this complete assembly.

INSTALLATION NOTE:
Sprint / Midget use only.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Midget Inboard $318.60
Call (805) 388-1188
Sprint Inboard Hub Kit - Dynamic
Wheel Bolt Circle:  Splined ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Aluminum  Finish:  Black Anodize
Sprint Inboard Hub Kit - Dynamic

Sprint Inboard Hub Kit - Dynamic
Sprint Inboard Hub Kit - Dynamic Drawing

Sprint Inboard Hub Kit - Dynamic Drawing
Sprint Inboard Hub Kit - Dynamic Side View Drawing

Sprint Inboard Hub Kit - Dynamic Side View Drawing zoom image

Sprint Inboard Hub Kit - Dynamic Description

Wilwood's Gen II Sprint inboard hub & adapter kit provides a basis to provide dynamic rotor mounting of either standard 6 x 5.50” or 8 x 7.00" bolt pattern rotors. Hub & adapter kits contain: rotor adapter and dynamic rotor mounting bolt kit. Manufactured from high strength aluminum, it provides a lightweight and strong solution for rotor mounting. Gen II hubs offer improved clearance and easier install due to widening of the rotor adapter attachment bolt spacing. Also new high strength T-nuts and bolts round out this complete assembly.

INSTALLATION NOTE:
Sprint / Midget use only.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Sprint Inboard $318.60
Call (805) 388-1188
Sprint Inboard Hub - Dynamic
Wheel Bolt Circle:  Splined ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Aluminum  Finish:  Black Anodize
Sprint Inboard Hub - Dynamic

Sprint Inboard Hub - Dynamic
Sprint Inboard Hub - Dynamic Drawing

Sprint Inboard Hub - Dynamic Drawing
Sprint Inboard Hub - Dynamic Side View Drawing

Sprint Inboard Hub - Dynamic Side View Drawing zoom image

Sprint Inboard Hub - Dynamic Description

Wilwood's Gen II Sprint inboard hub provides a basis to provide dynamic rotor mounting of standard GEN II rotor adapters. Manufactured from high strength aluminum, it provides a lightweight and strong solution for rotor adapter mounting. Gen II hubs offer improved clearance and easier install due to wider rotor adapter attachment bolt spacing.

INSTALLATION NOTE:
Sprint / Midget use only.
Hub Application Note: Inner Races & Bearings Outer Races & Bearings Ordering Information
  Info Common Application Note Dust Cap Inner Race Bearing Bearing I.D. MFG Set No. Outer Race Bearing Bearing I.D. MFG Set No. Price Product Number Purchase Information
Sprint Inboard $147.00
Call (805) 388-1188
Midget Inboard Hub - Dynamic
Wheel Bolt Circle:  Splined ;  Mount Type: Adapter-Dynamic  Bearing O.D. Length (M):   Outer Bearing I.D.:   Inner Bearing I.D.:   Material:  Aluminum  Finish:  Black Anodize
Midget Inboard Hub - Dynamic

Midget Inboard Hub - Dynamic
Midget Inboard Hub - Dynamic Drawing

Midget Inboard Hub - Dynamic Drawing
Midget Inboard Hub - Dynamic Side View Drawing

Midget Inboard Hub - Dynamic Side View Drawing zoom image

Midget Inboard Hub - Dynamic Description

Wilwood's Gen II Midget inboard hub provides a basis to provide dynamic rotor mounting of standard GEN II rotor adapters. Manufactured from high strength aluminum, it provides a lightweight and strong solution for rotor adapter mounting. Gen II hubs offer improved clearance and easier install due to wider rotor adapter attachment bolt spacing.

INSTALLATION NOTE:
Sprint / Midget use only.
