Forged Dynalite Dual Dynamic Rear Drag Brake Kit
Prod #: 140-11003-D
Price: $1,118.32

Rear Brake Kit - Rear Kit


Kit Contents

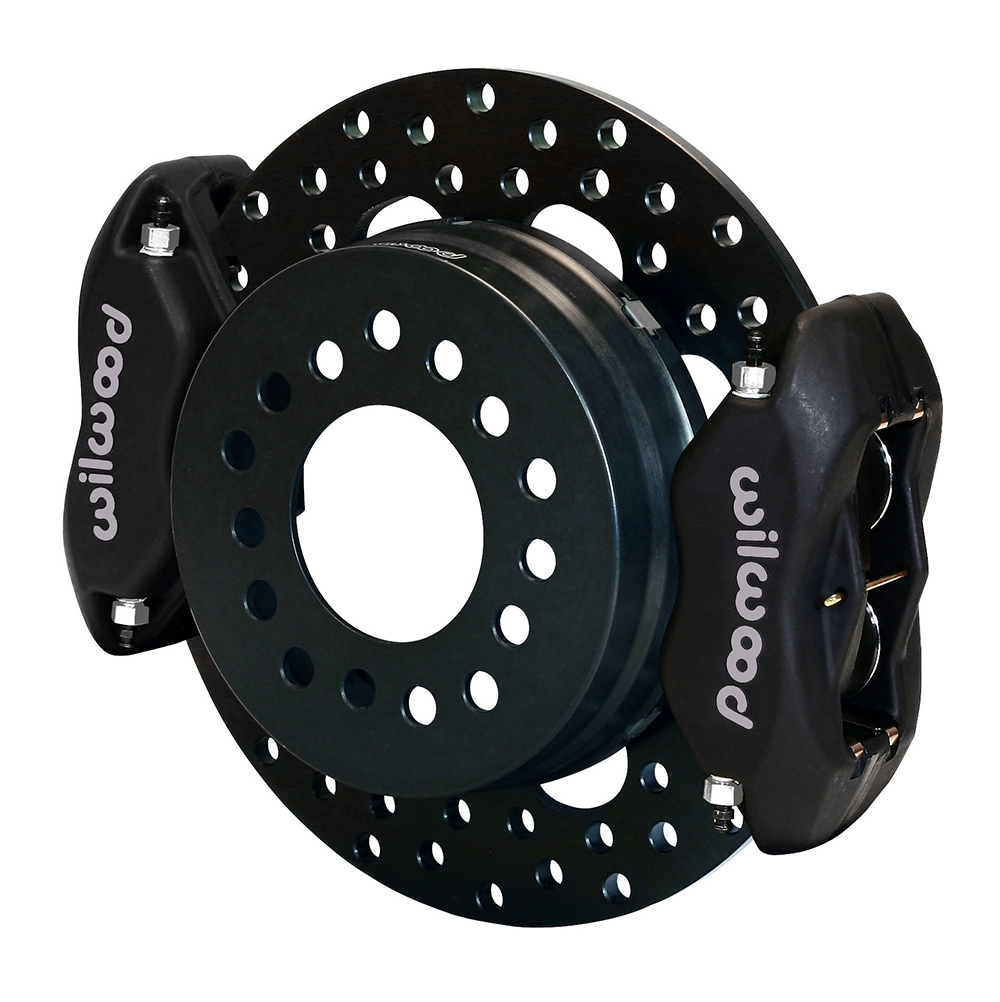

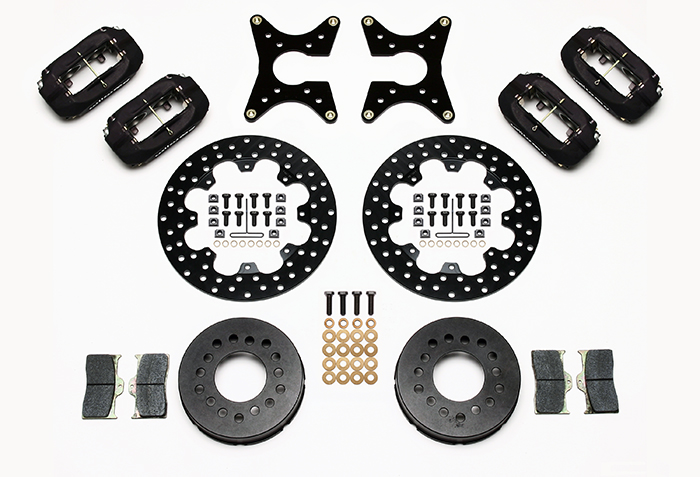

Wilwood Forged Dynalite Dual Dynamic Rear Drag Brake Kit Parts Laid Out - Type III Anodize Caliper - Drilled Rotor Wilwood Forged Dynalite Dual Dynamic Rear Drag Brake Kit Parts Laid Out - Type III Anodize Caliper - Drilled Rotor Zoom Image


View Custom Caliper Colors

Kit Summary
Rear End Axle: Big Ford New Style
Axle Offset: 2.50
Mount Type: Lug
Caliper Type: 8 - Type III Anodize
Rotor Diameter: 11.44
Min Wheel Diameter Req'd*: 15
*This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. Wheel Clearance Diagram
UPC Number
UPC 0

WARNING: Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Applicable to Brake Pads Only


Forged Dynalite Dual Dynamic Rear Drag Brake Kit

Dual caliper kits provide the highest degree of safety, reliability, and unsurpassed stopping power for sportsman category dragsters and other cars that rely on rear brakes only for stopping power. With two calipers at each wheel, the fluid circuits for each caliper pair can be fully isolated with dual mount or tandem outlet master cylinders. Isolating the fluid circuits prevents complete system failures in the case of a problem with any single caliper or line. Dynamic rotor mounting eliminates distortion caused by the different thermal expansion rates between the steel rotor plate and the aluminum hat.


Fitment & Installation Details

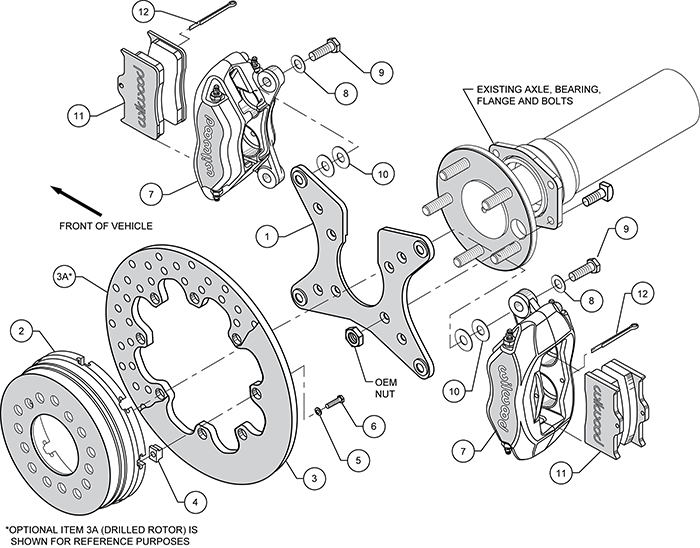

Forged Dynalite Dual Dynamic Rear Drag Brake Kit Assembly Schematic

Forged Dynalite Dual Dynamic Rear Drag Brake Kit Assembly Schematic Forged Dynalite Dual Dynamic Rear Drag Brake Kit Assembly Schematic Zoom Image

Rear End / Axle Housing Flange
Confirm The Configuration!

Big Ford New Style Flange
Confirm Offset Measurement!

Axle Flange Cross-Section
Search Rear Kits By Rear End/Axle Offset
caution AXLE OFFSET: 2.50
Check the diagram above and verify this measurement. This kit may be available in several different offsets.
Please call Wilwood with any questions: (805) 388-1188

Wheel Clearance Assembly Instructions

Wheel Clearance Diagram Wheel Clearance Diagram
Notes
1. Obsolete kit. Use substitute kit part #.




Compatible Vehicles for this Brake Kit

BRAKE KIT:   Forged Dynalite Dual Dynamic Rear Drag Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   Big Ford New Style - Rear Kit

AXLE OFFSET:   2.50

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offset.
