MasterCylinder No: 260-3376


Call (805) 388-1188
Combination Remote Master Cylinder
Prod #: 260-3376
Price: $111.73


Master Cylinder Dimensions
Bore Size 7/8"
Area (in²) 0.600
Stroke 1.20
Volume (cu in) 0.72
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Plastic
Finish Bare
Reservoir
Res Type Remote
Res Size (oz) 10.7 or 4.0
Res Size(cu in) 19.3 or 7.2
Rate
UPC Number
UPC 889545067491
Product Documents

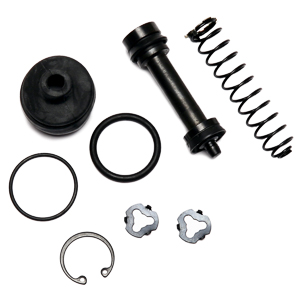

Rebuild Kit Product Data Sheet


260-3882 Click To Download

Combination Remote Master Cylinder - Product Summary

Combination Remote Master Cylinders offer six different bore sizes and four different installation configurations that are available with this master cylinder kit. Precision machined from high strength aluminum, this kit includes both small and large size reservoirs which can be mounted directly on the master cylinder or remotely mounted for more convenient service access. Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles.







Master Cylinder Dimensions

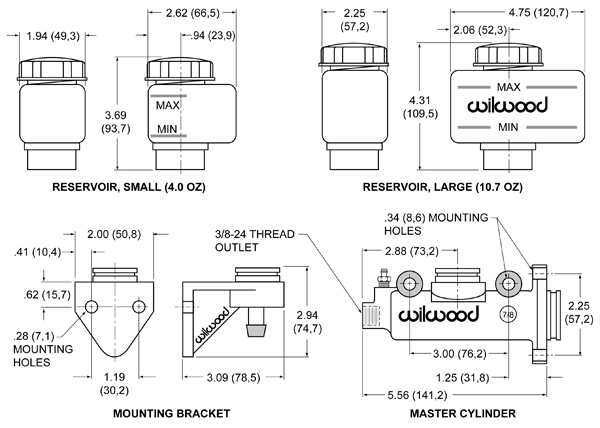

Wilwood Combination Remote Master Cylinder Drawing Wilwood Combination Remote Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 9.87"
Flange to End Length (in) 5.56"
Inlet Size (in) 1.35"
Inlet Fit (in) 3/8" Hose
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
