GS Compact Remote Master Cylinder
Prod #: 260-15090
Price: $81.06


Master Cylinder Dimensions
Bore Size .70
Area (in²) 0.380
Stroke 1.25
Volume (cu in) 0.48
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum
Finish Black E-coat
Reservoir
Res Type Remote
Res Size (oz)
Res Size(cu in)
Rate
UPC Number
UPC 889545074345
Product Documents
Rebuild Kit Product Data Sheet


260-14118 Click To Download

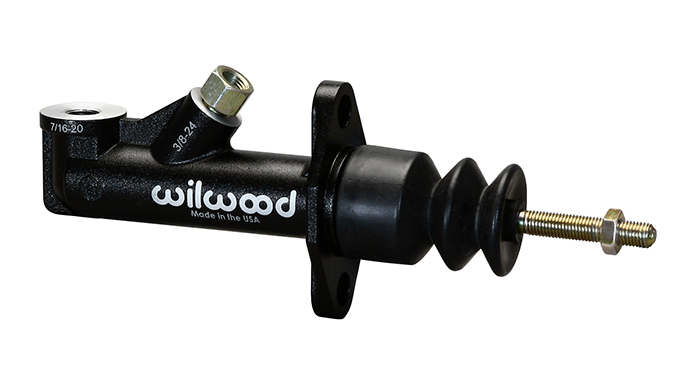

GS Compact Remote Master Cylinder - Product Summary

Wilwood’s new GS Compact Remote Master Cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish. Remote cylinders feature a standard 7/16-20 threaded inlet. Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release.







Master Cylinder Dimensions

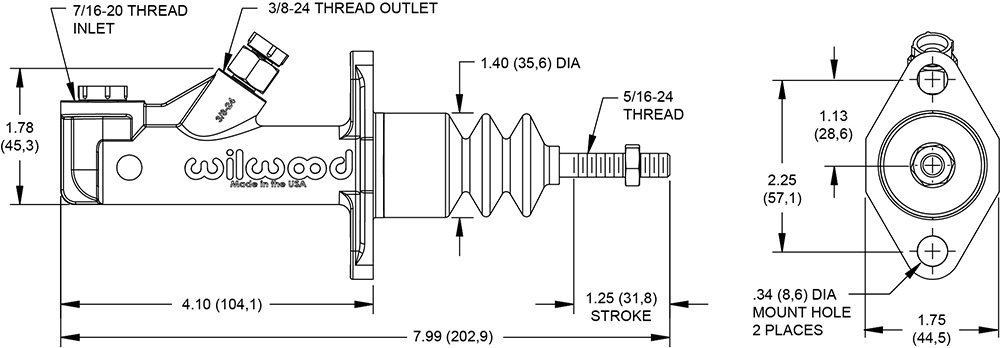

Wilwood GS Compact Remote Master Cylinder  Drawing Wilwood GS Compact Remote Master Cylinder Drawing Zoom Image
Additional Dimensions
Overall Length(in) 7.85"
Flange to End Length (in) 4.10
Inlet Size (in) 7/16-20
Inlet Fit (in)
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in) 3/8-24 IF Female
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes

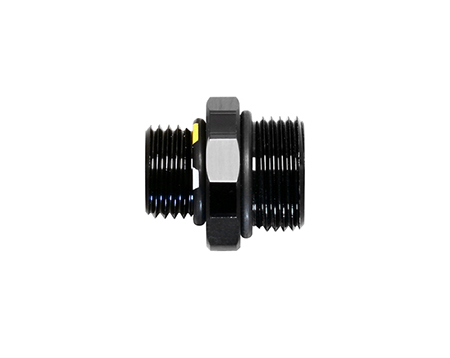

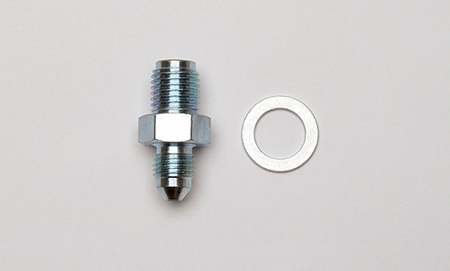

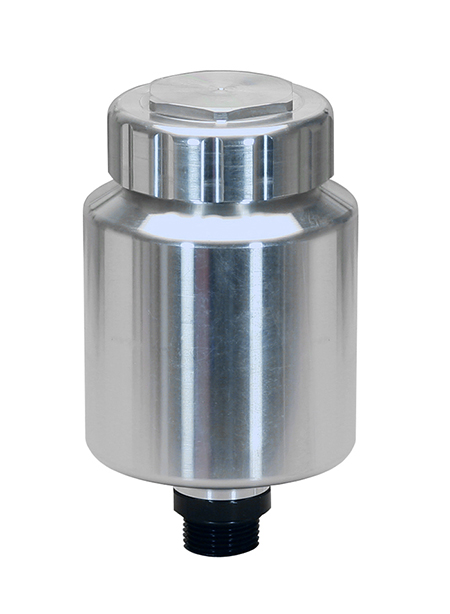

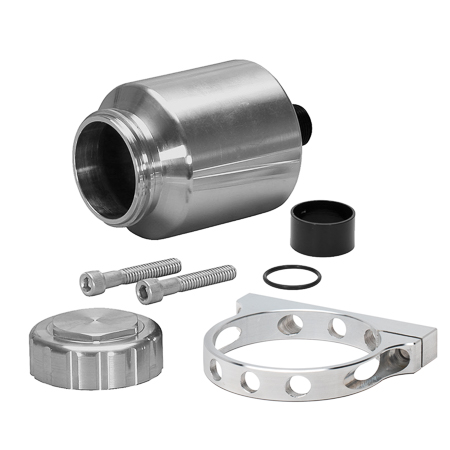

Products commonly used with this item:
