MasterCylinder No: 260-13621


Call (805) 388-1188

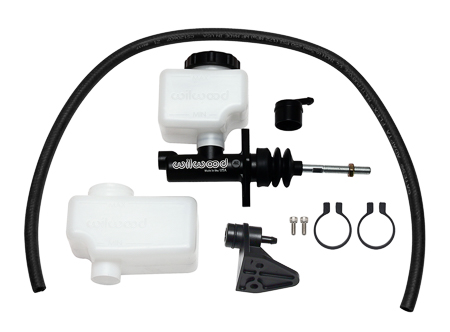

Compact Remote Flange Mt Master Cyl-Banjo Outlet
Prod #: 260-13621
Price: $108.06


Master Cylinder Dimensions
Bore Size 7/8"
Area (in²) 0.600
Stroke 1.12
Volume (cu in) 0.67
Master Cylinder Description
Type Single Outlet
Outlets 1
Material Aluminum / Plastic
Finish Black E-coat
Reservoir
Res Type Remote
Res Size (oz) 10.0 or 7.0
Res Size(cu in) 18.0 or 12.6
Rate
UPC Number
UPC 889545067330
Product Documents
Rebuild Kit Product Data Sheet


260-10516 Click To Download

Compact Remote Flange Mt Master Cyl-Banjo Outlet - Product Summary

‘This new version of Wilwood's Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra-short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 3/8-24 fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.







Master Cylinder Dimensions

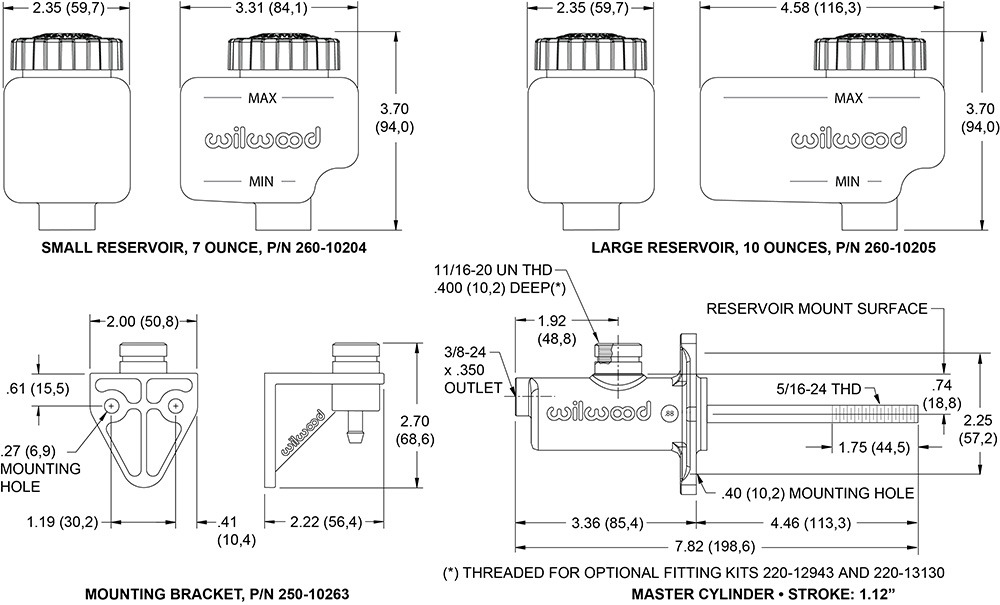

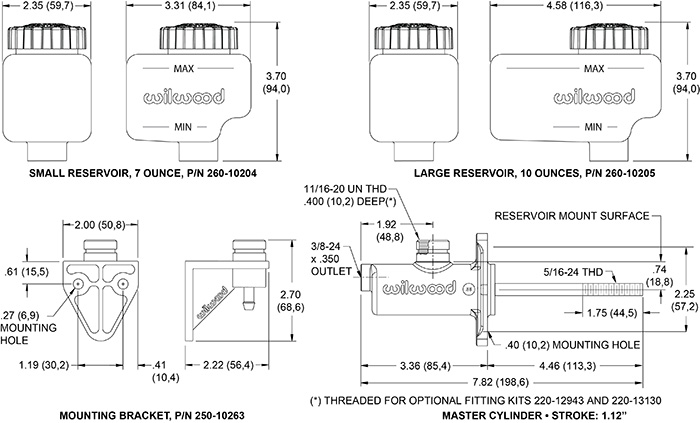

Wilwood Compact Remote Flange Mt Master Cyl-Banjo Outlet Drawing Wilwood Compact Remote Flange Mt Master Cyl-Banjo Outlet Drawing Zoom Image
Additional Dimensions
Overall Length(in) 7.80"
Flange to End Length (in) 3.37"
Inlet Size (in) .87" or 11/16-20
Inlet Fit (in) 1/4" Hose
Outlet Size 1 (in) 3/8-24
Outlet Fit 1 (in)
Outlet Size 2 (in)
Outlet Fit 2 (in)
Additional Notes
