Hub No: 270-2290r

Call (805) 388-1188

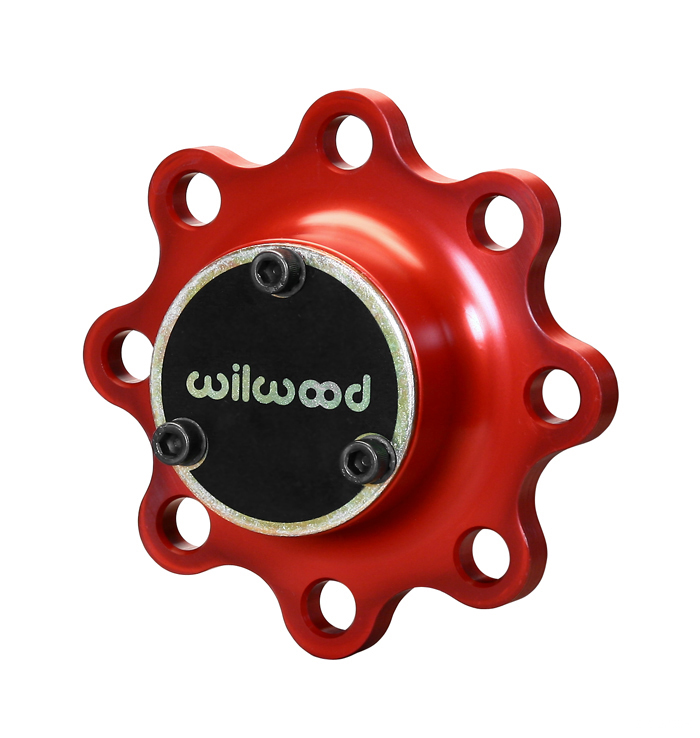

Starlite 5 Drive Flange
Prod #: 270-2290R
Price: $55.28



Starlite 5 Drive Flange - Product Description

Eight-bolt Drive Flanges have a long standing reputation for durability. The Drive Flanges are machined from 7075-T6 alloy and have 24 spline count. Each eight bolt drive flange kit includes the end plate with end plate screws. Drive flange bolt kits with 8 quantity, grade 8, 12 point lock wire drilled bolts and washers are available by purchasing part number 230-1378.


Material & Finish
Material Aluminum
Finish Red Anodize
Weight (lbs) 1
Rotor Compatibility
Rotor Mount Bolt Circle (in) 8 x 3.97
Rotor Offset Type
Rotor Offset Dimension (in)
Mount Type & Dimensions
Mount Type
Adapter Bolt Circle(s) 6-Bolt Type
8-Bolt Type
Hub Bolt Circles
Bolt Circle 1 (in)
Bolt Circle 2 (in)
Bolt Circle 3 (in)
Hub Stud Diameters
Stud Dia 1 (in)
Stud Dia 2 (in)
Stud Dia 3 (in)

Hub Characteristics

  • Starlite 5 Hub

  • Vehicle Applications
    Driving Environment Road Race
    Vehicle Sub-Types
    Application Duty Medium Duty
    Driving Environment Late Model Asphalt
    Vehicle Sub-Types ASA, All Pro, SW Tour, etc...
    Application Duty Heavy Duty
    Driving Environment Stock Cars
    Vehicle Sub-Types NASCAR, BGN, CTS, ARCA, etc...
    Application Duty Heavy Duty
    Driving Environment Late Model Dirt
    Vehicle Sub-Types STARS, UMP, IMCA, etc...
    Application Duty Heavy Duty
    Driving Environment Northeast Modified
    Vehicle Sub-Types Dirt or Pavement
    Application Duty Heavy Duty
    Driving Environment Off Road
    Vehicle Sub-Types
    Application Duty Heavy Duty

    Hub Dimensions

    Hub Dimensions (in)
    Dim A Dim N
    Dim D Dim P
    Dim H Dim Q
    Dim M

    Product Documents

    Product Line Sheet
    Product Sheet
    Dimensions Sheet

    Parts & Accessories

    6 Bolt Adapter:
    8 Bolt Adapter
    Inner Bearing
    Inner Bearing Set - BCA#:
    Outer Bearing
    Outer Bearing Set - BCA#:
    Inner Hub Bearing - Race
    Outer Hub Bearing - Race
