W4A Big Brake Rear Brake Kit For OE Parking Brake
|
Product Number:
140-11119-R
Price:
$1,954.39
|
|
|
|

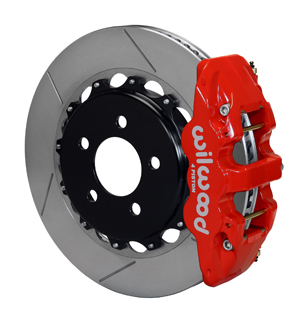

Wilwood W4A Big Brake Rear Brake Kit For OE Parking Brake - Red Powder Coat Caliper - GT Slotted Rotor
|
|
|
|
|
Kit Summary:
|
|
Rear End Axle:
|
|
OEM
|
|
Axle Offset:
|
|
0
|
|
|
Mount Type:
|
|
Radial
|
|
Caliper Type:
|
|
4 - Red Powder Coat
|
|
Rotor Diameter:
|
|
14
|
|
Wheel Diameter:
|
|
18
|
|
|
Price:
|
|
1954.39
|
|
W4A Big Brake Rear Brake Kit For OE Parking Brake
W4AR Big Brake rear axle kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
|
|
|
|
FITMENT AND INSTALLATION DETAILS
|
W4A Big Brake Rear Brake Kit For OE Parking Brake Assembly Schematic
W4A Big Brake Rear Brake Kit For OE Parking Brake Assembly Schematic
|
|
|
Rear End / Axle Housing Flange:
|
| Confirm The Configuration! |
Confirm Offset Measurement! |
|
 |
|
OEM Flange
|
AXLE FLANGE CROSS-SECTION
|
|
|
To Search Rear Kits Again By Rear End and Offset.
Click Here
|
|
|
THIS BRAKE KIT HAS AN AXLE OFFSET OF:
0
CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS
|
|
PLEASE CALL WITH ANY QUESTIONS:
(805) 388-1188
|
|
|
Note(s):
|
1. 14" Rotor
2. Kit will require aftermarket wheel spacers of 1/8th" (not included in kit) for rear kit installation with OE wheels.
|
Installation Instruction Sheet:
Click To Download
|
|
|
|
|
COMPATIBLE VEHICLES FOR THIS BRAKE KIT:
|
|
BRAKE KIT:
W4A Big Brake Rear Brake Kit For OE Parking Brake
|
REAR END:
OEM - Rear Kit
AXLE OFFSET:
0
|
This Brake Kit is Compatible with the Following Vehicle Makes:
Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.
|
|
|
FOR A COMPLETE LISTING INCLUDING ALL Makes, Models, and Years, Please Click Here! >>>
|
|
|
|
|
|
KIT COMPONENTS AND SPECIFICATIONS
Click on BLUE LINKS for Additional Details
|
|
Calipers:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
120-11660-RD
|
|
Right Hand - Part No:
|
120-11659-RD
|
|
Type:
|
W4A
|
|
Finish Color:
|
Red Powder Coat
|
|
Piston Count:
|
4
|
|
Piston Area (In²):
|
2.46
|
|
Piston Type:
|
Stainless
|
|
Mount Type:
|
Radial
|
|
Brake Pad Plate:
|
6617
|
|
Brake Pad Area (In²):
|
11
|
|
Brake Pad Volume (In³):
|
5.2
|
|
Pad Compound:
|
BP-10
|
W4A Caliper - Red Powder Coat
|
|
|
|
Rotors:
|
Info / Part Number:
|
|
Left Hand - Part No:
|
160-8403
|
|
Right Hand - Part No:
|
160-8402
|
|
Type:
|
GT 72 Curved Vane
|
|
Style:
|
GT Slotted
|
|
Surface Finish:
|
Plain
|
|
Material:
|
Spec-37 Iron
|
|
Outside Diameter (In.):
|
14
|
|
Width (In.):
|
1.1
|
|
Vane Count:
|
72 CV
|
|
Design Type:
|
GT
|
|
Bedded:
|
No
|
|
Dynamically Balanced:
|
Yes
|
GT 72 Curved Vane - Spec-37 Iron - Plain
|
|
|
|
Rotor Hats:
|
Info / Part Number:
|
|
Hat - Part No:
|
170-8169
|
|
Type:
|
Parking Brake Hat - Standard
|
|
Material:
|
Iron
|
|
Finish Color:
|
Black E-Coat
|
|
Hat Offset Dimension (In.):
|
0.67
|
|
Bolt Circle 1:
|
5 x 4.75
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
0.52
|
|
Stud Diameter - BC 2:
|
0
|
|
Stud Diameter - BC 3:
|
0
|
Parking Brake Hat - Standard - Iron - Black E-Coat
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Hub - Part No:
|
|
|
Type:
|
|
|
Material:
|
|
|
Finish Color:
|
|
|
Mount Style:
|
|
|
Bolt Circle 1:
|
|
|
Bolt Circle 2:
|
|
|
Bolt Circle 3:
|
|
|
Stud Diameter - BC 1:
|
|
|
Stud Diameter - BC 2:
|
|
|
Stud Diameter - BC 3:
|
|
|
|
|
|
PARTS & ACCESSORIES
|
|
Calipers:
|
Info / Part Number:
|
|
O-ring Kit:
|
130-2479
|
|
Replacement Dustboot:
|
|
|
Replacement Piston 1:
|
200-7514
|
|
Replacement Piston 2:
|
200-7514
|
|
Replacement Piston 3:
|
|
|
Replacement Piston 4:
|
|
|
CrossOver O-Ring Kit:
|
|
|
Crossover Tube:
|
190-11509
|
|
Self-Bleeder Tube:
|
|
|
Bridge Bolt Kit:
|
|
|
Wear Plate - Left Hand:
|
300-5876
|
|
Wear Plate - Right Hand:
|
300-5876
|
|
Pad Retainer:
|
180-9232
|
|
Bleed Screw Kit:
|
220-6069
|
|
|
|
Brake Line Kits:
|
Info / Part Number:
|
Rear Line Kit:
Rear Line Kit:
|
220-8177
220-9101
|
|
|
|
|
|
|
Hat:
|
Info / Part Number:
|
|
Bolt Kit:
|
230-8217
|
|
|
|
Hubs:
|
Info / Part Number:
|
|
Bolt Kit:
|
|
|
|
|
